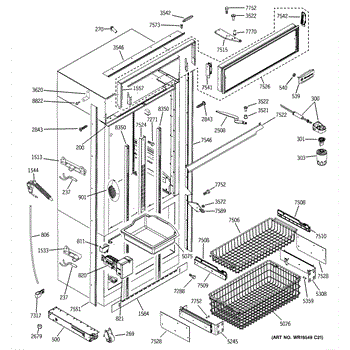

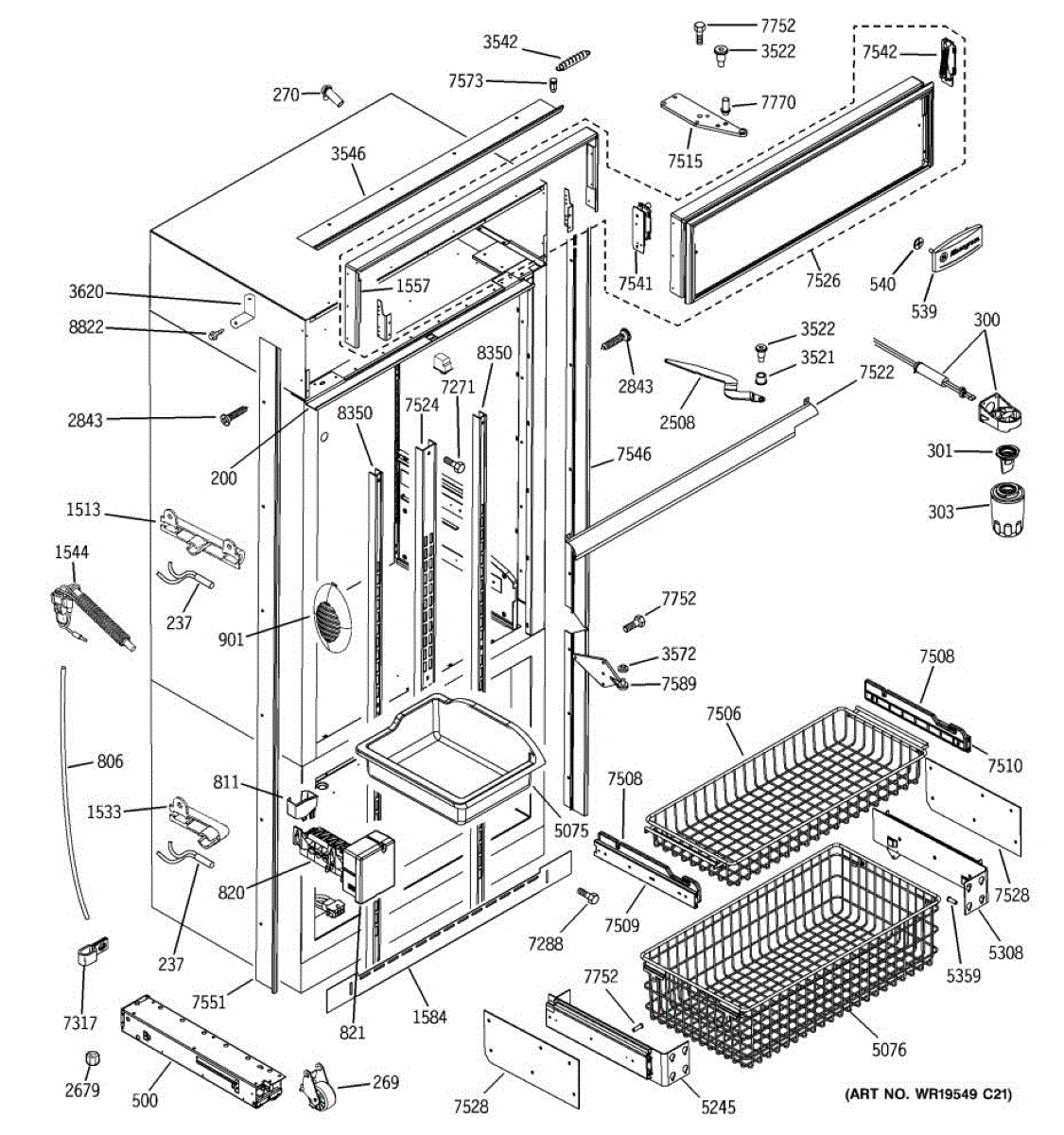

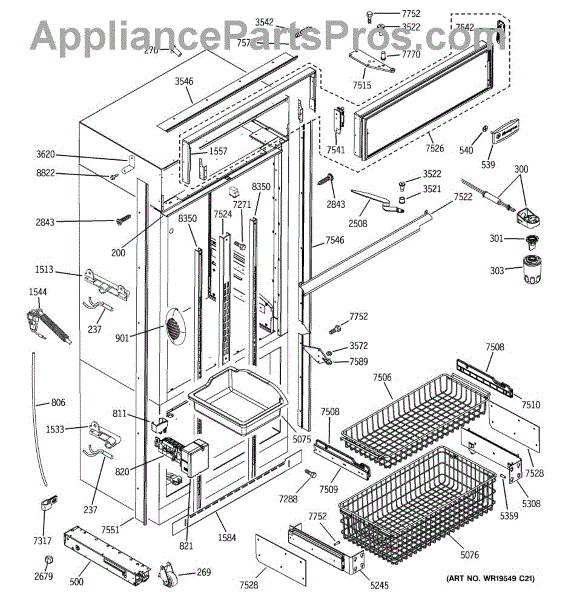

Parts for Ge ZICP360SRFSS: 03 - Freezer Section, Trim & Components Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This replacement key pivot is the small pivoting pin that supports the refrigerator/freezer door key or latch mechanism, restoring secure pivoting and smooth operation at the key location. A direct-fit OE-design replacement. What it does

• Provides the pivot point for the door/key mechanism so the key or latch rotates smoothly
• Restores proper alignment when the original pivot is worn, bent, or broken
• Helps prevent a loose or wobbly key or a latch that fails to engage
• Works as a simple, serviceable part of the door/lock assembly

• One key pivot

• Disconnect power to the appliance before beginning any repair
• Remove door trim or access panel as needed; keep small parts organized
• Replace the pivot and check movement; avoid forcing parts that do not align

The Ice Maker Fill Tube Grommet is an OEM part for GE refrigerators. This grommet creates a seal between the ice maker fill tube and the refrigerator, preventing leaks and ensuring that water is properly directed into the ice maker during the filling process.

Causes of a bad grommet can include regular wear and tear, damage from exposure to freezing and thawing cycles, or degradation from exposure to water and moisture.

Symptoms of a bad ice maker fill tube grommet include:

• Water leaks around the ice maker fill tube area
• Ice maker not producing ice properly
• Visible cracks or deformation in the grommet
• Water pooling inside or around the refrigerator

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This water filter manifold is the assembly the MWF cartridge locks into, sealing the connection and routing water through the filter to your dispenser and icemaker. Replacing a worn manifold can stop leaks and restore normal water flow. What it does:

• Holds and seals the MWF water filter cartridge
• Directs filtered water to the dispenser and icemaker
• Can help resolve leaks at the filter head, slow/low flow, or no water/ice
• Addresses issues where the filter won't seat or keeps popping out

• 1 water filter manifold assembly

• Unplug the refrigerator and shut off the water supply; dispense water to relieve pressure
• Keep a towel handy for residual water and take photos to note tube routing before removal
• Fully seat tubing and connections during reassembly; ensure the filter locks in securely
• Restore water and power, then check for leaks and run water to purge air

The MWF Bypass is an OEM replacement part for GE refrigerators. Located within the bottom freezer compartment, the metal water filter bypass fitted assembly is responsible for directing filtered or unfiltered water flow to the ice maker and dispenser.

Causes for replacement may include faulty diverter components obstructing water flow to selections or resulting in water leaks.

Symptoms of a problematic bypass unit include:

• Inability to select filtered or unfiltered water from the dispenser
• Ice maker failure due to lack of water or poor water quality
• Mineral deposits accumulating on internal parts from unfiltered water

This OEM replacement bypass is compatible with GE, Hotpoint, and Profile model refrigerators.

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This left hand base channel is the lower cabinet support piece that helps secure and align the appliance's front base. It restores proper fit and stability at the cabinet bottom after damage or wear. What it does

• Provides structural support for the appliance's lower front cabinet, keeping panels aligned.
• Replaces a bent, cracked or missing base channel that causes gaps or misalignment.
• Helps prevent rubbing or binding between the cabinet and kickplate or floor.
• Restores correct mounting points for adjacent trim and hardware.

• Intended for the left/front lower cabinet area; verify orientation before installing.
• Basic hand tools required; support the appliance while removing and installing to avoid strain.
• Disconnect power and water (if applicable) and follow all safety precautions before beginning work.
• If mounting hardware is damaged or missing, replace fasteners with OEM-equivalent parts.

This refrigerator water line is the plastic tubing that routes pressurized water through the appliance's water system. Replacing a cracked, brittle, or kinked line helps restore proper water flow and prevents leaks inside or around the unit.

• Carries water between the inlet valve and the refrigerator's water system components
• Helps maintain a sealed path for reliable flow to the dispenser and/or ice maker
• Replace if tubing is cracked, kinked, brittle, or leaking
• Common symptoms include puddling, dripping, reduced/No water at the dispenser, or ice maker not filling

• Disconnect power and shut off the water supply before servicing
• Note the original routing and clip locations; avoid sharp bends and kinks during installation
• Fully seat tubing into existing connectors/fittings on your model
• Turn water back on, check all connections for leaks, and purge air by dispensing water

This ice maker fill cup directs water from the refrigerator fill tube into the ice maker mold so each cycle fills correctly. Replacing a damaged cup restores consistent ice production and helps prevent water spills. What it does:

• Channels water from the fill tube into the ice maker mold for proper tray filling.
• Prevents water from dripping into the freezer compartment when intact.
• A cracked, warped, or missing fill cup can cause underfilled ice cubes, overflowing molds, or water pooling in the freezer.
• Compatible with common top/front-mounted household ice makers that use a separate plastic fill cup.

• Disconnect power and shut off the water supply before starting work.
• Remove the ice bin or ice maker assembly as needed to access the fill cup.
• The cup typically snaps or slides into place; use gentle pressure and avoid forcing plastic tabs.

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.

This air diffuser directs chilled air into the fresh-food compartment to help maintain even cooling and airflow where food is stored. Replaces a cracked, broken, or missing diffuser to restore proper air distribution. What it does:

• Channels airflow from the freezer/evaporator area into the fresh-food section
• Helps reduce hot spots and uneven cooling in the fridge compartment
• Can reduce drafts or noisy airflow caused by a damaged diffuser
• Fits into the interior air duct and snaps or screws into place depending on model

• One air diffuser

• Disconnect power before servicing to avoid electrical shock
• Access may require removing shelves, bins, or interior panels for clearance
• Handle plastic parts carefully to avoid cracking; use appropriate screwdrivers if fasteners are present

This fill tube kit routes water from the refrigerator's inlet to the ice maker, restoring reliable water delivery for ice production and reducing drips from a cracked or damaged tube. Simple replacement for worn or broken factory tubing. What it does:

• Replaces the water fill tube that supplies water to the ice maker assembly.
• Restores proper water flow so the ice maker can fill and form ice.
• Stops leaks or drips caused by split, brittle, or disconnected tubing.
• Helps resolve symptoms like no/low ice production or visible water pooling under the freezer/ice maker area.

• Disconnect power and shut off the water supply before starting work.
• Handle grommets and fittings gently to avoid damage; inspect seals and replace if worn.
• Confirm correct routing and secure mounting to prevent kinks or rubbing.

This toe kick is the lower front grille panel that covers the base of the appliance for a finished appearance and protects internal components from dust and debris. It restores the original look and helps keep the cabinet area tidy. What it does:

• Replaces a cracked, dented or missing lower front grille to restore appearance
• Shields the compressor/vent area from kicked-up dust and small debris
• Helps direct airflow at the appliance base (maintains intended vent clearance)
• Matches factory fit and mounting points for a straightforward replacement

• Remove power to the appliance before starting any service
• Typically secures with a few clips or screws at the base; keep fasteners for reinstallation if reusable
• Handle edges carefully to avoid scratching finish; use a non-marring tool if prying

The Actuator Arm Ff Door is an OEM part for GE refrigerators responsible for activating the opening and closing mechanism of the refrigerator's fresh food compartment door.

A bad actuator arm can be caused by regular wear and tear over time or damage due to mishandling or impact. If you notice that your refrigerator door is not opening or closing properly, or if it feels loose or unresponsive, it may indicate a problem with the actuator arm.

Symptoms of a bad actuator arm include:

• Difficulty in opening or closing the fresh food compartment door
• Door not staying securely closed
• Door misalignment or sagging
• Unusual noises when operating the door mechanism

Replace your faulty actuator arm with this genuine OEM part to restore your refrigerator.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


Nut for 1/4 inch tubing.

Size: 10-32 GXTT FLP.595 S

This nylon hinge arm secures and guides a refrigerator/freezer door, providing smooth pivoting and reliable door alignment to help prevent sagging and uneven seals. Durable nylon resists wear at hinge contact points. What it does:

• Supports the door at the hinge pivot to maintain proper alignment and sealing
• Reduces metal-on-metal wear by providing a low-friction contact surface
• Helps stop door sag and uneven closing that can lead to poor sealing
• Works with the hinge assembly to enable smooth opening and closing

• Always unplug the appliance or disconnect power before starting repairs
• Support the door while removing or installing hinge components to prevent movement or injury
• Basic hand tools are typically required; avoid overtightening fasteners

A shoulder-style bolt used to secure and locate moving parts so they pivot or slide smoothly. Replaces a worn or damaged shoulder bolt to restore proper alignment and reduce binding or noisy operation. What it does:

• Provides a precise bearing surface for pivots, hinges, or sliding linkages.
• Keeps assembly components aligned and prevents lateral play.
• Commonly replaced when parts bind, rattle, or fail to move smoothly.
• Helps eliminate uneven movement, misalignment, or unusual noises near the joint.

• Disconnect power to the appliance before starting any repair.
• Use the correct socket or wrench to avoid rounding the head.
• Do not overtighten; tighten to snug fit allowing intended pivoting motion.
• Inspect mating holes and bushings for wear; replace if excessively worn.

Spring should have GOLD color.

This bottom hinge bushing helps the appliance door pivot smoothly and reduces wear where the hinge pin contacts the frame. Replacing a worn or cracked bushing restores proper door movement and alignment. What it does:

• Guides the door hinge pin and keeps the door aligned while opening and closing
• Reduces metal-on-metal wear and prevents grinding or catching at the hinge
• Commonly replaced if you notice door sag, uneven closing, or visible bushing damage
• Simple, low-cost part that prevents further hinge or cabinet damage when replaced

• Disconnect power to the appliance before starting any repair
• Support or secure the door when removing hinge pins or fasteners to prevent injury or damage
• Remove the hinge pin or hinge assembly per the service diagram to access and replace the bushing
• Inspect hinge pin and surrounding components for wear; replace if damaged. Avoid petroleum-based lubricants on plastic bushings

This corner key assembly secures and finishes a refrigerator door corner, restoring proper alignment and a clean appearance. It replaces a cracked, broken, or missing corner piece to help the door close evenly and look factory-original. What it does:

• Provides structural support at the door corner to maintain proper edge alignment
• Covers and protects the underlying corner area from damage and wear
• Helps reduce visible gaps or misalignment that can affect sealing
• Restores the cabinet's finished appearance after impact or deterioration

• One corner key assembly

• Disconnect power to the appliance before starting any repair
• Remove door or trim per manufacturer instructions to access the corner area
• Install with original fasteners or clips; do not force or over-torque plastic snaps
• If hinge or door alignment issues persist, inspect associated hinges and gaskets

This ice bucket is the removable plastic bin that collects and stores ice from the ice maker, keeping cubes contained and easy to access. It restores proper ice storage and makes removing or pouring ice simple. What it does:

• Holds and stores ice produced by the freezer ice maker so cubes stay contained and sanitary.
• Guides ice from the ice maker into the storage bin to prevent spills and jams.
• Allows easy removal for scooping, pouring, or cleaning when ice build-up occurs.
• Commonly replaced when the bucket is cracked, warped, missing, or no longer seats properly.

• One ice bucket.

• Unplug or disconnect power to the appliance before servicing the ice maker area.
• Slide the bucket into the freezer compartment aligning tabs or guides; do not force.
• Handle plastic tabs and mounting points carefully to avoid breakage.
• Inspect the ice maker assembly and chute for ice buildup or damage.

This freezer slide support assembly stabilizes and guides a freezer drawer so it opens and closes smoothly and stays level. Replacing a worn or broken support restores proper drawer alignment and prevents sagging or catching. What it does:

• Supports the freezer drawer or slide to maintain proper alignment and smooth movement
• Keeps the drawer level to prevent binding, sagging, or accidental dropping
• Replaces cracked, worn, or missing support pieces that cause uneven operation
• Works as a direct-fit mounting/guide for the drawer slide mechanism

• One freezer slide support assembly

• Disconnect power before starting and remove the freezer drawer to access the support
• Inspect mating slide and mounting tabs; replace any damaged clips or hardware
• Typically installs by snapping or securing into the existing slide track—retain fasteners if present

This freezer drawer slide is installed on refrigerators with bottom drawer freezers. The slide makes it possible to open the drawer without any jamming.If there is noticeable difficulty opening the slide-out freezer, or it is unable to be opened at all, the problem is likely with the slide rail. Inspect the length of the slide rail and if there are any broken pieces or missing screws, this is the culprit. If the damage is unable to be fixed by replacing a few screws, a replacement will need to be ordered. Begin the installation by removing the old pieces of slide rail. Prepare the screws for the new installation. Fasten the new slide rail to the refrigerator by inserting the screws in their proper mounting. To reinsert the freezer drawer, tip at an angle and insert into the slide rail.This freezer drawer slide rail is a genuine OEM replacement part and is sourced directly from GE. The product listed is only available individually and is not included with any other parts or the original appliance. This part Is compatible with GE appliances.

Size: 10-32 GXTT FLP.595 S

Size: 1/4 inch diameter.

This support mounts to the freezer wall and holds the upper basket in place. Replace a broken or missing support to restore proper alignment and smooth in-out movement of the basket and prevent sagging or jams.

• Provides side support for the upper freezer basket
• Keeps the basket level and aligned for easy access
• Replaces cracked or missing support that can cause the basket to drop, bind, or jam
• Helps eliminate wobble and uneven sliding when opening/closing

• Disconnect power to the refrigerator before servicing
• Empty and remove the upper freezer basket
• Release retaining tab(s) or remove fastener(s) and note the support's orientation
• Secure the new support, reinstall the basket, and verify smooth operation

Upper freezer slide liner replaces the plastic guide that supports and guides the upper freezer shelf, restoring proper shelf alignment and smooth sliding for easier access and safer storage. What it does:

• Guides and supports the upper freezer shelf along its track to prevent tipping or misalignment
• Keeps the shelf sliding smoothly so drawers and items move without catching
• Helps prevent shelf damage from uneven loading or cracked supports
• Replace when the liner is cracked, worn, or the shelf slides unevenly or binds

• Remove food and the affected shelf before replacing the liner for safe, clear access
• In many cases no tools are required—slide out the old liner from the track and snap the new liner into place
• Inspect mating track and adjacent clips for damage; replace damaged components to ensure proper fit

Freezer basket slide for the upper basket. This rail supports and guides the top freezer basket so it glides in and out smoothly. Replace a cracked or warped slide to restore proper movement and alignment.

• Supports and tracks the upper freezer basket along the cabinet wall
• Provides smooth sliding action for easier access to frozen items
• Replace when the slide is cracked, broken, or deformed
• Typical symptoms: basket binds or tilts, scrapes, pops out, or won't close fully

• Disconnect power to the refrigerator before servicing
• Remove the upper basket; release locking tabs or screws and lift out the damaged slide
• Position and secure the new slide as shown in your model's diagram; do not overtighten screws
• Reinstall the basket and verify smooth travel and proper door sealing

This is the upper case hinge that secures and lets the refrigerator/freezer door pivot smoothly, restoring correct door alignment and sealing. Durable, direct-fit replacement for the refrigerator upper door hinge. What it does

• Supports the top of the door and provides the pivot point for opening and closing
• Keeps the door aligned to maintain a proper seal and even closing
• Replaces a cracked, bent, or worn hinge that can cause door sag or rubbing
• Works with the existing hinge pin and mounting hardware when in good condition

• One upper case hinge

• Unplug the appliance or turn off power before starting work
• Support the door while removing and installing the hinge to prevent drop or damage
• Reuse original screws and hinge pin if undamaged; replace any stripped hardware
• After installation, check door alignment and seal; adjust as needed for even gaps

This 12-24, white screw secures panels and small appliance components. Replaces missing or damaged fasteners to restore a secure fit, reduce vibration and rattling, and help maintain proper alignment. What it does:

• Secures trim, panels, brackets and other small components.
• Replaces missing or worn fasteners that cause loose or rattling parts.
• Helps restore proper alignment of covers and access panels.
• Use when the original 12-24 screw is stripped, missing, or damaged.

• Disconnect power to the appliance before beginning any repair that exposes wiring or electrical components.
• Use the correct driver for the screw head to avoid stripping.
• Tighten until snug; avoid over-tightening which can damage threads or components.

This shear pin secures the washer agitator to the drive shaft and protects the transmission by designed failure when the agitator binds. It's a small, low-cost part that prevents costly gear or motor damage. What it does:

• Locks the agitator to the drive shaft so the washer can agitate and spin
• Designed to break (shear) if the agitator is jammed, preventing transmission or motor damage
• Commonly replaced when the agitator spins freely or the washer won't agitate
• Small part that restores proper mechanical coupling between agitator and drive

• One shear pin

• Disconnect power and water before starting any repair
• Access usually requires removing the agitator; follow your model's service instructions
• Verify shaft and agitator mating surfaces for wear or damage and replace if needed

This track shelf is the replacement door shelf track that secures a refrigerator door shelf in place, restoring stable storage and preventing the shelf from shifting or falling during normal use. What it does:

• Provides the mounting channel that a door shelf or retainer sits in to hold items on the refrigerator door
• Replaces a cracked, worn, or broken track that lets a door shelf tilt or slide out
• Restores proper shelf alignment so door bins sit securely and items stay in place
• Compatible with typical snap-in or screw-mounted door shelf assemblies

• Remove all items from the door shelf and, if needed, remove the shelf before replacing the track
• Power off or unplug the appliance only if access requires it; otherwise take care to avoid sharp edges
• Align the track with the door mounting locations and press or secure into place until fully seated
• If hardware is present, retain and reuse existing screws/clips; replace only with manufacturer-specified fasteners

A single replacement screw used to secure appliance panels, trim, and internal brackets so components stay aligned and reduce rattling. Simple, direct-fit fastener for restoring proper mounting and stable operation. What it does:

• Secures panels, mounting brackets, trim pieces and other appliance components
• Helps stop rattling, vibration, or loose panels caused by missing or stripped fasteners
• Restores proper alignment of doors and access panels when original screw is lost or damaged
• Matches the OEM fastening point for a straightforward hardware replacement

• Disconnect power to the appliance before working on electrical components or access panels
• Use the correct screwdriver to avoid stripping the head; match drive type to the screw
• Tighten firmly but do not overtighten—stop when snug to avoid damaging threads or parts
• Keep removed fasteners organized and compare with the replacement to ensure correct fit
