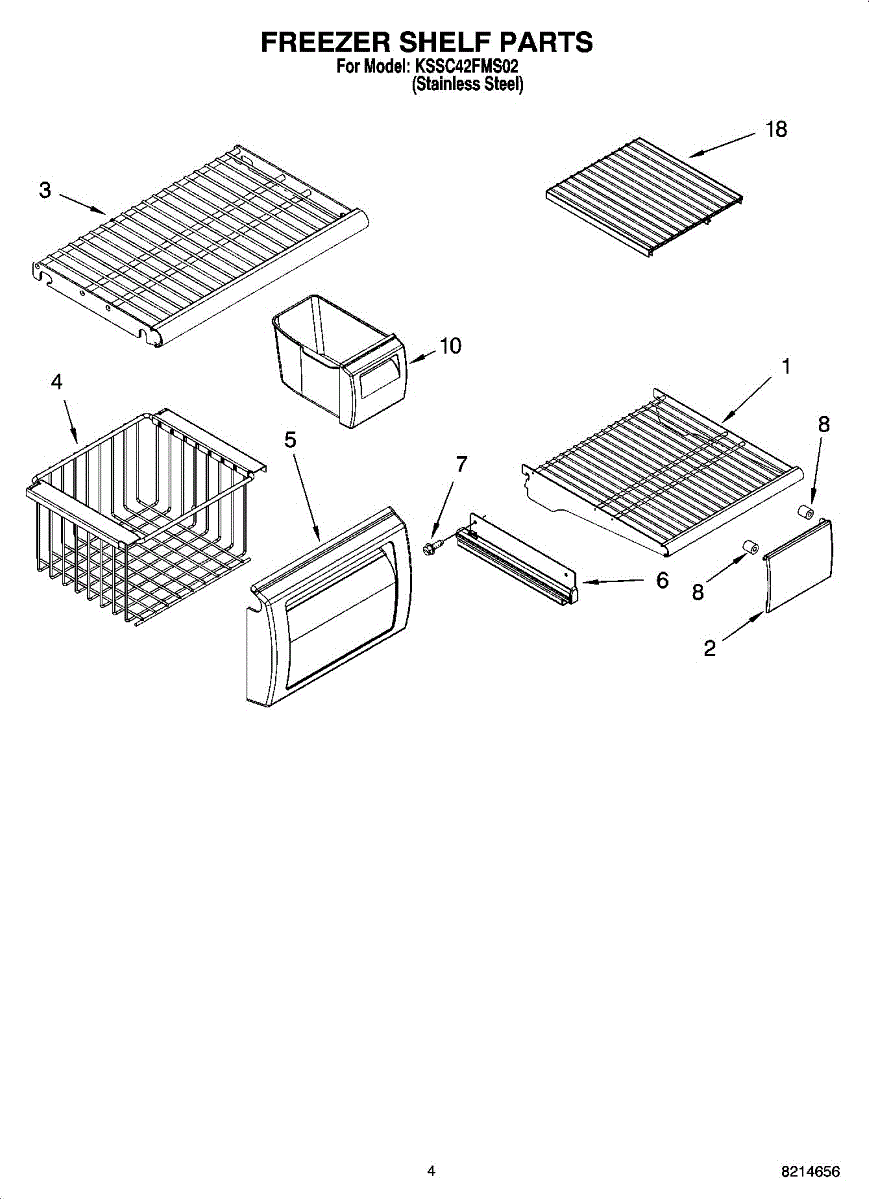

Parts for Kitchenaid KSSC42FMS02: 03 - Freezer Shelf Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

This Front Basket replaces a damaged or missing forward storage bin inside your appliance. Restores organized, secure storage so contents stay contained and racks or drawers move and close properly.

• Provides a dedicated front compartment to keep items organized
• Helps prevent contents from tipping, sliding, or falling into the cavity
• Restores proper fit so the associated rack/drawer operates smoothly
• Common symptoms: cracked or broken plastic/wire, missing tabs, won't stay seated, items falling through

• Disconnect power and empty the affected rack/drawer before service
• Remove the old basket by lifting out, releasing tabs, or sliding off rails as designed
• Align the new basket with rails/tabs and press firmly until fully seated
• Check smooth operation before reloading contents

Right hand side

Left hand side

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.
