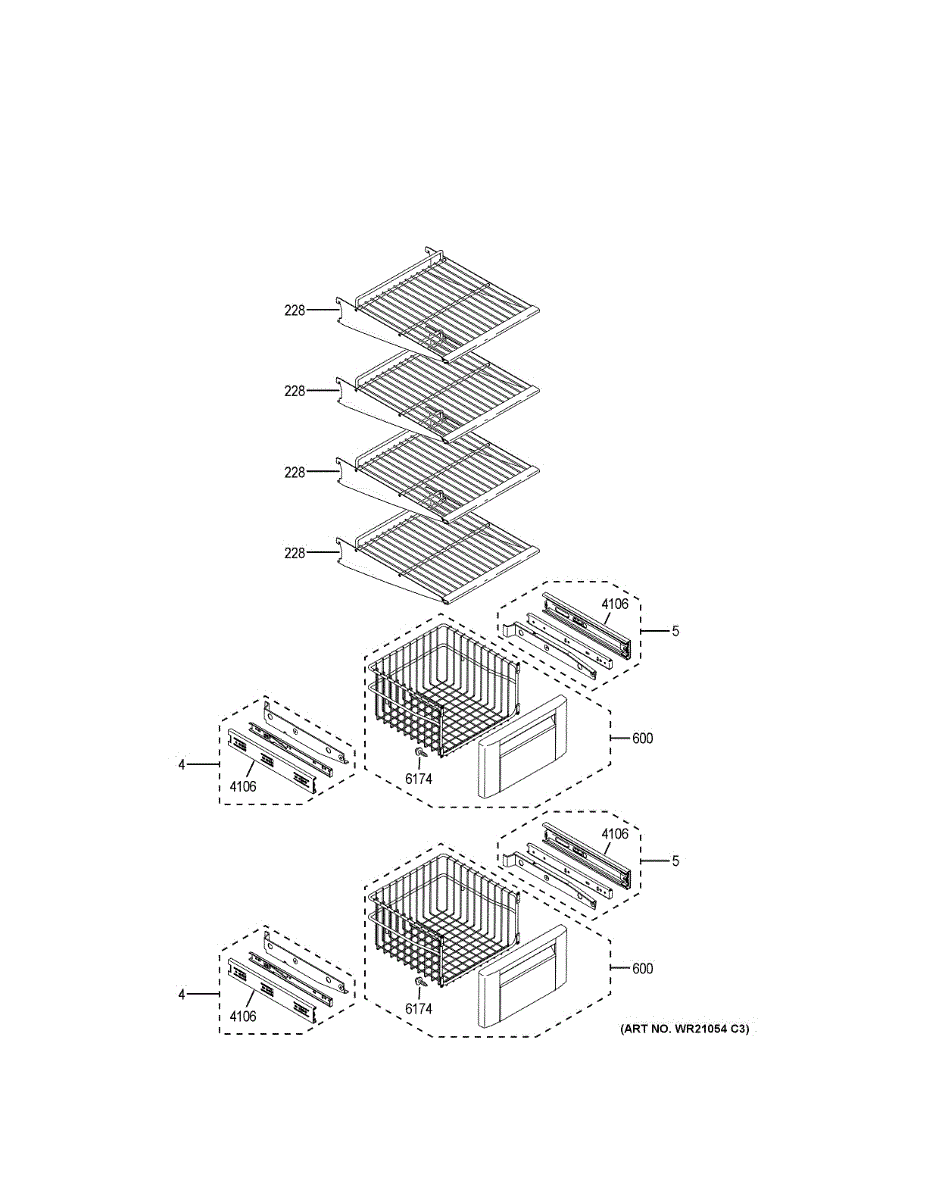

Parts for Ge PSB48YSKCSS: Freezer Shelves Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This left-hand freezer slide assembly supports and guides the freezer drawer or basket so it opens and closes smoothly and stays aligned. Replacing a worn slide restores proper movement and helps ensure the drawer seals correctly.

• Supports the freezer drawer/basket on the left side
• Provides smooth sliding action for opening and closing
• Maintains alignment to help the freezer drawer seal properly
• Replaces a bent, damaged, or seized slide
• Symptoms include: hard-to-open/close drawer, binding or grinding, misalignment, or the drawer coming off track

• Disconnect power and remove contents from the freezer drawer
• Pull out and lift the drawer/basket to remove it from the slides
• Remove screws securing the left slide, position the new slide, and secure with existing hardware
• Reinstall the drawer/basket and check for smooth, even operation and proper closure

This right-hand freezer slide assembly mounts to the cabinet wall and provides the track and support for the freezer basket/drawer. Replacing a worn slide restores smooth travel and proper alignment so the drawer opens and closes easily.

• Supports and guides the freezer basket/drawer on the right side
• Helps keep the drawer level and on track for smooth operation
• Common symptoms: hard-to-open or sticking drawer, rough/grinding movement, sagging on the right side, or the drawer not closing fully
• Side-specific component for the right-hand side

• Unplug the refrigerator before servicing; remove food and the freezer basket/drawer
• Remove mounting screws/clips and slide out the old rail, noting orientation
• Position the new slide and secure with the original screws; do not overtighten
• Reinstall the basket/drawer and confirm smooth, level travel on both sides

This Slide Outer is the outer rail that supports and guides a refrigerator shelf/drawer, restoring smooth movement and proper alignment. It replaces a worn or broken outer slide to help shelves glide and stay level. What it does:

• Guides the shelf or drawer on one side and provides structural support during use
• Replaces a cracked, bent, or worn outer rail that causes sticking or uneven movement
• Helps restore proper alignment when a shelf tilts or binds while sliding
• Works with the matching inner slide and mounting hardware to enable smooth operation

• Disconnect power and empty the shelf/drawer before starting work
• Remove the shelf/drawer and any clips or screws holding the old slide; install in reverse order
• Use only the matching inner slide and hardware; fit before final assembly
• If mounting points are damaged, inspect cabinet/frame and replace as needed for secure installation

A 6 x 1/2 inch pan-head Phillips screw used to fasten panels, trim, brackets and small assemblies on appliances. Replacing worn or missing screws restores secure mounting and reduces vibration or rattling. What it does:

• Fastens panels, brackets and trim where a 6 x 1/2 in. pan-head Phillips screw is required.
• Stops loose or rattling parts caused by missing, stripped or corroded screws.
• Provides the correct head profile for a Phillips driver to allow proper torque and seating.
• Used in non-structural fastening points on appliances.

• Always disconnect power and unplug the appliance before beginning repairs.
• Use the correct-size Phillips screwdriver to avoid cam-out and head damage.
• Do not over-tighten; over-torquing can strip threads or deform mating parts.
• Inspect mating threads and replace damaged components before installation.
