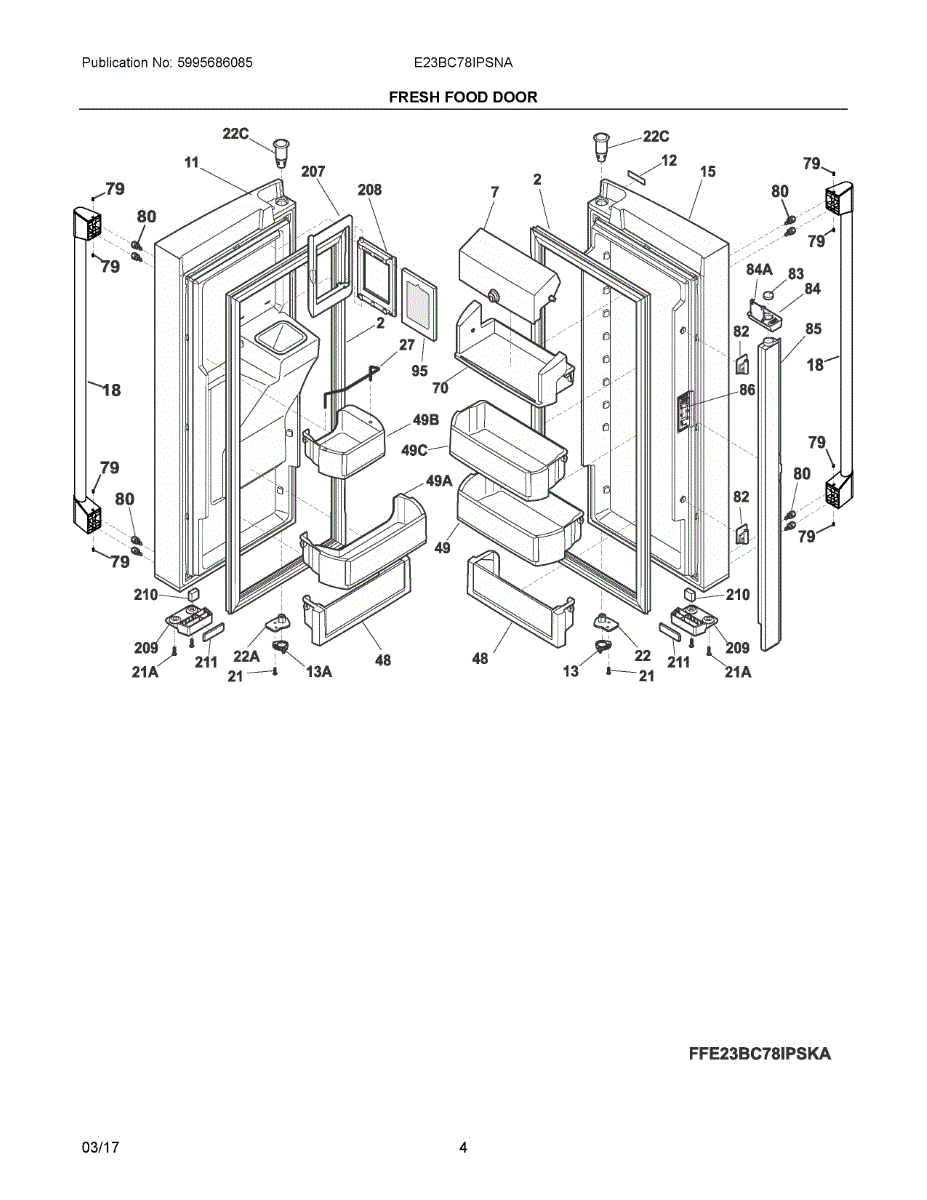

Parts for Electrolux E23BC78IPSNA: 03 - Fresh Food Door Parts

The Freezer Door Gasket is an OEM replacement part for Frigidaire refrigerators. It creates a seal around the freezer door to maintain a consistent temperature by keeping cold air in and warm air out. This helps ensure proper freezing conditions and prevents energy loss.

Over time, gaskets can degrade due to wear, exposure to extreme temperatures, or cleaning with harsh chemicals. A damaged or worn gasket may fail to seal properly, affecting the freezer's efficiency and potentially leading to increased energy consumption.

Symptoms of a bad gasket include:

• Frost or ice buildup inside the freezer
• Difficulty keeping the freezer door fully closed
• Warm air entering the freezer, causing temperature fluctuations
• Increased energy bills due to inefficient operation

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This piece replaces the flip-up cover for the cheese/butter compartment on your refrigerator door. It restores a tidy, enclosed spot for butter and small dairy items, helping keep contents contained and easy to access.

• Covers the dairy bin on the fresh food door; flips up for quick access
• Helps contain and protect butter/cheese items to reduce spills and mess
• Replace when cracked, warped, missing, or no longer stays attached/closed
• Designed to fit the designated hinge points for the dairy compartment on applicable models

• Disconnect power before servicing
• Allow plastic parts to warm to room temperature to reduce risk of cracking
• Align door tabs with the hinge posts on the compartment and press until fully seated
• Open and close the door to ensure smooth operation

This stop is a small mounting hardware component that positions and limits movement of a nearby part, helping keep doors and panels aligned and preventing overtravel. It's a simple replacement that restores correct stopping action. What it does:

• Provides a fixed contact point to stop or limit movement of a door, panel or linkage
• Keeps parts aligned and prevents banging or overtravel
• Worn or broken stops can cause rubbing, misalignment, or noisy operation
• Restoring the stop often eliminates play and improves fit and function

• Disconnect power or unplug the appliance before starting any repair
• Remove any panels or trim needed to access the mounting location
• Replace the stop using the original fastener(s); hand-tighten then secure as needed

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

Replacement shaft bushing that supports and reduces wear on a rotating shaft or pivot, helping restore smooth, quiet movement and reduce wobble where the original bushing has worn or failed. What it does

• Provides a low-friction bearing surface for a rotating shaft or pivot to prevent metal-on-metal wear.
• Restores proper alignment and reduces shaft wobble that can cause noise or uneven operation.
• Helps stop squeaks, grinding, or rough movement caused by a worn or damaged bushing.
• Protects housing and shaft from accelerated wear by keeping components centered.

• Disconnect power or unplug the appliance before beginning any repair.
• Remove access panels and any fasteners needed to reach the worn bushing; support the shaft while removing the old bushing.
• Inspect the shaft and mating surfaces for wear or damage and clean before installing the new bushing.
• Press the new bushing into place gently and evenly; avoid excessive force. Reassemble and test operation before returning the appliance to service.

This bushing provides a durable, low-friction bearing surface between moving parts in your appliance. It helps components pivot or rotate smoothly, reducing noise and wear so doors, drawers, and mechanisms operate as intended.

• Provides a sleeve/bearing surface between a pin or shaft and its housing
• Maintains alignment to prevent wobble and binding
• Reduces friction, squeaks, scraping, and premature wear
• When worn or missing, movement may feel rough, loose, or noisy

• Disconnect power before servicing
• Support the assembly being serviced before removing fasteners
• Note the orientation of the original bushing; seat the new bushing fully without forcing
• Reassemble and check for smooth, rub-free movement before restoring power

Replace the worn bearing that supports your refrigerator's ice-dispenser auger. This bearing helps the auger spin smoothly so cubes travel to the chute, restoring steady ice dispensing and reducing grinding or jamming.

• Supports the auger shaft within the ice bin/dispenser assembly
• Enables smooth rotation to move ice toward the chute
• Wear can cause slow or failed dispensing and squealing/grinding noises
• Fixes issues with a cracked, worn, or seized auger support

• Disconnect power and remove the ice bin before servicing
• Separate the bin front/cover and auger assembly; note the bearing's orientation
• Transfer the new bearing and reuse existing screws/retainer if present
• After reassembly, confirm the auger turns freely by hand before restoring power

This bin door replaces a damaged or cracked refrigerator storage-drawer door to restore a sealed, secure drawer and keep food organized. It fits the compatible drawer frame and provides a clear, durable cover for the bin. What it does:

• Replaces a broken, cracked, or missing bin door to restore proper storage function
• Helps keep produce and stored items contained and visible
• Prevents drafts and helps maintain interior organization
• Restores the smooth open/close action of the storage drawer

• One replacement bin door

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Remove the drawer and lift or unclip the old door per your model's instructions; installation typically reverses removal
• Handle part carefully to avoid cracking the plastic; use a soft surface when setting the door down

This piece replaces the flip-up cover for the cheese/butter compartment on your refrigerator door. It restores a tidy, enclosed spot for butter and small dairy items, helping keep contents contained and easy to access.

• Covers the dairy bin on the fresh food door; flips up for quick access
• Helps contain and protect butter/cheese items to reduce spills and mess
• Replace when cracked, warped, missing, or no longer stays attached/closed
• Designed to fit the designated hinge points for the dairy compartment on applicable models

• Disconnect power before servicing
• Allow plastic parts to warm to room temperature to reduce risk of cracking
• Align door tabs with the hinge posts on the compartment and press until fully seated
• Open and close the door to ensure smooth operation

This replacement part is a set screw, and it is intended for use in different types of appliances. This is a genuine replacement part made by Frigidaire. This screw set is compatible in many different areas of the appliance. Screws are typically used for keeping parts of the machinery secure and in place. It is possible that screws can become loose over time and need to be replaced. A new screw set might be needed if the user notices parts of the appliances are becoming loose or are falling off. This can be due to screws becoming stripped over time or if the appliance is bumped during transport. It is typically easy to replace screws. Simply remove the old screw and replace it with a new part. The only tools needed for this repair are a screwdriver and possibly pliers if the damaged screw is stuck in place.Note that this is a genuine OEM replacement part and is sourced from the manufacturer. This set screw is sold individually.

The Door Handle Screw is an OEM part for Frigidaire refrigerators. This screw secures the door handle to the refrigerator door, ensuring a firm and stable grip for opening and closing the door.

Causes of a bad door handle screw can include regular wear and tear from frequent use, corrosion due to exposure to moisture, or damage from over-tightening or stripping. A faulty screw can lead to a loose or wobbly door handle, making it difficult to operate the refrigerator.

Symptoms of a bad door handle screw include:

• The door handle feeling loose or coming off
• Difficulty in securely tightening the handle
• Visible rust or corrosion on the screw
• Stripped threads on the screw or handle

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Door Hinge Pin is an OEM part for Frigidaire refrigerators. It is responsible for supporting the mullion or flapper, which is the vertical strip that divides the refrigerator doors. It provides smooth movement and proper alignment of the mullion, allowing it to pivot easily for access to both compartments while maintaining an airtight seal when closed.

Causes of a bad hinge pin can include wear and tear over time, accidental damage, or improper handling. A damaged or worn-out hinge pin may result in difficulties in opening or closing the mullion.

Symptoms of a bad Hinge Pin include:

• Difficulty in opening or closing the doors
• Excessive play or wobbling of the mullion
• Failure to maintain a proper seal between door
• Unusual noises during use

This OEM Frigidaire part can also be used on select Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore models.

This replacement magnet is used in select refrigerator assemblies. It provides the magnetic hold or sensor trigger required so doors, flaps, or rails stay closed and so the controls can accurately detect when components are in position.

• Supplies magnetic retention in the specified assembly to keep parts closed and aligned
• Activates magnetic reed sensors in models that use them for door/position detection
• Weak or missing magnets can lead to door-ajar alerts, air leaks, or components not staying shut
• Visible damage or incorrect orientation can cause intermittent operation or improper sealing

• Disconnect power before servicing; turn off water if working near the dispenser
• Use your model's parts diagram to locate the magnet and note its orientation/polarity
• Press-fit into its holder carefully; do not chip or crack the magnet
• Verify proper closure/sensing operation before returning the appliance to service

This mullion guide secures and aligns the refrigerator's vertical door trim so doors close evenly and seals engage properly. Replacing a worn or broken guide helps restore door alignment and reduce drafts at the center seam. What it does:

• Holds the mullion/vertical trim in place and keeps the trim flush with the cabinet
• Guides the doors during closing to maintain even gaps and seal contact
• Prevents the mullion from shifting, rattling, or catching when doors open or close
• Common symptom: loose, misaligned, or damaged center trim causing wind, noise, or uneven door gaps

• Disconnect power before starting service and work on a stable surface
• Remove the mullion/trim and any surrounding gaskets or screws as needed to access the guide
• Use appropriate trim/removal tools to avoid damaging adjacent plastic or gasket material
• Reinstall hardware securely and verify doors close and seals engage properly after installation

This replacement guide aligns and supports a moving component so it travels on its intended path without binding. Replacing a worn or broken guide restores smooth operation and helps prevent scraping, jamming, or premature wear of connected parts.

• Keeps the associated rack, drawer, or panel centered and properly aligned during movement
• Provides a track/stop for the mating part to follow
• Reduces friction and noise for smoother sliding
• Typical failure signs: sticking, uneven travel, scraping noises, or visible cracks/broken tabs

• Disconnect power; also shut off water or gas
• Remove the associated assembly to access the guide and note its orientation
• Reuse original screws/clips and tighten securely without overtightening
• Test movement after installation; replace worn mating rails or rollers if needed

The Flapper Door Center Hinge is an OEM part for Frigidaire refrigerators. This hinge is essential for the proper operation of the flapper door, which helps seal the gap between the refrigerator doors when they are closed, ensuring efficient cooling and energy use.

Over time, the center hinge can wear out or become damaged due to regular opening and closing of the refrigerator doors. Accumulation of dirt, dust, or debris, as well as physical impact, can also contribute to hinge failure.

Symptoms of a bad flapper door center hinge include:

• The flapper door not closing properly
• Gaps between the refrigerator doors
• Increased energy consumption due to cold air escaping
• The refrigerator doors not aligning correctly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is an outer cabinet door replacement that restores the appliance's exterior appearance and provides a secure, proper-closing door surface. Use it to replace a dented, cracked, or cosmetically damaged door panel. What it does

• Replaces a damaged or dented outer cabinet door panel to restore look and functionality
• Provides the correct mating surface for hinges and handles so the door closes properly
• Helps protect internal components from dust and debris when closed
• Addresses common symptoms like visible dents, cracks, or a door that no longer seats flush

• Disconnect power and, if applicable, water supply before starting any work
• Door assemblies are heavy; have a second person assist with removal and installation
• Hinge pins, screws, handles, gaskets, and insulation may be separate parts
• Follow the appliance manufacturer's service manual or instructions for proper alignment and torque

This housing is the replacement cabinet housing that provides structural support and protects internal components, restoring proper fit and appearance. It helps stabilize assemblies and keeps wiring and parts shielded from damage. What it does:

• Replaces a cracked, broken, or dented cabinet housing to restore structural integrity
• Protects internal components and wiring from debris and accidental contact
• Helps reduce rattling or movement caused by damaged housing
• Restores the appliance's proper fit and alignment for panels and doors

• One housing

• Disconnect power to the appliance before starting any repair
• Use appropriate hand tools; support adjacent panels to avoid stress on clips or fasteners
• Watch for sharp edges; wear gloves and eye protection

This small permanent magnet is used in supported refrigerator assemblies to actuate a mating reed switch or metal keeper. It helps the appliance recognize a closed position or hold a light cover/door closed for proper operation. What it does:

• Works with a reed switch or ferrous keeper to provide position sensing or magnetic latching
• Helps ensure features dependent on closed position operate correctly
• Can resolve issues where a small cover or door won't stay closed
• Address erratic "door ajar" indications tied to magnetic sensing

• Disconnect power and water before servicing
• Note the original magnet's location and orientation; polarity matters for proper operation
• Seat the magnet fully in its pocket or holder and align with the mating switch/keeper
• Test the related function before reassembling panels and trim

This small rubber bumper cushions the refrigerator/freezer door to reduce noise and prevent metal-on-metal contact. It helps doors close quietly and protects cabinet finish from repeated impacts. What it does:

• Acts as a soft stop between the door and cabinet/frame to absorb impact
• Reduces rattling and slamming for quieter operation
• Prevents wear and chipping where the door contacts the cabinet
• Restores proper door alignment when missing or worn

• One replacement bumper

• Push the bumper into the existing hole or slot on the door/frame until fully seated
• Inspect surrounding area for damage; replace mounting clips or retainers if required
• Wear gloves to protect hands from sharp edges during installation
• No special tools usually required; for detailed instructions

This genuine replacement screw secures appliance components and restores proper fit and stability. Use it to replace a missing or damaged fastener and stop panels, trim, or parts from shifting or rattling during normal use. What it does:

• Fastens and holds panels, brackets, or small components in place
• Restores secure attachment when an original screw is missing, damaged, or stripped
• Helps eliminate vibration, rattling, or loose-fitting parts
• Matches the OEM fit and function for reliable reassembly

• Use correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Disconnect power and remove food or contents from appliance areas as needed before servicing
• If fastener threads are damaged, replace with the exact OEM screw rather than forcing installation

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
