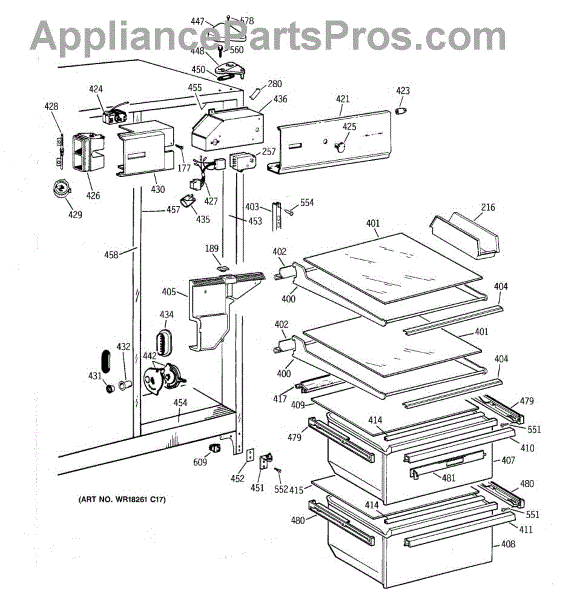

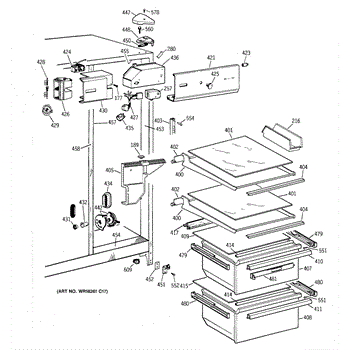

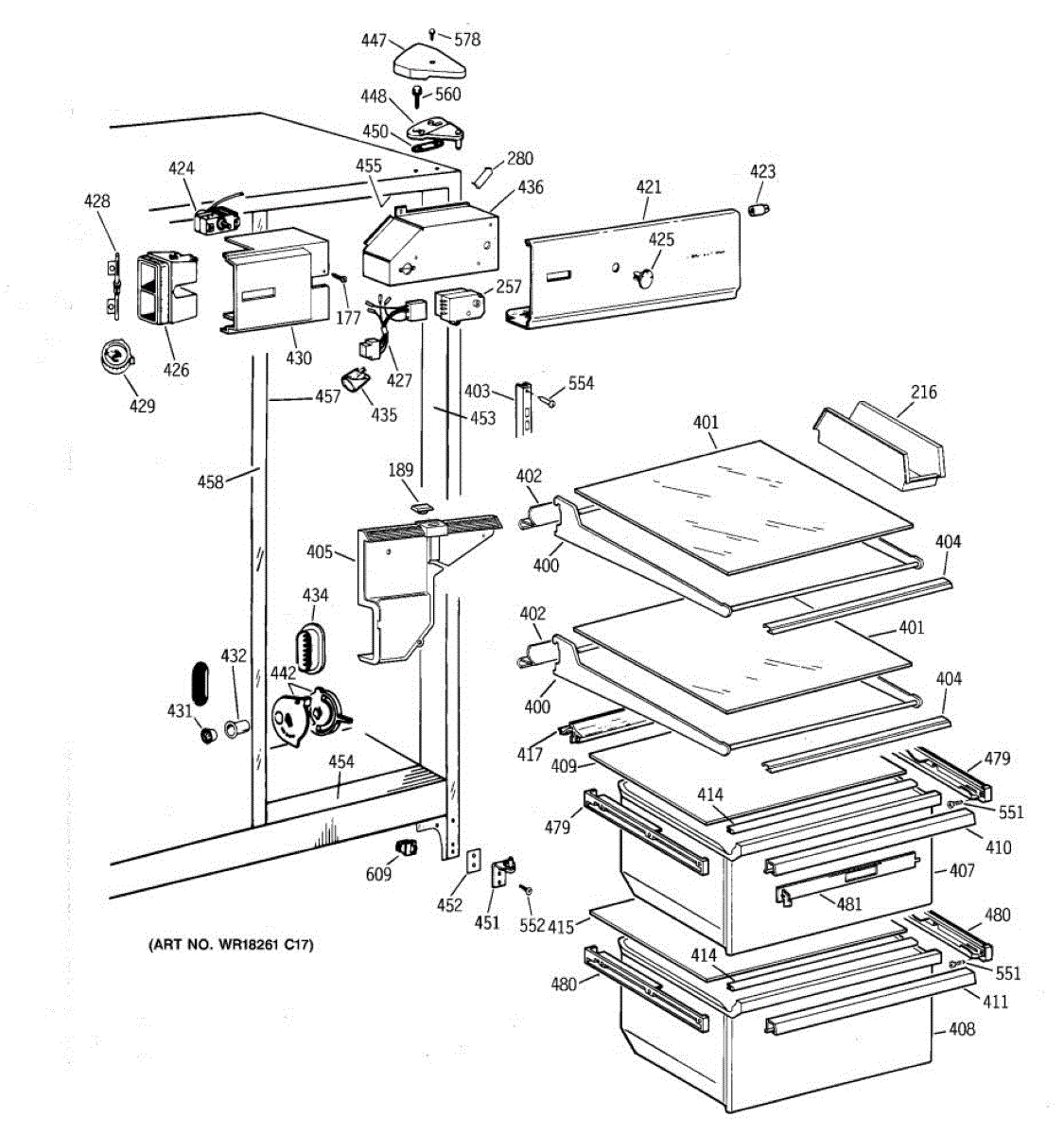

Parts for Ge TFX22JAYFAA: 03 - Fresh Food Section Parts

The Defrost Timer is an OEM part for GE refrigerators. It serves as a crucial component in managing the defrost cycle of the refrigerator, ensuring that frost buildup is regularly melted away from the evaporator coils. This timer periodically switches the refrigerator between cooling and defrost mode, helping to maintain efficient operation and prevent overcooling or excessive ice accumulation.

Symptoms of a bad Defrost Timer include:

• Frost building up more than usual in the freezer compartment.
• The refrigerator or freezer sections becoming too warm due to prolonged defrost cycles.
• The refrigerator not transitioning out of defrost mode, leading to spoiled food due to inadequate cooling.

Causes of a bad defrost timer can include mechanical wear from continuous use, electrical failures that impede the timer’s operation, or simply aging components that no longer function reliably.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This upper vegetable pan provides a replacement crisp-drawer liner that restores storage for fruits and vegetables and helps contain spills in the refrigerator. Fits the designated upper crisper location for correct fit and function. What it does:

• Holds produce and small items in the upper crisper area to prevent direct contact with the refrigerator floor
• Contains minor spills and helps keep drawer contents organized
• Replaces cracked, warped, or damaged upper veg pan that no longer supports produce properly
• Restores proper clearance and fit when the original pan is broken or missing

• One upper vegetable (veg) pan

• Remove food and drawers before replacing; handle plastic parts gently to avoid cracking
• Slide the new pan into the same track/orientation as the original until it seats securely
• No tools typically required; if the drawer assembly must be removed, power down and follow the refrigerator manufacturer's service instructions

This part has been discontinued and is no longer available.

This mullion duct cap closes and protects the end of the refrigerator mullion air duct, helping maintain directed airflow and a finished appearance on the door jamb. It replaces a cracked or missing end cap to reduce drafts and keep the duct sealed. What it does:

• Caps and protects the open end of the mullion air duct to preserve airflow routing
• Helps prevent air leakage that can contribute to uneven cooling or frost buildup near the door
• Restores a clean, finished look to the door mullion area
• Keeps debris and moisture out of the duct to reduce odors and buildup

• One mullion duct end cap

• Disconnect power to the appliance before beginning any work
• Typically installs by snapping or sliding into the duct end; use moderate force and avoid prying with metal tools
• Inspect surrounding trim and fasteners and replace any damaged clips as needed

The Light Socket is an OEM part for GE refrigerators. It is responsible for holding the refrigerator's light bulb and ensuring it receives power to illuminate the interior when the door is opened.

You should replace the light socket if it becomes faulty. Causes of a bad light socket can include wear and tear from regular use, electrical issues such as short circuits or power surges, and corrosion from moisture exposure.

Symptoms of a bad light socket include:

• The refrigerator light not turning on when the door is opened
• Flickering or intermittent light operation
• Visible damage or corrosion on the socket
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

The Lower Door Hinge Kit is an OEM part for GE refrigerators. This kit is essential for the proper functioning and alignment of the refrigerator door, providing the necessary support and pivot point for smooth opening and closing.

Symptoms of a failing Lower Door Hinge include:

• The refrigerator door sagging or failing to close properly
• Squeaking or grinding noises when the door is opened or closed
• Resistance or difficulty when moving the door
• Visible wear or damage to the hinge or surrounding area

Causes of a bad lower door hinge can include mechanical stress from frequent use, improper alignment or installation that increases wear, or corrosion from moisture exposure, which can weaken the metal components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This slide rail is an OEM replacement part for GE refrigerators. The slide rail measures 1.25 inches in height, 2 inches in width, and 16 inches in depth.  This durable and reliable slide rail ensures smooth and effortless drawer operation.

Causes of failure involve repeated impact stresses absorbing the weight of the heavy door opening and closing potentially thousands of daily times over 10-20 years.

Symptoms of a faulty slide assembly include:

• Difficulty fully opening or closing the oven door
• Binding, jamming or misalignment of door movement
• Visible bending or warping of metal slide track components
• Loose fasteners connecting assembly to cabinetry

This OEM replacement part is also compatible with Hotpoint and RCA electric ranges as well.

NOTE: For the right-hand side order WR72X240. For the slide bearing order WR1X2048.

The Slide Assembly RH is an OEM replacement part for GE side-by-side refrigerators. As a replaceable sub-assembly, it restores smooth extension of plastic vegetable/multi-purpose slides on the right interior. The slide measures approximately 16 inches.

Symptoms of a bad slide assembly include:

• Drawers failing to fully extend or retract inward
• Difficulty using bins and storage sections
• Noisy operation of problematic slides
• Stress concentration leading to cracks along slides

Causes stem from extended use gradually degrading nylon rollers and wear strips through inevitable friction. Exposure to excessive weights above slide limits may also bend or warp steel support rails quicker.

This genuine GE replacement part is also compatible with Hotpoint, RCA, and select Kenmore models.

This left-hand drawer slide assembly mounts inside the refrigerator's fresh food section. It supports the shelf/cover and guides the drawer on its track, restoring smooth operation and proper alignment when the original rail is cracked or worn.

• Mounts on the left wall to support the shelf/cover and provide a smooth sliding track for the drawer
• Keeps the drawer aligned and level for easy in-and-out movement
• Replace when the existing rail is cracked, warped, or missing tabs
• Typical symptoms: drawer hard to open/close, pops off track, shelf tilts or sags, visible damage to the rail

• Disconnect power and clear the compartment before starting
• Remove the affected drawer and its shelf/cover to access the slide
• Release locking tabs or remove mounting screws; transfer any reusable hardware to the new slide
• Test drawer travel before reloading

12-24 TT HX .811

This is a 10-24 x 1.0 inch screw used to secure appliance panels and components. It replaces worn or missing fasteners to restore proper fit and reduce rattling or loose parts for safer, quieter operation. What it does:

• Secures panels, brackets, and trim to keep components aligned and stable
• Stops vibrating or rattling caused by loose or missing screws
• Restores proper grounding/attachment where a threaded fastener is required
• Matches OEM thread size and length for a correct fit when replacing damaged screws

• Use the correct driver bit and turn carefully to avoid stripping the head or threads
• Do not overtighten; snug until secure to prevent damage to mating parts
• Replace like-for-like with the same thread size and length for proper fit
• Disconnect power and follow appliance safety guidelines before accessing internal components

Package of 12

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
