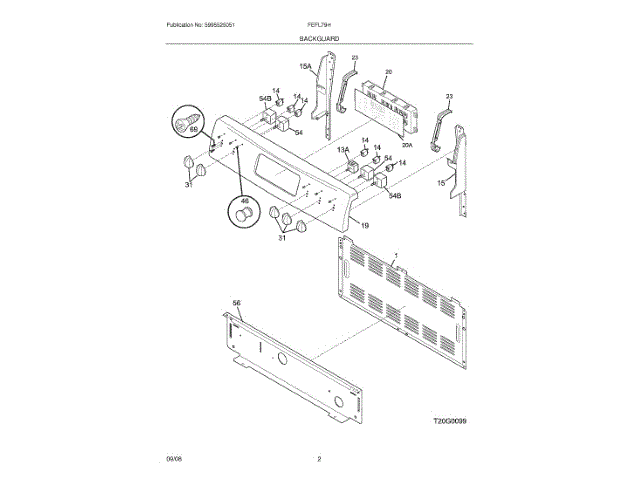

Frigidaire 316462868 Clock Timer (Electronic Assembly) OEM Part

Disconnected the power, removed back cover, removed old part and installed new one. I took a picture of the old part and wiring before disassembly. Easy repair, it's the second time the ECU has gone bad.

Replaced clock/timer, watched video on parts order page it took me step by step it took less than 30 minutes to do repair, video was very important part of repair

We originally hired an appliance repair service, and they diagnosed the issue. The company was supposed to give us an estimate before they ordered the part, but instead they ordered it first and called us later, threatening to charge us for the part when we declined to schedule the repair. A quick Google search brought us to appliance parts pros, where not only was the part much cheaper than the local company wanted, but a repair video gave us the confidence to attempt the repair ourselves. The part arrived in two days. We took the back panel off the oven using a square head drill bit. Once the panel was off, we unplugged every connection from the old control panel, with the exception of the grounding wire. We had to first unscrew and remove the old control panel in order to work the grounding wire off with a butter knife. Then we pulled off the front display panel and used the adhesive already on it to attach it to the new control panel before screwing in the new part. Plugged everything back in, reattached the back panel, and started it up. We then celebrated saving $100 by successfully completing the repair ourselves.

Ordered part and son and husband installed and reconnected oven. Had to install new connectors to plug into board. Also cleaned wires. It now works as good as new.

I had replaced the sensor 8 months ago. Tested the resistance (Ohms) this time and it was the correct value. Only item left was the oven control module.
