Frigidaire 5304496559 Cold Control Kit (Temperature Control Thermostat) OEM Part

Product Details

Genuine Frigidaire part. Frigidaire brands include Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Kenmore, and others. See all items in Refrigerator Temperature Control, Cold Control.
Electrolux also makes various appliance models for Sears / Kenmore

Cross Reference Information

Part Number 5304496559 replaces AP5950013, 216787700, 216714400, 3514721, PS10057359.

Description

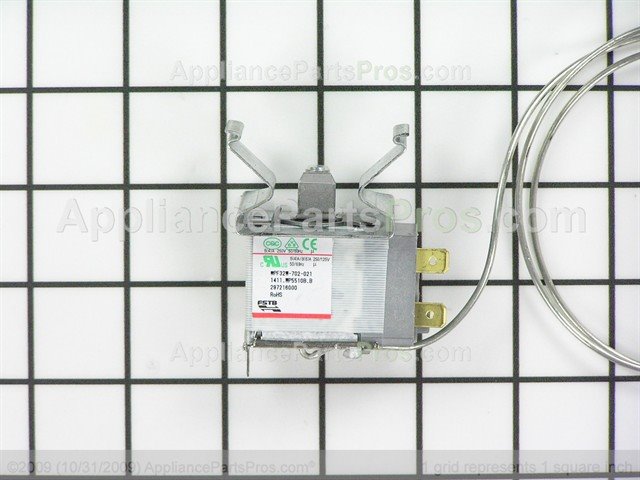

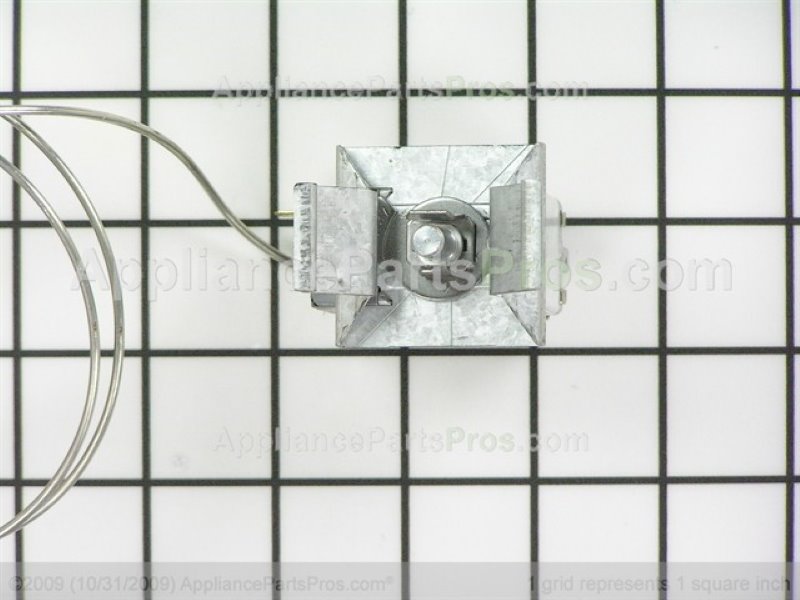

This cold control kit is the mechanical thermostat that regulates your refrigerator's temperature. It senses cabinet conditions and cycles the cooling system on and off to maintain the user-selected setting and restore stable, consistent cooling performance. What it does:

• Monitors cabinet temperature via a capillary-sensor bulb
• Opens/closes contacts to start and stop the cooling circuit
• Helps maintain steady temperatures based on the dial setting
• Common symptoms of a failing control: refrigerator too warm or too cold, runs constantly, short-cycles, or won't start cooling

What's included:

• One cold control thermostat kit

Install notes:

• Disconnect power before servicing
• Handle the thin capillary tube carefully; do not kink, crease, or cut it
• Route and secure the sensing bulb and wiring exactly as the original for accurate temperature control
• Transfer knob/shaft adapter and mounting pieces if required; set to a mid setting and verify operation
