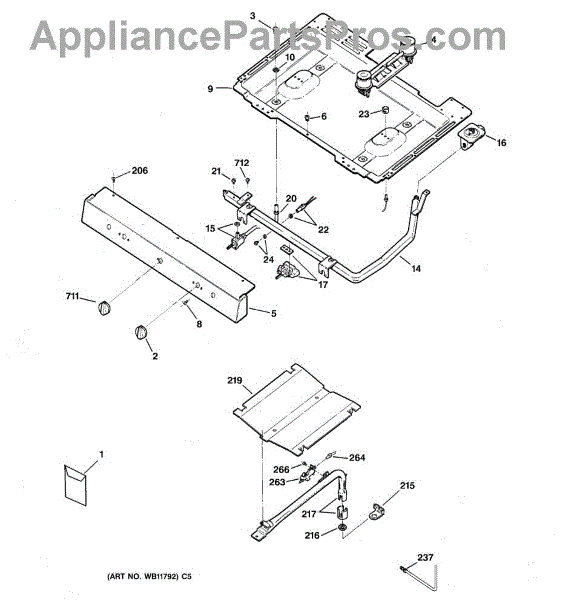

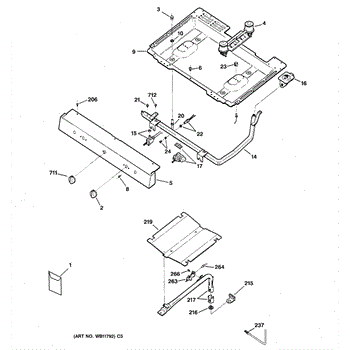

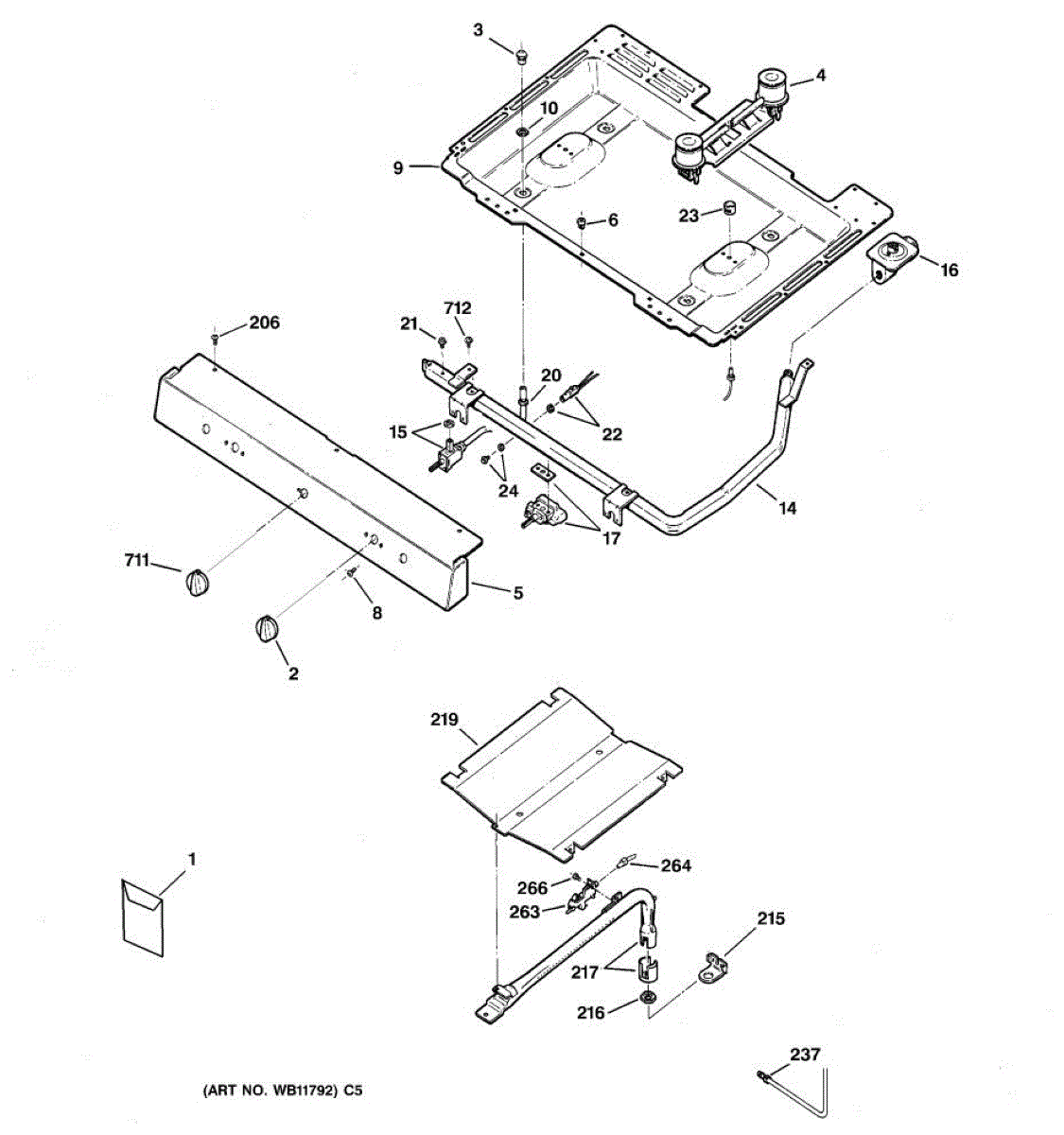

Parts for Ge JGBS04PPH2CT: 01 - Gas & Burner Parts

This conversion kit assembly adapts your gas appliance for the correct fuel type specified for your model, restoring proper flame size and heating performance after a fuel change and supporting safe, efficient operation.

• Converts the appliance for the designated gas type per the manufacturer's instructions
• Calibrates burner output for proper flame characteristics and heat
• Helps address yellow flames, sooting, weak heating, or hard-to-adjust flames after a fuel change
• Supports reliable ignition and stable flames when the supply differs from the factory setup

• Turn off gas and electrical power and allow the appliance to cool before service
• Install each component in its specified location; do not mix sizes; retain removed parts for possible reconversion
• After installation, leak-check all connections and verify flame appearance/air adjustment; apply required conversion identification as instructed

Color: Black. Measures about 2 inches in diameter.

Natural gas orifice spud.

This replacement orifice spud for the cooktop surface burner threads into the orifice holder to meter gas flow, helping ensure proper flame size and reliable ignition for consistent cooking performance. What it does:

• Meters gas flow to the surface burner through a calibrated opening
• Helps produce stable, properly sized flames for even cooking
• Replace if the original spud is clogged, stripped, or damaged
• Common symptoms include weak/low or no flame, yellow/orange flames, uneven heating, or delayed ignition

• 1 orifice spud

• Turn off the gas supply and disconnect power; allow the appliance to cool completely
• Remove grates, burner caps, and burner heads to access the orifice holder
• Use the correct spud for the specific burner position and gas type per your model documentation
• Start threads by hand and tighten snugly without overtightening; after reassembly, check for leaks with a soapy-water solution and verify ignition and flame

The Double Burner Kit is an OEM part for GE gas ranges. This kit includes the necessary components to replace the double burner, which is crucial for efficient cooking on GE gas stoves. The double burner provides two separate flame sources, allowing for versatile cooking options with different heat levels.

Causes of a bad double burner can include normal wear and tear, clogs from food debris, exposure to high temperatures, or physical damage. These issues can hinder the burner's performance and safety.

Symptoms of a bad double burner include:

• Uneven or weak flames
• One or both burners not igniting
• Difficulty in adjusting the flame size
• Noticeable gas odor when the burner is off

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This part has been discontinued and is no longer available.

Size: 8 - 32 inch.

A surface burner valve that regulates gas flow to a cooktop/range burner, allowing precise flame adjustment and complete shutoff. Replace a worn valve to restore smooth knob feel, accurate flame control, and dependable ignition.

• Controls gas flow to one surface burner on the valve manifold
• Interfaces with the control knob to open/close and set flame level
• Worn valves can cause gas odor, stiff/loose knob action, or erratic flame
• Common symptoms: burner won't light, flame stuck high/low, or burner won't shut off

• Disconnect electrical power and shut off gas supply before servicing
• Remove burner knobs and front panel/cooktop to access the valve manifold
• Transfer fittings/orifice holder as needed; install the new valve in the same orientation
• After reassembly, restore gas and check all connections for leaks with approved solution; verify ignition and flame adjustment

This oven thermostat uses a capillary sensing bulb to monitor cavity heat and cycle the heating system to maintain your set temperature. Replacing a worn thermostat helps restore more accurate baking and steadier oven performance.

• Monitors oven temperature via a remote capillary sensor bulb
• Opens and closes internal contacts to regulate heat to the setpoint
• Helps resolve: oven not reaching temperature or running too hot
• Also helps with temperature swings, long preheat, or oven not shutting off when the control is turned off

• Disconnect power and shut off gas supply before servicing; allow the oven to cool completely
• Handle the capillary bulb carefully; do not kink or sharply bend it, and route it exactly as originally installed
• Transfer the original knob and any mounting hardware/brackets as needed
• If gas fittings were disturbed, leak-test connections per manufacturer instructions; verify temperature with an oven thermometer and adjust per service guidelines if applicable

Location: Right rear.

Location: Left rear.

Location: Right front.

Location: Left front.

This is the screw that secures the burner valve to the appliance, keeping the valve and associated controls fastened for reliable operation. Replaces a worn or missing mounting fastener to restore proper valve alignment and support. What it does:

• Secures the burner valve assembly to the appliance frame or manifold
• Keeps valve position stable to help maintain reliable burner operation
• Helps prevent movement that can cause loose connections or intermittent function
• Used when original screw is stripped, missing, or corroded

• One burner valve mounting screw

• Turn off power and gas supply to the appliance before starting any repair
• Use the correct size driver and avoid over-tightening to prevent stripping the screw or damaging the valve
• Confirm valve and surrounding components are properly aligned before final tightening

Size: 10-32 GXTT FLP.595 S

This oven safety valve bracket secures the gas safety valve in place to keep the valve aligned and stable during operation. It replaces a worn, bent, or broken bracket to help maintain safe, consistent gas valve positioning. What it does:

• Holds the oven gas safety valve securely to the chassis to prevent movement or misalignment
• Helps maintain consistent valve positioning for reliable burner operation
• Commonly replaced when the bracket is cracked, bent, or missing hardware

• Always shut off gas supply and disconnect power before servicing gas components
• Remove access panels to reach the valve; retain all fasteners for reassembly
• Check valve alignment and gas connections after installation; do not overtighten mounting hardware

This oven pilot assembly with thermocouple maintains a steady pilot flame and proves flame presence to the safety valve so the oven burner can ignite and stay on. Replace when the pilot won't hold or oven ignition is inconsistent.

• Supplies the constant pilot flame needed to light the oven burner
• Thermocouple sends a flame-present signal to allow/hold gas flow to the burner
• Helps resolve issues like the pilot going out, burner not lighting, or oven shutting off mid-cycle
• Restores consistent oven ignition on pilot-equipped models

• Shut off gas supply and power; allow the appliance to cool before servicing
• Note routing and mounting before removal; install the new assembly in the same orientation
• After reconnecting lines, check all joints for leaks with an approved leak-detection solution
• Verify a stable pilot flame and proper burner ignition after installation

This oven pilot assembly with thermocouple maintains a steady pilot flame and proves flame presence to the safety valve so the oven burner can ignite and stay on. Replace when the pilot won't hold or oven ignition is inconsistent.

• Supplies the constant pilot flame needed to light the oven burner
• Thermocouple sends a flame-present signal to allow/hold gas flow to the burner
• Helps resolve issues like the pilot going out, burner not lighting, or oven shutting off mid-cycle
• Restores consistent oven ignition on pilot-equipped models

• Shut off gas supply and power; allow the appliance to cool before servicing
• Note routing and mounting before removal; install the new assembly in the same orientation
• After reconnecting lines, check all joints for leaks with an approved leak-detection solution
• Verify a stable pilot flame and proper burner ignition after installation

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
