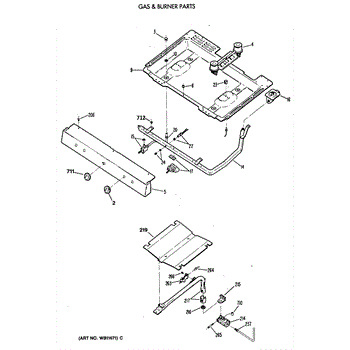

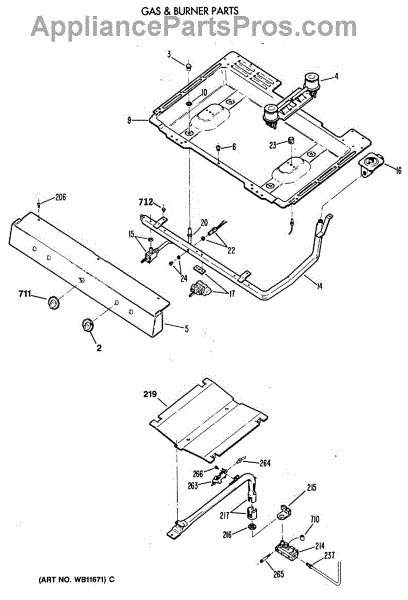

Parts for Ge JGBS04PV2AD: 01 - Gas & Burner Parts

This replacement orifice spud for the cooktop surface burner threads into the orifice holder to meter gas flow, helping ensure proper flame size and reliable ignition for consistent cooking performance. What it does:

• Meters gas flow to the surface burner through a calibrated opening
• Helps produce stable, properly sized flames for even cooking
• Replace if the original spud is clogged, stripped, or damaged
• Common symptoms include weak/low or no flame, yellow/orange flames, uneven heating, or delayed ignition

• 1 orifice spud

• Turn off the gas supply and disconnect power; allow the appliance to cool completely
• Remove grates, burner caps, and burner heads to access the orifice holder
• Use the correct spud for the specific burner position and gas type per your model documentation
• Start threads by hand and tighten snugly without overtightening; after reassembly, check for leaks with a soapy-water solution and verify ignition and flame

The Double Burner Kit is an OEM part for GE gas ranges. This kit includes the necessary components to replace the double burner, which is crucial for efficient cooking on GE gas stoves. The double burner provides two separate flame sources, allowing for versatile cooking options with different heat levels.

Causes of a bad double burner can include normal wear and tear, clogs from food debris, exposure to high temperatures, or physical damage. These issues can hinder the burner's performance and safety.

Symptoms of a bad double burner include:

• Uneven or weak flames
• One or both burners not igniting
• Difficulty in adjusting the flame size
• Noticeable gas odor when the burner is off

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This part has been discontinued and is no longer available.

Right rear.

This oven safety valve bracket secures the gas safety valve in place to keep the valve aligned and stable during operation. It replaces a worn, bent, or broken bracket to help maintain safe, consistent gas valve positioning. What it does:

• Holds the oven gas safety valve securely to the chassis to prevent movement or misalignment
• Helps maintain consistent valve positioning for reliable burner operation
• Commonly replaced when the bracket is cracked, bent, or missing hardware

• Always shut off gas supply and disconnect power before servicing gas components
• Remove access panels to reach the valve; retain all fasteners for reassembly
• Check valve alignment and gas connections after installation; do not overtighten mounting hardware

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This handle grommet cushions and secures a range or oven door handle, preventing vibration and wear while keeping the handle snug. It's a small replaceable part that restores proper fit and reduces rattling. What it does

• Provides a soft mounting surface between the handle and door to prevent metal-to-metal contact
• Keeps the handle tight and aligned to stop looseness or movement
• Dampens vibration and reduces rattling during operation
• Helps protect the door finish where the handle mounts

• One handle grommet

• High-level push-fit part; remove the handle or access the mounting area per your model's service instructions
• Disconnect power to the appliance before beginning service when accessing electrical or heated components
• Use a plastic trim tool or small screwdriver to pry out the old grommet carefully to avoid scratching the door
• If the handle or mounting hardware is damaged, inspect and replace as needed for a lasting repair

Anti-tip kit.
