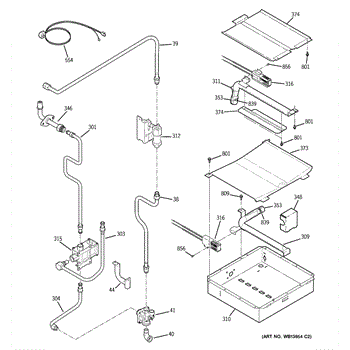

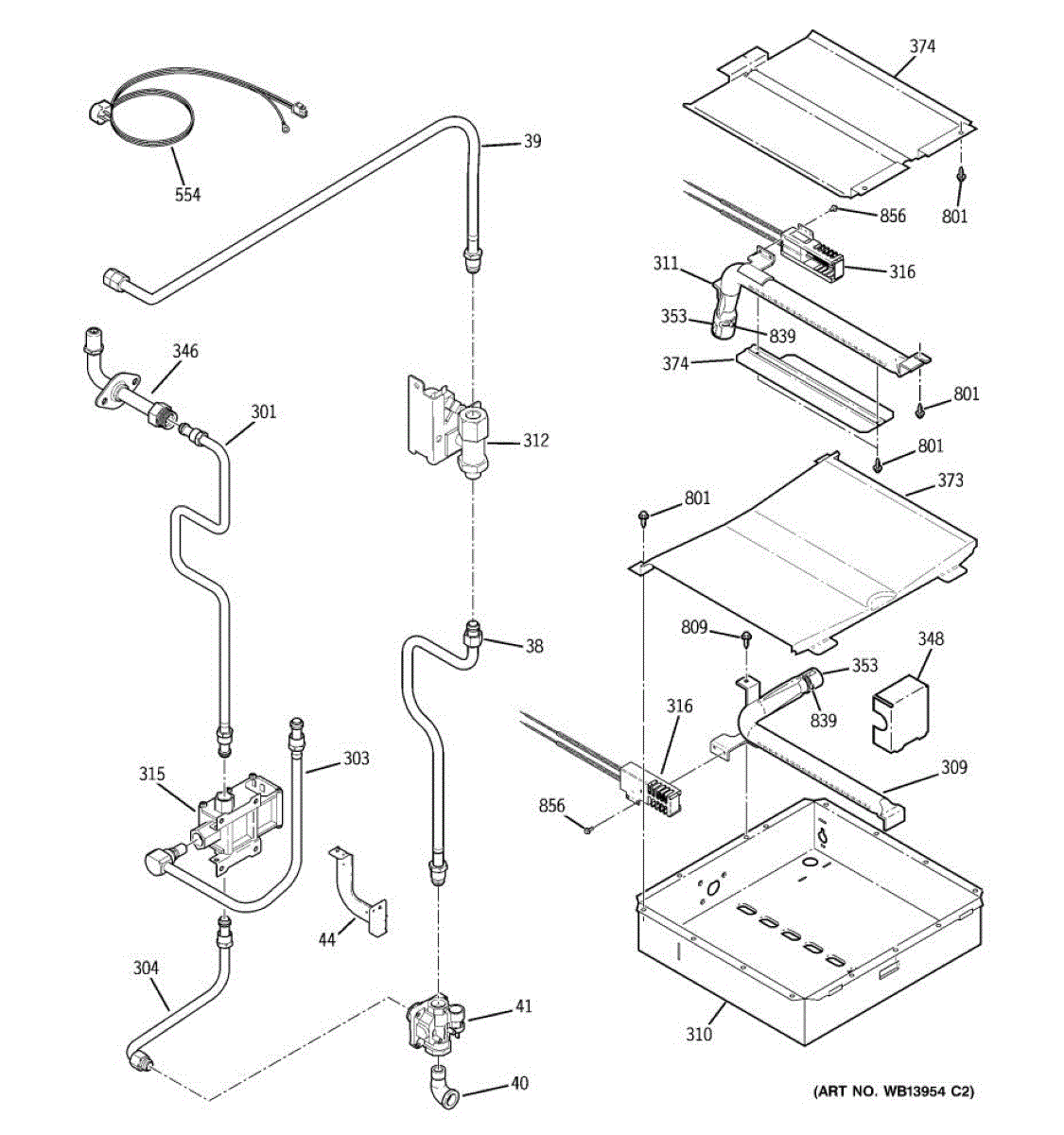

Parts for Ge PGS975BEM2BB: 01 - Gas & Burner Parts

The Burner Oven Bake Assembly is an OEM part for GE ranges. This part is responsible for providing the heat necessary to bake food in the oven. Located at the bottom of the oven, the bake burner ensures even and consistent heat distribution.

Causes of a bad bake burner can include wear and tear from regular use, buildup of food residue, or damage from overheating or physical impact.

Symptoms of a bad burner oven bake assembly include:

• The oven not heating up or taking too long to preheat
• Uneven baking results or hot spots in the oven
• A visible flame or the burner not igniting properly
• Unusual smells or noises coming from the oven during baking

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven burner box is the metal housing that holds and positions the bake/broil burner inside the oven so the heating flame or element is directed correctly for even cooking. It restores safe, consistent heat flow in the oven cavity. What it does:

• Houses and secures the oven's bake/broil burner assembly so the burner stays aligned and contained
• Directs heat and combustion airflow for consistent oven temperature and even baking
• Helps protect nearby components from direct flame or heat exposure
• Can be associated with symptoms like weak or no oven heat, uneven baking, or visible flame/ignition issues

• Always shut off power and gas supply (for gas ovens) before starting service
• Follow the oven manufacturer's instructions;
• Use proper fasteners and gaskets to ensure a secure, sealed fit and to prevent heat leaks

This surface burner control valve regulates gas flow to a single cooktop or range burner, allowing smooth ignition and precise flame adjustment. Replace a worn or stiff valve to restore consistent, reliable burner control.

• Regulates gas from the manifold to an individual surface burner as the knob is turned
• Opens/closes the gas path to ignite and adjust flame height
• Helps maintain a steady flame at low and high settings
• Common symptoms: burner won't light or only lights with a match, flame won't adjust or is uneven, control knob hard to turn or seized, gas odor near the control area

• Disconnect power and shut off the gas supply before servicing
• Remove the knob and access panel to reach the valve; label and disconnect gas tube fittings
• Support the manifold with a second wrench when loosening/tightening fittings; do not overtighten
• After installation, restore gas and check all connections for leaks using a non-flammable leak-detection solution; verify proper ignition and flame adjustment

The Oven Igniter Assembly is an OEM part for GE ovens. This assembly is responsible for igniting the gas to provide heat for cooking. It ensures the oven reaches and maintains the set temperature by igniting the gas burner whenever the oven is in use.

You should replace the oven igniter assembly if it becomes faulty. Causes of a bad igniter include wear and tear over time, electrical failures, or damage from excessive heat exposure. A malfunctioning igniter can prevent the oven from heating properly, leading to uneven cooking or failure to reach the desired temperature.

Symptoms of a bad Oven Igniter Assembly include:

• The oven not heating up
• The igniter not glowing or sparking
• Uneven cooking or baking results
•  The smell of gas without ignition

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This orifice fitting secures the burner orifice to the gas manifold, providing a sealed, stable connection for proper flame delivery. It's a direct-replacement part that restores correct gas flow for safe burner operation. What it does:

• Holds the burner orifice in place on the gas manifold to ensure consistent gas delivery
• Helps maintain proper flame size and stability when installed correctly
• Commonly replaces damaged, stripped, or leaking orifice fittings
• Resolves symptoms like weak or uneven flame, burner that won't light, or gas odors when related to the fitting

• One orifice fitting (brass)

• Turn off the gas supply and power to the appliance before servicing
• Use correct-size wrenches; avoid overtightening to prevent damage to threads
• After installation, check all connections for leaks with a soap solution or approved leak detector

ST10-16 X 7/16"

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

Nickel

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
