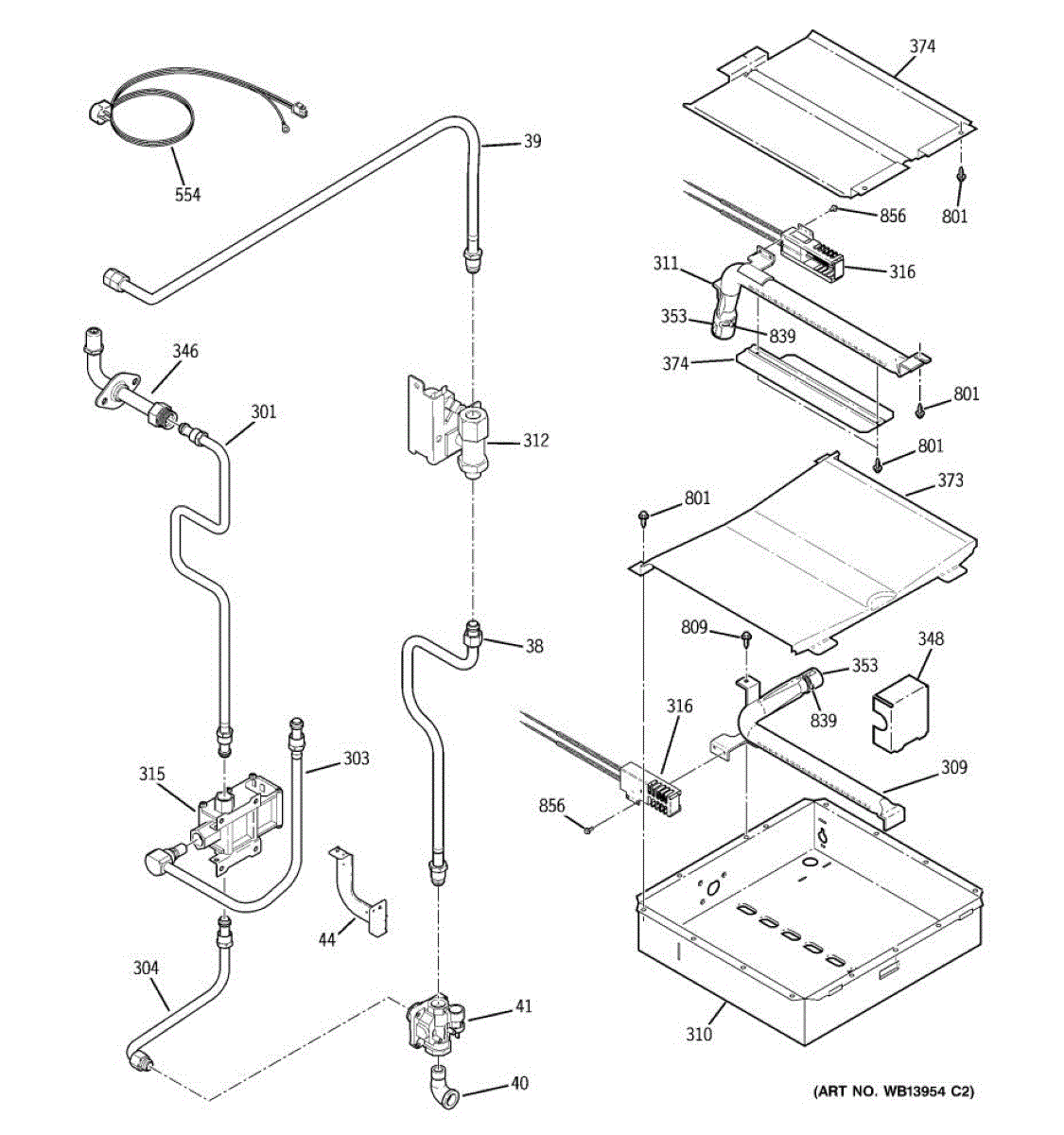

Parts for Ge PGS975BEM4BB: 01 - Gas & Burner Parts

Gas supply tube for ranges. Connects the gas line to burner components. Replace if cracked, kinked, damaged, or leaking to restore safe operation.

Gas supply tube for ranges. Connects gas line to burner valves. Replace if cracked, kinked, corroded, or leaking to restore safe gas flow to your range.

Gas line elbow fitting for ranges. Connects gas supply tubing at angled joints. Replace if cracked, corroded, or leaking to restore safe connections.

The Burner Oven Bake Assembly is an OEM part for GE ranges. This part is responsible for providing the heat necessary to bake food in the oven. Located at the bottom of the oven, the bake burner ensures even and consistent heat distribution.

Causes of a bad bake burner can include wear and tear from regular use, buildup of food residue, or damage from overheating or physical impact.

Symptoms of a bad burner oven bake assembly include:

• The oven not heating up or taking too long to preheat
• Uneven baking results or hot spots in the oven
• A visible flame or the burner not igniting properly
• Unusual smells or noises coming from the oven during baking

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Metal housing that holds and positions the bake or broil burner inside your range oven. Replace if cracked, warped, rusted, or broken to restore proper burner alignment and safe operation.

This surface burner control valve regulates gas flow to a single cooktop or range burner, allowing smooth ignition and precise flame adjustment. Replace a worn or stiff valve to restore consistent, reliable burner control.

• Regulates gas from the manifold to an individual surface burner as the knob is turned
• Opens/closes the gas path to ignite and adjust flame height
• Helps maintain a steady flame at low and high settings
• Common symptoms: burner won't light or only lights with a match, flame won't adjust or is uneven, control knob hard to turn or seized, gas odor near the control area

• Disconnect power and shut off the gas supply before servicing
• Remove the knob and access panel to reach the valve; label and disconnect gas tube fittings
• Support the manifold with a second wrench when loosening/tightening fittings; do not overtighten
• After installation, restore gas and check all connections for leaks using a non-flammable leak-detection solution; verify proper ignition and flame adjustment

Oven won't heat or igniter not glowing? This range igniter assembly ignites the gas burner to heat your oven. DIY repair typically takes 30 minutes.

Brass fitting that secures the burner orifice to the gas manifold on your range. Replace if the fitting is stripped, corroded, or missing.

This orifice shield protects the gas burner orifice on your range. Replace if cracked, broken, or missing to ensure proper burner assembly coverage.

Range power cord connects your range to the wall outlet. Replace if cord is frayed, damaged, or missing when installing a new range or moving to a new home.

ST10-16 X 7/16"

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Nickel

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.
