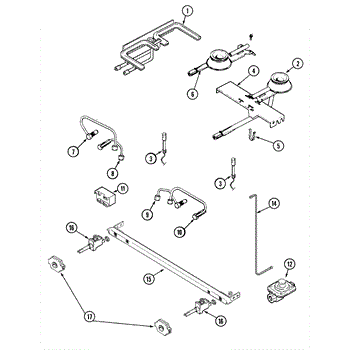

Parts for Jenn-Air SVD8310S: 08 - Gas Controls Parts

This genuine OEM part is a cooktop grill burner. The grill burner is the component part that allows the gas flame to spark so that the stove can perform its job of cooking and heating. If the stove burners are no longer producing a flame or not turning on at all, it might be time to replace the grill burner. Luckily this is a relatively simple repair.To start, make sure that all power to the stove has been turned off by either unplugging the appliance or shutting off the circuit breaker. Close the shut off valve on the propane gas tank. Remove the cooking grate and the flame tamer from the top of the damaged burner. Pull the cotter pin out of the back of the burner. Remove the burner mounting screws. Pull the burner back then up to remove it from the manifold and remove the burner. Place the new burner into the manifold and fasten the mounting screws. Reinstall the cotter pin and flame tamer and restore the gas and power back to the appliance.This replacement part is sold individually and is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand stoves.

Replace a clogged or damaged rear burner with this surface burner head in black. It channels gas to the flame ports so the rear burner lights reliably and delivers a consistent, even flame for everyday cooking.

• Directs gas through precisely sized ports to form the rear burner flame pattern
• Interfaces with the spark igniter/electrode for dependable ignition
• Helps restore proper burner performance when ports are worn, corroded, or blocked
• Common symptoms: burner clicks but won't light, uneven or weak flame, yellow tipping, delayed ignition

• Shut off gas supply and disconnect power before servicing
• Remove grate and burner cap; take out mounting screws and lift the old burner head straight up over the igniter
• Align the new head over the orifice and igniter; secure with the existing screws
• Reassemble and test for proper ignition and flame on all burners

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Spark electrode with a 29 inch female terminal.

This replacement mounting bracket secures internal components and panels so parts stay aligned and stable during operation. It restores proper fit and reduces rattling or loose panels for safer, quieter performance. What it does

• Provides a secure mounting point for appliance panels or components.
• Restores alignment to panels or assemblies that have become loose or shifted.
• Helps eliminate rattling, vibration noise, or intermittent contact caused by a loose bracket.
• Used when existing bracket is cracked, bent, or missing.

• Disconnect power (and gas if applicable) before beginning any repairs.
• Use common hand tools; support panels while removing fasteners to prevent damage.
• Handle edges carefully to avoid cuts; wear gloves if needed.

This part has been discontinued by the manufacturer and is no longer available.

This surface burner head redistributes gas from the orifice to create an even flame on your range or cooktop. Replacing a clogged or damaged head helps restore reliable ignition and consistent heat for everyday cooking.

• Channels gas to the burner ports for a uniform flame pattern
• Works with the igniter/spark electrode to light the burner
• Can help resolve weak, yellow, or uneven flames caused by blockage or wear
• Common symptoms: burner won't light, takes multiple clicks to ignite, or flames that sputter/go out

• Disconnect power and shut off gas; allow the cooktop to cool
• Remove grate and burner cap, then lift off the old head
• Clean the orifice area; seat the new head squarely on the orifice
• Reassemble and test ignition and flame; check for leaks if any connections were disturbed

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

For top surface burners. Configuration: 2 + 0.

This gas valve controls the flow of gas to a burner, enabling safe ignition and precise flame adjustment. Replacing a worn valve restores smooth knob operation and consistent flame performance on your gas cooking appliance.

• Opens and closes to start/stop gas flow to a specific burner
• Works with the control knob to modulate flame size
• Helpful when a burner won't light despite spark/ignition present
• Can address issues like inconsistent flame or a knob that's hard to turn

• Disconnect power and shut off the gas supply before servicing
• Match the orientation and connections to the original valve
• Use an approved gas-rated thread sealant on threaded fittings
• After installation, check all joints for leaks with a soap-and-water solution

Replacement igniter switch that restores spark ignition for gas cooktops and ranges, helping burners light reliably and reducing intermittent or no-ignite symptoms. Designed as a like-for-like control component when your original switch fails. What it does:

• Sends the electrical spark signal to the burner ignition circuit so the burner lights
• Stops clicking or sparking when the switch fails, which can cause burners not to ignite
• Addresses symptoms like intermittent ignition, continuous clicking without flame, or no spark from the burner electrode
• Works as the control point between user knob/ignition module and the spark system

• Turn off power to the appliance and shut off the gas supply before servicing
• Replace with the exact part number and match connector types; do not force-fit a non-matching switch
• After installation, test burners for proper ignition and check for gas leaks before normal use

This top burner valve switch mounts to a surface burner gas valve and closes the ignition circuit when you turn the knob to Lite. Replacing a worn switch restores dependable sparking and stops intermittent or nonstop clicking at the burners.

• Mounts on the surface burner valve and closes the ignition circuit at the Lite position
• Signals the spark module to fire the igniters so the burner lights
• Helps ensure quick, consistent burner ignition
• Common symptoms: no spark at a burner, intermittent ignition, or continuous clicking with knobs in Off

• Disconnect power and shut off the gas supply before servicing
• Pull off the burner knob and remove the control/manifold panel to access the valve switch
• Transfer wires one at a time and align the switch correctly on the valve stem; avoid overtightening
• Reassemble, restore power, test for spark with gas off, then relight and check for leaks

This LP conversion kit adapts compatible gas appliances from natural gas to liquid propane. Proper conversion helps ensure safe ignition, correct flame size, and consistent heating when your installation uses propane instead of natural gas. What it does:

• Converts the appliance's gas system from natural gas to LP/propane
• Matches burner/orifice sizing and regulator setting to propane fuel characteristics
• Helps correct symptoms tied to the wrong fuel: tall yellow flames, sooting, weak heat, uneven burner performance
• Required when connecting the appliance to an LP/propane supply

• Includes LP conversion kit

• Must be installed by a gas technician; follow local codes and the model-specific instructions
• Shut off gas and power before starting; verify all connections are leak-free with an approved leak-detection solution
• Replace the specified orifices and set/convert the pressure regulator to LP as directed; apply the provided LP identification label
• After conversion, verify flame appearance and manifold pressure
