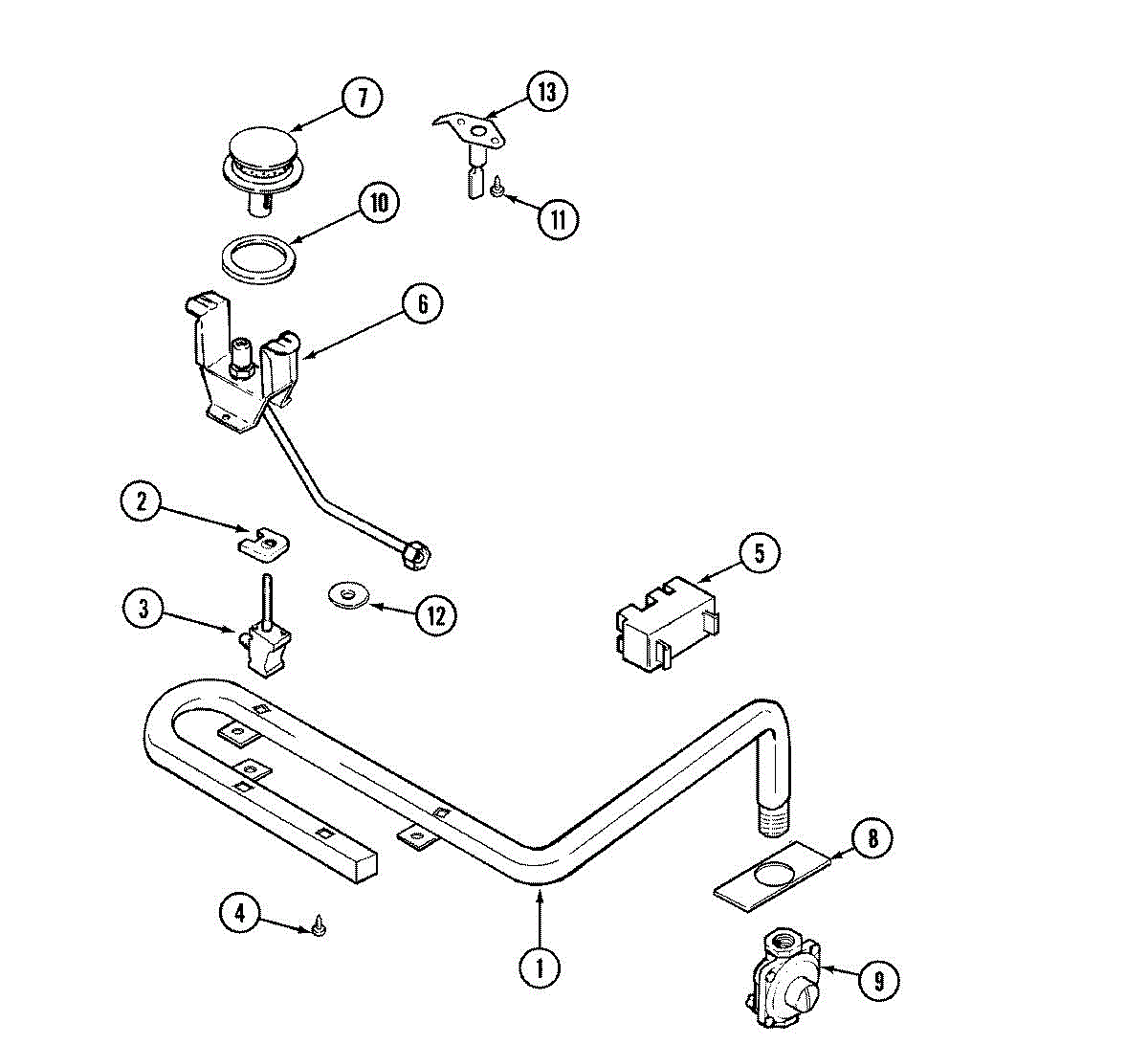

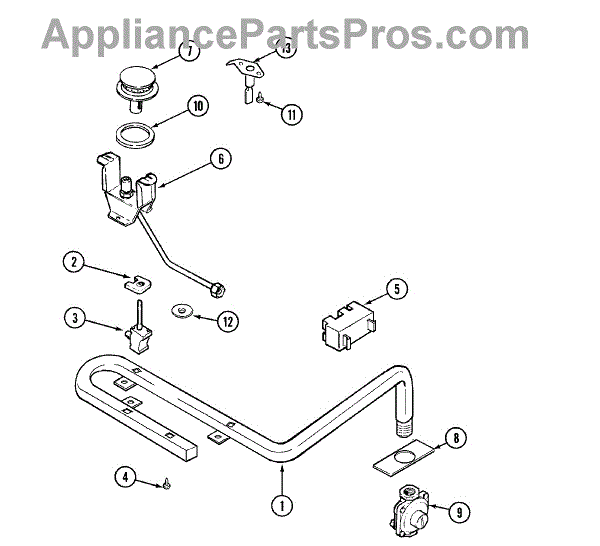

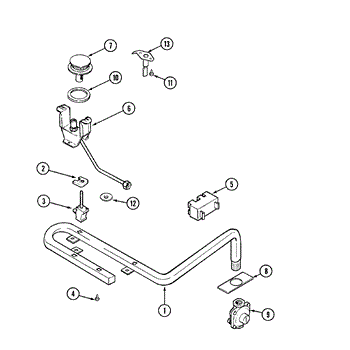

Parts for Magic Chef 8351VQ: 01 - Gas Controls Parts

This ignition switch controls spark to a gas range burner so burners light reliably when a knob is turned. Replaces a worn or failed switch to restore normal ignition and consistent burner operation. What it does:

• Sends the electrical spark signal to the burner igniter when the control knob is turned
• Allows the range to ignite burners; a failed switch can prevent sparks and burner ignition
• Works with the range's safety/ignition system to enable proper start-up sequencing
• Helps eliminate intermittent sparking or no-spark symptoms linked to a faulty switch

• Disconnect power and turn off the gas supply before beginning service
• Basic hand tools required; access may require removing the cooktop or control panel
• Handle electrical connections carefully and restore grounding; follow manufacturer instructions

The Spark Module Kit is an OEM part for Whirlpool ranges. It is responsible for generating the spark needed to ignite the gas burners on the cooktop. The spark module sends electrical signals to the igniters, creating the spark that lights the gas for cooking.

Over time, the spark module can fail due to electrical issues, exposure to moisture, or normal wear and tear. When the spark module becomes faulty, it can lead to various problems with igniting the burners.

Symptoms of a bad spark module include:

• Burners not lighting or taking a long time to light
• No clicking sound when turning the burner knob
• Burners only lighting intermittently
• Visible sparks or arcing from the module

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

NOTE: This part is only compatible with serial numbers starting with 21 and up on model 8351VV.

This part has been discontinued by the manufacturer and is no longer available.

This replacement fitting connects water or drain lines to your appliance, restoring a secure, leak-resistant connection. It's a simple part that helps stop leaks and keeps plumbing joints sealed for reliable operation. What it does:

• Provides a secure connection between hoses or pipes and the appliance
• Directs water flow through the correct inlet/outlet pathway
• Helps stop drips and leaks caused by worn or damaged fittings
• Common symptom: visible leaking or loose hose connection at the appliance
• Common symptom: reduced or interrupted water flow from a faulty connection

• Turn off and disconnect power and shut off the water supply before starting
• Inspect mating hoses, clamps, and O-rings; replace if damaged
• Hand-start threads, then snug with a tool—don't overtighten to avoid damage
• After installation, restore water and power, then check carefully for leaks

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The Regulator is an OEM replacement part for Whirlpool gas ranges. It regulates the flow of gas from the supply line to the burners, ensuring safe and efficient operation of your range. It maintains a consistent gas pressure, allowing for accurate and controlled heat distribution during cooking.

A bad pressure regulator can occur due to wear and tear, clogging, or damage to the internal components. If you notice symptoms such as uneven flame, difficulty in igniting the burners, or gas leaks, it may be time to replace the pressure regulator.

Symptoms of a bad gas pressure regulator include:

• Uneven flame
• Difficulty in igniting burners
• Gas leaks

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This part has been discontinued and is no longer available. This gasket is no longer needed.

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

The Top Burner Spark Igniter is an OEM part for Whirlpool ranges. It is responsible for igniting the gas on the stove burners, allowing you to start cooking quickly and efficiently. The spark igniter produces a spark that lights the gas, providing the flame needed for cooking.

Causes of a bad igniter can include wear and tear over time, buildup of food debris or grease that interferes with the spark, or electrical issues that prevent the igniter from generating a spark.

Symptoms of a bad Top Burner Spark Igniter include:

• Burner not igniting
• Weak or no spark
• Clicking sound without ignition
• Delayed ignition of the burner

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
