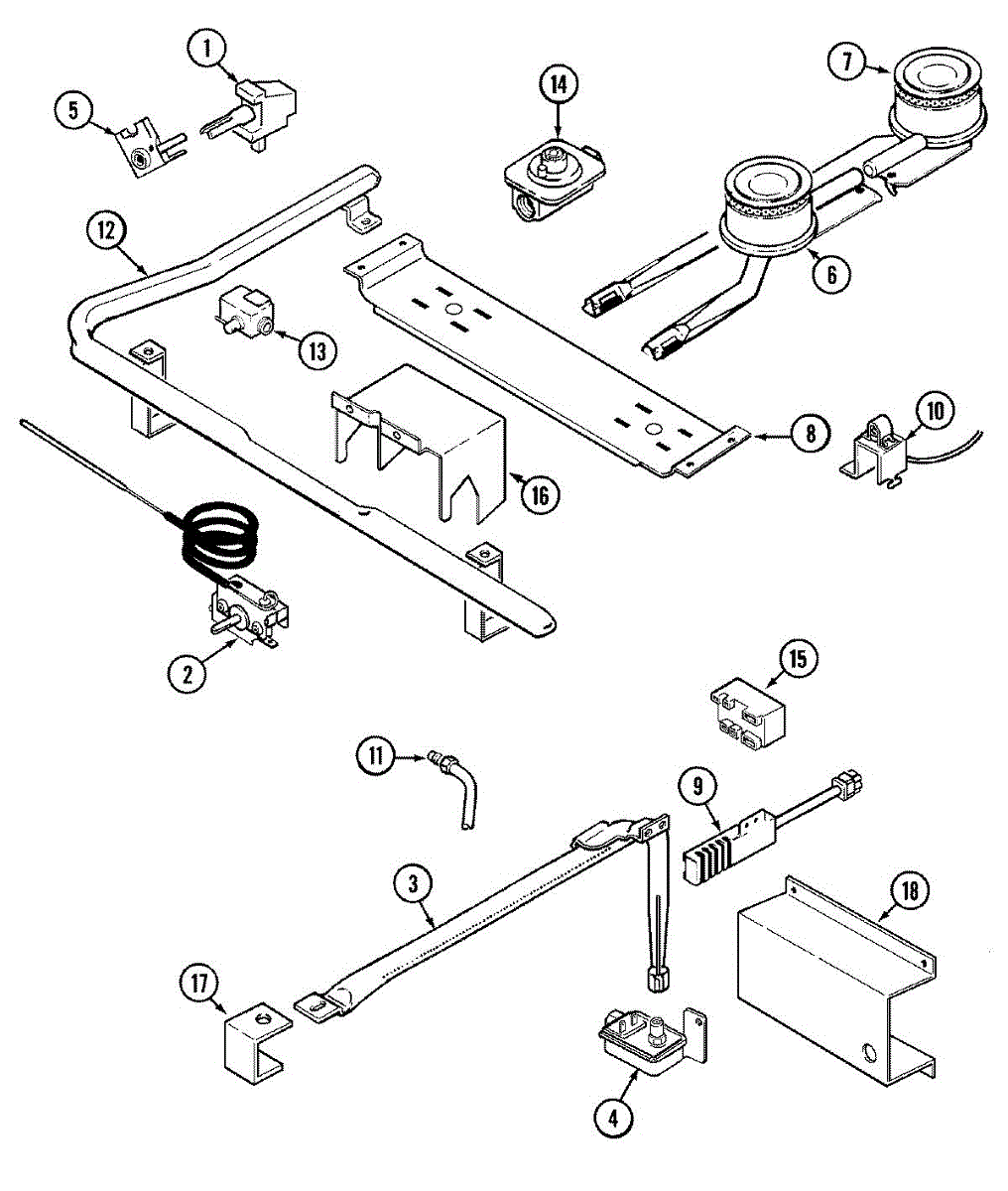

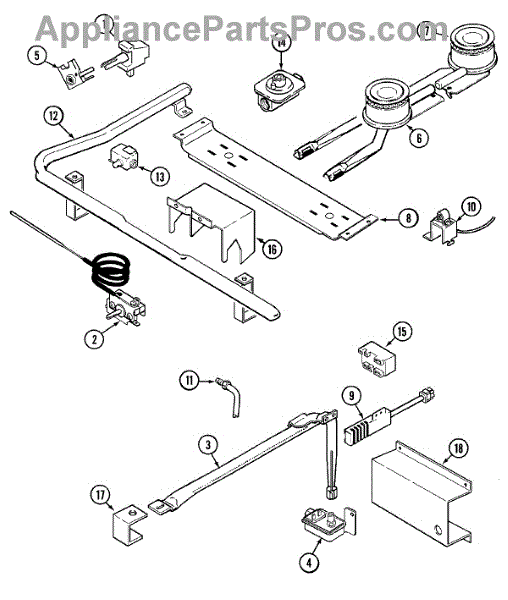

Parts for Magic Chef CLL1120ADH: 03 - Gas Controls Parts

A genuine replacement mounting screw that secures appliance panels and components to restore proper fit and reduce vibration. Use this screw to replace missing or damaged fasteners for a secure, rattle-free repair. What it does:

• Fastens panels, brackets, or components to the appliance frame
• Restores proper alignment and reduces rattling or vibration
• Prevents parts from coming loose during operation
• Works wherever the OEM screw W10828565 is specified

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Install only where the OEM screw is specified; do not overtighten
• Replace any stripped or damaged screws with this exact part

This thermostat monitors temperature in the appliance's heating circuit and opens or closes the electrical contacts to control heat and protect against overheating. Replacing a failed thermostat restores consistent heating performance and reliable safety shutoff. What it does:

• Senses temperature and cycles the heating circuit on and off to maintain target heat
• Provides over-temperature protection by opening the circuit if conditions exceed safe limits
• Helps prevent nuisance shutdowns caused by erratic temperature readings
• Common failure symptoms include no heat, inaccurate temperatures, short-cycling, or shutdown during high heat

• 1 thermostat

• Disconnect power (and gas supply if applicable) before servicing; allow all components to cool completely
• Access the thermostat per your service manual; document wire locations and transfer one at a time
• Mount the thermostat securely so the sensing surface/bulb is correctly positioned; avoid kinking or pinching any leads
• After installation, verify proper operation and temperature performance

Size: 10-24X5/16-NI

The Flat Style Oven Igniter Kit is an OEM part for Whirlpool ovens. It is designed to ignite the gas in the oven burner, facilitating the start of the heating process. This igniter is crucial for ensuring your oven heats up quickly and efficiently, providing the necessary flame for cooking and baking.

Symptoms of a bad Oven Igniter include:

• The oven failing to heat up or taking a long time to reach the desired temperature.
• A noticeable gas smell when the oven is turned on, indicating the gas is not igniting.
• The igniter glowing without producing a flame, which can point to a lack of adequate temperature to ignite the gas.

Causes of a bad oven igniter can include the wear and breakdown of the igniter element over time, a faulty electrical connection, or a disruption in the gas supply.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

For top surface burners. Configuration: 2 + 0.
