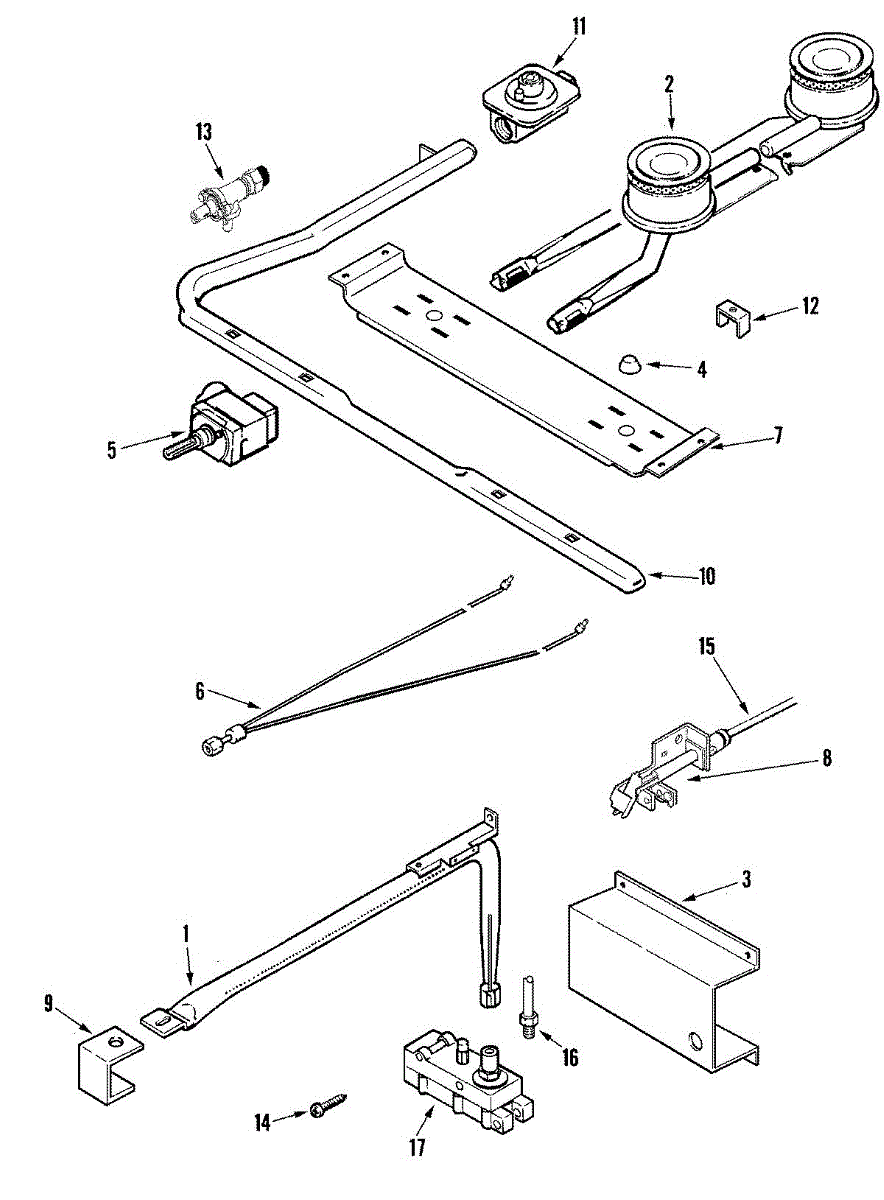

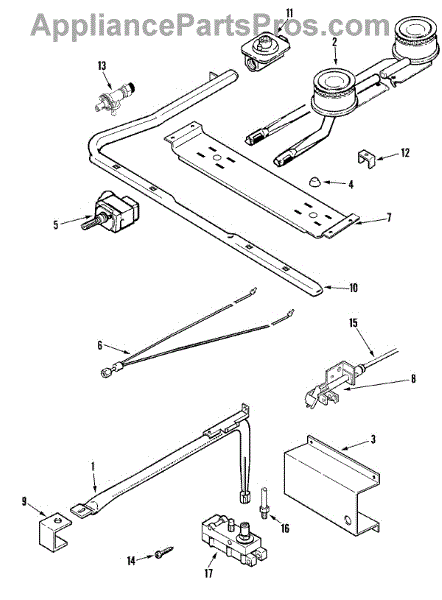

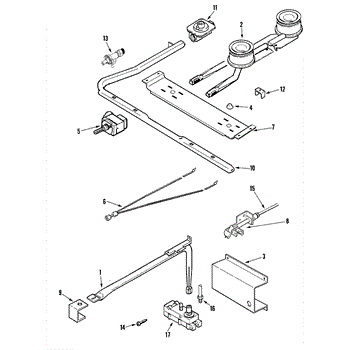

Parts for Magic Chef CPL1100ADQ: 02 - Gas Controls Parts

This cooktop is the main top panel for gas units. It supports the burners and grates, helps contain spills, and restores a clean, safe cooking surface when the original top is chipped, dented, or corroded.

• Serves as the primary surface where burner heads, caps, electrodes, and grates mount
• Contains spills and shields internal components from heat and debris
• Restores proper fit if grates or burners no longer sit level
• Typical reasons to replace include chips, cracks, warping, severe staining, or rust

• Disconnect power and shut off the gas supply before servicing
• Remove grates, caps, and burner heads; note screw locations and igniter lead routing
• Lift off the old top and transfer any brackets, grommets, or insulation as required
• Reassemble carefully and perform a leak check at burner connections after installation

A set of four valve mounting screws used to secure the water/ice valve or valve bracket in place. These OEM-style screws restore proper valve alignment and fasten valve assemblies for reliable operation. What it does:

• Secures the valve or valve bracket to the appliance chassis to prevent movement during operation
• Helps maintain a tight seal at valve mounting points to reduce risk of leaks
• Replaces missing, stripped, or corroded valve mounting fasteners
• Restores stable valve positioning that can prevent rattling or vibration

• Disconnect power and shut off the water supply before beginning any work
• Use the correct screwdriver or bit to avoid stripping the screw heads
• Thread screws in by hand first, then tighten snugly—do not overtighten to avoid damaging the valve or mounting threads
• If existing threads are damaged, inspect the mounting boss and replace as needed

This is a #10 x 2 inch appliance screw used to fasten panels and components in household appliances. It provides a simple, reliable hold to keep parts aligned and reduce vibration. What it does:

• Secures trim, panels, brackets, and internal components
• Helps prevent rattling or movement from loose or missing fasteners
• Restores proper alignment where a worn or missing screw causes gaps
• Works wherever a #10 x 2" fastener is specified by the manufacturer

• Disconnect power and water to the appliance before servicing
• Use the correct driver to avoid stripping the head; do not overtighten
• Keep track of removed fasteners and replace with identical-size screws
• Inspect mating threads and replace any damaged hardware
