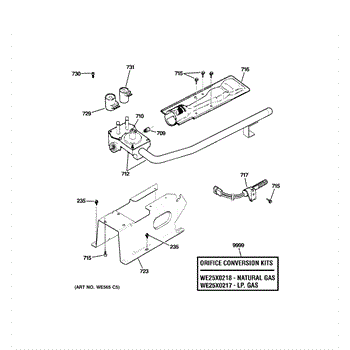

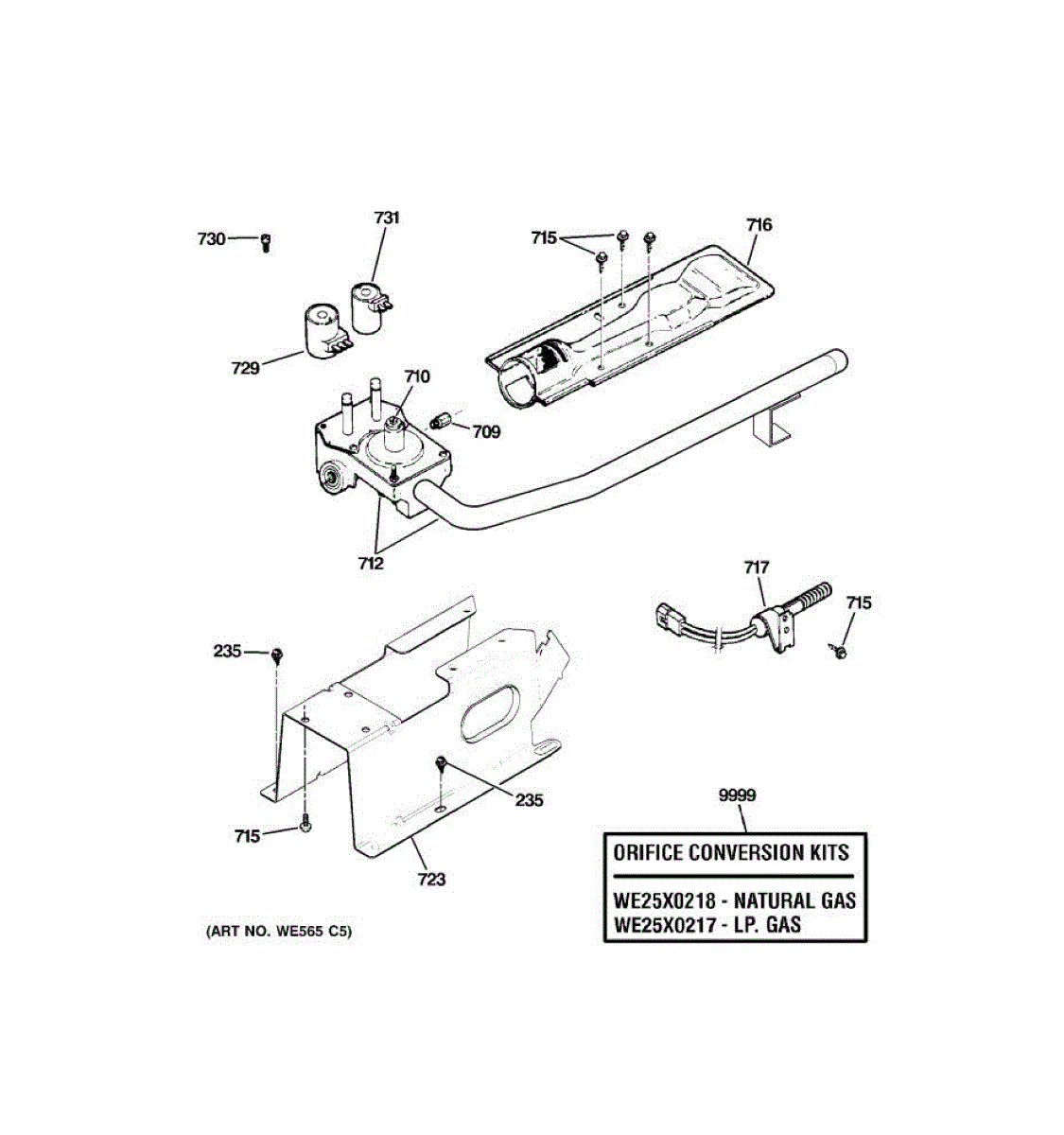

Parts for Ge PTDN600GM2WT: 05 - Gas Valve & Burner Assembly Parts

This is a 10-16 x 1/2 screw used to fasten small appliance components and panels; it restores secure attachment and helps stop rattling or loose parts for reliable operation. What it does:

• Secures panels, brackets, and small assemblies to the appliance
• Prevents movement that can cause noise, vibration or misalignment
• Restores proper fit where a worn or missing screw caused loose parts
• Matches OEM size so replacement fits original mounting points

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread carefully and do not overtighten—stop when snug to avoid damage
• Replace like-for-like; if corrosion or stripped threads are present, repair or replace the mating part as needed

This orifice meters gas flow to a single burner, restoring proper flame size and stable heating for gas ranges and ovens. Replacing a damaged or clogged orifice helps improve ignition and consistent burner performance. What it does:

• Controls the amount of gas delivered to the burner for correct flame height and heat output
• Helps resolve weak or low flames and uneven heating when the orifice is clogged or worn
• Supports reliable ignition by maintaining proper gas flow to the burner
• Works as the precise gas port that matches the cooktop/oven's burner assembly

• Turn off the appliance and shut off the gas supply before servicing
• Use appropriate tools to remove burner components; take care not to damage threads or fittings
• After installation, check all connections for leaks with a soap solution or approved leak detector

This valve and pipe assembly controls water flow to the refrigerator ice maker and dispenser, restoring reliable water delivery and ice production. It replaces a worn or leaking water inlet assembly to stop drips and restore proper fill cycles. What it does

• Routes and controls water from the household supply to the ice maker and dispenser
• Opens and closes to allow timed water fills for ice production
• Stops water flow when the valve is closed to help prevent leaks
• Commonly used when the ice maker or dispenser does not fill or when visible leaks occur

• One valve and pipe assembly

• Turn off power and shut off the water supply before starting any repair
• Handle the valve and fittings carefully to avoid twisting or damaging water lines
• Use proper tools and replacement gaskets/filters where required; tighten fittings to manufacturer torque specifications

This small mounting screw secures panels and trim on compatible GE appliances, restoring a solid, vibration-free fit. Use it to replace a missing, stripped, or damaged fastener and keep parts aligned and secure. What it does:

• Fastens panels, trim, or small components to the appliance frame
• Replaces missing or damaged screws that cause loose or rattling parts
• Restores secure attachment when threads are stripped or worn
• Helps maintain proper alignment to prevent noise and component wear

• Use the correct screwdriver size to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread damage
• Disconnect power or move the appliance to a safe position when accessing internal panels
• Consider a replacement clip or insert as recommended by the manufacturer

This burner assembly is the combustion head for GE gas dryers. It mixes gas and air and directs a stable flame into the heater housing, restoring consistent heat when the original burner is corroded, warped, or clogged.

• Directs the gas flame into the heat chamber for proper drying temperatures
• Works with the igniter, flame sensor, and gas valve to produce heat
• Typical failure symptoms: no heat or intermittent heat, long dry times, burner lights then goes out, unstable/yellow flame
• Physical issues can include rust, warping, or blocked burner ports

• Disconnect power and shut off the gas supply; allow the dryer to cool completely
• Note position of the igniter and flame sensor relative to the burner port; realign during reassembly
• Transfer any reusable fittings from the original burner as needed and verify orifice/fuel type match your installation
• After reconnecting gas, perform a leak check with a non-corrosive soapy water solution before restoring power

This gas dryer igniter assembly heats to a bright glow to light the burner so the dryer can produce heat. Replacing a cracked, weak, or non-glowing igniter restores reliable ignition and proper drying performance.

• Heats and ignites the gas at the burner to start the flame
• Restores drying heat when the original igniter is cracked or electrically open
• Common symptoms include: dryer runs but no heat, burner never lights, igniter does not glow, or extended dry times
• Visual damage such as white spots, breaks, or crumbling on the element indicates failure

• Disconnect power and shut off gas supply before servicing
• The igniter is brittle—handle only by the base or bracket; avoid touching the element with bare fingers
• Mount in the same position as the original and route leads away from heat and moving parts
• After reassembly, run a heat cycle to check the burner ignites; also check the flame sensor and gas valve coils

This replacement gas valve bracket secures the oven/range gas valve to the chassis, keeping the valve aligned and stable for reliable gas flow. Fits where the valve mounts to the appliance frame to restore proper positioning and reduce vibration. What it does:

• Holds the gas valve firmly in place to prevent movement or misalignment
• Maintains correct spacing between the valve and burner assembly for safe operation
• Helps eliminate rattling or vibration caused by a loose or damaged bracket
• Supports consistent valve operation that can reduce ignition or heating issues related to a loose mount

• One gas valve mounting bracket

• Shut off gas supply and unplug the appliance before starting any work
• Only install on the mount specified by the OEM; use correct fasteners and torque to avoid stripping or deformation
• After installation, check all gas fittings and connections for leaks using a gas leak detector or soapy-water test

The Dual Coil is an OEM part for GE dryers. This is often referred to as the “M” coil. If you need to replace both the main coil and dual coil, it is recommended to order the kit 279834, which includes both coils for a comprehensive replacement.

Causes of a faulty dual coil can include wear and tear over time, electrical component failure, or damage due to overheating or excessive usage. These factors can result in insufficient heat production, inconsistent drying, or no heat at all.

Symptoms of a bad dual coil may include:

• Insufficient heat or no heat during the drying cycle
• Inconsistent drying results
• Extended drying times

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Specs: 8-32 ca hxw 1/2

The Main Coil is an OEM part for GE dryers. It is a crucial component of the gas valve assembly, responsible for opening the gas valve to allow gas flow to the burner, enabling the dryer to produce heat.

Causes of a bad main coil can include electrical faults such as short circuits or open circuits within the coil, wear and tear from prolonged use, or damage due to overheating. Over time, the coil's ability to control the gas flow can diminish, affecting the dryer's performance.

Symptoms of a bad main coil include:

• The dryer not heating up
• Intermittent heating during a drying cycle
• The dryer taking longer than usual to dry clothes
• A clicking sound without the ignition of the burner

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
