Mark H Water Valley , MS March 16, 2015 Broiler heating element went out I ordered a broiler element, watched the video and replaced the element when it arrived. I turned off the electrical breaker to the stove/oven. I then removed the oven door from the hinges and removed the 1/4" square head screws that secured the element in place,( the video showed phillip head screws ), removed the element wires from the old element. Replaced the element wires to the new element and reattached the element to the oven with the hex head screws. I then put the oven door back on the hinges and I then turned on the electrical breaker for the stove/oven and turn the oven to broil. The element worked. I then turned off the oven and set the clock. This entire process took me approximately 20 minutes to complete. Read More... 6 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 15-30 minutes Tools: Pliers

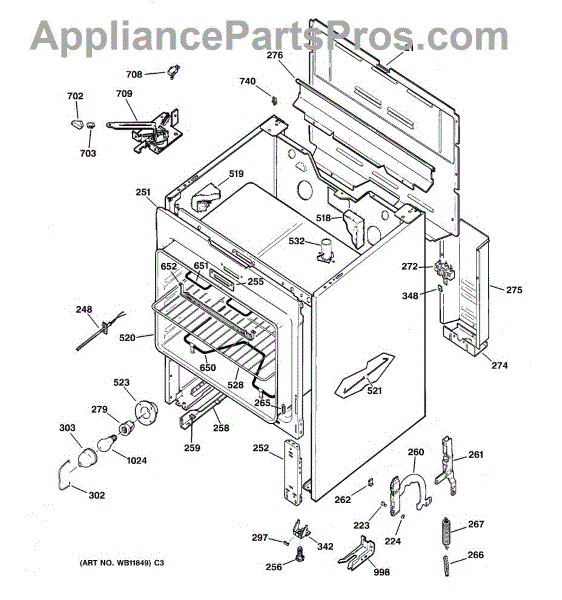

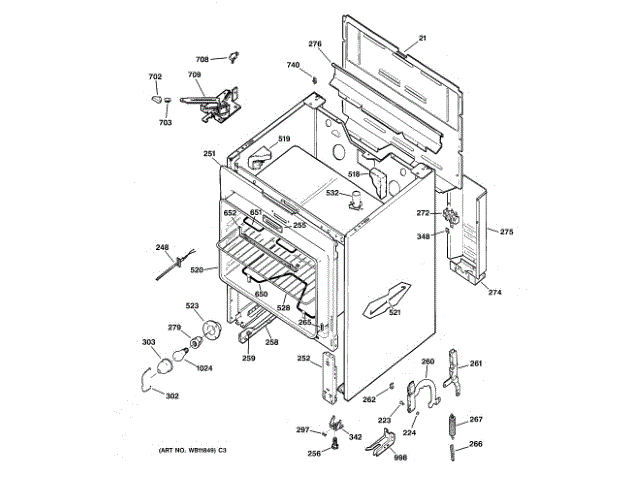

David S Grafton , WI August 16, 2016 Appliance: Model GE RB526V4 Our stove element burnt out and actually started a small fire while broiling some chicken breasts The 1st thing I did was look up the model # of our Hot Point stove then Googled it and found ApplianceParts Pros.com.I typed in our # and it brought up our model with an easy to read drawing which listed our exact broiler part.I also downloaded a few YouTube videos that explained a # of different manufacturers models and how to replace their broiler coils. What I found most interesting was how to remove my oven door which really made removing and replacement of the part a snap.I also greatly appreciated after ordering one day,getting my part on my porch the VERY NEXT DAY. It fit like a glove and we were back to using our stove and could not be happier.The price was reasonable and getting the part quickly in my opinion made this an Ideal DIY project. Read More... 1 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 15-30 minutes Tools: Nut Drivers, Screwdrivers
W M Saugerties , NY October 01, 2016 Appliance: Model JBP78AY3AA GE RANGE While grilling the element started to burn with a white flame like a magnesium fire; it continued to burn even after the power was cut I made sure the power was off. Then I took out the 4 hex screws to remove the defective broil element. Then I attached the new element with the same 4 screws and tested it, to make sure there would be a dinner. It matters which side is up, to match the two screw holes in the back of the over. Time required: 20 minutes. Read More... Do-It-Yourself Rating: Repair Time Estimate: 15-30 minutes Tools: Nut Drivers
Edward G Boynton Beach , FL July 22, 2016 Broil coil burned out Replaced in five minutes Read More... Do-It-Yourself Rating: Repair Time Estimate: Less than 15 minutes Tools: Nut Drivers
Mary H North Bennington , VT May 08, 2018 The broiler stopped working We ordered the part and did the repair at home. It works great and was fairly easy for me to fix! Read More... Do-It-Yourself Rating: Repair Time Estimate: 15-30 minutes Tools: Wrench Set
