Ge WH01X10088 Washer Start Stop Switch Button OEM Part

All I had to do was remove 3, 1/4" screws from the back and take the front off. Two 5/16th screws hold the circuit board in place, remove them and press the button into the hole from the back. Replace the circuit board, slide the front back on and install the three 1/4" screws. Always unplug the washer first!

After part arrived, Unplugged unit from power outlet and removed 3- 1/4" head screws from back of panel, lifted off control cover. Took picture of existing connection, Remove and swap over the jumper connector from one side of circuit board. Carefully disconnected wire connections (some have squeeze clips). Remove all knobs from switches at front of panel. Remove 4- 5/16" head screws which were retaining board on to panel. Lift off old panel. Reverse process to reassemble. Pretty straight forward to replace. Once complete, made sure all switches were in off position, plugged back into wall outlet. Washed 6 loads of laundry with no issues. This is a genuine GE part, which came in a GE sealed box.

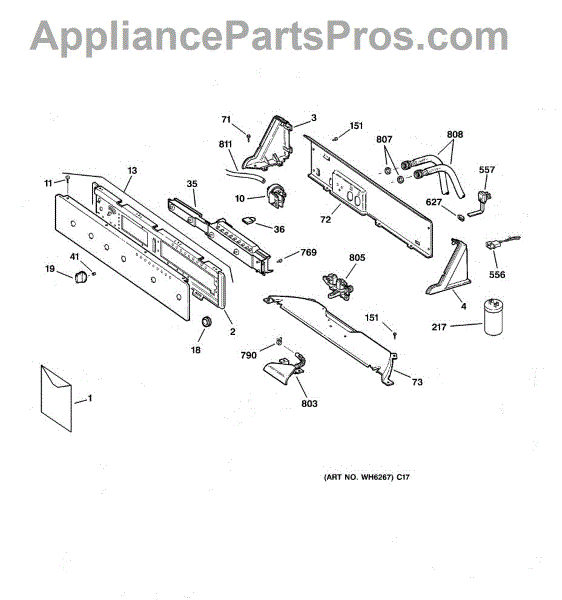

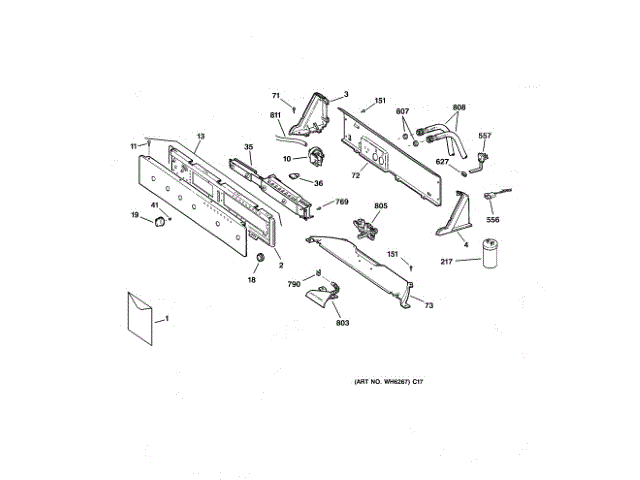

I Googled the product on the internet and up came Appliance Parts Pros. I gave them the info on the machine. Up popped the prints. I found the part and ordered it. Two days later it was in my mailbox. Is that great service or what. WOW

On/Off switch was not working on our GE dryer. An appliance repair person told me he would charge $350 for the part and service. Purchased the part needed from AppliancePartsPros.com for around $130 (including S&H). The part was delivered within a few days and took literally minutes to install with socket set, pliers and a phillips head screwdriver.

Replaced the rubber button switch which was worn.
