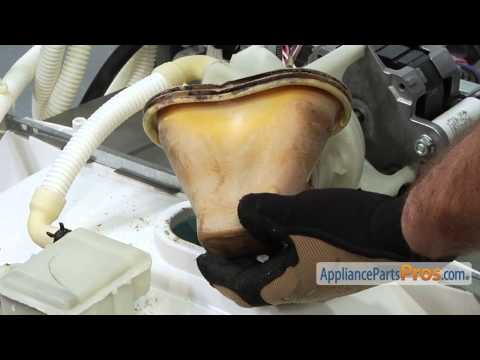

Nicholson J Henderson , NC December 06, 2014 Appliance: General Electric Dishwasher GSD4320Z02BB Old and leaking inlet sump ? Replaced with a new Inlet Sump [WD18X213]. It was a little tedious, attaching the Inlet Sump, back to the pump, because I did the job with the dishwasher in place (not pulled out). My dishwasher was plumbed with copper pipe, so I really didn't want to upset that. Also, I had previously replaced the motor and the pump in this dishwasher, so I was familiar with how the Inlet Sump attached to the pump. Again, it's very tight working under the unit while it is still in place, and I wouldn't recommend it to someone that had never been on the underside of their dishwasher. I actually pushed the bottom of the new Inlet Sump (with clamp in place), through from inside the tub. Then I seated it in the groove in the bottom of the tub, and replaced the grid panels that had been removed to access the Inlet Sump. Once I had the top portion in place, I reached under, and around behind the pump and worked the Inlet Sump onto the opening on the back of the pump. Once in place, I tightened the clamp which holds the two parts together. It is important that you have the clamp in a position, which allows you to get to it with a nut driver or small ratchet. I found that the best position for this is to have the tightening bolt at the bottom of the Inlet Sump, with the head of the bolt to the right. In this position, there is just enough room to get your hand under the unit, and access the bolt from the right side, with a nut driver. Again, a bit on the difficult task, due to my particular circumstances, but this job would be a piece of cake, for someone that could easily pull the dishwasher from under the counter and lay it on its side. By the way, my new Inlet Sump arrived very fast ! Thanks...... Read More... 7 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 15-30 minutes Tools: Nut Drivers
Ronald W Wainscott , NY October 23, 2017 Appliance: Model GSD1910TAA Dishwasher leaked The obvious problem (but not the only problem), visible with the kick panel removed, was a leaking seal for the pump drain valve shaft (GE part AP2038837). I didn't realize I could order that part separately, but it's a good thing I didn't - once I got the old pump out and tried to remove the pump drain valve arm, it seized on the shaft and pulled it out of the drain valve, and it did not want to go back. So it's a good thing I ordered a replacement pump assembly (GE part AP261685) from the start. It comes complete with the motor (which looks entirely different from the original). You really have to pull the dishwasher out and turn it upside down, or at least sideways (but upside down is better) and you WILL spill water all over. Follow the directions (which you need to do) and you'll be fine. Definitely view AppliancePartsPros' video first. A bonus is that the washer is now a lot quieter. The not-so-obvious problem was that the inlet sump was perforated and leaked a lot more than the shaft seal, so after I went to the trouble of installing the pump the washer still leaked, so I had to go through the whole process again just to replace the sump. I should have known, because there was a lot more water than the little drip coming from that drain valve shaft seal. So if your washer is really old and starts leaking but otherwise works correctly, pull the kick panel and look under there with a flashlight while it's running. Even if drain valve shaft seal is leaking (which in my case it only did when the drain valve was actuated), that might not be the only problem. The sump is behind the motor, and might leak a lot more, both from a perforation and from its seal with the tub. Also, while you're at it, if your (very) old washer has never had a draining problem, it's about to. You might want to replace the piston & nut assembly (GE part AP2617344). You don't have to take the washer out to do that; you just undo a panel at the back of the tub. The only thing that goes wrong with this part is that the little rubber cone turns into what looks like a wad of chewing gum and no longer does its job. You can't buy that part separately, but the assembly is cheap enough. Again, see the video. This is an easy install. Read More... Do-It-Yourself Rating: Repair Time Estimate: 1-2 hours Tools: Nut Drivers, Screwdrivers
William T Ponce De Leon , FL April 29, 2014 Rodents Replace inlet sump Read More... 6 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: Less than 15 minutes Tools: Nut Drivers
Byron E Laurel , NY July 06, 2021 Water pooling under the dishwasher during the drain cycles. I started off replacing the motor assembly as I was told by a plumber that that was the source of the leak. I was dismayed when the leaking continued after installing the new motor assembly. I noticed water seemed to be leaking out of the junction of the inlet sump and the motor assembly, so I took a chance and ordered a replacement inlet sump. Once I replaced that, the leaking stopped. Read More... 3 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 30-60 minutes Tools: Adjustable Wrench, Pliers, Screwdrivers, Socket Set
George D Penryn , CA September 13, 2019 Appliance: Model GSD920P-48BA Motor was seized up replaced motor and pump unit also replaced inlet sump sump cap and sump cover. Replaced gasket and corner blocks as one was leaking Replaced above parts. Read More... 2 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 2+ hours Tools: Adjustable Wrench, Nut Drivers, Pliers, Screwdrivers
