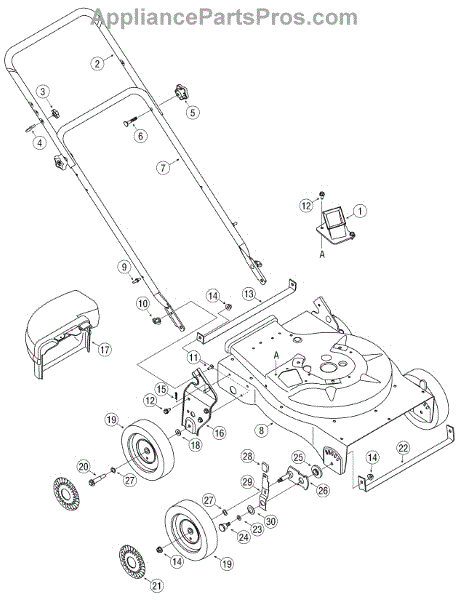

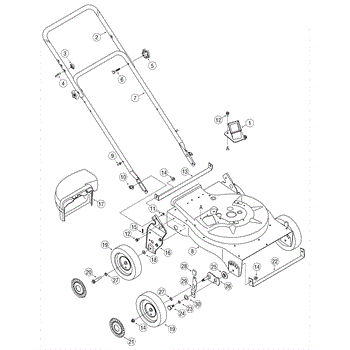

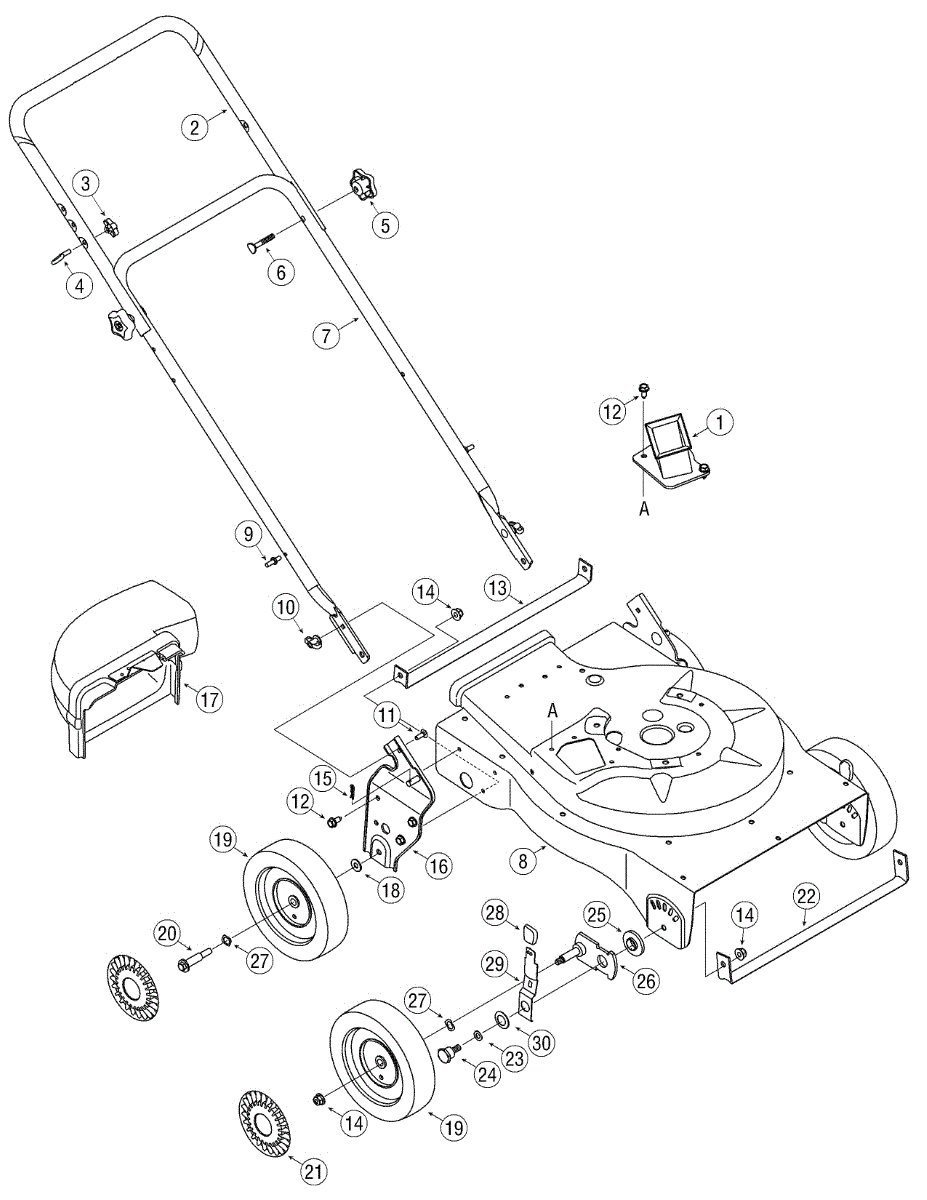

Parts for Craftsman 247.770120 / 2007: General Assembly Parts

Parts for Craftsman 247.770120 / 2007: General Assembly Parts

Location on Diagram
Part Description
Price & Availability
1
By: Mtd
Part Number: 681-0122
$81.01

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
3
Product photo
By: Mtd
Part Number: 720-0279

This is a knob handle that is used on various types of lawn and garden equipment. It is responsible for helping to make adjustments to the upper handle of the lawnmower or other machine. If the knob handle no longer works, is broken, or falls off, adjustments can no longer be made to the equipment. If this situation occurs, the knob handle will need to be replaced.Take a look at the knob handle and determine if it has been damaged. It could have cracks, broken areas, or excessive scratches that make it hard or impossible to use. If the knob handle is not present, this also necessitates a replacement. The part is easy to replace and requires no tools to install. Simply remove the old handle and place the new one in the same location.This is an authentic OEM replacement knob handle that is directly sourced from the manufacturer. It is sold as an individual component. The knob handle is used on lawnmowers, snowblowers, string trimmers, leaf blowers, wood chippers, and edgers. It fits various models offered by MasterCut, Yard-Man, Bolens, Montgomery Wards, Huskee, MTD, Yard Machines, Murray, Troy-Bilt, Ryobi, Cub Cadet, and Craftsman.

More
$4.95

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
4
Product photo
By: Mtd
Part Number: 710-1205

Rope guide eyebolt for lawn mower recoil starters. Guides the starter rope smoothly during pull starts. Replace if bent, broken, or missing.

More
$4.45

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
6
Product photo
By: Mtd
Part Number: 710-1174

This replacement curved hd. screw is also known as a carriage bolt. The screw can be used on many types of lawn and garden equipment. The purpose of the screw is to hold and support the upper and lower handles of the machine. It works along with the hand knob to help secure the handles, but buyers should know that the knob is sold separately. Owners might need to replace the carriage bolt if it has become corroded or no longer properly secures the handles. If the owner has lost the bolt, they will need to buy a new one before they can use their machine. The replacement for this part is fast and simple. This is an authentic OEM replacement curved hd. screw that is sold individually. It is for use with lawn mowers, tillers, snowblowers, wood chippers, edgers, and leaf blowers. It is compatible with certain models from Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

More
$7.44

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
9
By: Mtd
Part Number: 711-1293

Belt keeper pin fastener for lawn mowers. Secures the belt guard or keeper assembly in place. Replace if pin is bent, sheared, missing, or damaged.

More
$5.51

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
11
Product photo
By: Mtd
Part Number: 710-0703

Carriage bolt for lawn mowers and outdoor power equipment. Fastens components together with a nut. Replace if lost, stripped, or damaged during repair.

More
$5.95

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
12
Product photo
By: Mtd
Part Number: 710-0726

Self-tapping screw for lawn mowers and garden equipment. Secures metal, wood, and plastic parts. Replace if stripped, missing, or corroded.

More
$4.95

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
14
Product photo
5.0 (2)
By: Mtd
Part Number: 712-04065

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

More
$4.53

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
18
Product photo
By: Mtd
Part Number: 736-0105

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

More
$4.71

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
20
By: Mtd
Part Number: 738-1015
$11.06

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
24
Product photo
By: Mtd
Part Number: 738-1172

Shoulder screw for lawn mowers and outdoor power equipment. Replaces worn, stripped, or missing screws that secure components during operation.

More
$6.57

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
25
By: Mtd
Part Number: 741-0751

Height adjustment bearing for lawn mowers. Replace if wheels don't adjust smoothly or height settings slip. Verify fit with your model number.

More
$9.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
28
By: Mtd
Part Number: 731-13116-1

This is a height adjuster knob for walk-behind lawn mowers. It attaches to the height adjuster lever. This component is used to adjust the front wheels on the lawnmower deck. This adjustment allows the user to select the desired cutting height of the grass. This component is made out of a hardened foam material that is easy to grip.If the height adjuster knob falls off of the height adjust lever and will not reattach, it is likely that it will need to be replaced. The height adjuster lever itself is sold separately. The repair person may wish to wear gloves when replacing this part.This component is sourced straight from the manufacturer. It is sold individually and is a genuine OEM part. This height adjuster knob is compatible with walk-behind lawnmowers that are manufactured by the Ryobi, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, Cub Cadet, Craftsman, and Husky brands.

More
$14.22

IN STOCK
Ships Monday Guaranteed

Most orders arrive by Wednesday, November 25

Add to Cart
29
Product photo
By: Mtd
Part Number: 732-1026

This is a replacement front lever spring. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a broken or defective front lever spring on a variety of outdoor power equipment models. This part helps to adjust the height of the equipment deck to allow it to reach the optimal cutting height for different types of terrain. When working on or near an engine, ensure the equipment is powered off and completely cooled down before starting any repairs. Access to proper tools is required to install this part. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any power tools or machinery. For more accurate information on how and where to install this front lever spring, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this front lever spring is suitable for use on several different lawnmower models, log splitters, and chippers manufactured by MTD, Craftsman, Yard Man, Cub Cadet, Husky, Yard Machines, and Troy-Bilt. This is a genuine part made of high-quality, durable materials and is sold individually.

More
$7.55

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
30
Product photo
By: Mtd
Part Number: 736-0741

Bell washer for lawn mowers and outdoor power equipment. Replaces worn, missing, or damaged washers. Installs on drive assemblies and shafts.

More
$5.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
