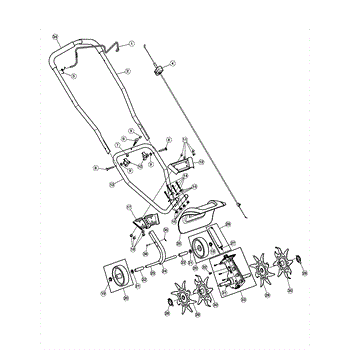

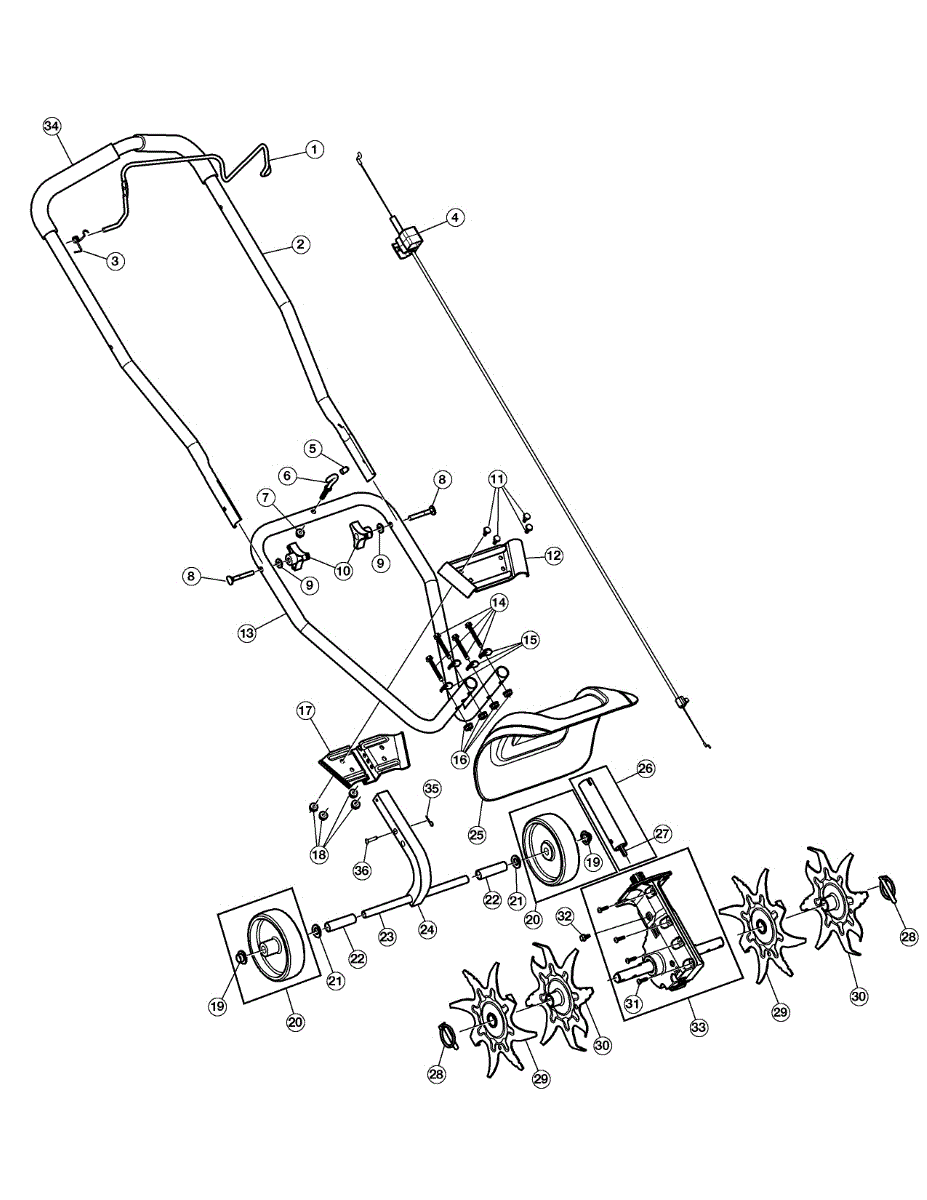

Parts for Craftsman 316.240320: General Assembly Parts

Tiller won't stay running or handle feels loose? This bail control lever ensures proper engagement and safety shutoff. Direct-fit part for front-tine tillers.

Torsion spring for front-tine tillers. Replaces worn, broken, or missing springs in the tine drive assembly. Essential for proper tine operation.

Throttle cable for front-tine tillers. Controls engine speed from the handlebar. Replace if frayed, kinked, broken, or no longer moves smoothly.

A flange lock nut, also known as a flange lock or a lock nut, is created to be used in various types of lawn and garden equipment. This flange lock nut holds other parts in place and, when properly threaded, will resist loosening. Over time, a flange lock nut may begin to weaken and may become loose or break. If it appears to be broken or weak, a replacement is required. Flange locks can be adjusted and uninstalled after use. When replacement is required, you may need a socket set, screwdriver, hacksaw, and butane torch. The socket wrench will loosen the bolt it is connected to, while the torch is used to heat the lock nut. A socket wrench may remove the nut, but sometimes cutting it with a hacksaw is required. This flange lock nut is a genuine OEM component directly from the manufacturer and comes in an individual unit. It is made of metal, a gold color, and can be found in various areas of lawn equipment. It works with lawnmowers, trimmers, snowblowers, cultivators, tillers, and leaf blowers by Poulan, MTD, Toro, Cub Cadet, Murray, Troy-Bilt, Bolens, Yard Machines, Craftsman, and Yard-Man.

Fully-threaded hex tap screw for lawn tractors and outdoor power equipment. Fastens machine components together. Replace if damaged, stripped, or missing.

The lock nut is a piece of standard hardware that may have a variety of applications on lawn and garden equipment, including on engines, housings, and other components. The lock nut offers a secure fit by tightening into a flange that prevents the nut from loosening like a regular nut might. Over time, the flange or the nut can become worn or damaged. In some cases, lock nuts may be lost during the process of other repairs or maintenance. Replacing them with genuine OEM parts like this lock nut is the best solution. This lock nut is compatible with hundreds of machines, including mowers, snowblowers, and chippers from MTD, Troy-Bilt, Cub Cadet, RYOBI, Yard-Man, Yard Machines, Bolens, and Husky. The ¼-inch lock nut has multiple locations and applications, so owners should consult their parts diagram for exact placement and part number identification. This lock nut is made of durable metal and sold as a single unit. Those who need additional pieces will have to order multiple quantities. This part will require a wrench or a socket to replace, as well as pliers and/or a screwdriver to hold the bolt or screw in place.

The lock nut is a piece of standard hardware that may have a variety of applications on lawn and garden equipment, including on engines, housings, and other components. The lock nut offers a secure fit by tightening into a flange that prevents the nut from loosening like a regular nut might. Over time, the flange or the nut can become worn or damaged. In some cases, lock nuts may be lost during the process of other repairs or maintenance. Replacing them with genuine OEM parts like this lock nut is the best solution. This lock nut is compatible with hundreds of machines, including mowers, snowblowers, and chippers from MTD, Troy-Bilt, Cub Cadet, RYOBI, Yard-Man, Yard Machines, Bolens, and Husky. The ¼-inch lock nut has multiple locations and applications, so owners should consult their parts diagram for exact placement and part number identification. This lock nut is made of durable metal and sold as a single unit. Those who need additional pieces will have to order multiple quantities. This part will require a wrench or a socket to replace, as well as pliers and/or a screwdriver to hold the bolt or screw in place.

This genuine OEM replacement part is a push cap designed for snowblower, tiller, and edger wheel assemblies. A push cap is a special type of nut, or fastener, that helps to hold unthreaded shafts in place. Although small, this push cap helps to secure the wheel to the axle. Push caps are most commonly damaged if the operator uses their appliance in rough terrain. If damaged, it can fall off, causing the wheel to also fall off. Replacing push caps is an easy repair as they attach to the outside of the wheel assembly. The only hardware required to make this repair is a nut driver. If you do not have a nut driver, a pair of pliers can also be used to attach the new push cap. This part is a high-quality replacement part meant for Yard Man, Husky, Ryobi, Yard Machines, Troy-Bilt, MTD, Bolens, and Cub Cadet appliances. It is sourced direct from its original manufacturer and ships individually.

Boom assembly for front-tine tillers. Connects tine assembly to main frame. Replace if cracked, bent, or worn from use. Essential structural component.

If your tiller won't engage or drive properly, the flex shaft may be damaged. This drive shaft connects the engine to the gearbox for power transfer.

This replacement part is a pin lynch. This is a genuine replacement part made by MTD. This part is small but important to ensure that the axle or shaft is working properly during use.A new pin lynch might be needed if the current one is missing or damaged. It is not uncommon for the pin to be stripped down over time due to normal wear and tear in the machine. Often times the pin also gets lodged into place and should be replaced if this ever occurs. Wear work gloves when completing this repair to prevent injury. The engine should be completely turned off and cooled down. This part is sold individually and is sourced directly from the manufacturer. This is a genuine OEM replacement part.

Tiller won't break up soil or cuts unevenly? This tine assembly restores proper tilling action. Straightforward replacement takes about 30 minutes.

If your tiller won't break up soil or tines are bent or damaged, this tine assembly bores into packed dirt to loosen soil for healthy plant growth.

Replacement screw for lawn tractors, tillers, and trimmers. Used throughout various assemblies. Replace if lost, stripped, or damaged during repairs.

Fixes grinding noise from lower unit during operation. This gear box assembly powers and drives the tiller tines. Moderately difficult repair.

Foam handle grip for lawn mowers and tillers. Replaces worn, torn, or missing grips on control handles. Provides cushioned comfort and secure hold.

The cotter pin is a fastener that is commonly used in lawn and garden equipment. The cotter pin helps provide a secure, locking fit that is adjustable and easy to remove. The cotter pin is commonly used on axles and rods, but it can have many applications depending on the machine and model. Cotter pins can become worn or break down over time because they are exposed to constant vibrations. It is important to replace damaged or broken cotter pins immediately as a broken part can render the equipment useless in many cases. This cotter pin is designed to exact OEM standards by MTD, and is designed for use in various equipment from MTD, Troy-Bilt, Craftsman, RYOBI, Yard Machines, Hard Man, Poulan, Husky, Bolens, and Cub Cadet. This is a 5/16 cotter pin that features a #34 diameter, and is made of a durable metal. This part is sold individually and those who require more than one will have to order multiple quantities. No other hardware is included. Always wear gloves when working on lawn and garden equipment.
