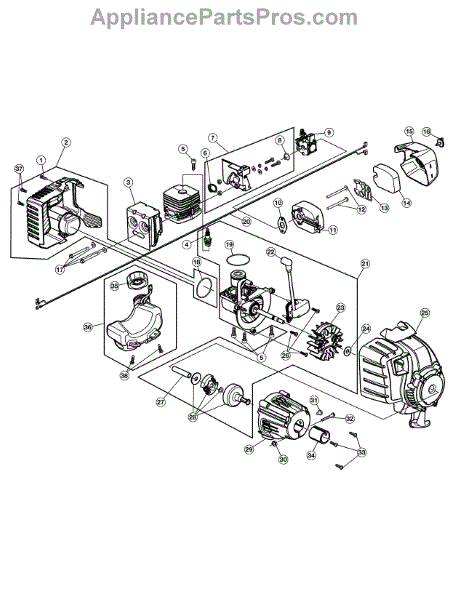

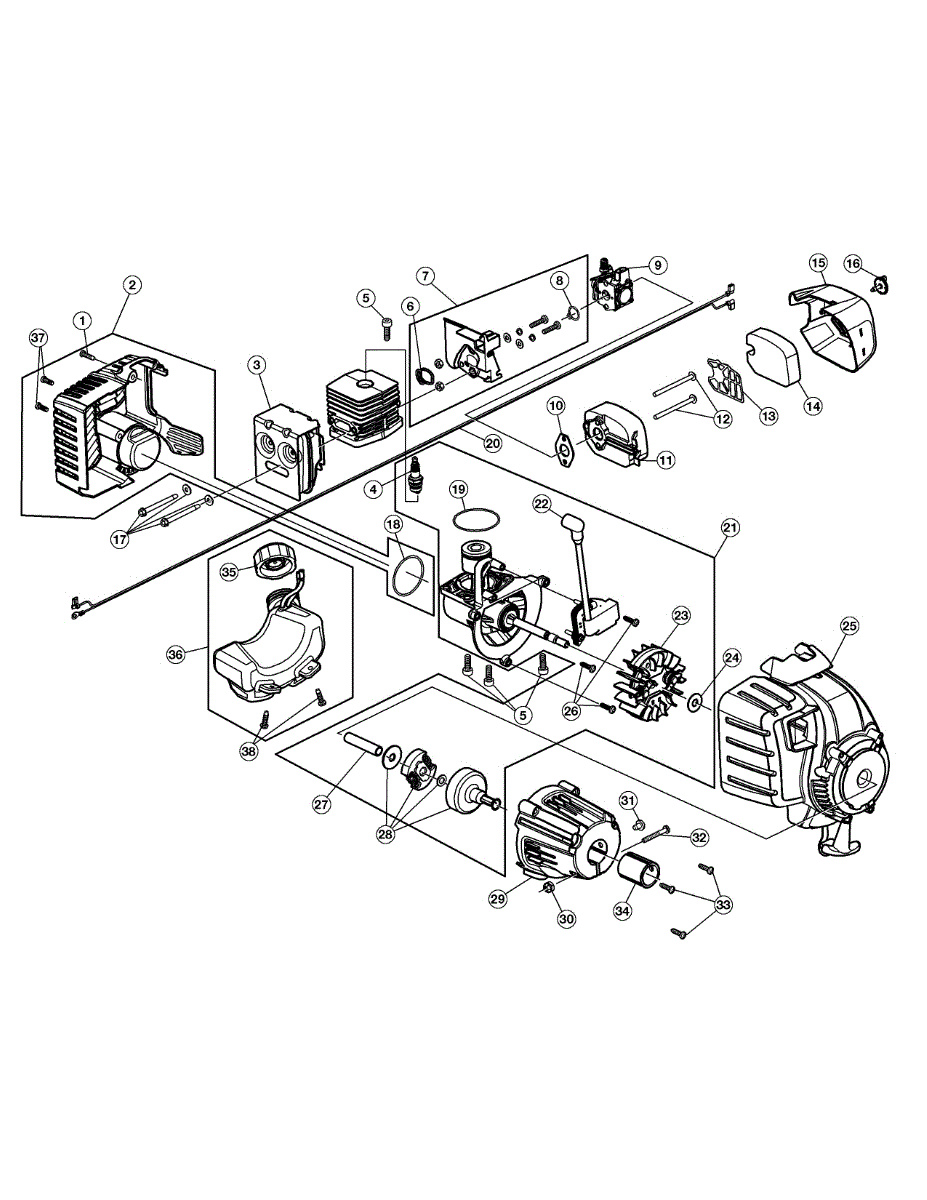

Parts for Craftsman 316.240320: Engine Assembly Parts

Few parts fulfill as many roles on lawn mowers and other landscaping power tools than the cover screw. This screw serves to attach metal housing parts, assemblies, and shrouds to one another on equipment such as power vacuums, snow blowers, edgers, tillers, hedge trimmers, lawn tractors, leaf blowers, grass trimmers and cultivators. As these are extremely durable metal screws, they seldom fail under ordinary use. It should be noted, however, that they are most often used at connection and pressure points. Stresses at these junctions sometime loosen screws, causing them to be lost or occasionally resulting in stripped threads. It's also occasionally the case that these screws are lost during repair or routine maintenance of yard equipment because of their small size. Users should make sure to consult their owner's manuals for replacement steps and any special instructions. Because of their small size and the ease of losing them during repair work or maintenance, it's recommended to keep a supply of appropriately sized screws on hand. Most importantly, when replacing a part make sure to use a genuine OEM replacement part. They are manufactured according to the specs of the original parts and are perfect replicas.

This replacement part is a housing assembly. This is a genuine replacement part made by MTD. This housing assembly is responsible for allowing the flow of air to be circulated through the machine so that it's able to continue running without getting overheated. A new housing assembly might be needed if the current one is missing or damaged in any way. This can be from normal wear and tear over time or a singular incident that caused damage. If the housing assembly is not able to stay in place and secure, it might be time to replace it. Be sure the engine is completely turned off before attempting to replace this part. This housing assembly is a genuine OEM replacement part to ensure proper fit. This part is also sold individually and is sourced directly from the manufacturer.

Engine won't start or runs rough? This spark plug creates the ignition spark for your tiller. Simple DIY fix when the electrode wears down over time.

Replacement mounting screw for tillers and outdoor power equipment. Secures components and panels. Order a new screw if original is stripped or missing.

O-ring gasket creates a seal to prevent fluid and gas leaks in tillers and lawn equipment. Replace when cracked, brittle, or leaking. Verify fit.

This is an insulator assembly includes the insulator, seals, and hardware. It is designed to create the right spacing between the cylinder and carburetor on many blowers and trimmers made by various manufacturers. The insulator assembly also keeps heat from moving between the other components. Over time, the insulator assembly can become damaged or crack. When this occurs, air can reach the engine and create a condition where the engine can't perform at its best. If this happens, the insulator assembly will need to be replaced. Take off the air filter, drain the fuel, and remove the intake assembly. The insulator can be taken off of the engine before the replacement is added. Use mounting screws to fit the insulator to the other components. Reassemble the other parts to use the tool.This insulator assembly is a genuine OEM replacement part sourced directly from the manufacturer. It is sold as an individual part. This component is made to be used in leaf blowers, tillers, and string trimmers manufactured by Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Bolens, and Yard-Man.

These O rings are replacement parts intended for use in a number of gasoline-powered lawn trimmers. The O rings serve as gaskets and are placed at the entry and exit points in the carburetors where gasoline and air are mixed and the expansion powers the trimmer. Though constructed of durable material, periodically the flow of the air/fuel mix or the rush of expanding air will cause damage to occur to the O rings so they become less resilient and the carburetor functions less efficiently. In these cases, users often decide to replace not just the element of the carburetor but the O rings as well. Users may notice problems with the carburetor when they cannot get an adequate adjustment, allowing the trimmer to function smoothly. They may also have trouble getting the trimmers to start at all or run without smoking. To replace the O rings, remove the air filter cover and carburetor. Once the carburetor has been cleaned, and the gasket and filter replaced, add a fresh mix of 40:1 fuel. The trimmer should start immediately. These OEM certified O rings are compatible with Bolens, Troy-Bilt, Yard Machines, and Craftsmen trimmers.

Carburetor for tillers and trimmers. Mixes air and fuel for proper engine operation. Replace if cracked, damaged, or clogged beyond cleaning.

A carburetor gasket is a thin rubber material that provides a seal between two parts. Its primary purpose is to prevent fuel and air leaks. This gasket is installed between the air cleaner and the carburetor. Over time, it can crack and tear due to heat and fuel exposure. When this happens, the carburetor may produce the wrong combustible mixture for the engine. In return, the engine may experience rough idling and flooding. A carburetor gasket replacement is necessary. MTD makes this carburetor gasket replacement. It is manufactured to fit string trimmer, leaf blower and tiller made by MTD, Bolens, Troy-Bilt, and Craftsman. This brand-new carburetor gasket is sold individually. A fully assembled carburetor and O-ring are sold separately.

Replacement plate for front-tine tillers. Mounts to the tiller frame or housing assembly. Order a new plate if yours is cracked, bent, or missing.

Protects your tiller engine from debris and dust buildup. Replace when dirty or clogged to maintain optimal performance. Confirm fit with your model number.

Protects your tiller's air filter from debris and damage. Replace if missing, cracked, or no longer securely fastening. Confirm fit with your model number.

Replacement screw knob for tiller machines. Installs on control panels and adjustment assemblies. Needed when original is cracked, worn, or stripped.

Replacement muffler screw for tillers and handheld outdoor power equipment. Secures muffler to engine block. Replace if stripped, corroded, or missing.

Engine o-ring gasket creates a compression seal between engine components to prevent oil and fluid leaks. Replace when worn or cracked. Verify fit with your model.

This replacement part is an o-ring. It is a genuine replacement part made by MTD. O-rings are small but are a very important part of many appliances. These rubber rings are placed around parts that have spaces in their vicinity. This blockage created by the O-ring allows gas and air to stay within the engine or appliance. Otherwise, it might escape and cause issues during use. A new o-ring might be needed if the current ones are missing or becoming thin. This is common in many appliances. If there is a noticeable amount of air or gas escaping the appliance then it might be caused by a gap where an o-ring should be. This o-ring is sold individually. Be sure to purchase the correct amount as many appliances require more than one. This is a genuine OEM part sourced directly from the manufacturer.

Replace your tiller's short block if experiencing overheating, oil leaks, excessive smoke, or poor performance. Engine sub-assembly with core components.

Replacement ignition coil for front-tine tillers and cultivators. Installs on the engine to generate spark. Replace if cracked, damaged, or missing.

Engine won't start or runs rough? This tiller flywheel assembly controls ignition timing. Moderate DIY repair (1-2 hours) restores reliable starts.

Tiller won't start or engine cranks slowly? This starter assembly restores reliable starting for front-tine tillers. Moderate DIY install.

Fastening screw for outdoor power equipment. Secures components and reduces vibration. Replace if stripped, corroded, or missing from your machine.

Spacer for tiller assembly. Maintains proper spacing between components. Replace if cracked, worn, or missing to ensure correct fit and alignment.

The clutch assembly uses centrifugal force to connect the shafts and create the drive shaft motion that powers the machine. The drive shaft nests inside the other shaft, and over time these parts can wear and become damaged with regular use. Today's parts can even continue to function long past when they should, so it may not be apparent that a clutch assembly needs to be replaced until the entire unit is bad. If the engine is not performing as it should or if the drive shaft seems unstable, it may be time to replace the clutch assembly. This genuine OEM part includes everything needed for the job. This OEM clutch replacement is designed for use with various cultivators, edgers, and trimmers. It can be used on machines from MTD, RYOBI, Troy-Bilt, Bolens, Yard-Man, Cub Cadet, Murray, and Husky. This assembly includes the clutch, clutch drum, washer, and left-hand threaded screw. Always disengage the spark plug and allow the engine to cool completely before beginning repairs.

Few parts fulfill as many roles on lawn mowers and other landscaping power tools than the cover screw. This screw serves to attach metal housing parts, assemblies, and shrouds to one another on equipment such as power vacuums, snow blowers, edgers, tillers, hedge trimmers, lawn tractors, leaf blowers, grass trimmers and cultivators. As these are extremely durable metal screws, they seldom fail under ordinary use. It should be noted, however, that they are most often used at connection and pressure points. Stresses at these junctions sometime loosen screws, causing them to be lost or occasionally resulting in stripped threads. It's also occasionally the case that these screws are lost during repair or routine maintenance of yard equipment because of their small size. Users should make sure to consult their owner's manuals for replacement steps and any special instructions. Because of their small size and the ease of losing them during repair work or maintenance, it's recommended to keep a supply of appropriately sized screws on hand. Most importantly, when replacing a part make sure to use a genuine OEM replacement part. They are manufactured according to the specs of the original parts and are perfect replicas.

Replacement fuel cap assembly for tillers and outdoor power equipment. Seals fuel tank, prevents debris entry, and features vent slots. Needed when original cap is cracked, broken, or gasket is worn.

Replacement fuel tank for front-tine tillers. Holds and distributes fuel to the engine. Replace if cracked, punctured, leaking, or damaged.

Fastening screw for outdoor power equipment. Secures components and reduces vibration. Replace if stripped, corroded, or missing from your machine.
