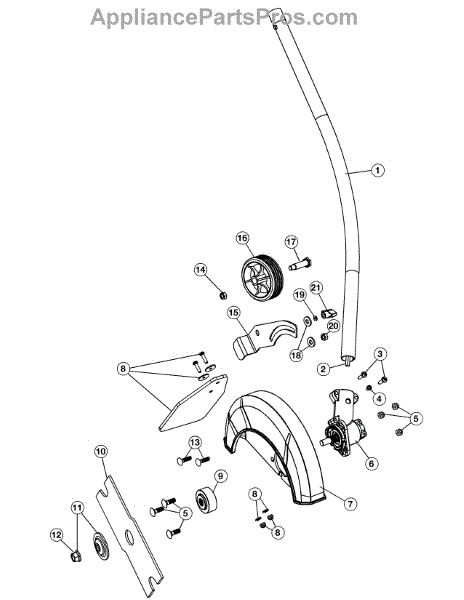

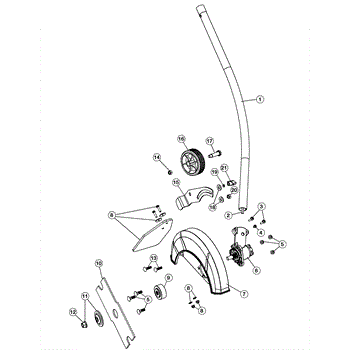

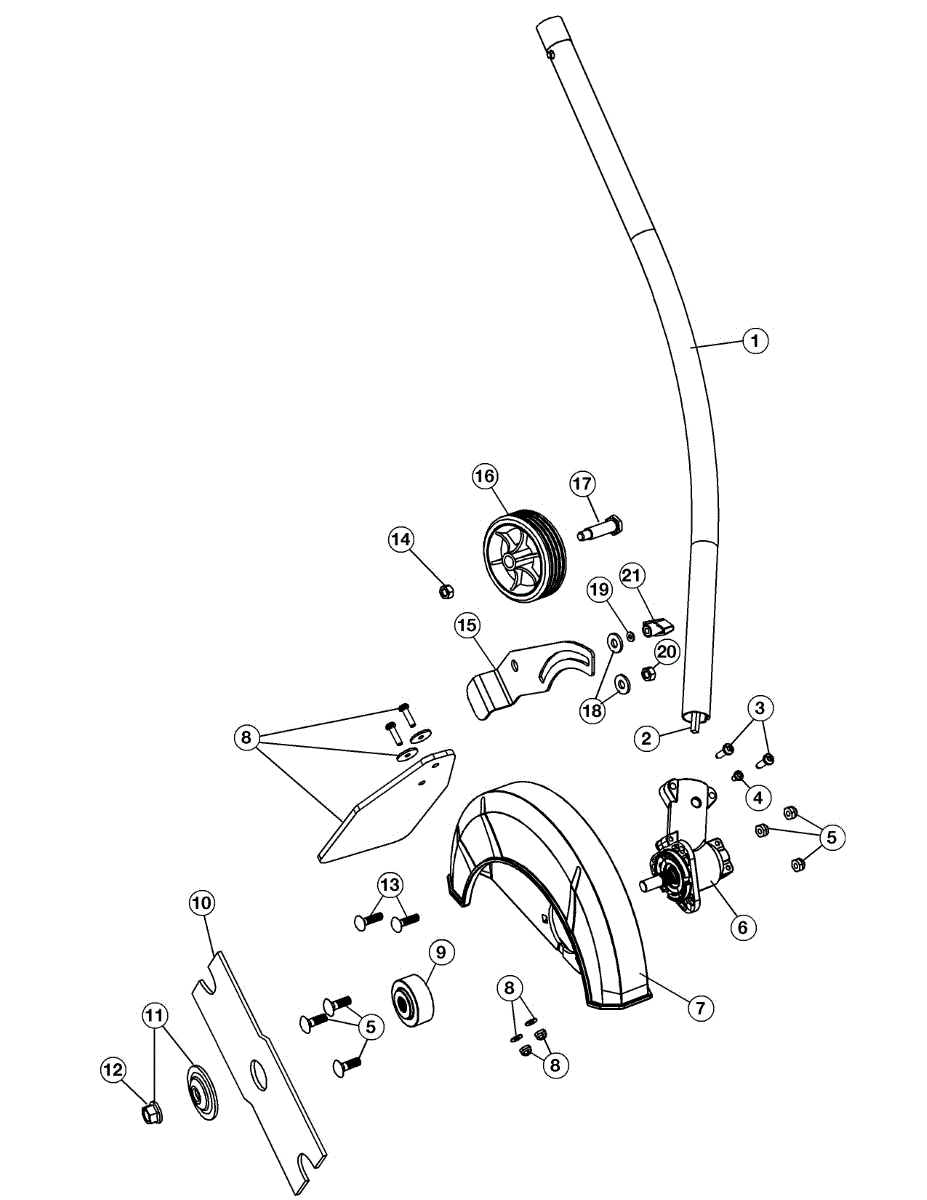

Parts for Trimmer Plus 41AJLE-C902: General Assembly Parts

A lower flexible drive shaft is located inside lawn trimmer attachments. It is mounted inside the lower boom housing. The function of the part is to drive the trimmer head. The drive shaft will deteriorate and become more round with use. The rounded ends will ultimately fail to engage the trimmer head. The lower flexible drive shaft may also break or kink. The trimmer head stops quickly when this occurs. The trimmer will no longer function properly, and a replacement part is required.When replacing the lower flexible drive shaft in a trimmer, wear protective gloves. Start by removing the trimmer head, reel, and line assembly. Use a screwdriver to remove the outer head. Remove the guard assembly. Remove the bushing housing assembly. Access the lower flexible drive shaft and remove the damaged part. Lubricate the new part and install it with the lower flexible drive shaft's ring closest to the trimmer head. Reassemble the trimmer.This replacement part is an OEM genuine part supplied by the manufacturer. The lower flexible drive shaft can be used in MTD, Cub Cadet, Troy-Bilt, and Craftsman brand lawn trimmers. The part is sold individually. The lower flexible drive shaft is made of durable materials.

This replacement part is a screw, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. Screws are found in almost every different type of machinery and are essential to the overall performance of different devices. Screws are responsible for holding things in place and securing them tightly so that the machine can operate smoothly and efficiently. A new screw might be needed if the current one is damaged or missing. It is possible for screws to be stripped over time and can become stuck in place. In this case, pliers might be needed to remove the faulty screw. Otherwise, this repair should be fairly simple and only require a screwdriver. Be sure the machine is powered down before replacing this part. This specific screw is sold individually and is a genuine OEM replacement part. Be sure to purchase the correct amount as many devices require more than one.

This is a genuine replacement screw designed for use in select MTD engines on lawn and garden equipment. Specifically, this is an anti-rotation screw, which is used to stop the drive shaft housing from turning inside of the main housing assembly. This screw is a small part that is subject to constant vibrations, pressure, and high temperatures. It can sometimes become worn or damaged as a result or even break off entirely, which would mean that the inner housing would no longer be held in place accordingly. If this screw is damaged or lost, it needs to be replaced with a genuine OEM replacement as soon as possible. This MTD anti-rotation screw is manufactured with high-quality materials and designed for use in select trimmers from MTD, RYOBI, Yard-Man, Troy-Bilt, Murray, Cub Cadet, Yard Machines, and Bolens. This replacement will require a screwdriver. Simply remove the damaged screw, if it is not already missing, from the clutch cover assembly, and then install the new screw. It should only take a few minutes to perform the replacement. Be sure to wear gloves to protect the hands. This screw is sold individually and does not include any additional parts or hardware.

This replacement part is a blade guard, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This blade guard is typically found in edgers and is used to shield the blade so that if something where to happen during use, the person using the appliance and those in the vicinity will be protected from the open blade. A new blade guard might be needed if the current one is damaged or missing from the appliance. If the blade of the edger is completely exposed it is recommended that a replacement blade guard be installed as soon as possible. This part is used to protect the user and those around them while using the appliance.This blade guard is sold individually and is a genuine OEM part. Be sure to wear gloves while attempting to replace this part as the user will be working close to the blade of the appliance.

Made for edgers and trimmers, the edger blade is a quality replacement component. This part is responsible for edging level ground near sidewalks and driveways to create an appealing aesthetic. When the equipment is used on a regular basis, the edger blade will start to get dull and will not provide the same performance as it did when new. If the edger blade has become dull and is smaller than it was originally, it's likely that it should be replaced.Take a look at the edger blade to see if there is any damage. If it has a chipper blade or other issues, it needs to be replaced. The edger blade can be reached by placing the tool on its side on a stable surface and using a screwdriver to ensure the spindle is locked. The washer nut will need to be removed to make the replacement.This is an edger blade that is made to be used with string trimmers and edgers manufactured by MTD, Ryobi, and Troy-Bilt. It is sold as an individual part. The edger blade is a genuine OEM replacement part that is sourced directly from the manufacturer.

This is a blade lock nut that is typically a component of string trimmers and edgers. The blade lock nut ensures the cutting blade is securely attached to the shaft of the trimmer. If the nut is corroded, broken, or has come loose, it will need to be replaced. The equipment should not be operated without this nut since other components could come loose and fall off.This is a simple part to replace and will require only a wrench or a socket set. This nut is located on the spindle, so a visual inspection can be done to ensure it is damaged or broken. Remove it and thread the new blade lock nut to the same location. If the nut is stripped, a bolt remover can be used to get it off of the lawn equipment.This blade lock nut is sold as an individual part. It is an authentic OEM replacement part that is sourced directly from the manufacturer. The part is made to fit a variety of edgers and string trimmers manufactured by Craftsman, Cub Cadet, MTD, Ryobi, and Yard Machines.

This replacement part is a nut, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. Nuts are a small part found in many different types of machinery and are used to connect different parts and secure things together.A new nut might be needed if the current ones are missing or damaged in any way. It is common that nuts become stripped overtime and might get stuck or fall out of place. In this case, it is recommended that the nut be replaced. Be sure to review the specific owner's manual for more information on how to replace the nuts. This part is sold as an individual piece. Be sure to purchase the correct amount as many different machines use more than one during operation. This is also a genuine OEM replacement part sourced directly from the manufacturer.
