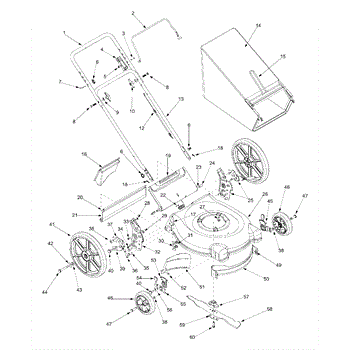

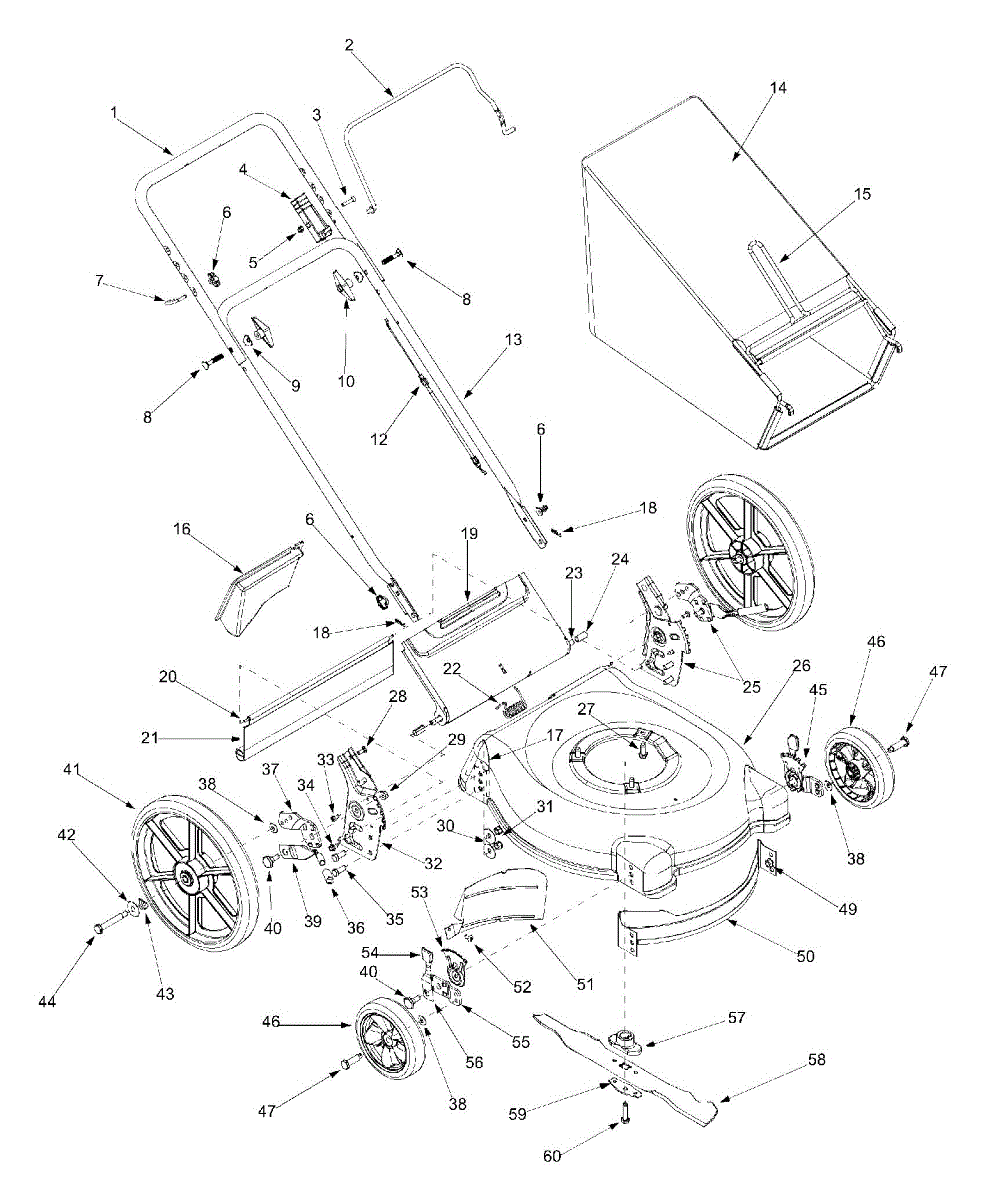

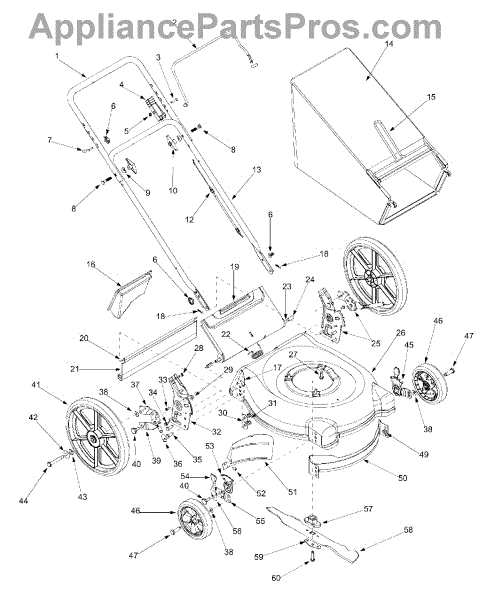

Parts for Wizard 11A-584D098 / 2002: General Assembly Parts

Fix a mower that won't start or has loose throttle cable control with a new throttle housing. This plastic grip component secures the throttle cable.

Nylon nut for lawn equipment. Secures and connects components throughout the machine. Replace if cracked, stripped, or missing for proper assembly.

This is a knob handle that is used on various types of lawn and garden equipment. It is responsible for helping to make adjustments to the upper handle of the lawnmower or other machine. If the knob handle no longer works, is broken, or falls off, adjustments can no longer be made to the equipment. If this situation occurs, the knob handle will need to be replaced.Take a look at the knob handle and determine if it has been damaged. It could have cracks, broken areas, or excessive scratches that make it hard or impossible to use. If the knob handle is not present, this also necessitates a replacement. The part is easy to replace and requires no tools to install. Simply remove the old handle and place the new one in the same location.This is an authentic OEM replacement knob handle that is directly sourced from the manufacturer. It is sold as an individual component. The knob handle is used on lawnmowers, snowblowers, string trimmers, leaf blowers, wood chippers, and edgers. It fits various models offered by MasterCut, Yard-Man, Bolens, Montgomery Wards, Huskee, MTD, Yard Machines, Murray, Troy-Bilt, Ryobi, Cub Cadet, and Craftsman.

Rope guide eyebolt for lawn mower recoil starters. Guides the starter rope smoothly during pull starts. Replace if bent, broken, or missing.

This replacement curved hd. screw is also known as a carriage bolt. The screw can be used on many types of lawn and garden equipment. The purpose of the screw is to hold and support the upper and lower handles of the machine. It works along with the hand knob to help secure the handles, but buyers should know that the knob is sold separately. Owners might need to replace the carriage bolt if it has become corroded or no longer properly secures the handles. If the owner has lost the bolt, they will need to buy a new one before they can use their machine. The replacement for this part is fast and simple. This is an authentic OEM replacement curved hd. screw that is sold individually. It is for use with lawn mowers, tillers, snowblowers, wood chippers, edgers, and leaf blowers. It is compatible with certain models from Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

Replacement wire that securely attaches the rear skirt trail shield to your lawn mower deck. Replace if broken, detached, or missing for proper skirt fit.

Handle bracket kit for walk-behind lawn mowers. Mounts and secures the handle assembly to the mower deck. Replace if brackets are cracked or broken.

This hex screw and lock washer are commonly used with lawn mowers and other small engines to secure a motor to the housing of the equipment. It is machined in such a way that it binds the manifold and frame permanently. There are occasions when these bolts have to be removed, typically when major repairs are performed on the engine. In those cases, users often find it advisable to replace the hex bolts and washers with new ones. It happens as well that these screws are so tightly fastened that they cannot be unscrewed and must be cut off. In those cases, it is necessary to replace the original screws. These replacement screws and lock washers are genuine OEM certified replacements that are manufactured to be identical to the hardware they are replacing. In addition to mowers, these hex screws are used to secure engines to devices such as log splitters, edgers, shredders, trimmers, and snowblowers. This screw is compatible with devices made by Husky, Yard-Man, Cub Cadet, Troy-Bilt, Ryobi, Bolens, and Yard Machines.

Carriage bolt for lawn mowers and outdoor power equipment. Fastens components together with a nut. Replace if lost, stripped, or damaged during repair.

Hex lock nut for lawn mowers and outdoor power equipment. Secures blade assemblies, wheels, and components. Replace if stripped, corroded, or missing.

Hex washer screw for lawn mowers, tractors, and snow blowers. Replaces stripped, missing, or damaged screws on deck panels and housing assemblies.

This is a genuine replacement bolt that is designed specifically for use on select lawn tractors. This tractor bolt is a specialty piece of hardware designed for use on the steering segment gear. This screw holds the gear in place and is exposed to constant vibrations and repetitive motion as a result. Over time, that can result in damage, wear, or even total breakage of the bolt and require a replacement. If the bolt isn't functional or is missing, the steering segment gear will not be secured and that can lead to further damage if left unattended. Using a genuine replacement part like this will guarantee an exact fit for compatible models. This genuine OEM gear bolt is manufactured by MTD. It is compatible with lawn and garden equipment from RYOBI, HUSKEE, Troy-Bilt, Bolens, Yard Machines, Yard Man, and Cub Cadet, along with select models from MTD. The bolt works for more than 100 compatible models. It is made of durable metal and sold as an individual unit. A wrench or socket will be required to replace this part. Always wear gloves when performing repairs on lawn and garden equipment and allow the engine to cool before doing any work.

Foam grip for lawn mower handles. Provides comfortable cushioning and vibration dampening. Replace if worn, cracked, torn, or missing for better control.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

This genuine replacement part is a MTD wheel assembly for lawn mowers and trimmers. It replaces the rear wheels on these tools. This wheel assembly attaches to the bottom of the mower, and allows for smooth rolling, even on uneven ground. Over time, the wheels on a lawn mower or lawn tractor can wear out or become damaged. This can reduce traction or affect the alignment of the mower.Replacing the wheel is simple, but please follow these important safety precautions when working with this part: Shut off the engine of the mower. Allow the engine to become cool before installing this part. Disconnect the spark plug to prevent the mower from accidentally starting. For installation information, please refer to the original product manual. Please note: a socket wrench is required for installation of this part.This high quality OEM replacement part is sourced directly from the manufacturer, and it is sold individually. This part is compatible with a variety of Craftsman, Ryobi, and more lawn mowers and trimmers. Please note: original part numbers 1828027, 1917592, 753-04211, and GW-1917592 are now obsolete, and manufacturer has replaced the original part numbers with this part.

Metal spring washer designed to absorb vibration between nuts and surfaces on lawn mowers and garden equipment. Replace when worn or flattened.

Replaces cracked or broken blade height adjustment brackets on walk-behind mowers. Secures cutting deck leveling mechanism. Needed when missing or worn.

Replacement wheel for walk-behind lawn mowers and tillers. Mounts to the axle to support the deck and aid maneuverability. Replace if cracked or worn.

Self-tapping screw for lawn mowers and outdoor power equipment. Secures panels, covers, and components. Replace if stripped, missing, or corroded.

This is a height adjuster knob for walk-behind lawn mowers. It attaches to the height adjuster lever. This component is used to adjust the front wheels on the lawnmower deck. This adjustment allows the user to select the desired cutting height of the grass. This component is made out of a hardened foam material that is easy to grip.If the height adjuster knob falls off of the height adjust lever and will not reattach, it is likely that it will need to be replaced. The height adjuster lever itself is sold separately. The repair person may wish to wear gloves when replacing this part.This component is sourced straight from the manufacturer. It is sold individually and is a genuine OEM part. This height adjuster knob is compatible with walk-behind lawnmowers that are manufactured by the Ryobi, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, Cub Cadet, Craftsman, and Husky brands.

Pivot bar bracket for lawn mowers. Mounts to the mower deck to support handle height adjustment mechanism. Replace if bent, cracked, or broken.

Hex bolt secures blade adapter and other components on lawn mowers. Replace if bolt is stripped, damaged, or missing to properly fasten parts.
