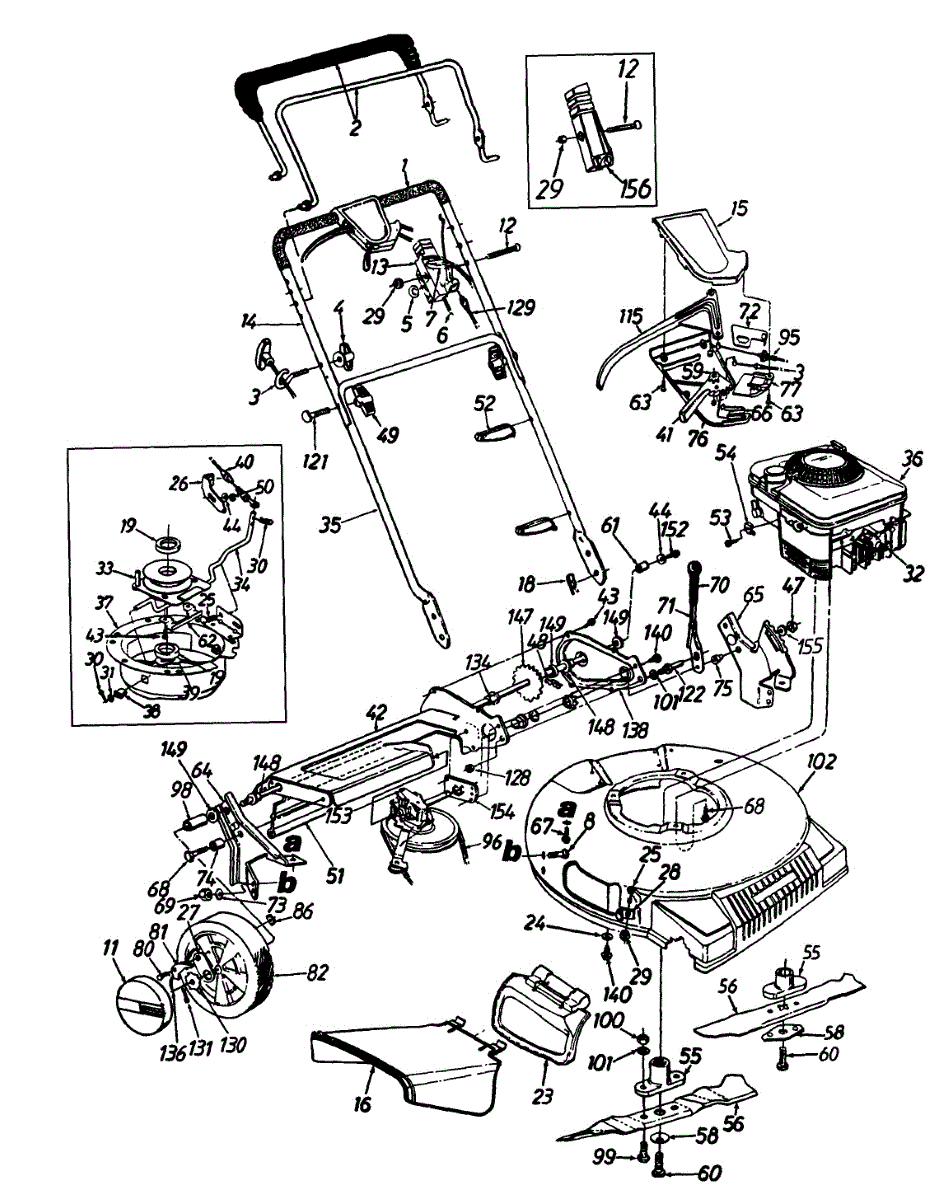

Parts for Wizard 93-5159-4 / 1996: General Assembly Parts

A rope guide eyebolt is an important piece of hardware designed for use with pieces of outdoor lawn and garden power equipment that have small engines, such as lawn mowers. It is compatible with products by brands such as Craftsman, Bolens, Husky, Yard Machines, Yard Man, MTD, and Troy-Bilt.The rope guide eyebolt part plays a valuable role in making the lawn mower easier to operate. The metal rope guide eyebolt is to be mounted to the side rail of the handle, which then keeps it secured with a handle knob. The rope guide eyebolt keeps the starter rope on the upper handle for ease of access. The purpose of all of this is simply to keep the rope out of the way while operating. The replacement or repair process of the rope guide eyebolt should be straightforward, but the user replacing the part should always be sure to wear gloves during any assembly, replacement, or installation processes.The user should also refer to the owner's manual of their equipment and any guiding diagrams that clarify the placement location. This part is made out of metal. This rope guide eyebolt is an original OEM part sourced directly from the manufacturer, MTD. It is sold individually.

This is a knob handle that is used on various types of lawn and garden equipment. It is responsible for helping to make adjustments to the upper handle of the lawnmower or other machine. If the knob handle no longer works, is broken, or falls off, adjustments can no longer be made to the equipment. If this situation occurs, the knob handle will need to be replaced.Take a look at the knob handle and determine if it has been damaged. It could have cracks, broken areas, or excessive scratches that make it hard or impossible to use. If the knob handle is not present, this also necessitates a replacement. The part is easy to replace and requires no tools to install. Simply remove the old handle and place the new one in the same location.This is an authentic OEM replacement knob handle that is directly sourced from the manufacturer. It is sold as an individual component. The knob handle is used on lawnmowers, snowblowers, string trimmers, leaf blowers, wood chippers, and edgers. It fits various models offered by MasterCut, Yard-Man, Bolens, Montgomery Wards, Huskee, MTD, Yard Machines, Murray, Troy-Bilt, Ryobi, Cub Cadet, and Craftsman.

This is an oval c-sunk screw commonly used in mowers and snowblowers to help secure the throttle housing to the upper handle. If there is a problem with the screw, it should be replaced to ensure the proper function of the machine.The screw is made from metal and it should last a long time. However, there could be several reasons to replace the screw. It might become lost when working on other parts of the machine. The threads could be stripped, or the head of the screw could start to wear away or corrode over time. Replacement of this piece is usually fast and easy, but it can depend on the location of the screw.The oval c-sunk screw will work with models of machines from MTD, Mastercut, Husky, Western Sun, Lawn Hawk, Wizard, Servistar, and Tradesman. The screw is sold individually. It is a genuine OEM replacement part.

This spring washer has a conical shape with an open center. It has a shape like a traditional washer but is smaller than a typical coiled spring. These washers can handle a larger load than a coiled spring and are used in lawn and garden equipment to cushion heavy loads. Over time, these washers can experience wear and tear which will lead to damage or breakage. When this occurs, the spring washer will need to be replaced.Visually inspect the spring washer for damage like scratches, breaks, and dents. If these occur or the washer is warped, it needs to be replaced. The process involves removing the nut or screw above the washer with a screwdriver or other tool. After accessing the spring washer, it can be removed and a replacement part can be added to the equipment. Reassemble the parts and the equipment should work again.This is a genuine OEM spring washer replacement part that is sold individually. It's sourced directly from the manufacturer. It is compatible with lawnmowers, wood chippers, snowblowers, log splitters, tillers, chainsaws, string trimmers, and edgers by Craftsman, MasterCut, Toro, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Husky, Montgomery Wards, Murray, Huskee, Yard Machines, and MTD.

This carriage bolt is a self-locking bolt designed to be used in an unthreaded square or round hole. These bolts are used in outdoor lawn and garden equipment due to their ability to handle heavy weight loads.Carriage bolts are often used to join lawnmower handles to the base of the mower. Over time, the vibration of the lawnmower may cause the bolt to become loose. During routine maintenance, if the bolt is loose, use a wrench to tighten the nut holding the bolt in place. If the bolt is missing, this carriage bolt replacement can be installed. Push the bolt through the hole; if the fit is snug, it may need to be lightly tapped. Once the bolt is through the other side, thread a nut on the bolt. Tighten the nut with a wrench.This is a genuine OEM part sourced directly from the manufacturer. It is sold as an individual unit and does not come with the nut. This carriage bolt is designed for lawnmowers, snowblowers, and other outdoor lawn and garden equipment manufactured by Bolens, Craftsman, Cub Cadet, Huskey, Troy-Bilt, Turf Pro, MTD, Ryobi, and Mastercut.

This replacement part is a nut, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. Nuts are a small part found in many different types of machinery and are used to connect different parts and secure things together.A new nut might be needed if the current ones are missing or damaged in any way. It is common that nuts become stripped overtime and might get stuck or fall out of place. In this case, it is recommended that the nut be replaced. Be sure to review the specific owner's manual for more information on how to replace the nuts. This part is sold as an individual piece. Be sure to purchase the correct amount as many different machines use more than one during operation. This is also a genuine OEM replacement part sourced directly from the manufacturer.

This replacement part is a screw. It is a genuine replacement part made by MTD. Typically screws are found in many different types of machines. These parts are important in holding different pieces together so that the user is able to operate the appliance effectively. A replacement screw might be needed if some parts of the appliance are loose or missing from place. Screws can become stripped over time with normal equipment use. If this is the case it is recommended that they be replaced as soon as possible. The repair for this screw is simple and will most likely require common household tools as well as pliers if the previous part is lodged in place. This screw is made of durable metal. This part is sold individually and is sourced directly from the manufacturer to ensure proper fit. This is a genuine OEM replacement part.

This spring washer has a conical shape with an open center. It has a shape like a traditional washer but is smaller than a typical coiled spring. These washers can handle a larger load than a coiled spring and are used in lawn and garden equipment to cushion heavy loads. Over time, these washers can experience wear and tear which will lead to damage or breakage. When this occurs, the spring washer will need to be replaced.Visually inspect the spring washer for damage like scratches, breaks, and dents. If these occur or the washer is warped, it needs to be replaced. The process involves removing the nut or screw above the washer with a screwdriver or other tool. After accessing the spring washer, it can be removed and a replacement part can be added to the equipment. Reassemble the parts and the equipment should work again.This is a genuine OEM spring washer replacement part that is sold individually. It's sourced directly from the manufacturer. It is compatible with lawnmowers, wood chippers, snowblowers, log splitters, tillers, chainsaws, string trimmers, and edgers by Craftsman, MasterCut, Toro, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Husky, Montgomery Wards, Murray, Huskee, Yard Machines, and MTD.

This replacement part is a casing clamp. It is a genuine replacement part made by MTD. This part is typically used to secure the governor control plate to the tank assembly.A new casing clamp might be needed if the current one is damaged or missing. Be sure the machine is stationary and the engine is completely powered down before beginning this repair. This part is made of durable metal so that it works properly with the machine at hand. Refer to the owner's guide for more information on this part. This air cleaner is a genuine OEM replacement part. This part is sold individually and is sourced directly from the manufacturer to ensure a proper fit.

This hex screw can be used as a replacement part for the small engine of a lawn mower or a lawn tractor. The hex screw is a fastener with a six-sided head that is responsible for fastening components to one another. A hex screw might be lost or misplaced, which is a frequent occurrence in small engine appliances as a result of long-term usage. Hex screws are easily lost and misplaced as they are small components that do not necessarily cause damage upon unscrewing unless it results in the materials coming loose. If this is the case, or if the hex screw suffers from impact or corrosion to the metal material, the hex screw should be removed and replaced with this genuine OEM replacement for lawn mowers and lawn tractors. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This is an OEM part sourced directly from the manufacturer, MTD. It is sold individually. This hex screw is compatible with the following brands: MTD, Troy-Bilt, Yard Man, and Bolens.

This spacer is a genuine MTD part, sold individually. This spacer can be used as a replacement part in lawnmowers, snowblowers, and wood chippers. This part assists in fastening two components together by creating a slight gap that reduces friction.The spacer might have to be replaced if it is lost, misplaced, or damaged from general wear and tear with long-term use. If the spacer is lost at some point within the typical operation of the appliance and its absence is noticed by the operator, the spacer should be replaced by this genuine OEM replacement part. If the spacer is damaged beyond functionality, the spacer should be immediately replaced. This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This spacer is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Huskee, Yard Machines, Montgomery Wards, Yard-Man, Turf King, and MasterCut.

This shift spring is a genuine MTD part, sold individually. This shift spring can be used as a replacement part in a lawn mower or a snowblower. The purpose of the shift spring in a lawn mower or a snowblower is to regulate and coordinate the opening and closing of the lever that facilitates the control cable mechanism of the appliance, allowing the operator to navigate the appliance across a variety of surfaces.The shift spring in a lawn mower or a snowblower might need to be replaced if the shift spring can no longer maintain its tension within the infrastructure of the appliance so that it can regulate the secure the control cable and its associated parts. If the shift spring suffers damage in the form of puncturing, scraping, denting, warping, or eroding, the shift spring should be removed and replaced by this genuine OEM replacement part.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This shift spring is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, Huskee, Montgomery Wards, and Yard Man.

This hex screw and lock washer are commonly used with lawn mowers and other small engines to secure a motor to the housing of the equipment. It is machined in such a way that it binds the manifold and frame permanently. There are occasions when these bolts have to be removed, typically when major repairs are performed on the engine. In those cases, users often find it advisable to replace the hex bolts and washers with new ones. It happens as well that these screws are so tightly fastened that they cannot be unscrewed and must be cut off. In those cases, it is necessary to replace the original screws. These replacement screws and lock washers are genuine OEM certified replacements that are manufactured to be identical to the hardware they are replacing. In addition to mowers, these hex screws are used to secure engines to devices such as log splitters, edgers, shredders, trimmers, and snowblowers. This screw is compatible with devices made by Husky, Yard-Man, Cub Cadet, Troy-Bilt, Ryobi, Bolens, and Yard Machines.

This bell washer is a genuine MTD part, sold individually. This bell washer can be used as a replacement part for a lawn tractor, chipper shredder, tiller, or lawnmower. This bell washer adds spacing on a shaft in the tool.If the user of the appliance notices that a washer is missing, it should be replaced. General wear and tear is very normal for outdoor appliances, and if it occurs, the washer should be removed and replaced with this genuine OEM replacement part.This is an OEM part sourced directly from the manufacturer. It is sold individually. This bell washer is compatible with the following outdoor appliance brands: MTD, Yard Man, Yard Machines, and Troy-Bilt.

This hex nut is designed for use with select trimmers and mowers. It is a standard hardware part that may have multiple applications depending on the type of unit and model. The nut is typically used to secure engine components or housing elements to provide safe use of the machine. These nuts are durable, but they are small and can become lost during other repairs. The constant exposure to vibrations and use can also cause them to strip or become damaged over time. Either way, a replacement with this genuine hex nut will resolve the issue and get equipment back in working order. This genuine OEM hex nut is manufactured to exact standards and sourced from the manufacturer. It can be used with trimmers and mowers from RYOBI, MTD, Bolens, Troy-Bilt, Yard Machines, Huskee, Yard Man, and Cub Cadet. Check the parts diagram for exact application and location of this nut and note that it may have multiple uses on select models. This hex nut is sold individually, and additional nuts will require the purchase of multiple pieces. In order to replace this nut, a hex socket wrench and driver will be required. Always wear gloves for safety.

This replacement curved hd. screw is also known as a carriage bolt. The screw can be used on many types of lawn and garden equipment. The purpose of the screw is to hold and support the upper and lower handles of the machine. It works along with the hand knob to help secure the handles, but buyers should know that the knob is sold separately. Owners might need to replace the carriage bolt if it has become corroded or no longer properly secures the handles. If the owner has lost the bolt, they will need to buy a new one before they can use their machine. The replacement for this part is fast and simple. This is an authentic OEM replacement curved hd. screw that is sold individually. It is for use with lawn mowers, tillers, snowblowers, wood chippers, edgers, and leaf blowers. It is compatible with certain models from Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

The Hex Jam Nut is a genuine 4 oz. jam nut. This part is half the height of most standardized hex nuts. Typically used as a locknut, hex jam nuts are used for two general purposes. The first application is that a jam nut can be used in conjunction with a bolt to be tightened against a standard nut. By using the hex nut and the bolt together, the standard nut will lock in place and will not back off. The second application is that jam nuts are used in tight uneven places as a means to level. Further, jam nuts can be used in situations where sufficient space is lacking for a standard nut.The Hex Jam Nut is sold individually. If a hex jam nut is lost through general use, it can be replaced simply with the same OEM part sourced directly from the manufacturer. The part can be replaced and installed with a wrench and should only take a few minutes to replace. This product is suitable for use with chippers, lawnmowers, lawn tractors, log splitters, snowblowers, and vacuums. Sturdy and durable, the product is made from galvanized steel.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

This part is a hex cap screw that is used on a variety of outdoor power equipment. A hex cap screw is used to fasten components together securely. The head of the screw is shaped like a hexagon, hence the name "hex cap screw."A new hex cap screw may be needed if the current one is stripped, broken, or missing. Since screws are such a small component, it is important to place them in a safe place so that they are not lost. Remember to wear gloves when operating or performing care and maintenance on any outdoor power equipment.This hex cap screw is a genuine Husqvarna part. It is sold individually. This particular hex cap screw is compatible with chippers, shredders, lawnmowers, lawn tractors, snowblowers, and vacuums that are manufactured by the following brands: Husqvarna, Craftsman, Bolens, Husky, Yard Machines, Yard-Man, MTD, and Troy-Bilt.

This throttle housing is meant to provide users with a comfortable method of grabbing and controlling the throttle on the several different types of yard equipment machines. The throttle housing is made from plastic, and it is exposed to the elements and other dangers while being used and in storage. The housing could become cracked, broken, or damaged in other ways that would require a repair. The replacement of the throttle control is easy and can be done with only a screwdriver. This is a genuine OEM throttle housing replacement. It is sold individually and does not include the cable, trigger, spring, or screws. The housing can work for models of edger, snowblower, and Lawn Mower. Compatible brands include Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut. Buyers in search of throttle housing should make sure it will work with their make and model.
