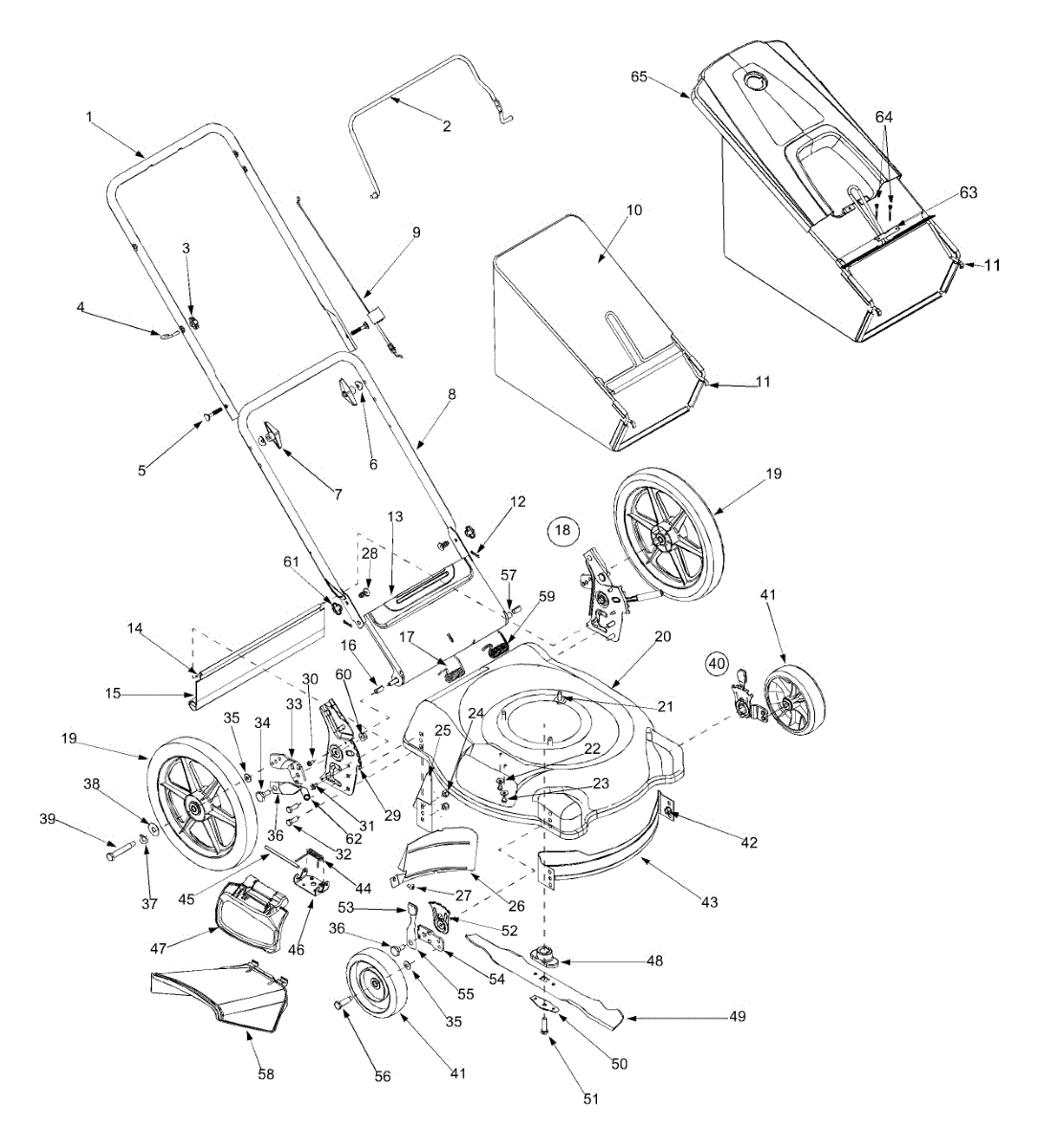

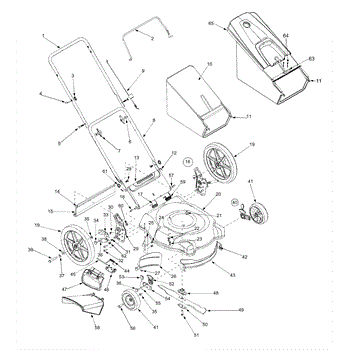

Parts for Ryobi 11A-545D034 / 2003: General Assembly (Plastic Rear Door) Parts

This control handle is designed specifically as a replacement for use on select walk-behind lawn mowers. The control handle is the safety that is engaged to allow the engine to run. When holding the control handle in, the pull start can be activated and the engine will run. Once the control handle is released, the engine will stop. In the event that the control handle becomes damaged or fails, it will need to be replaced so that the mower can continue to be used. This handle can provide a genuine replacement for compatible models. This control handle is manufactured to exact standards by MTD and provides an exact fit. It is compatible with hundreds of models, including select models from RYOBI, Yard Machines, Troy-Bilt, Yard-Man, Husky, Bolens, and Cub Cadet. This part is also known as the control bar, control handle, engine stop handle, bail control, or mower bail. It is made of durable metal and sold individually. No tools are required for the installation of this part. To replace the handle, simply squeeze the existing control handle to remove it from the outer handle, and then align the new handle and slide it into place. When properly installed, the pressure will hold it in place and allow for proper operation.

This is a knob handle that is used on various types of lawn and garden equipment. It is responsible for helping to make adjustments to the upper handle of the lawnmower or other machine. If the knob handle no longer works, is broken, or falls off, adjustments can no longer be made to the equipment. If this situation occurs, the knob handle will need to be replaced.Take a look at the knob handle and determine if it has been damaged. It could have cracks, broken areas, or excessive scratches that make it hard or impossible to use. If the knob handle is not present, this also necessitates a replacement. The part is easy to replace and requires no tools to install. Simply remove the old handle and place the new one in the same location.This is an authentic OEM replacement knob handle that is directly sourced from the manufacturer. It is sold as an individual component. The knob handle is used on lawnmowers, snowblowers, string trimmers, leaf blowers, wood chippers, and edgers. It fits various models offered by MasterCut, Yard-Man, Bolens, Montgomery Wards, Huskee, MTD, Yard Machines, Murray, Troy-Bilt, Ryobi, Cub Cadet, and Craftsman.

A rope guide eyebolt is an important piece of hardware designed for use with pieces of outdoor lawn and garden power equipment that have small engines, such as lawn mowers. It is compatible with products by brands such as Craftsman, Bolens, Husky, Yard Machines, Yard Man, MTD, and Troy-Bilt.The rope guide eyebolt part plays a valuable role in making the lawn mower easier to operate. The metal rope guide eyebolt is to be mounted to the side rail of the handle, which then keeps it secured with a handle knob. The rope guide eyebolt keeps the starter rope on the upper handle for ease of access. The purpose of all of this is simply to keep the rope out of the way while operating. The replacement or repair process of the rope guide eyebolt should be straightforward, but the user replacing the part should always be sure to wear gloves during any assembly, replacement, or installation processes.The user should also refer to the owner's manual of their equipment and any guiding diagrams that clarify the placement location. This part is made out of metal. This rope guide eyebolt is an original OEM part sourced directly from the manufacturer, MTD. It is sold individually.

This replacement curved hd. screw is also known as a carriage bolt. The screw can be used on many types of lawn and garden equipment. The purpose of the screw is to hold and support the upper and lower handles of the machine. It works along with the hand knob to help secure the handles, but buyers should know that the knob is sold separately. Owners might need to replace the carriage bolt if it has become corroded or no longer properly secures the handles. If the owner has lost the bolt, they will need to buy a new one before they can use their machine. The replacement for this part is fast and simple. This is an authentic OEM replacement curved hd. screw that is sold individually. It is for use with lawn mowers, tillers, snowblowers, wood chippers, edgers, and leaf blowers. It is compatible with certain models from Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

A lawn mower lower handle is exactly what it sounds like: a handle replacement part for different types of lawnmowers. It works with a variety of mowers, including push mowers, mulching mowers, and self-propelled lawnmowers. It designed for use and is compatible with these brands: Craftsman, Cub Cadet, Troy-Bilt, Yard Machines, MTD, Huskee, Bolens, Yard-Man, and MasterCut.The lawn mower lower handle allows the user to drive or guide the lawn mower. The replacement and repair process for a broken lower handle is relatively simple and straightforward. The user must simple remove the faulty handle and disassemble it into its two component pieces. Then, this lawn mower lower handle replacement part can be attached to the base of the mower.This lawn mower lower handle is made out of metal. It is a genuine OEM part sourced directly from the manufacturer and is sold individually. The manufacturer of this particular lower handle is MTD.

This part is a replacement trail shield wire. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a broken or faulty trail shield wire in a variety of lawnmower models.This part securely attaches the lawnmower's rear skirt to the back of the deck. This is what enables the rear skirt to easily move back and forth. If the trail shield wire is damaged, the rear skirt may stick or will not pivot properly, effecting equipment functionality. When working on or near an engine, ensure the equipment is powered off and completely cooled down before starting any work. For more accurate information on how and where to install this trail shield wire, the appropriate owner's manual and equipment diagrams should be referenced. As an authentic replacement part, this trail shield wire is suitable for use on several different models of lawnmowers manufactured by MTD, Troy-Bilt, Yard Man, Yard Machines, Cub Cadet, and Bolen. This is a genuine part made of high-quality, durable metal and is sold individually.

This genuine replacement part is a MTD wheel assembly for lawn mowers and trimmers. It replaces the rear wheels on these tools. This wheel assembly attaches to the bottom of the mower, and allows for smooth rolling, even on uneven ground. Over time, the wheels on a lawn mower or lawn tractor can wear out or become damaged. This can reduce traction or affect the alignment of the mower.Replacing the wheel is simple, but please follow these important safety precautions when working with this part: Shut off the engine of the mower. Allow the engine to become cool before installing this part. Disconnect the spark plug to prevent the mower from accidentally starting. For installation information, please refer to the original product manual. Please note: a socket wrench is required for installation of this part.This high quality OEM replacement part is sourced directly from the manufacturer, and it is sold individually. This part is compatible with a variety of Craftsman, Ryobi, and more lawn mowers and trimmers. Please note: original part numbers 1828027, 1917592, 753-04211, and GW-1917592 are now obsolete, and manufacturer has replaced the original part numbers with this part.

This hex screw and lock washer are commonly used with lawn mowers and other small engines to secure a motor to the housing of the equipment. It is machined in such a way that it binds the manifold and frame permanently. There are occasions when these bolts have to be removed, typically when major repairs are performed on the engine. In those cases, users often find it advisable to replace the hex bolts and washers with new ones. It happens as well that these screws are so tightly fastened that they cannot be unscrewed and must be cut off. In those cases, it is necessary to replace the original screws. These replacement screws and lock washers are genuine OEM certified replacements that are manufactured to be identical to the hardware they are replacing. In addition to mowers, these hex screws are used to secure engines to devices such as log splitters, edgers, shredders, trimmers, and snowblowers. This screw is compatible with devices made by Husky, Yard-Man, Cub Cadet, Troy-Bilt, Ryobi, Bolens, and Yard Machines.

This spring washer has a conical shape with an open center. It has a shape like a traditional washer but is smaller than a typical coiled spring. These washers can handle a larger load than a coiled spring and are used in lawn and garden equipment to cushion heavy loads. Over time, these washers can experience wear and tear which will lead to damage or breakage. When this occurs, the spring washer will need to be replaced.Visually inspect the spring washer for damage like scratches, breaks, and dents. If these occur or the washer is warped, it needs to be replaced. The process involves removing the nut or screw above the washer with a screwdriver or other tool. After accessing the spring washer, it can be removed and a replacement part can be added to the equipment. Reassemble the parts and the equipment should work again.This is a genuine OEM spring washer replacement part that is sold individually. It's sourced directly from the manufacturer. It is compatible with lawnmowers, wood chippers, snowblowers, log splitters, tillers, chainsaws, string trimmers, and edgers by Craftsman, MasterCut, Toro, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Husky, Montgomery Wards, Murray, Huskee, Yard Machines, and MTD.

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

Carriage bolts are flat-tipped with round heads, and their function in small engine appliances is to fasten together components and to secure that connection with a nut. There are various reasons that a carriage bolt might have to be removed and replaced, among them misplacement of the small, easily lost part. Other reasons to replace a carriage bolt could include damage or erosion that prevents the bolt from attaching the materials to one another effectively. If a carriage bolt is subject to this kind of damage, it should be replaced before using the small engine appliance. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This genuine MTD carriage bolt can be used as a replacement part for several different kinds of appliances that require small engines, including lawnmowers, snowblowers, wood-chippers, tillers, string trimmers, leaf blowers, and edgers. The OEM carriage bolt is compatible with the following brands: Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut. This part is sold individually.

This hex washer screw is a genuine OEM replacement part for a variety of household and outdoor appliances. A hex washer screw is a self-piercing screw with an attached washer at the head of the screw. Self-piercing screws are quite sharp and feature a twin-lead thread to screw into a surface more effectively. The built-in hexagonal washer helps to balance weight and force throughout the connection and prevent breakage. Hex washer screws can become damaged over time through repeated stress or tension. Their threading can become stripped or the head can eventually snap off. Replacing a hex washer screw is simple as long as you have the right tool. The unique shape of the screw head makes it incompatible with a flathead or Phillips head screwdriver. Instead, replacing this type of screw requires a unique hex head screwdriver. This part is compatible with Yard Machines, MTD, Yard Man, Troy-Bilt, and Craftsman products and will fit lawn mowers, tractors, snowblowers, vacuums, and chippers. This is a high-quality replacement part sourced from the original manufacture and ships independently of any other hardware.

This replacement part is a hex screw. This is a genuine replacement part made by MTD. This type of screw is commonly found in many types of machinery and appliances. Screws are able to keep certain parts stable and connected so that they are secure during use. A new hex screw might be needed if the current one is visibly damaged in any way or missing. It is not uncommon for screws to become stripped down or lodged in place after years of normal use. If this is the case they should be replaced as soon as possible. If the screw is lodged in place, pliers might be required on top of a screwdriver to complete this repair. This part is sold individually and is sourced directly from the manufacturer. This part is a genuine OEM replacement part to ensure proper fit and long-lasting use.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

This is a .50 x 1.0 x .022 metal spring washer. It is designed to be used in lawnmowers, edgers, tillers, and other lawn and garden equipment that has vibrating parts due to movement or use. These spring washers are meant to be used between the nut and the surface of the attached part. For example, the wheel assembly bolt will have a spring washer installed before going through the wheel into the receiving nut.The spring washer will flatten out when tightened and dig into the surface it is attached to so that counter-clockwise rotation is prevented. This reduces or eliminates loosening due to vibrations. During routine maintenance, spring washers should be inspected to ensure they are intact and have not rusted or broken. Replacement of the washer does not require tools; however, the nut and wheel bolt assembly will have to be removed to access the washer and tools will be needed to remove these parts to access the washerThis is a genuine OEM part sourced directly from the manufacturer. It is sold individually. It is designed for use in Craftsman, Cub Cadet, Troy-Bilt, MTD, Husky, Bolens, Yard-Man, and other brand-names of outdoor lawn and garden equipment.

This replacement part is an adjuster kit. It is a genuine replacement part made by MTD. This adjuster kit is typically found in lawnmowers and is responsible for assisting the user in changing the height of the blades so that the user may determine the setting which the grass is cut at. A new adjuster kit might be needed if the user is unable to adjust the height of the blades and therefore cannot perform the necessary duties. If the blades are stuck at one height it is possible that the adjuster kit is to blame. Because this part is located close to dangerous objects it is recommended that work gloves be worn for protection. This is a genuine OEM replacement part to ensure proper fit and long-lasting use. Note that part is sold individually and is sourced directly from the manufacturer.

This replacement wheel is designed for use with select walk-behind lawn mowers. The wheel is one of four on a mower that is responsible for keeping the deck from making contact with the ground. It also helps maneuver the mower through grass and on uneven terrain. It is attached to the axle with a nut that allows it to spin when the mower is pushed. Wheels can become worn over time or become damaged in a way that stops them from functioning correctly. In that case, a replacement of the wheel would typically be the best option. Without functional wheels, mowing could become difficult or even impossible. This replacement wheel will resolve the issue for compatible models. This genuine OEM wheel is manufactured by MTD. It can be used with hundreds of walk-behind lawn mowers from MTD, Craftsman, Troy-Bilt, Yard Machines, Yard Man, RYOBI, Bolens, and Husky. This wheel is made of high-quality durable plastic and sold as a single unit. Those who need more than one wheel will have to purchase multiple quantities. A socket set or wrench will be required for a wheel replacement. Always wear gloves when performing equipment repairs.

This replacement part is a hex bolt. It is a genuine replacement part made by MTD. Hex bolts are named because they are shaped like a hexagon and are different from the regular circle-shaped bolts. These parts are able to hold other parts secure and in place so that everything can operate as needed. A new hex bolt might be needed if the current ones are damaged in any way. It is possible that these bolts become stripped or lodged in place over time due to normal wear and tear and should be replaced. The repair should be fairly easy, only requiring a screwdriver or pliers if the previous part is stuck. Be sure the engine is completely powered down before beginning this repair. This bolt is sold individually. Be sure to purchase the correct amount as many appliances require more than one. This is a genuine OEM replacement part sourced directly from the manufacturer.

This is a height adjuster knob for walk-behind lawn mowers. It attaches to the height adjuster lever. This component is used to adjust the front wheels on the lawnmower deck. This adjustment allows the user to select the desired cutting height of the grass. This component is made out of a hardened foam material that is easy to grip.If the height adjuster knob falls off of the height adjust lever and will not reattach, it is likely that it will need to be replaced. The height adjuster lever itself is sold separately. The repair person may wish to wear gloves when replacing this part.This component is sourced straight from the manufacturer. It is sold individually and is a genuine OEM part. This height adjuster knob is compatible with walk-behind lawnmowers that are manufactured by the Ryobi, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, Cub Cadet, Craftsman, and Husky brands.

This 21-inch deck chute is an OEM-authorized part that is designed for use with select walk-behind push lawn mowers. The deck chute directs the grass clippings that are expelled by the mower blade as they are discharged from the deck. The mower deck cover should be removed and replaced with the chute, as they will not both fit on the hinge at the same time. This chute sees a lot of use and is subject to potential impact with the ground and various obstacles, which makes it prone to damage over time. It can even become detached and need a full replacement. This genuine OEM chute will provide the perfect fit for compatible mowers. This deck chute is manufactured to specific standards by MTD and can work with over 150 machines from RYOBI, Yard-Man, Yard Machines, Troy-Bilt, MTD, Bolens, Husky, and Cub Cadet. Refer to the parts diagram and owner's manual to confirm part number compatibility and location of the chute. This part is made of durable plastic material and is sold as a single unit. Hardware is not included with this part and will require an additional purchase. Always disable the engine before working near the mower blade for safety.

This genuine MTD foam grip provides a firmer grip for one's hands while holding onto the handles or the bar of a lawnmower; the foam grip insulates one's hands from the vibration and shaking of a lawnmower while in use.The foam grip of a lawnmower can be subject to damage in the form of chips, nicks, cuts, tears, rips, or punctures. This damage can be the result of overuse, age, exposure to the elements, or general wear and tear easily attributable to regular long-term usage. If this damage occurs, the foam grips should be replaced as soon as possible to continue to provide insulation from the vibration of the equipment while in use. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This OEM foam grip is compatible with the following brands: MTD, Troy-Bilt, Yard-Man, and Bolens. This part is sold individually.

This hex washer screw is a genuine OEM replacement part for a variety of household and outdoor appliances. A hex washer screw is a self-piercing screw with an attached washer at the head of the screw. Self-piercing screws are quite sharp and feature a twin-lead thread to screw into a surface more effectively. The built-in hexagonal washer helps to balance weight and force throughout the connection and prevent breakage. Hex washer screws can become damaged over time through repeated stress or tension. Their threading can become stripped or the head can eventually snap off. Replacing a hex washer screw is simple as long as you have the right tool. The unique shape of the screw head makes it incompatible with a flathead or Phillips head screwdriver. Instead, replacing this type of screw requires a unique hex head screwdriver. This part is compatible with Yard Machines, MTD, Yard Man, Troy-Bilt, and Craftsman products and will fit lawn mowers, tractors, snowblowers, vacuums, and chippers. This is a high-quality replacement part sourced from the original manufacture and ships independently of any other hardware.
