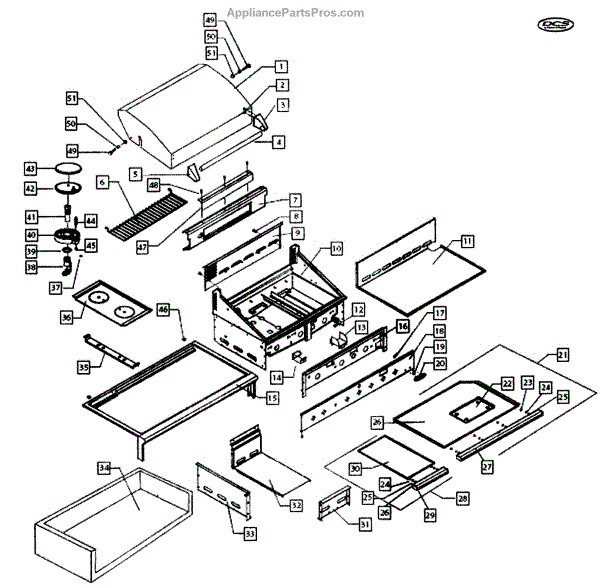

Parts for Dcs BGB48-BQRN-70494A: Grill Assy 1 Parts

This is a stainless steel hex head bolt used to secure appliance panels and components. Sold as a 10-pack, it provides durable, corrosion-resistant fasteners for routine repairs and reassembly. What it does:

• Fastens panels, brackets, and assemblies with a 1/4-20 thread and 1/2" length
• Full-thread design ensures grip along the fastener for secure clamping
• Stainless steel construction resists rust and corrosion in moist environments
• Commonly used when stripped, missing, or damaged bolts cause loose parts or rattling

• Use the correct 1/4" socket or wrench and avoid overtightening to prevent thread damage
• Replace matching fasteners in sets when possible to maintain proper fit and torque
• Wear safety glasses when working around panels and springs; disconnect power if working near electrical components

This burner inner wrapper is the formed metal bowl that sits under a gas burner, protecting internal components and helping position the flame for even heat. It replaces a damaged or corroded bowl to restore proper burner performance. What it does:

• Shields the burner assembly from spills, drips and debris to prevent blockages and corrosion
• Helps direct and stabilize the gas flame for more even cooking heat
• Prevents heat and flames from contacting adjacent components
• Reduces soot and sooting-related odors by keeping combustion area contained

• Turn off gas supply and electrical power and ensure the range is fully cool before starting
• Remove grates and burner caps, then lift out the old wrapper; install the new wrapper in the same orientation
• Do not bend or deform the wrapper; misuse can affect burner performance or create safety hazards

This valve panel is the front control assembly that houses the range's gas valve controls and user interface, restoring reliable burner control and panel appearance after damage or wear. What it does:

• Replaces the range's damaged or worn front control panel that secures and positions gas valve controls
• Restores proper alignment and operation of control knobs and valve linkages
• Helps stop intermittent or loose control knob feedback and improves panel fit
• Matches OEM fit and mounting points for straightforward replacement

• One valve panel assembly

• Disconnect power and shut off gas supply before beginning service
• Replacement may require removal of cooktop or control trim to access mounting screws
• Handle with care to avoid scratching finish; use OEM fasteners and torque to spec if provided

This ignitor kit replaces the burner spark electrode and its retainers, restoring dependable ignition. It produces a focused spark at the burner so the gas lights quickly and consistently. What it does:

• Generates the high-voltage spark needed to ignite gas at the burner
• Retaining spring and clip hold the electrode in the correct position for reliable ignition
• Helps address: burner won't light, intermittent or weak spark at a burner, or a cracked/chipped electrode insulator

• 1 ignitor (spark electrode), 1 retaining spring, 1 clip

• Disconnect electrical power and shut off gas; allow the appliance to cool before servicing
• Remove burner components to access the electrode; release the clip/spring and withdraw the old ignitor
• Transfer the spark lead to the new electrode; handle the ceramic insulator carefully to avoid damage
• Seat the electrode and secure with the spring and clip; align the tip per service guidelines and test for spark before reassembly

The JET HOLDER D, DMS #47 is an OEM part for Fisher & Paykel gas ranges and cooktops. It securely holds the jet orifice that meters gas flow to one of the rear burners.

Causes generally involve wear and environmental degradation over extended use. Mineral buildup or cracks in the plastic material interfere with precise flow control.

Symptoms of a problematic jet holder can include:

• Unstable or irregularly sized rear burner flames
• Burner response abnormal when adjusting heat settings
• Inability to achieve expected flame sizes on one rear burner
• Potential gas leaks at the jet holder connection point

A replacement D-shaped burner cap that restores even flame coverage and protects the burner head on compatible gas cooktops. Use this cap to improve ignition reliability and maintain correct heat distribution for safer cooking. What it does:

• Covers the burner head to direct flame and promote even heating across cookware
• Helps prevent uneven ignition, sputtering flames, or weak burners caused by damaged or missing caps
• Protects the burner head from spills, debris, and wear that can interfere with performance
• Matches the OEM geometry for proper alignment and flame pattern when seated correctly

• One D-shaped burner cap

• Turn off the cooktop gas supply and ensure the surface is cool before removing or replacing the cap
• Lift the old cap straight up; place the new cap onto the burner post, ensuring it sits flat and centered
• Clean burner head and ports of debris before installing the new cap to ensure proper flame
