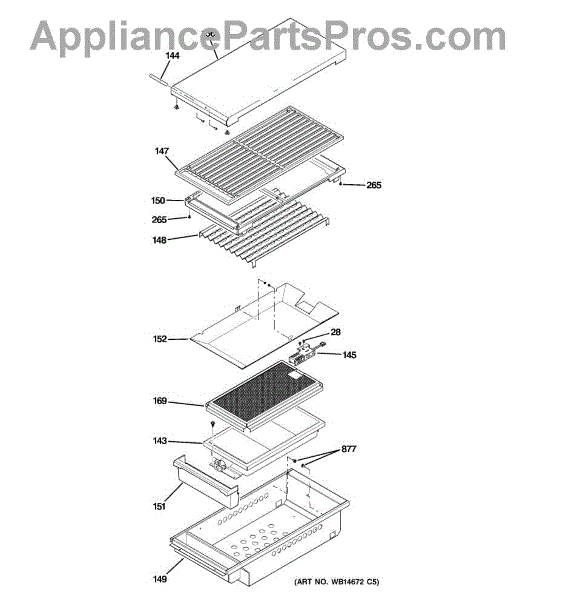

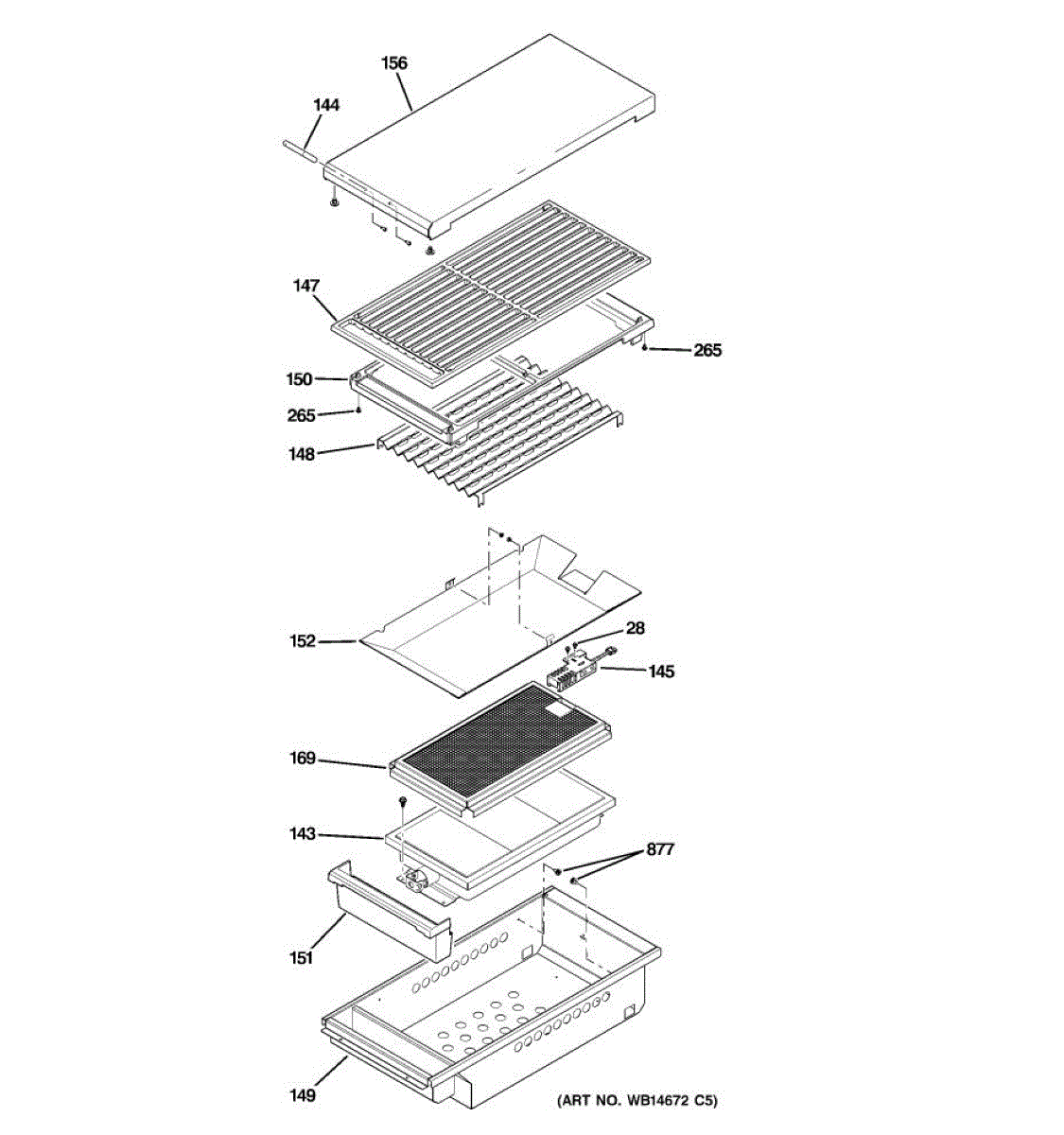

Parts for Ge ZDP486LRP4SS: 03 - Grill Assembly Parts

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

Replace a cooktop burner element that won't heat or heats unevenly. Common fix for non-working burners. Moderate DIY repair, 30-45 minutes.

If your gas oven won't heat or takes too long to preheat, a weak igniter is usually the cause. This oven igniter lights the burner for reliable heating.

This is a metal grill grate that sits on the range cooktop surface. It provides a stable, heat-resistant platform for cookware over the burner. Replace this grate if it is warped, cracked, heavily rusted, or has broken support ribs that cause pots and pans to sit unevenly.

Replacement baffle grill for gas range burners. Sits beneath the burner cap to distribute heat evenly. Replace if cracked, warped, or missing.

Grease trough assembly collects spills and debris on your gas cooktop. Replace when cracked, warped, or rusted to maintain proper drainage and cleanliness.

Burner flame spreader frame mesh for gas cooktops. Sits above the burner to distribute heat evenly. Replace if cracked, warped, or missing mesh.

Replacement grate foot for cooktop burner grates. Installs on bottom of grate to elevate and stabilize. Needed when original foot is cracked or missing.

This is a 10-16 shoulder-type A screw used to fasten appliance panels and components, providing secure assembly and stable operation. It replaces worn or missing screws to stop rattling and restore proper fit. What it does:

• Secures control panels, trim pieces, and mounting brackets
• Helps prevent loose or vibrating panels and noisy operation
• Keeps electrical or mechanical assemblies held in correct position
• Restores proper alignment after disassembly or repair

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or nut driver to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or damage parts
• Keep removed hardware organized for reassembly
