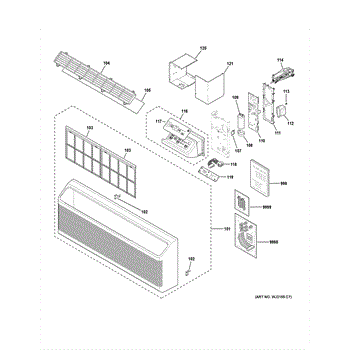

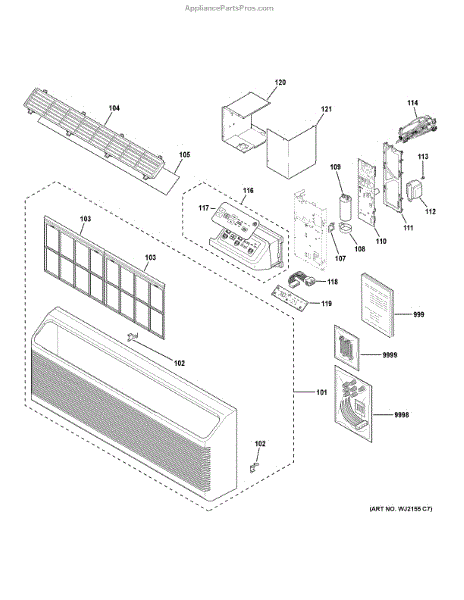

Parts for Ge AZ45E12EACW2: Grille & Control Parts

The Room Front Assembly is an OEM component specifically designed for GE window air conditioners. It forms the front protective covering and filter area.

Located at the front interior of the AC unit, the assembly maintains proper airflow across the important evaporator coil and fan components. Its rectangular grille covers protective foam inserts and an easily removable washable filter.

Symptoms of a failing assembly include:

• Reduced or inconsistent cooling performance
• Visible debris or moisture buildup within the interior
• Loose screws or separation of assembly panels

Causes involve normal degradation of mounting hardware, weathering of protective foam, or damaged/dirty filter media over extended use.

Replacement with this OEM GE part restores optimized interior ventilation and coil/fan access. Compatible units include select Frigidaire, Westinghouse, or Kenmore.

The Clip Room Front is an OEM part for GE air conditioners. This clip is responsible for securely attaching the front panel of the air conditioner to the main unit, ensuring a tight and stable fit.

A bad clip room front can be caused by damage, breakage, or misplacement of the clip. If you notice that the front panel of your air conditioner is loose, wobbly, or not properly secured, it may indicate a problem with the clip room front.

Symptoms of a bad clip room front include:

• Front panel not staying securely in place
• Visible gaps or misalignment between the front panel and the main unit
• Difficulty in removing or attaching the front panel
• Noises coming from the air conditioner

Replace your faulty clip room front with this genuine OEM part to ensure a proper and secure fit for your air conditioner's front panel. This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


The Air Conditioner Filter Assembly is an OEM part compatible with GE air conditioning units. It is a crucial component responsible for capturing airborne particles, pollutants, and contaminants, ensuring that the air circulated through the system is clean and fresh.  It measures roughly 10.75” x 13.25”.

Symptoms of needing to replace the air conditioner filter assembly include:

• Reduced airflow or limited air circulation
• Visible accumulation of dirt or debris on the existing filter
• Unpleasant odors or musty smells from the air conditioning unit
• Increased strain on the system due to restricted airflow

Causes of a faulty filter assembly can include normal wear and tear over time, clogging due to excessive accumulation of particles, or physical damage due to improper handling or installation.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore air conditioning models.

This louver air outlet is the exterior vent trim that directs and protects exhaust airflow from your appliance, restoring proper ventilation and a finished appearance. It snaps or screws into the cabinet vent opening for a clean fit. What it does:

• Directs appliance exhaust through the cabinet vent opening to help maintain proper airflow
• Protects the vent opening from large debris while allowing air to escape
• Replaces cracked, warped, or damaged vent trim that can cause air leaks or visible gaps
• Helps reduce visible lint buildup around the cabinet opening by restoring correct airflow path

• Disconnect power to the appliance before servicing and work in a well-ventilated area
• Remove the cabinet or access panel screws as needed to reach the vent opening; part secures with clips or screws depending on model
• Inspect the vent duct for lint or obstruction while replacing the trim and restore proper venting per manufacturer guidelines

This capacitor bracket secures the compressor or motor capacitor in place to prevent movement and vibration, helping maintain reliable electrical connections and reduce noise. It provides a stable mount for the capacitor assembly. What it does:

• Holds the capacitor firmly to the appliance chassis to prevent shifting or contact with other components
• Reduces vibration and rattling that can lead to loose connections or noise
• Keeps capacitor terminals properly positioned to help maintain reliable electrical contact
• Useful when bracket is bent, cracked, or missing and the capacitor is unsecured

• One capacitor mounting bracket

• Designed to replace a damaged or missing bracket; verify orientation before fastening
• Use appropriate fasteners and torque; do not overtighten or deform the bracket
• Disconnect power at the breaker and discharge capacitors before touching electrical components

The Capacitor is an OEM component specifically designed for GE window air conditioners. It plays a vital electrical role to ensure dependable compressor function.

Located inside the outdoor unit, the capacitor stores and discharges electrical power to provide running and starting functions for the compressor. Proper capacitor performance enables a reliable cold air supply.

The causes of a bad capacitor relate to normal electromagnetic component aging over many seasons of use.

Symptoms include:

• Inability to power up or intermittent operation
• Higher startup power consumption levels
• Buzzing noises coming from the outdoor unit

Replacing with this authentic GE OEM part restores optimized power handling. It supports continued cooling comfort and energy efficiency Compatible alternatives include select Frigidaire, Westinghouse, or Kenmore AC units.

The Main board is an OEM part for GE window air conditioners. The main board is the central control unit that regulates all critical functions of the air conditioner, such as temperature settings, fan speeds, mode settings, and more. It controls and monitors operations to cool or dehumidify the air as needed.

Causes of a bad main board can include short circuits, cracked solder joints, or defects in the electronic components.

Symptoms of a bad main board include:

• The air conditioner not turning on at all
• The control buttons not working properly
• Erratic temperature readings
• Constantly running or short cycling operation
• Unusual noises coming from the unit

This OEM GE replacement ensures seamless functionality for years to come. It is also compatible with some Kenmore air conditioners.

This replacement control board mounting frame secures the ZoneLine/main control board so electrical connections stay aligned and the board remains stable during use. It restores proper board positioning for reliable control operation. What it does:

• Provides a secure mounting surface for the ZoneLine/main control board to prevent movement or vibration
• Keeps board connectors aligned to maintain reliable electrical connections
• Helps reduce intermittent control issues caused by a loose or misaligned board
• Supports correct spacing and clearance around the control board for safe operation

• Disconnect power to the appliance before beginning any repair
• Handle the control board by its edges and avoid touching components or connector pins
• Use original screws/clips where specified; confirm all connectors are fully seated during reassembly

The Overlay Display is an OEM part compatible with GE air conditioning units. This component serves as the primary user interface, featuring a graphic overlay or panel that displays various settings, modes, and information to the user.

Symptoms of a faulty air conditioner overlay display include:

• Blank or incomplete display
• Unreadable information on the display
• Inaccurate display of temperature settings or operational modes
• Unresponsive or erratic touch inputs (if a touch panel)

Causes of a bad overlay display can stem from physical damage from impact or moisture exposure, electrical malfunctions, or simply normal wear and tear over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore air conditioner models.

This UI jumper harness connects the oven or range control panel to the main control board so the user interface sends signals and receives power reliably. Replacing a damaged harness restores communication between the touch/display panel and the control electronics. What it does:

• Carries user inputs and display signals between the control panel and main control board
• Replaces worn, burnt, frayed, or corroded wiring that can cause intermittent or lost panel function
• Helps resolve symptoms such as a blank or unresponsive display, erratic touchpad behavior, or controls that sometimes stop working
• Preserves OEM connector fit and routing for straightforward replacement

• One UI jumper harness as shown

• Disconnect power to the appliance before starting any repair to avoid shock or damage
• Access usually requires removing the control panel or rear console; keep track of screws and clips
• Match connector shapes and pin counts; route harness to avoid sharp edges and heat sources
• Do not attempt repairs while the appliance is powered.

The thermostat kit is an OEM part for GE multi-zone HVAC systems. The thermostat and wiring control zone temperatures by communicating instructions to the outdoor unit.

Causes of a bad thermostat kit can include faulty electronic modules, worn buttons that no longer properly register temperature adjustments, or damaged wiring that disrupts communication between zones.

Symptoms include:

• Inability to regulate temperature in one or more zones
• Thermostat constantly displaying error codes
• Zones heating/cooling at wrong times or excessively running the outdoor unit
• Unresponsive or unpredictable temperature control

This GE replacement part is compatible with Hotpoint, RCA, and some Kenmore models.
