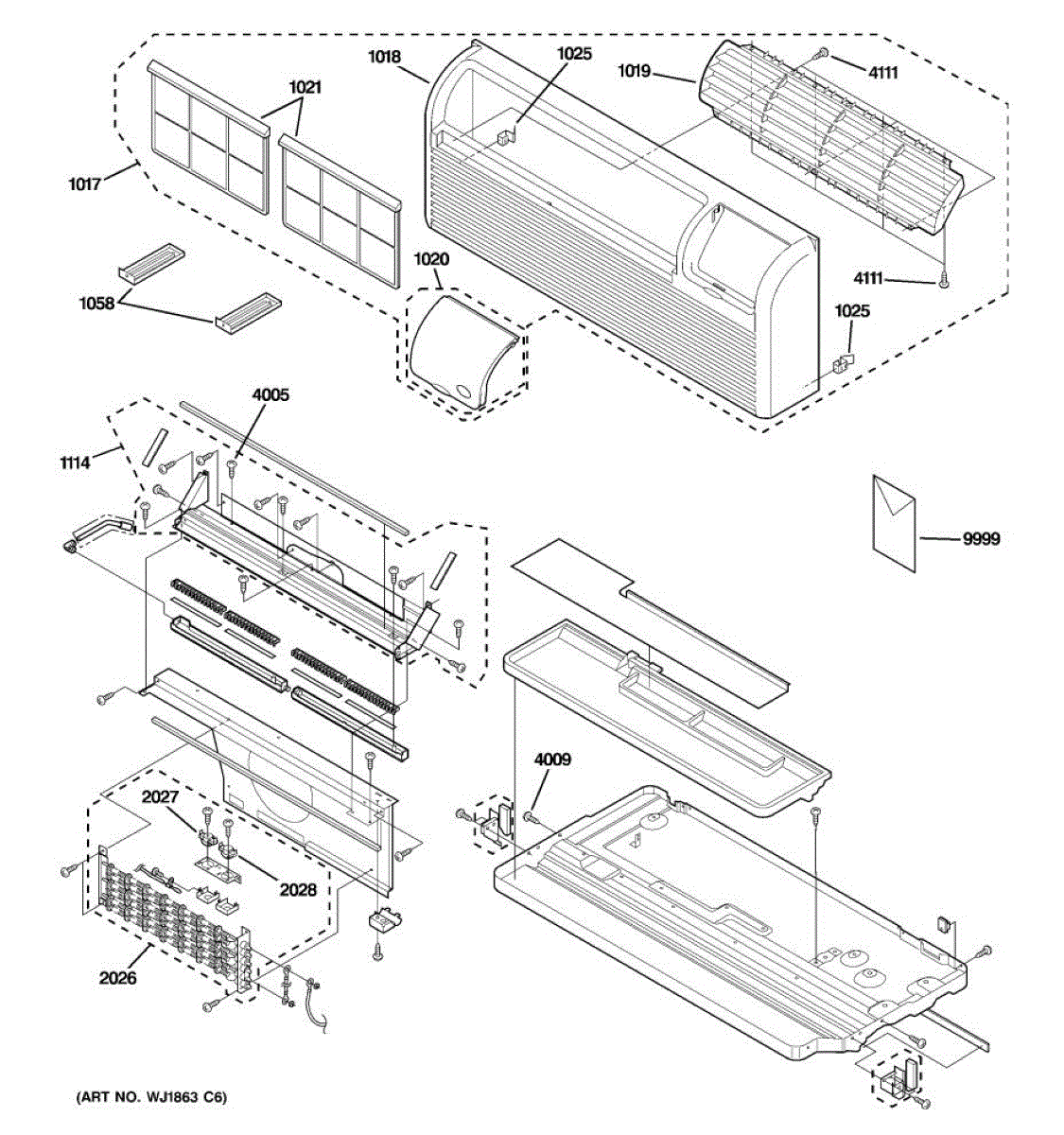

Parts for Ge AZ28E09DACM2: 01 - Grille, Heater & Base Pan Parts

This control cover replaces the front cover over a room air conditioner's control panel. It restores a clean, finished look, protects the controls from dust and accidental contact, and helps keep the user interface securely positioned.

• Covers and protects the control board, switches, and display area
• Provides a labeled, easy-to-use interface and clean appearance
• Replaces cracked, broken, or missing covers that can expose wiring or cause rattling
• Helps buttons/knobs align and operate correctly

• Disconnect power and unplug the unit before servicing.
• Access the control area; remove the existing cover and retain screws/fasteners and any knobs as needed.
• Transfer any mounting clips or inserts from the old cover if present.
• Position and secure the new cover; verify the controls move freely and the cover seats properly.

The Air Filter is an OEM replacement part for GE refrigerators. This component plays a crucial role in maintaining air quality and freshness within the refrigerator compartment by trapping odors, pollutants, and airborne particles. It measures about 14-1/2 inches wide by 10 inches high.

Symptoms that may indicate the need to replace the air filter include:

•  Persistent unpleasant odors within the refrigerator
• Reduced air circulation or airflow
• Visible discoloration or clogging of the filter material

Causes of a faulty air filter can include normal wear and tear over time, accumulation of excessive debris or contaminants, or exposure to high humidity or moisture levels.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

Restore proper heating performance with this Heater Kit. It replaces the original heater assembly so the appliance can perform its designed heating function, helping resolve no-heat issues and bring temperatures and cycle times back to normal. What it does:

• Generates heat for the designated circuit or compartment of the appliance
• Works with existing controls and safeties to reach and maintain target temperatures
• Common symptoms of a failed heater include no heat, insufficient heat, extended cycles, or temperature-related fault codes
• Physical damage or an open reading on a continuity test typically indicates the heater needs replacement

• 1 heater kit

• Disconnect power at the breaker before servicing; allow all components to cool completely
• Note wire routing and connections; move connectors one at a time to avoid miswiring
• Mount the heater securely and keep wiring clear of hot, sharp, or moving parts
• Reassemble and run a test cycle to confirm proper heating operation

This protector heater is a small heating element used with the overload/thermal protector in the motor or compressor circuit. It provides calibrated warmth so the protector trips correctly under heavy load, helping prevent overheating and protecting the unit. What it does:

• Works with the overload/thermal protector to ensure proper trip timing
• Helps prevent overheating and potential damage to the motor/compressor
• Common signs include repeated clicking near the compressor area or frequent overload trips

• 1 protector heater

• Disconnect power and safely discharge the run capacitor before servicing
• Photograph or label wiring and component orientation for accurate reassembly
• Install in the same position/orientation as the original with secure, insulated connections and proper wire routing
• Inspect the overload, start device, and terminals; replace any burnt or loose connectors to prevent repeat failures

This protector heater provides a small, controlled heat source inside the appliance to keep sensitive components within range. It helps prevent condensation and nuisance trips so the unit operates reliably in cool or humid conditions.

• Provides low-watt heat around a protected area or thermostat
• Helps prevent moisture buildup and condensation
• Stabilizes temperature to reduce nuisance protector/thermal cutout trips
• Symptoms include intermittent operation, unexpected shutoffs, or visible condensation near controls

• Disconnect power before servicing and allow components to cool
• Note wire positions and routing on the original; move one connection at a time
• Mount in the original location and secure leads away from sharp edges, moving parts, and high-heat surfaces
• After installation, restore power and verify normal operation
