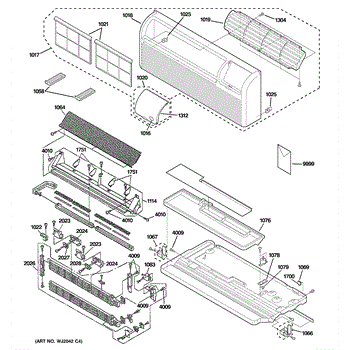

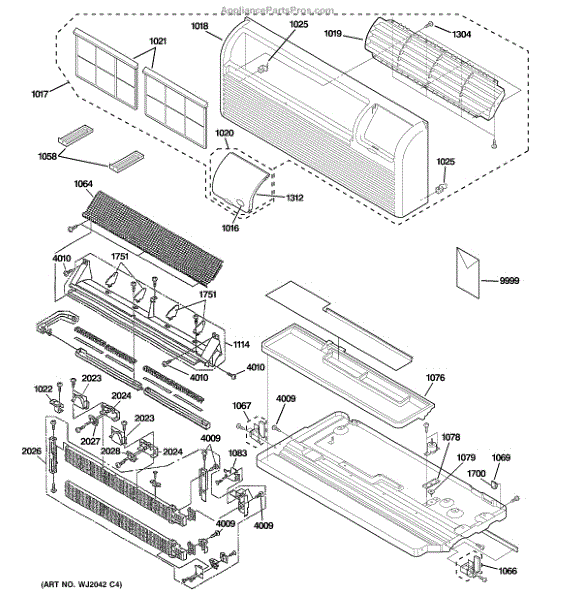

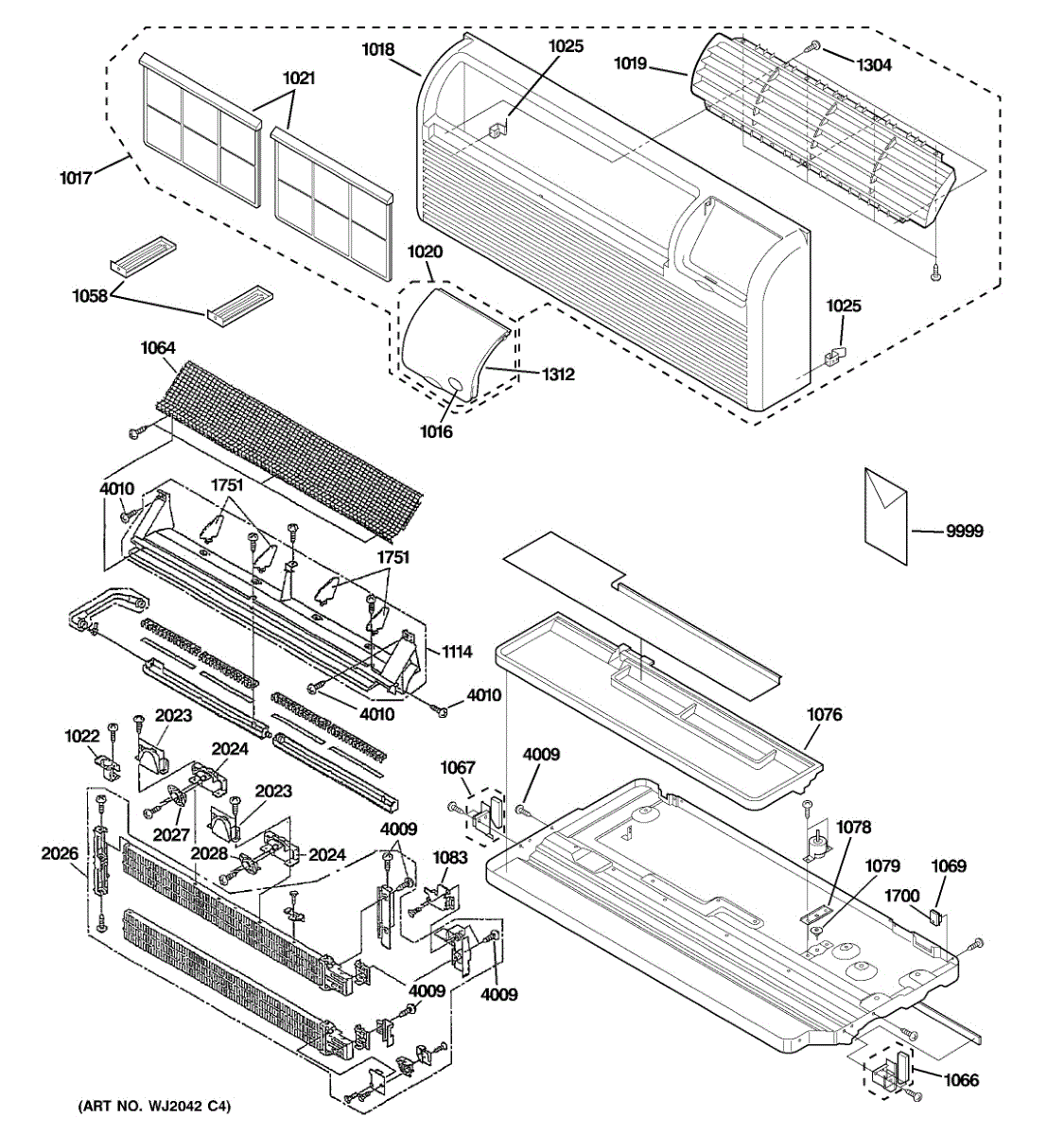

Parts for Ge AZ41E09DAPW4: Grille, Heater & Base Pan Parts

Missing or broken control cover? This panel cover protects controls from dust and accidental contact while restoring a clean, finished look to your unit.

Replacement air filter for room air conditioners. Traps odors, pollutants, and particles to maintain air quality. Replace when worn or damaged.

Replacement spring for room air conditioners. Installs internally to provide tension or support. Order if your original is broken, stretched, or missing.

This support brace is a metal mounting bracket that helps secure and stabilize internal panels and components, restoring proper alignment and reducing vibration or sag in the appliance. Use when a damaged or loose brace allows movement or misalignment. What it does:

• Secures internal panels or assemblies to the cabinet to prevent shifting
• Restores proper alignment of doors, shelves, or internal components
• Reduces vibration and rattling caused by loose or broken supports
• Helps prevent further wear or damage from unsupported components

• Disconnect power and, if applicable, water before beginning any repair
• Remove any obstructing panels or shelves to access the mounting location
• Reinstall with the original fasteners; replace damaged hardware if necessary

Protective wire netting guard for room air conditioner units. Installs over internal components. Replace if bent, damaged, or missing to restore protection.

This left-hand cabinet angle is a sheet-metal mounting bracket that secures a cabinet side to the appliance frame for stable alignment and fit. It helps keep the cabinet square and reduces gaps, vibration, and panel movement. What it does

• Provides a stable mounting point to secure the cabinet side to the appliance frame
• Helps maintain proper door/panel alignment and even gaps
• Reduces rattling, vibration, and shifting of the outer cabinet
• Restores correct fit after bumping or damage to the original bracket

• One left-hand cabinet angle bracket

• Disconnect power and, if applicable, water before beginning work
• Remove outer panels or trim to access mounting area
• Reuse original fasteners only if undamaged; replace stripped or bent screws
• Wear gloves to protect hands from sharp sheet-metal edges and work on a stable surface

Air conditioner not cooling evenly or temperature inconsistent? This louver assembly directs airflow properly to restore balanced cooling in your room.

Missing or broken control cover? This panel cover protects controls from dust and accidental contact while restoring a clean, finished look to your unit.

This louver is the replacement vent grille that restores proper airflow and keeps the appliance's condenser and components protected while improving the unit's appearance. Designed to fit the original mounting points for a clean, secure fit. What it does

• Directs and protects airflow to the condenser/vent area to help the appliance cool efficiently
• Covers and shields internal components from debris and accidental contact
• Restores a finished, OEM-look appearance when the original louver is cracked or missing
• Helps reduce rattling or vibration caused by a broken or loose grille

• Disconnect power to the appliance before servicing to prevent shock or injury
• Remove the existing grille/trim per the appliance service instructions; mounting may use clips or screws
• Handle carefully to avoid damaging mounting tabs; align to original mounting points for a secure fit

Protector cover for room air conditioners. Installs on the unit exterior to shield internal components. Replace if cracked, broken, or missing.

This protector holder secures a dryer thermal protector or thermal fuse in place, keeping the safety device mounted and stable so the appliance can monitor and interrupt heat when needed. It helps maintain proper alignment of the protector for reliable operation. What it does:

• Holds and positions a thermal protector or thermal fuse inside the appliance
• Keeps the safety device away from moving parts and airflow for accurate temperature sensing
• Supports proper electrical connection and prevents the protector from shifting or disconnecting
• Commonly replaced when the mounting clip is broken, cracked, or no longer secures the protector

• One protector holder

• Turn off power to the appliance before servicing to avoid electrical shock
• Use basic hand tools; avoid forcing the bracket to prevent breaking nearby plastic or clips
• If the protector or wiring shows damage, replace those parts as well rather than reusing compromised components

This heater assembly provides supplemental heat in a room air conditioner or zoneline-style HVAC unit, allowing the system to function in heating mode. It contains electric heating elements that warm the air as it passes through the unit. Replace this assembly if the unit blows only cool air in heat mode, trips the breaker when heating is activated, or if the elements appear visibly damaged or burned.

Heat not working on your heat/cool unit? This heating thermostat regulates temperature in Zoneline systems. Controls heat cycles and signals elements on/off.

Special screw for air conditioner assembly. Replaces lost, stripped, or damaged screws during installation or repair. Secures components properly.

This special screw is a direct-replacement fastener used to secure internal or exterior appliance components, restoring proper fit and reducing movement that can cause noise or misalignment. What it does

• Fastens panels, brackets or component assemblies to keep parts aligned and secure
• Stops rattling or vibration caused by loose or missing hardware
• Replaces damaged or stripped screws that prevent proper assembly
• Helps maintain safe, stable operation by restoring correct part fit

• One replacement special screw

• Disconnect power to the appliance before attempting any repair to avoid shock or injury
• Use the correct screwdriver or bit to avoid cam-out and thread damage
• Tighten until snug; do not overtighten to prevent stripping or cracking surrounding parts
• Keep small parts away from children and dispose of old hardware properly
