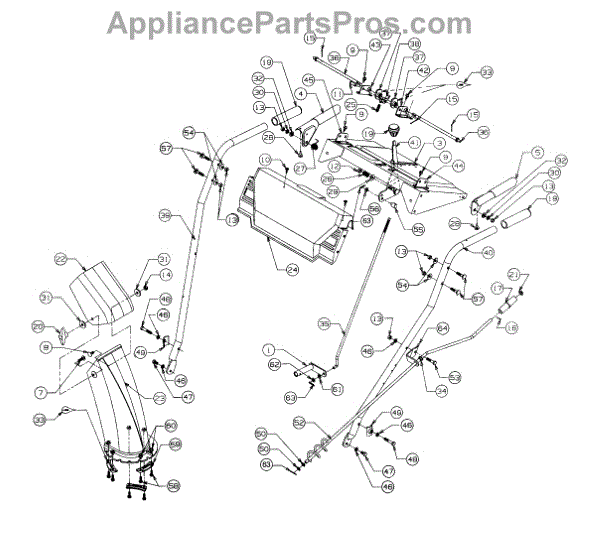

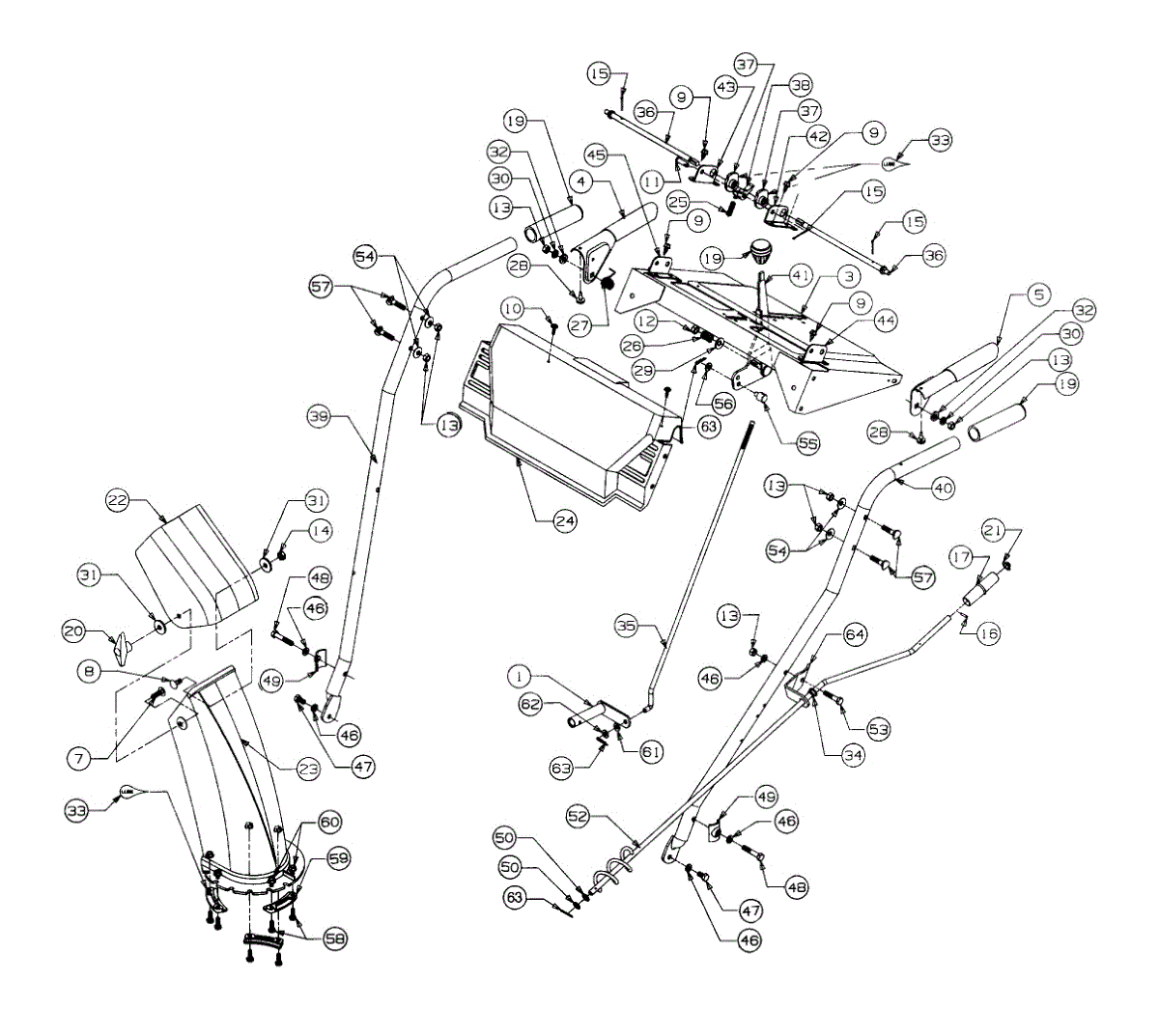

Parts for Ace 317E640F033 / 1997: Handle Assembly Parts

This carriage bolt is a fastener with a flat tip and a round head with threading along the shank. Also known as coach bolts and plow bolts, the item can be used with many types of lawn and garden equipment. This is a 5/16 carriage bolt that resists turning after the bolt has been tightened. Wear and tear or impact can cause damage to a carriage bolt and lead to the need to replace them.Removing a carriage bolt requires twisting the nut loose from the end of the bolt and then hitting the nut with a hammer. This will begin to move the shoulder out of the lawn equipment. Continue the process until the bolt is loose enough to remove. Installing a new carriage bolt simply requires sliding the bolt into the hole, adding the nut, and tightening things up.This carriage bolt is designed for use with Craftsman, MasterCut, Toro, Yard-Man, Cub Cadet, Montgomery Wards, Ryobi, Huskee, Troy-Bilt, MTD, and Yard Machines lawn and garden equipment. It can be used with lawnmowers, chainsaws, snowblowers, edgers, and tillers. This is a genuine OEM product sourced directly from the manufacturer as an individual component.

A carriage bolt is a type of fastener. It features a smooth rounded head and a square domed top. It has threading, which leads to up to the square shoulder. The purpose of its square is to prevent the bolt from spinning. Once the carriage bolt is inserted through the hole, using a nut and washer can provide additional security. Carriage bolts can corrode and loosen over time. Since it doesn't have a slotted head, a socket wrench is needed when replacing. This bolt carriage replacement is compatible with wood chippers, tillers, string trimmers, lawnmowers, and edgers. It is a genuine MTD product that measures 5/16x.075. It has a smooth rounded head and square shoulder underneath it. This carriage bolt is sold individually.

This hex washer screw is a genuine OEM replacement part for a variety of household and outdoor appliances. A hex washer screw is a self-piercing screw with an attached washer at the head of the screw. Self-piercing screws are quite sharp and feature a twin-lead thread to screw into a surface more effectively. The built-in hexagonal washer helps to balance weight and force throughout the connection and prevent breakage. Hex washer screws can become damaged over time through repeated stress or tension. Their threading can become stripped or the head can eventually snap off. Replacing a hex washer screw is simple as long as you have the right tool. The unique shape of the screw head makes it incompatible with a flathead or Phillips head screwdriver. Instead, replacing this type of screw requires a unique hex head screwdriver. This part is compatible with Yard Machines, MTD, Yard Man, Troy-Bilt, and Craftsman products and will fit lawn mowers, tractors, snowblowers, vacuums, and chippers. This is a high-quality replacement part sourced from the original manufacture and ships independently of any other hardware.

This handle grip part is used on many kinds of lawn and garden equipment that is pushed or otherwise moved around a yard. The handle grips are made out of flexible rubber and are used on the two handles. The purpose of the handle grip is to offer a more secure grip on the power tool and lessen the feel of vibrations.Over time, one or both of the handle grips can start to experience wear. Sometimes, the grips will become damaged or broken. If the grips are very damaged, they may come off of the machinery. There is no need to use tools to replace the handle grip on yard equipment. The old part just needs to be removed from the tool so that the new component can be slipped on. Wear a pair of work gloves to make the process easier.This is a genuine OEM handle grip replacement that is sourced directly from the manufacturer. It is sold individually. The part is compatible with lawnmowers, snowblowers, tillers, and chainsaws created by MasterCut, Yard-Man, Bolens, Montgomery Wards, Huskee, MTD, Yard Machines, Murray, Troy-Bilt, Ryobi, Cub Cadet, and Craftsman.

This genuine OEM part is a compression spring for a lawnmower. The compression spring is the spring that holds the mower deck onto the lawnmower. Over time, the compression spring can become degraded due to excessive wear and tear. If it is no longer securing the mower deck, it will need to be replaced. Luckily, replacing this part is a relatively simple process.To replace the spring, make sure the mower deck is set to the lowest position. Locate the old retainer spring and pull it out and away from the mower. Once removed, slide the new spring into its proper position. Make sure it fits tightly, and the mower deck is secured. Once secured, power the mower to see if the spring stays in place during operation. If it does, then the installation was a success. This replacement part is sold individually and is compatible with MTD brand lawnmowers.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

This cam rod, also called a rod cam or a cam-rod, is a genuine MTD part. It is manufactured as a replacement part for snow blowers and snow throwers from a number of makers.This rod is long and thin, and although the original is made from durable material, it can become warped or damaged over time. It is an important component in the push function of the machine and must be replaced if damaged for safety purposes.This cam rod is a genuine OEM part which is sourced directly from the manufacturer. It is sold individually. It is compatible with snow blowers and snow throwers made by ACE, Craftsman, Huskee, Husky, Lawn Chief, Montgomery Ward, MTD, Power Pro, Ranch King, Ryobi, Select Series, White Outdoor, Yard Machines, and Yard-Man. Many of the compatible machines were made in the 1990s.

This hex bolt is a necessary component used in a variety of small to medium sized gasoline powered engines used primarily in yard work, gardening, and landscaping. The primary use of this hex bolt is to secure the idler pulley assembly to the body of the machine. The idler pulley functions to engage the turning mechanism of the yard tool when engaged. The power yard tools that require an idler pulley which would use this screw are tillers, riding mowers, yard tractors, tillers, snow blowers and chippers. Engaging the rotating part of the yard tool places a great deal of resistance on the idler pulley, which may eventually result in it needing to be replaced. When replacing the idler pulley assembly, it's important to remember that the attaching hardware, such as the hex bolt, has also experienced a great deal of wear and should be replaced as well. This hex bolt attaches the idler pulley assembly directly to the machine housing and can be removed with a 9/16 wrench. Make sure when replacing the bolt to use a genuine OEM manufactured part that is identical to the manufacturer's original piece. This bolt is compatible with the following brands: Yard-Man, Bolens, Craftsman, Yard Machines, Troy-Bilt, Cub Cadet, Huskee, Ryobi, Murray, MTD, MasterCut, and Montgomery Wards.

This bell washer is a genuine MTD part, sold individually. This bell washer can be used as a replacement part for a lawn tractor, chipper shredder, tiller, or lawnmower. This bell washer adds spacing on a shaft in the tool.If the user of the appliance notices that a washer is missing, it should be replaced. General wear and tear is very normal for outdoor appliances, and if it occurs, the washer should be removed and replaced with this genuine OEM replacement part.This is an OEM part sourced directly from the manufacturer. It is sold individually. This bell washer is compatible with the following outdoor appliance brands: MTD, Yard Man, Yard Machines, and Troy-Bilt.

This replacement part is a bolt. This is a genuine replacement part made by MTD. This part is small but important to the overall workings of the machine. Bolts work with other parts such as screws and nuts to ensure that different parts are held in place and are secure during use. A new bolt might be needed if the current one has become loose, is missing, or has been damaged. This can include being dented, bent, or lodged in place. Be sure to replace it as soon as possible if this is the case. This should be a fairly simple repair and only require common household tools such as a screwdriver and pliers. This part is sold individually and is sourced directly from the manufacturer. This is a genuine OEM replacement part.

With small gasoline-powered tools that require control panels, this hex screw attaches the panel to the handles of the tools. Machined to be durable, important screws such as these take a real beating. In their locations at critical points on the handle, the hex screws are considered "wear items," and thus periodically, they must be replaced. The control panel itself is often a location of extreme forces, jostling, and abrupt movement in unpredictable directions. The constant movement, with sheet metal rubbing against the hex screws from every direction, make wear inevitable. The manufacturers recommend that spare screws of this type be kept on hand if the heavy use of the equipment is expected. Among the gasoline-powered tools that use these screws are snowblowers, yard tractors, mowers, tiller, chippers, shredders, and other tools requiring hand-maneuvered levers. These screws are compatible with a number of equipment brands and manufacturers, including MTD, Ryobi, Poulan, Yard-Man, Bolens, Troy-Bilt, and Yard Machines.
