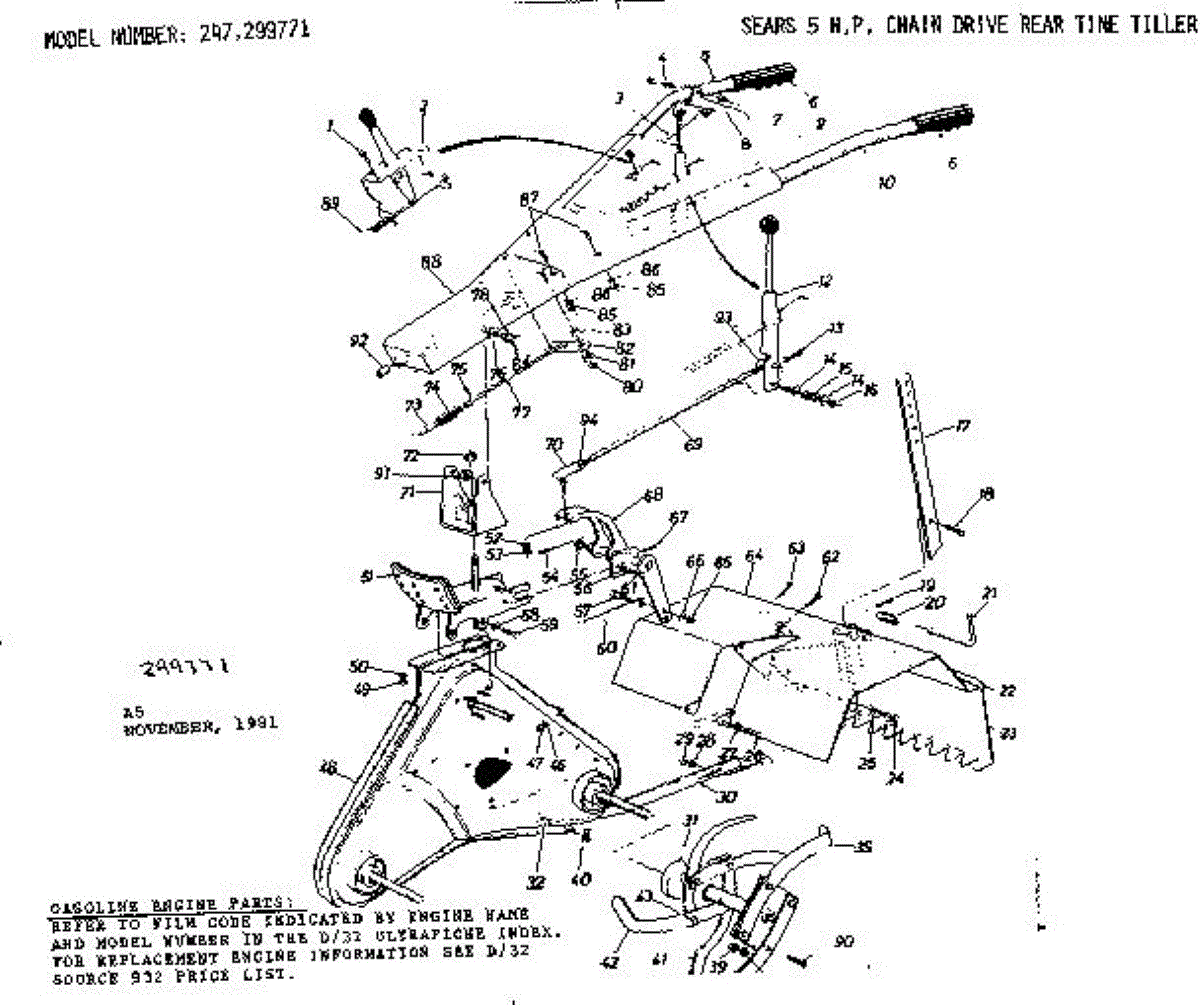

Parts for Craftsman 247299771: Handle Assembly Parts

Hex washer head screw for lawn equipment. Secures components and panels. Replace if stripped, missing, or corroded for proper assembly and fit.

Hex screw fastener for lawn tractors, mowers, and outdoor power equipment. Replace when stripped, rusted, or missing to secure engine and chassis parts.

This OEM part is a cotter pin for lawnmowers. The cotter pin is the small clip that secures the mower deck to the mower. A cotter pin can become rusted or damaged due to exposure to the elements. If the cotter pin is no longer securing the mower deck, then it will need to be replaced. Luckily replacing this part is a relatively simple fix.To replace the cotter pin, start by making sure the mower is turned off. After that, locate the old damaged pin. Use a pair of pliers to pull it out of its place. Once removed, slide the new pin into its opening and make sure it is set securely on the mower deck. Once secured, turn the mower on to see if the pin can hold the mower deck.This genuine replacement part is sold individually and is compatible with MTD brand mowers.

Compression spring for lawn mowers and outdoor power equipment. Replaces broken, worn, or missing springs. Essential hardware for proper operation.

Hex screw for securing components in lawn mowers, tractors, and outdoor power equipment. Replace if stripped, corroded, broken, or missing.

Hex lock nut for lawn mowers and outdoor power equipment. Secures blade assemblies, wheels, and components. Replace if stripped, corroded, or missing.

This hex nut is designed for use with select trimmers and mowers. It is a standard hardware part that may have multiple applications depending on the type of unit and model. The nut is typically used to secure engine components or housing elements to provide safe use of the machine. These nuts are durable, but they are small and can become lost during other repairs. The constant exposure to vibrations and use can also cause them to strip or become damaged over time. Either way, a replacement with this genuine hex nut will resolve the issue and get equipment back in working order. This genuine OEM hex nut is manufactured to exact standards and sourced from the manufacturer. It can be used with trimmers and mowers from RYOBI, MTD, Bolens, Troy-Bilt, Yard Machines, Huskee, Yard Man, and Cub Cadet. Check the parts diagram for exact application and location of this nut and note that it may have multiple uses on select models. This hex nut is sold individually, and additional nuts will require the purchase of multiple pieces. In order to replace this nut, a hex socket wrench and driver will be required. Always wear gloves for safety.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

Flat washer for lawn mowers and garden equipment. Distributes load when fastening parts together. Replace if missing, broken, or worn to prevent damage.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.

Hex screw for lawn mowers and outdoor power equipment. Secures components and panels. Replace if stripped, rusted, or missing for proper assembly.

Steering ball joint assembly for lawn tractors and snowblowers. Secures drag links and tie rod ends. Replace if worn, cracked, or loose for safe operation.

Hex nut for securing components on outdoor power equipment. Replace when threads are stripped, nut is corroded, or hardware is missing or damaged.

Replacement washer for lawn mowers and outdoor power equipment. Installs with bolts to distribute load and prevent loosening. Replace if worn or missing.

Center hex nut for lawn mowers, snow blowers, and tillers. Secures blade assemblies and drive components. Replace if stripped, corroded, or missing.

This replacement part is a bushing washer. This is a genuine replacement part made by MTD. Washers work with other small parts like nuts and screws to hold certain pieces in place. This allows for the engine to run smoothly and efficiently. A new bushing washer might be needed if the current one is missing or damaged in any way. This can include being dented, bent, or cracked. Washers can become worn down due to normal wear and tear over time. This is caused by friction inside of the engine. Refer to the user manual for more specific instructions on how to replace this part. This bushing washer is also a genuine OEM replacement part to ensure proper fit. This part is sold individually and is sourced directly from the manufacturer for long-lasting use.

Shoulder screws are a type of fastener used in many types of lawn and garden equipment. Also called stripper bolts or shoulder bolts, they have a head, threads, and an unthreaded shoulder. These screws are used in areas where items need to be held together in a specific location. They can be used with bearings, bushings, and machinery support. Shoulder screws are made of durable metal but can still experience breakage or damage. When this occurs, the screws will need to be replaced. A wrench can be used to remove the damaged shoulder screw. First, visually inspect the shoulder screw to look for damage or corrosion. Sometimes, the screw will be entirely broken. If any of these things are present, a wrench can be used to remove the old shoulder screw. The same tool can be used to insert a new shoulder screw before reassembling the equipment.Designed for lawnmowers, lawn tractors, tillers, leaf blowers, chainsaws, log splitters, chipper shredders, and snowblowers, this part is compatible with items from Yard Machines, MTD, Cub Cadet, Craftsman, Toro, Huskee, Montgomery Wards, Yard-Man, MasterCut, and Troy-Bilt. The locknut is sold separately.

Hex screw that secures components on lawn tractors and outdoor power equipment. Replace if screw is stripped, missing, or damaged during maintenance.

Secures bolts and prevents loosening on mowers and tractors. This hex jam nut locks standard nuts in place for reliable fastening. Easy installation.
