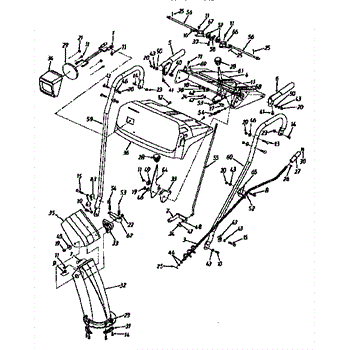

Parts for Sears 247885550: Handle Assembly Parts

This part is a replacement chute crank assembly. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. The intended use for this part is to properly replace a broken or defective chute crank assembly on snowblowers. The chute crank assembly enables the equipment operator to adjust what direction snow is expelled from the chute. This is important for operation, as it allows the snow to be directed away from the area intended to be cleared. This part is subject to wear and tear can become dented, bent, broken, or otherwise damaged and will require replacement. Always ensure that the equipment is completely powered off and is cooled down before attempting to start the repair process. For more accurate information on the installation of this chute crank assembly, reference the owner's manual or equipment diagrams for specific instructions and part location. This is an authentic OEM part and as such is sold individually and made from durable and high-quality metal. This chute crank can be used with a variety of snowblower models manufactured by MTD, Craftsman, Husky, and Yard Machines.

This is a carriage bolt, which is found on lawnmowers, snowblowers, and many other types of lawn and garden equipment. The carriage bolt is made of metal and the location will vary based on the model of the tool. The carriage bolt is used to fasten together two components on lawn and garden equipment. It can become damaged, break, or stripped and will need to be replaced.If the carriage bolt is broken, stripped, or has damage, a wrench will be needed to replace it. Make sure that the spark plug wire has been disconnected and the tool is turned off before you begin. Use the wrench to remove the carriage bolt before installing the new part in the same location. Replace any additional disassembled components removed to gain access to the bolt before using the tool.This carriage bolt is sold as an individual component. It is a genuine OEM replacement part that is sourced directly from the manufacturer. The bolt is designed to work with lawnmowers, chainsaws, snowblowers, tillers, and leaf blowers manufactured by Yard-Man, Bolens, Montgomery Wards, Huskee, MTD, Yard Machines, Husky, Troy-Bilt, Ryobi, Cub Cadet, and Craftsman.

Screw hex caps are found on lawn equipment and other small machines. Over time, with the machine's use or following accidental damage, a screw hex cap may break or become loose. In order to continue safely operating the machine, the part must be replaced. A missing or damaged screw hex cap can cause the equipment to move in unpredictable ways. Check for excessive vibration or noise.Always wear gloves for protection when replacing parts on lawn equipment. Tools required may include a socket set, wrench set, and a screwdriver. Screw hex caps are quick and easy to replace. Make sure that the replacement screw hex cap is installed correctly and properly secured for a tight and long-lasting fit.This screw hex cap is an authentic OEM replacement part. It is supplied by the manufacturer. The replacement screw hex cap is made of durable metal and is gold in color. The replacement piece can be used in a variety of machines, including chippers, shredders, cultivators, edgers, lawnmowers, lawn tractors, and snowblowers. The screw hex cap is compatible with Husky, Cub Cadet, Ryobi, Bolens, Yard Machines, Yard-Man, Troy-Bilt, and MTD. It is sold as an individual unit.

A carriage bolt is a type of fastener. It features a smooth rounded head and a square domed top. It has threading, which leads to up to the square shoulder. The purpose of its square is to prevent the bolt from spinning. Once the carriage bolt is inserted through the hole, using a nut and washer can provide additional security. Carriage bolts can corrode and loosen over time. Since it doesn't have a slotted head, a socket wrench is needed when replacing. This bolt carriage replacement is compatible with wood chippers, tillers, string trimmers, lawnmowers, and edgers. It is a genuine MTD product that measures 5/16x.075. It has a smooth rounded head and square shoulder underneath it. This carriage bolt is sold individually.

This hex washer screw is a genuine OEM replacement part for a variety of household and outdoor appliances. A hex washer screw is a self-piercing screw with an attached washer at the head of the screw. Self-piercing screws are quite sharp and feature a twin-lead thread to screw into a surface more effectively. The built-in hexagonal washer helps to balance weight and force throughout the connection and prevent breakage. Hex washer screws can become damaged over time through repeated stress or tension. Their threading can become stripped or the head can eventually snap off. Replacing a hex washer screw is simple as long as you have the right tool. The unique shape of the screw head makes it incompatible with a flathead or Phillips head screwdriver. Instead, replacing this type of screw requires a unique hex head screwdriver. This part is compatible with Yard Machines, MTD, Yard Man, Troy-Bilt, and Craftsman products and will fit lawn mowers, tractors, snowblowers, vacuums, and chippers. This is a high-quality replacement part sourced from the original manufacture and ships independently of any other hardware.

This replacement part is a bolt. This is a genuine replacement part made by MTD. This part is small but important to the overall workings of the machine. Bolts work with other parts such as screws and nuts to ensure that different parts are held in place and are secure during use. A new bolt might be needed if the current one has become loose, is missing, or has been damaged. This can include being dented, bent, or lodged in place. Be sure to replace it as soon as possible if this is the case. This should be a fairly simple repair and only require common household tools such as a screwdriver and pliers. This part is sold individually and is sourced directly from the manufacturer. This is a genuine OEM replacement part.

With small gasoline-powered tools that require control panels, this hex screw attaches the panel to the handles of the tools. Machined to be durable, important screws such as these take a real beating. In their locations at critical points on the handle, the hex screws are considered "wear items," and thus periodically, they must be replaced. The control panel itself is often a location of extreme forces, jostling, and abrupt movement in unpredictable directions. The constant movement, with sheet metal rubbing against the hex screws from every direction, make wear inevitable. The manufacturers recommend that spare screws of this type be kept on hand if the heavy use of the equipment is expected. Among the gasoline-powered tools that use these screws are snowblowers, yard tractors, mowers, tiller, chippers, shredders, and other tools requiring hand-maneuvered levers. These screws are compatible with a number of equipment brands and manufacturers, including MTD, Ryobi, Poulan, Yard-Man, Bolens, Troy-Bilt, and Yard Machines.

This hex bolt is a necessary component used in a variety of small to medium sized gasoline powered engines used primarily in yard work, gardening, and landscaping. The primary use of this hex bolt is to secure the idler pulley assembly to the body of the machine. The idler pulley functions to engage the turning mechanism of the yard tool when engaged. The power yard tools that require an idler pulley which would use this screw are tillers, riding mowers, yard tractors, tillers, snow blowers and chippers. Engaging the rotating part of the yard tool places a great deal of resistance on the idler pulley, which may eventually result in it needing to be replaced. When replacing the idler pulley assembly, it's important to remember that the attaching hardware, such as the hex bolt, has also experienced a great deal of wear and should be replaced as well. This hex bolt attaches the idler pulley assembly directly to the machine housing and can be removed with a 9/16 wrench. Make sure when replacing the bolt to use a genuine OEM manufactured part that is identical to the manufacturer's original piece. This bolt is compatible with the following brands: Yard-Man, Bolens, Craftsman, Yard Machines, Troy-Bilt, Cub Cadet, Huskee, Ryobi, Murray, MTD, MasterCut, and Montgomery Wards.

This center hex nut is a genuine MTD part, sold individually. This center hex nut can be used as a replacement part in lawn mowers, snowblowers, tillers, leaf blowers, edgers, log splitters, and wood chippers. The purpose of the center hex nut for one of these small engine outdoor appliances is to work in conjunction with a bolt to provide a fastening component for one or more parts within the internal mechanisms of the appliance.The center hex nut might need to be replaced if the small fastening component is lost, misplaced, or damaged within the typical lifespan of the small engine outdoor appliance in which it has been installed.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This center hex nut is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Husky, Yard Machines, Huskee, Montgomery Wards, Yard Man, and MasterCut.

The lock nut is a piece of standard hardware that may have a variety of applications on lawn and garden equipment, including on engines, housings, and other components. The lock nut offers a secure fit by tightening into a flange that prevents the nut from loosening like a regular nut might. Over time, the flange or the nut can become worn or damaged. In some cases, lock nuts may be lost during the process of other repairs or maintenance. Replacing them with genuine OEM parts like this lock nut is the best solution. This lock nut is compatible with hundreds of machines, including mowers, snowblowers, and chippers from MTD, Troy-Bilt, Cub Cadet, RYOBI, Yard-Man, Yard Machines, Bolens, and Husky. The ¼-inch lock nut has multiple locations and applications, so owners should consult their parts diagram for exact placement and part number identification. This lock nut is made of durable metal and sold as a single unit. Those who need additional pieces will have to order multiple quantities. This part will require a wrench or a socket to replace, as well as pliers and/or a screwdriver to hold the bolt or screw in place.

This part is a replacement push nut. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part's intended use is to replace a broken or detached push nut in snow blowers.Push nuts are a special type of fastener that secures together different equipment components. Push nuts will need to be replaced if worn, broken, lost, or otherwise ineffective. When working on or near an engine, it's important to make sure the equipment is powered off and completely cool before starting any repairs. For more accurate information on how and where to install this push nut, reference the appropriate owner's manual and specific equipment diagrams.This is an authentic OEM replacement part made of high-quality materials. This push nut can be used with different models of snow blowers that have been manufactured by MTD, Craftsman, Troy-Bilt, and other brands. Part sold individually.

This genuine OEM part is a compression spring for a lawnmower. The compression spring is the spring that holds the mower deck onto the lawnmower. Over time, the compression spring can become degraded due to excessive wear and tear. If it is no longer securing the mower deck, it will need to be replaced. Luckily, replacing this part is a relatively simple process.To replace the spring, make sure the mower deck is set to the lowest position. Locate the old retainer spring and pull it out and away from the mower. Once removed, slide the new spring into its proper position. Make sure it fits tightly, and the mower deck is secured. Once secured, power the mower to see if the spring stays in place during operation. If it does, then the installation was a success. This replacement part is sold individually and is compatible with MTD brand lawnmowers.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

This cam rod, also called a rod cam or a cam-rod, is a genuine MTD part. It is manufactured as a replacement part for snow blowers and snow throwers from a number of makers.This rod is long and thin, and although the original is made from durable material, it can become warped or damaged over time. It is an important component in the push function of the machine and must be replaced if damaged for safety purposes.This cam rod is a genuine OEM part which is sourced directly from the manufacturer. It is sold individually. It is compatible with snow blowers and snow throwers made by ACE, Craftsman, Huskee, Husky, Lawn Chief, Montgomery Ward, MTD, Power Pro, Ranch King, Ryobi, Select Series, White Outdoor, Yard Machines, and Yard-Man. Many of the compatible machines were made in the 1990s.

This part is a replacement handle bracket. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace broken or defective handle brackets in a variety of snow blower and snow thrower models. This handle bracket secures the handle of the snow blower or snow thrower so the equipment can be properly and safely used. If the bracket is detached, bent, dented, or broken, the handle may become detached. Thus, the handle bracket should be replaced. When working on or near an engine, it's important to make sure the equipment is powered off and completely cooled down before starting any repairs. For more accurate information on how and where to install this handle bracket, the appropriate owner's manual and equipment diagrams should be utilized.As an authentic replacement part, this handle bracket is suitable for use on several different models of snow blowers and snow throwers manufactured by MTD, Craftsman, Troy-Bilt, and other brands. This is a genuine part made of high-quality, durable metal and is sold individually.

This part is a replacement auger assembly. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a broken or defective auger assembly in a variety of snow blower models. The auger assembly's blades rotate to collect snow and move it into the auger housing, which then expels the snow from the chute. If the auger assembly is broken, the snow blower may not be able to clear snow effectively. When working on or near an engine, it is important to make sure the equipment is powered off and completely cooled down before starting any repairs. For more accurate information on how and where to install this auger assembly, the appropriate owner's manual and equipment diagrams should be referred to. As an authentic replacement part, this auger assembly is suitable for use on several different models of snow blowers manufactured by MTD, Craftsman, and other brands. This is a genuine part made of high-quality, durable materials and is sold individually.

This is a right-hand spiral auger assembly for use with snowblowers and snow throwers. The replacement part features rotating blades. When the machine is in use the blades will spin and bring the snow up and through the auger housing and then out of the chute. If the auger is damaged, it may not spin properly, fail to spin at all, or not allow the snow to be propelled into the chute. Regardless, if there is any damage, it will need to be replaced.The piece is made from high-quality, durable metal, and it is made to last. However, it could become damaged if it were to hit a rock, for example. The blades could bend. Regardless of what causes the issue, if the spiral auger assembly is not working properly, it will need to be replaced. Owners should always wear gloves when installing the assembly.The right-hand spiral auger assembly works with select models of snowblower from MTD, Ryobi, Bolens, Yard-Man, Troy-Bilt, Husky, and Cub Cadet. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually.
