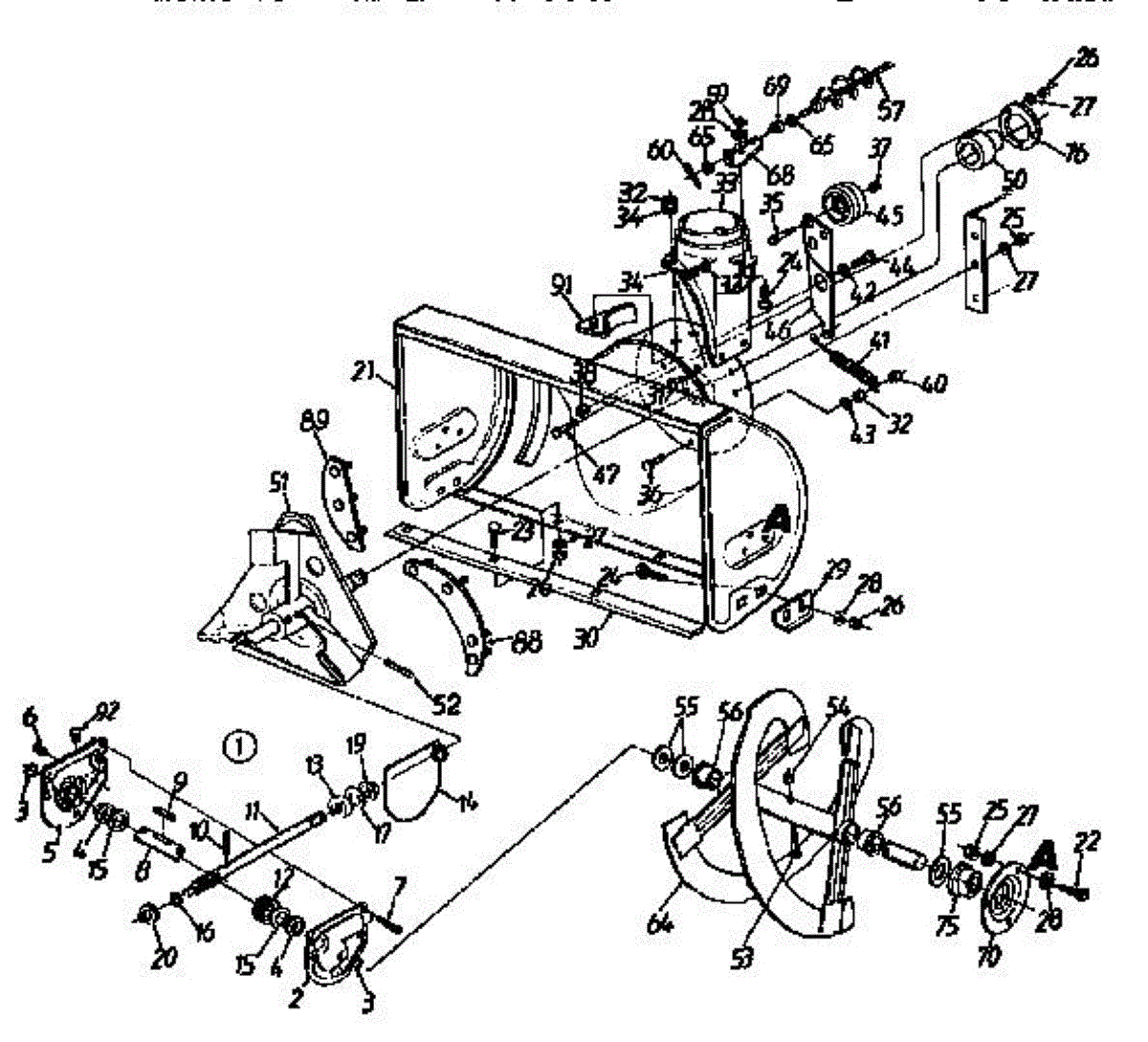

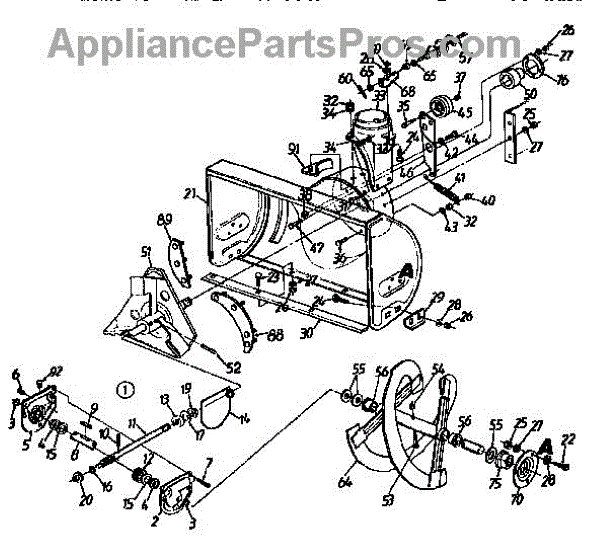

Parts for Sears 247885550: Tine Assembly Parts

This grease fitting attaches to the cast pivot bar on many types of garden and lawn equipment. It is made of durable metal and ensures that internal parts of the equipment are lubricated so they operate at their full potential. Sometimes a grease fitting can become worn damaged and need to be replaced.If a lawn tool no longer seems to be properly lubricated, the grease fitting could be the cause. A pair of pliers will be required to make the replacement. Clean the area near the grease fitting and then use a hex wrench to remove it from the machine. Take the new fitting and place it into the hole and tighten it before applying grease.This is a genuine OEM replacement grease fitting that is sourced directly from the manufacturer. The part is sold individually. The fitting is compatible with chipper shredders, lawn tractors, snowblowers, string trimmers, edgers, chainsaws, and lawnmowers manufactured by Yard-Man, Cub Cadet, Troy-Bilt, Craftsman, Ryobi, Murray, Broan, Yard Machines, Huskee, Montgomery Wards, Bolens, MasterCut, and MTD.

This self-tapping screw is used to attach various parts to the engine housing of medium sized gasoline powered engines, in particular yard tools such as tillers, snow blowers, yard tractors, riding mowers, power vacuums, shredders, and chippers. It is used in over 150 different gasoline powered engines. Screws such as these are used particularly when a device is going to receive a great amount of vibration and stress while the engine is running and rotating tools are engaged. Such devices sustain a great deal of wear over time and the parts subject to replacement will eventually fail and need to be replaced. In such cases, it is wisest to replace the attaching hardware such as housing screws as well, because it is a self-tapping screw. Screws of this type are designed to forge a tight bond between the metal pieces they are securing together, but once loosened, they should ideally be replaced with new hardware. Make sure when replacing these screws to use genuine OEM parts like these screws. These replacement parts are manufactured to be identical to the original pieces. This hex screw is compatible with the following brands: MasterCut, Yard-Man, Yard Machine, Montgomery Wards, MTC, Murray, Bolens, Craftsman, Turf King, Troy Bilt, Cub Cadet, Huskee, Toro, and Ryobi.

This replacement part is an auger shaft. It is a genuine replacement part made by MTD. Auger shafts are found in many different types of appliances and machines and help the rotating and turning motion so that the machine works properly and smoothly. A new auger shaft might be needed if the user notices that the turning or rotating mechanisms are not working properly inside the machine. This can be due to normal wear and tear over time. Be sure to wear work gloves when replacing this part as this part can be sharp and cause injuries. Refer to the appropriate user manual before attempting to replace this part. It should be fairly easy and only require common household tools. This auger shaft is a genuine OEM replacement part. This part is sold individually and is sourced directly from the manufacturer.

This key is a genuine MTD part, sold individually. A key can be used as a replacement part for outdoor appliances including lawn mowers, snowblowers, tillers, and edgers. This genuine OEM part is made out of high quality, durable metal material meant to withstand exposure to the elements and general wear and tear over long-term usage.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This key is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Husky, Yard Machines, Huskee, Montgomery Wards, Yard Man, and MasterCut.

This replacement part is an impeller shaft. It is a genuine replacement part made by MTD. Impeller shafts are able to rotate at high speeds and assist the engine in operating smoothly and effectively during use. If this part is not working properly it is possible that the engine might not work either.A new impeller shaft might be needed if the current one is damaged or missing. If the engine is not working properly, it can be because of the impeller shaft. Be sure to wear working gloves while replacing this part as the impeller can be sharp and dangerous if handled. Refer to the specific user manual for more information on how to replace this part. This part is a genuine OEM replacement part to ensure long-lasting use and proper fit. This impeller shaft is sold individually and is sourced directly from the manufacturer.

In a snowblower, the driveshaft is connected to a part called a worm gear. The worm gear turns the auger blades which eject the snow. The worm gear is connected to the worm shaft, which causes the auger blade to turn rapidly. Eventually, the incredible torque inside the machine, plus the occasional bumps and bruises experienced by the machine in operation and when being stowed, may cause the worm gear to malfunction. When the snowblower is erratic in its operation and fails to remove snow completely, there is a good chance the problem is the worm gear. To replace the worm gear, remove the housing to get to the worm shaft. Remove the entire worm assembly. Next, remove the blower fan and remove the worm gear. Grease the auger assembly before installing the new gear. Reverse the order to reassemble. While the snowblower is disassembled, it's the best time so exam the auger, driveshaft, sheer bolts, and tires for wear. You may find other parts that need to be updated. Make sure to replace the worm bolt and any other necessary parts with a genuine OEM manufactured part such as this one. This gear can be used in a number of snowblowers, including machines made by Yard Machines, Craftsman, Bolens, Yard-Man, Troy-Bilt, Cub Cadet, Ryobi, Montgomery Wards, Huskee, and MTD. Part sold individually.

This thrust collar is a genuine MTD part, sold individually. A thrust collar can be used as a replacement part in a snowblower. This genuine OEM part is made out of high quality, durable metal material meant to stand up to exposure to the elements and to general wear and tear over long-term usage.The thrust collar in a snowblower may be subject to various forms of damage at any point during the typical lifespan of the appliance. If damaged, the thrust collar should be removed and replaced by this genuine OEM replacement part in order to guarantee safe continued use. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement.Sourced directly from the manufacturer, this component is a genuine replacement part that is sold individually. This thrust collar is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, Huskee, Montgomery Wards, Bolens, and Yard Man.

This is a genuine OEM oil seal sourced directly from the manufacturer for use in the engines of snowblowers and snowthrowers. Oil leaks are prevented using this oil seal on the worm shaft and beside the bearing-flange. It is made from durable plastic that is designed for heavy use; however, over time, the seal can become worn or damaged. Damage or wear to the oil seal can result in oil leaks and loss of engine performance. The oil seal will need to be replaced if oil is leaking from the snowblower. Replacing the oil seal will require a wrench set, pliers, and socket set. Following the diagram for the correct equipment model, disassemble the engine to reach the worm shaft and remove the damaged oil seal. Clean any old lubricant on the area. Install the new oil seal with fresh lubricant. Replace the engine parts in reverse order. Regular lubrication of the worm shaft will add to the engine's performance and prolong the life of the oil seal.This oil seal is sold individually. It is made for snowblowers and snow throwers manufactures by Ryobi, MTD, Yard Machines, Bolens, Yard-Man, Troy-Bilt, Cub Cadet, and Husky.

This is a flat washer that can be used with bolts and screws on many kinds of lawn and garden equipment. Before a bolt can be fastened to a surface, a fastener needs to be inserted through the end. A washer can be used with these items to help distribute the load. Washers are also responsible for decreasing heat and friction while a fastener is tightened to a surface. Washers can also be used to offer electrical insulation or operate as spacers.Even though washers are made of durable materials, they can be damaged over time. If the shape of the washer is bent or cut in half, this indicates that it needs to be replaced. A socket wrench or screwdriver can be used to make the replacement. Remove the screw or bolt, remove the fastener, and add the washer to the fastener before it screws back in.This flat washer is a genuine OEM replacement part sourced directly from the manufacturer. It is compatible with lawnmowers, wood chippers, snowblowers, log splitters, tillers, chainsaws, and edgers by Craftsman, MasterCut, Cub Cadet, Turf King, Ryobi, Bolens, Husky, Montgomery Wards, Murray, Huskee, Yard Machines, and MTD. It comes as an individual part.

This is a flange bearing for use with some models of lawn and garden equipment from popular manufacturers. The flange bearing is cylindrical and features a flange at one end. They are used because they can support radial loads, as well as light axial loads. This bearing is placed between the rim and the tire. It will secure parts to ensure that the directional movement is correct, while still allowing for rotation.The mower flange bearing receives a lot of wear and tear from constant use, so they may need to be replaced more often than other parts. If the part is damaged or worn down, owners will want to replace it right away to ensure the proper functionality of the machine.The mower flange bearing can work with many types of lawn and garden equipment including chippers and snow blowers. It is compatible with certain models from MTD, Yard-Man, Troy-Bilt, Cub Cadet, Husky, and Yard Machines. The piece is sold individually, so owners might want to buy more than one at a time. The piece is a genuine OEM replacement part.

This carriage bolt is a self-locking fastener made for use in round or square holes to attach metal to metal in outdoor equipment. These bolts provide an added safety feature because they can only be removed from one side. Carriage bolts can carry a large amount of weight, which makes them ideal for use in outdoor yard equipment. Carriage bolts may be used to attach a lawn mower's arm to the side support and other similar applications. If the bolt needs to be replaced, removal and installation are simple. Use a wrench to loosen the nut holding the washer and bolt in place. Once the nut is loose, the bolt can be unthreaded by hand and pulled out of the hole. To install, push the bolt back through the hole. If the fit is too tight to install by hand, use a hammer to tap it in place. Reinstall the washer and nut and tighten with a wrench.This carriage bolt is designed for use in lawnmowers, snowblowers, and lawn tractors manufactured by Craftsman, Bolens, Yard Machines, Yard-Man, and MTD. This is a genuine OEM product that comes directly from the manufacturer. Note: It does not come with a nut or washer.

A carriage bolt is a type of fastener. It features a smooth rounded head and a square domed top. It has threading, which leads to up to the square shoulder. The purpose of its square is to prevent the bolt from spinning. Once the carriage bolt is inserted through the hole, using a nut and washer can provide additional security. Carriage bolts can corrode and loosen over time. Since it doesn't have a slotted head, a socket wrench is needed when replacing. This bolt carriage replacement is compatible with wood chippers, tillers, string trimmers, lawnmowers, and edgers. It is a genuine MTD product that measures 5/16x.075. It has a smooth rounded head and square shoulder underneath it. This carriage bolt is sold individually.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

This is a replacement skid shoe for Craftsman snowblowers. Ideally, when one shoe becomes so worn that it needs to be replaced, the other shoe should be replaced as well. Replacement is not difficult and should only require about half an hour. First, take out the key and disconnect the plug wire to prevent the machine from starting during repair. Remove the carriage bolts, nuts, and washers that hold the skid shoes in place. Replace the skid shoes. Ensure that the adjustable skids shoes are elevated enough that the snow blades will not collide with the ground during use. This will prolong the life of the shave plate. This OEM part fits a variety of different snowblowers made by Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man. Sold individually. The carriage bolts that hold the shoe in place may also need to be replaced and are sold separately.

This is a replacement shave plate for use with snowblowers. The plate attaches to the bottom of the auger housing on the machine and provides protection for the auger and the housing. If it is broken or not functioning properly, debris could damage these other parts of the snowblower. This would then require a larger repair.The shave plate is made from metal and is durable. However, the nature of the plate is to provide protection, which means it will become dinged and damaged over time. It could become bent if the user hits a large rock or chunk of ice. If there is damage to the snowblower shave plate, the user should be sure to replace it before using the machine again.This snowblower shave plate is compatible with models from Craftsman, MTD, White Outdoor, Ranch King, Yard-Man, and Yard Machines. The plate is sold individually, and it is a genuine OEM replacement part sourced from the manufacturer.

This scraper blade is an authentic OEM replacement part for a snowblower. Snowblowers operate using an auger that scoops up the snow and blows it to a different location. However, an auger cannot gather all of the snow because it would have to scrape against the ground. Scraping that auger against the ground would damage its blades and make them unusable. Instead, this scraper blade drags against the ground and collects any remaining snow so that the auger blades can remain protected. Scraper blades can be damaged if the snowblower goes over rocky terrain. Although it is nearly impossible for a blade to snap completely off a blower, the blade will leave the snow behind, making the blower less effective if chipped or dented. To replace a scraper blade, simply use a socket wrench to unbolt the blade from the auger housing. Be sure not to lose the bolts as they will be needed for reassembly. This part is compatible with Craftsman, MTD, Cub Cadet, Ryobi, Huskee, Yard Man, and Yard Machines snowblowers and is sourced from the original manufacturer. This part is a high-quality replacement part. It does not ship with additional hardware.

This genuine OEM replacement part is an extension spring for a Craftsman snowblower idler pulley assembly. The idler pulley attaches to a part of the snowblower's housing and is helps to transfer energy throughout the belt drive. This extension spring helps to redistribute some of the back-and-forth motion created in the pulley as the snowblower runs. This keeps the assembly from shifting out of place and potentially slipping. This extension spring is attached at two points and, if pulled in both directions too far, can eventually lose some of its tension. When this happens, the idler assembly can begin to shake and even slip out of place. Replacing the extension spring is an easy job that will only require a socket wrench to remove the idler pulley. A pair of pliers may help to remove the spring from its clips. This part is only compatible with Craftsman snowblowers and is sourced from its original manufacturer. It ships individually and any additional parts needed will have to be purchased separately.

This replacement part is a washer. This is a genuine replacement part made by MTD. Washers are small but extremely important part of many different machines or appliances. Washers allow for parts to stay secure and connected in place during use. Washers typically work with other small parts such as screws and nuts to ensure the proper functioning of the machine.A new washer might be needed if the current ones are visibly missing or damaged. Washers can become worn down over time due to normal wear and tear. If this is the case it is recommended that it be replaced or repaired. This repair should be fairly easy and only require common household tools. Be sure the engine is completely powered down before attempting to replace this part.This washer is a genuine OEM replacement part. This part is sold individually and is sourced directly from the manufacturer to ensure a proper fit.

This replacement part is a screw, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This specific screw is typically found in snowblowers and is responsible for keeping different parts in place and secure. A new screw might be needed if any current ones are missing or damaged. After years of normal wear and tear screws can become stripped overtime and might need replacing. To replace this part the user should only need a common household screwdriver and possibly pliers if the screws have become wedged in an area. Overall this should be a fairly simple repair depending on the amount of new screws needed.This is a genuine OEM replacement part sourced directly from the manufacturer and is sold individually. Be sure the correct amount of screws are purchased as many machines require more than one to operate successfully.

This is a genuine replacement flat idler pulley used in snowblowers. The idler pulley applies tension to the belt, allowing the belt to turn. If the pulley is causing loud noises or is seizing up, which can cause the belt to break, a replacement may be necessary. A broken belt will cause a snowblower to be unusable.The process for replacing this part will vary depending on the model of the snowblower, so consult the equipment's manual and diagrams for specific instructions. For all replacements, a wrench and/or a socket set of the correct size depending on the machine is needed. Dependent upon the repair needed, bearings and bushings may also need replacement, they are not included and must be bought separately. This is a genuine MTD replacement part. This replacement flat idler pulley is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, and Yard-Man brands.

This replacement part is an idler arm assembly. It is a genuine replacement part made by MTD. Idler arm assemblies are meant to help the user steer and maneuver the appliance so that they can move in the desired direction. A new idler arm assembly might be needed if the current one is damaged or missing. These parts can become stripped over time and might need to be replaced. If the user is unable to steer the machine or appliance properly, the idler arm assembly might need to be replaced. Be sure to refer to the appropriate user manual for more information on how to replace this part. This part is a genuine OEM replacement part to ensure long-lasting use and proper fit. This idler arm assembly is sold individually and is sourced directly from the manufacturer.

This is a shear bolt, also known as a shear pin, which is used in many models of snowblowers. The shear bolt connects the auger shaft to the auger on the tool. This connection allows the augers to rotate, collecting snow and sending it to the impeller fan. Most snowblowers have at least one shear pin on each side of the auger gearcase. Large objects that get stuck between the housing and augers can damage the pins, necessitating replacement.If there is damage to the shear bolt or if it has broken, the snowblower may not work as expected. To replace the bolt, the snowblower should be turned off. Wear work gloves and remove the spark plug wire before disassembling the snowblower to reach the shear bolt. It can be removed and replaced with a new part.This is a genuine OEM replacement part that is sourced directly from the manufacturer. It is sold as an individual part. The shear bolt is designed for use with snowblowers created by Yard-Man, Yard Machines, MTD, Montgomery Wards, and Huskee.

This center hex nut is a genuine MTD part, sold individually. This center hex nut can be used as a replacement part in lawn mowers, snowblowers, tillers, leaf blowers, edgers, log splitters, and wood chippers. The purpose of the center hex nut for one of these small engine outdoor appliances is to work in conjunction with a bolt to provide a fastening component for one or more parts within the internal mechanisms of the appliance.The center hex nut might need to be replaced if the small fastening component is lost, misplaced, or damaged within the typical lifespan of the small engine outdoor appliance in which it has been installed.This component is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This center hex nut is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Husky, Yard Machines, Huskee, Montgomery Wards, Yard Man, and MasterCut.

This part is a replacement chute crank assembly. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. The intended use for this part is to properly replace a broken or defective chute crank assembly on snowblowers. The chute crank assembly enables the equipment operator to adjust what direction snow is expelled from the chute. This is important for operation, as it allows the snow to be directed away from the area intended to be cleared. This part is subject to wear and tear can become dented, bent, broken, or otherwise damaged and will require replacement. Always ensure that the equipment is completely powered off and is cooled down before attempting to start the repair process. For more accurate information on the installation of this chute crank assembly, reference the owner's manual or equipment diagrams for specific instructions and part location. This is an authentic OEM part and as such is sold individually and made from durable and high-quality metal. This chute crank can be used with a variety of snowblower models manufactured by MTD, Craftsman, Husky, and Yard Machines.

This replacement part is a spiral assembly. This is a genuine replacement part made by MTD. This spiral assembly is commonly found in snowblowers and is responsible for expelling the air that is used to remove snow and other debris.A new spiral assembly might be needed if the current spiral part is no longer working and no longer acting as a blowing mechanism. This can be due to a bad connection or damage from normal wear and tear. If the spiral is not spinning consistently it is recommended that it be replaced. Be sure to wear gloves during this repair as the blades of the spiral can be sharp and cause injury. This spiral assembly is a genuine OEM replacement part to ensure proper fit. This part is sold individually and is sourced directly from the manufacturer.

This is a chute crank bracket for a snow blower. The bracket holds and positions the chute in the proper direction so that snow is thrown at the desired angle. This is a genuine OEM part and is sold individually. This part is compatible with several brands, including Craftsman, Huskee, Ryobi, Troy-Bilt, Yard Machines, and Yard Man.If the crank bracket is rusted, damaged, or bent, it can affect the efficiency of the snow blower and throw the snow in the wrong direction or clog the chute. Replacing the bracket is fairly simple and will help the snow to be thrown efficiently and without clogging. For proper placement of the chute, remove it from the bracket and be sure that it moves easily. When attached, if the teeth do not mesh correctly, the bracket will need to be readjusted or replaced. This is easily done by loosening the bolts and moving the bracket until the teeth mesh. This will allow the chute to turn correctly. If the teeth will still not mesh, detach the chute and then remove the bad bracket and install the new bracket.

Screw hex caps are found on lawn equipment and other small machines. Over time, with the machine's use or following accidental damage, a screw hex cap may break or become loose. In order to continue safely operating the machine, the part must be replaced. A missing or damaged screw hex cap can cause the equipment to move in unpredictable ways. Check for excessive vibration or noise.Always wear gloves for protection when replacing parts on lawn equipment. Tools required may include a socket set, wrench set, and a screwdriver. Screw hex caps are quick and easy to replace. Make sure that the replacement screw hex cap is installed correctly and properly secured for a tight and long-lasting fit.This screw hex cap is an authentic OEM replacement part. It is supplied by the manufacturer. The replacement screw hex cap is made of durable metal and is gold in color. The replacement piece can be used in a variety of machines, including chippers, shredders, cultivators, edgers, lawnmowers, lawn tractors, and snowblowers. The screw hex cap is compatible with Husky, Cub Cadet, Ryobi, Bolens, Yard Machines, Yard-Man, Troy-Bilt, and MTD. It is sold as an individual unit.

This grease plug is a genuine OEM replacement part sourced directly from the manufacturer. It is found on snowblowers and other outdoor yard machines on the gearcase assembly, which houses the auger gear. The grease plug seals the oil port on the gearbox. This keeps lubrication inside the gearbox and is the access point for adding more when needed. If this plug is lost, the gearbox's oil could leak out, and contaminants could get into the gearbox.Lubricate the contents of the gearbox before installing the new grease plug. Locate and remove the two screws on the side to drain the gearbox. Install the grease plug in the bottom. Refill the oil using the vent hole. Continue filling until oil is coming out the top side screw. Close everything back up, and the machine is ready for use. To prepare the equipment for long storage, remove the grease plug and check the oil level. If it is not to the top, add more lubricant before sealing the grease plug.This grease plug is made of durable black molded plastic and is sold as an individual unit. It is compatible with snowblowers and snow throwers manufactured by Ryobi, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, Cub Cadet, and Husky.

This part is a replacement auger assembly. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a broken or defective auger assembly in a variety of snow blower models. The auger assembly's blades rotate to collect snow and move it into the auger housing, which then expels the snow from the chute. If the auger assembly is broken, the snow blower may not be able to clear snow effectively. When working on or near an engine, it is important to make sure the equipment is powered off and completely cooled down before starting any repairs. For more accurate information on how and where to install this auger assembly, the appropriate owner's manual and equipment diagrams should be referred to. As an authentic replacement part, this auger assembly is suitable for use on several different models of snow blowers manufactured by MTD, Craftsman, and other brands. This is a genuine part made of high-quality, durable materials and is sold individually.

This is a right-hand spiral auger assembly for use with snowblowers and snow throwers. The replacement part features rotating blades. When the machine is in use the blades will spin and bring the snow up and through the auger housing and then out of the chute. If the auger is damaged, it may not spin properly, fail to spin at all, or not allow the snow to be propelled into the chute. Regardless, if there is any damage, it will need to be replaced.The piece is made from high-quality, durable metal, and it is made to last. However, it could become damaged if it were to hit a rock, for example. The blades could bend. Regardless of what causes the issue, if the spiral auger assembly is not working properly, it will need to be replaced. Owners should always wear gloves when installing the assembly.The right-hand spiral auger assembly works with select models of snowblower from MTD, Ryobi, Bolens, Yard-Man, Troy-Bilt, Husky, and Cub Cadet. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually.
