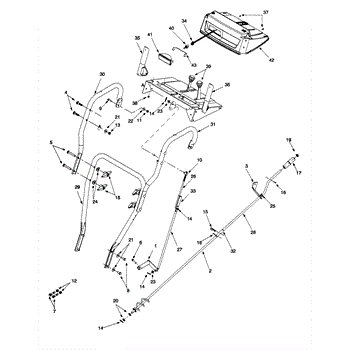

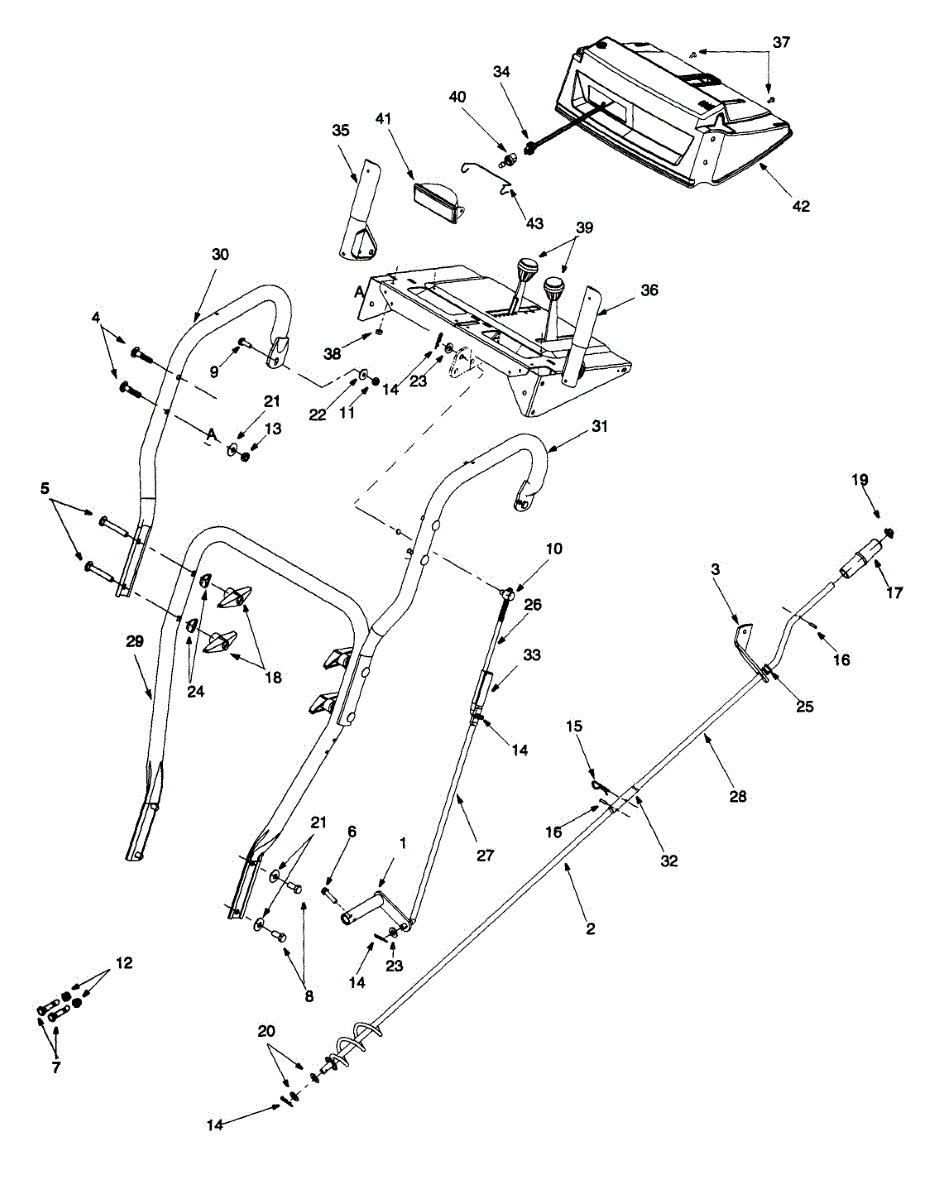

Parts for Yard-Man 31AE553F401 / 1999: Handle Assembly Parts

This is a carriage bolt, which is found on lawnmowers, snowblowers, and many other types of lawn and garden equipment. The carriage bolt is made of metal and the location will vary based on the model of the tool. The carriage bolt is used to fasten together two components on lawn and garden equipment. It can become damaged, break, or stripped and will need to be replaced.If the carriage bolt is broken, stripped, or has damage, a wrench will be needed to replace it. Make sure that the spark plug wire has been disconnected and the tool is turned off before you begin. Use the wrench to remove the carriage bolt before installing the new part in the same location. Replace any additional disassembled components removed to gain access to the bolt before using the tool.This carriage bolt is sold as an individual component. It is a genuine OEM replacement part that is sourced directly from the manufacturer. The bolt is designed to work with lawnmowers, chainsaws, snowblowers, tillers, and leaf blowers manufactured by Yard-Man, Bolens, Montgomery Wards, Huskee, MTD, Yard Machines, Husky, Troy-Bilt, Ryobi, Cub Cadet, and Craftsman.

This is a shear bolt, also known as a shear pin, which is used in many models of snowblowers. The shear bolt connects the auger shaft to the auger on the tool. This connection allows the augers to rotate, collecting snow and sending it to the impeller fan. Most snowblowers have at least one shear pin on each side of the auger gearcase. Large objects that get stuck between the housing and augers can damage the pins, necessitating replacement.If there is damage to the shear bolt or if it has broken, the snowblower may not work as expected. To replace the bolt, the snowblower should be turned off. Wear work gloves and remove the spark plug wire before disassembling the snowblower to reach the shear bolt. It can be removed and replaced with a new part.This is a genuine OEM replacement part that is sourced directly from the manufacturer. It is sold as an individual part. The shear bolt is designed for use with snowblowers created by Yard-Man, Yard Machines, MTD, Montgomery Wards, and Huskee.

This is a hex screw used on a variety of types of lawn and garden equipment. On large machinery, it is often used to mount the gas tank. On smaller items, it tends to be used to clamp the housing together. It can secure items like plastic, metal, brick, and wood together. It measures 5/16-18 x .75 inches and is made of durable metal. In some cases, the screw can become damaged, broken, or stripped, which means it needs to be replaced.A visual inspection will indicate whether the screw is damaged. If it needs to be replaced, a hex wrench can be used to remove it from the equipment. Afterward, the replacement hex screw can be installed with the wrench before being tightened to ensure materials hold together well.This hex screw is a genuine OEM part that is sold individually. It is sourced directly from the manufacturer. The hex screw is compatible with lawnmowers, wood chippers, log splitters, snowblowers, chainsaws, edgers, tillers, leaf blowers, and string trimmers by Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Broan, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Turf King, Yard-Man, and MasterCut.

With small gasoline-powered tools that require control panels, this hex screw attaches the panel to the handles of the tools. Machined to be durable, important screws such as these take a real beating. In their locations at critical points on the handle, the hex screws are considered "wear items," and thus periodically, they must be replaced. The control panel itself is often a location of extreme forces, jostling, and abrupt movement in unpredictable directions. The constant movement, with sheet metal rubbing against the hex screws from every direction, make wear inevitable. The manufacturers recommend that spare screws of this type be kept on hand if the heavy use of the equipment is expected. Among the gasoline-powered tools that use these screws are snowblowers, yard tractors, mowers, tiller, chippers, shredders, and other tools requiring hand-maneuvered levers. These screws are compatible with a number of equipment brands and manufacturers, including MTD, Ryobi, Poulan, Yard-Man, Bolens, Troy-Bilt, and Yard Machines.

This bell washer is a genuine MTD part, sold individually. This bell washer can be used as a replacement part for a lawn tractor, chipper shredder, tiller, or lawnmower. This bell washer adds spacing on a shaft in the tool.If the user of the appliance notices that a washer is missing, it should be replaced. General wear and tear is very normal for outdoor appliances, and if it occurs, the washer should be removed and replaced with this genuine OEM replacement part.This is an OEM part sourced directly from the manufacturer. It is sold individually. This bell washer is compatible with the following outdoor appliance brands: MTD, Yard Man, Yard Machines, and Troy-Bilt.

This spring washer has a conical shape with an open center. It has a shape like a traditional washer but is smaller than a typical coiled spring. These washers can handle a larger load than a coiled spring and are used in lawn and garden equipment to cushion heavy loads. Over time, these washers can experience wear and tear which will lead to damage or breakage. When this occurs, the spring washer will need to be replaced.Visually inspect the spring washer for damage like scratches, breaks, and dents. If these occur or the washer is warped, it needs to be replaced. The process involves removing the nut or screw above the washer with a screwdriver or other tool. After accessing the spring washer, it can be removed and a replacement part can be added to the equipment. Reassemble the parts and the equipment should work again.This is a genuine OEM spring washer replacement part that is sold individually. It's sourced directly from the manufacturer. It is compatible with lawnmowers, wood chippers, snowblowers, log splitters, tillers, chainsaws, string trimmers, and edgers by Craftsman, MasterCut, Toro, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Husky, Montgomery Wards, Murray, Huskee, Yard Machines, and MTD.
