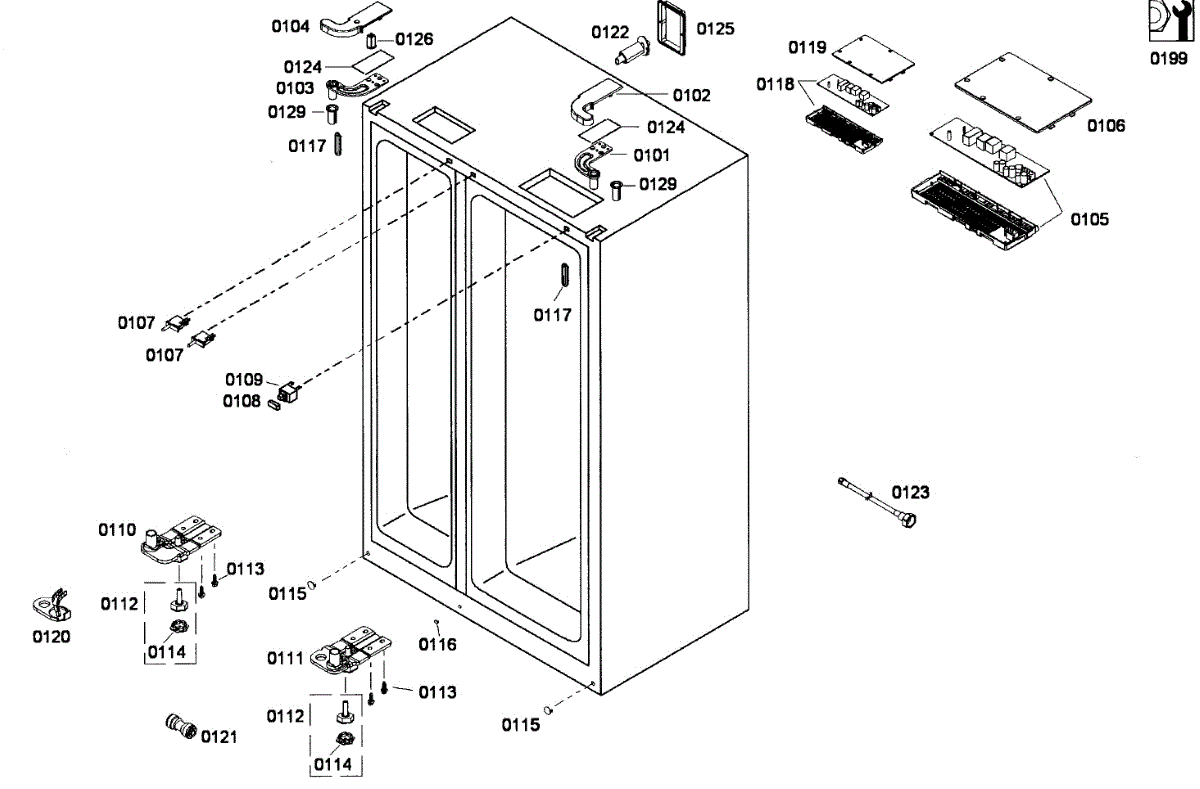

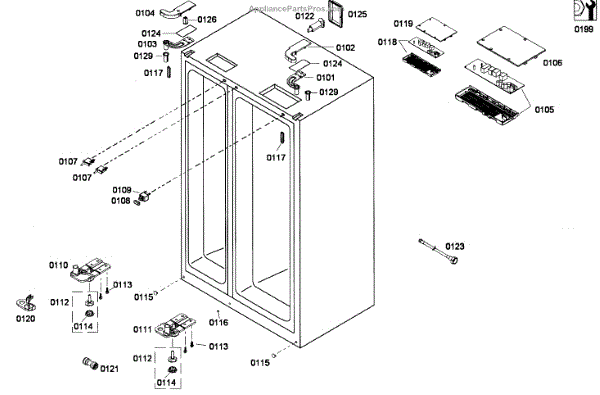

Parts for Bosch B22CS30SNS/01: Hinge Assembly Parts

The Water Filter is an OEM part for Bosch refrigerators. This part removes impurities and contaminants from the water supply to your appliance. This part ensures that the water and ice dispensed by your refrigerator are clean, taste fresh, and are free of common waterborne particles and substances.

Over time, the water filter can become clogged with sediments and contaminants, reducing its effectiveness and potentially affecting the taste and quality of the water and ice. Regular replacement is essential for maintaining optimal performance.

Symptoms of a bad Water Filter include:

• Unpleasant taste or odor in the water or ice
• Decreased water flow to the dispenser or ice maker
• Visible particulate matter in the water or ice cubes

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This is the dishwasher electronic control board that manages wash cycles, timing and display feedback so your appliance runs the programmed cycles and responds to user controls. Replaces a failed or unresponsive main control. What it does:

• Manages cycle selection, timing, and sequence control for the dishwasher
• Processes user inputs and updates status/display feedback
• Stops or prevents cycles when internal faults are detected
• Common symptom: dishwasher won't start, shows control/display errors or buttons are unresponsive
• Common symptom: cycles don't advance or complete as expected

• One control unit (electronic control board)

• Always disconnect power to the appliance before starting work
• Handle the board carefully and avoid contact with circuitry to prevent ESD damage
• Some disassembly of the console or tub may be required; keep fasteners organized

This door switch senses the dishwasher door position and tells the control when the door is closed so cycles can start or stop. It restores proper door sensing for reliable operation and safety. What it does:

• Detects when the door is fully closed so the control can begin or continue a wash cycle
• Prevents the dishwasher from starting or running when the door is open
• Common fix for symptoms like no-start, intermittent power to controls, or cycles that stop when the door moves
• Works with the latch/strike assembly to ensure a secure door closure signal

• One door switch

• Always disconnect power at the breaker or unplug the appliance before servicing
• Access typically requires removing the inner door panel; handle the inner door and glass carefully
• Verify wiring orientation and gently disconnect connectors; replace with identical wiring and secure all fasteners
• Test door operation before reassembling the door panels

This is an electrical on/off switch used to control power to an appliance circuit. It replaces a failed switch so controls respond normally and the appliance can be powered on and off safely. What it does

• Opens and closes an electrical circuit to enable or disable appliance power or a specific control function
• Commonly replaces a worn, stuck, or unresponsive switch that prevents controls or lights from operating
• Can resolve symptoms like no power to a control, intermittent operation, or a button that won't actuate
• Designed to mate with the appliance's existing wiring and mounting points

• One electrical on/off switch

• Disconnect power to the appliance at the breaker or unplug before working on wiring
• Verify proper wire locations and secure all terminal connections; replace only with the exact part specified by the manufacturer
• Handle the part carefully to avoid bending terminals or damaging the switch actuator

This door hinge secures and guides a refrigerator or appliance door, restoring proper alignment and smooth opening/closing. Replace a worn hinge to stop sagging, uneven gaps, or doors that bind or fail to latch fully. What it does:

• Supports the door and maintains correct alignment for a tight seal
• Guides door movement for smooth opening and closing
• Reduces sagging or drooping that can prevent proper latching
• Helps stop rubbing or binding between the door and cabinet

• Unplug the appliance or disconnect power before starting any repair
• Support the door while removing the old hinge to prevent damage or injury
• Use basic hand tools; verify fastener locations and torque per the service manual
• After installation, check door alignment and adjust as needed for an even gap and secure seal

This Foot is a support piece that attaches to the unit or its assembly to provide stable contact with the surface. Replacing a worn or missing foot restores proper support, alignment, and quieter, smoother operation.

• Provides a stable, non-marring contact point between the product/component and the surface
• Helps maintain level and alignment to reduce wobble and vibration
• Replaces cracked, stripped, or missing feet that can cause rocking or uneven stance
• Helps prevent metal-to-surface contact that can scratch or damage floors or internal surfaces

• Disconnect power and water (if applicable) and allow the unit to cool before servicing
• Access the original mounting point; remove the damaged or missing foot
• Install the new foot by snapping or threading into the original location per model design; do not force
• Adjust for level and check stability before returning the appliance to service

This rubber foot cushions and stabilizes a supported component on your appliance, helping prevent sliding, vibration, and surface scratches. Replace a worn or missing foot to restore a secure, level fit and quieter operation. What it does:

• Provides non-slip support and proper spacing for the mating surface
• Dampens vibration to reduce rattling during use
• Helps protect finished surfaces from scuffs and scratches
• Replace if hardened, cracked, flattened, or missing to address wobble, rocking, or noise

• Rubber foot

• Disconnect power before servicing the appliance
• Allow any hot surfaces to cool completely before handling
• Clean and dry the mounting area; seat the new foot fully and evenly
• Refer to your model's parts diagram for exact location and orientation

This inlet hose connection directs water into the appliance, replacing a worn or damaged fitting to restore a secure hose path and prevent leaks. Fits the original inlet position and connects standard supply/drain tubing. What it does

• Re-establishes a sealed connection where the water hose joins the appliance to stop leaks.
• Provides the proper routing and support for inlet/discharge tubing to prevent kinks or disconnection.
• Replaces cracked, corroded, or broken fittings that can cause intermittent filling or slow drainage.
• Helps restore normal water flow by ensuring a tight, leak-free hose interface.

• One hose connection (inlet) as shown.

• Turn off power and water supply before replacing; relieve any pressure in the line.
• Inspect surrounding hoses and clamps; replace if brittle or damaged to ensure a lasting repair.
• Hand-start fasteners to avoid cross-threading, then snug—do not overtighten plastic fittings.

A replacement door bearing for restoring smooth, stable door movement and proper alignment. Helps reduce door wobble and noisy operation so the door opens and closes reliably. What it does:

• Supports the door at the hinge point to enable smooth pivoting
• Reduces rubbing, binding, or grinding noises during door movement
• Helps correct minor door sag and alignment issues when worn
• Works with existing hinge assembly to restore normal operation

• Door bearing part

• Disconnect power to the appliance before starting repairs
• Remove any trim or panels blocking the hinge area to access the bearing
• Use basic hand tools to remove the hinge fasteners, swap the bearing, and reinstall hardware
• Check hinge alignment and door operation after installation; tighten fasteners to manufacturer torque specs if provided
