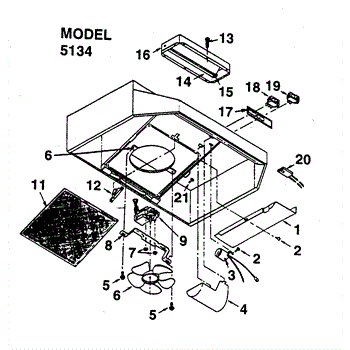

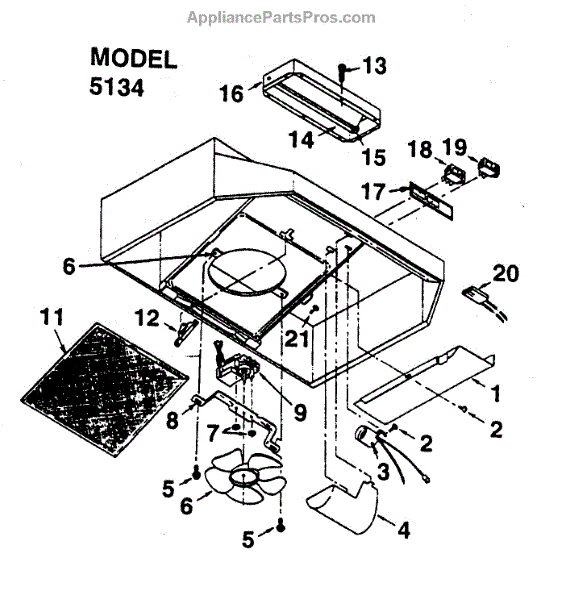

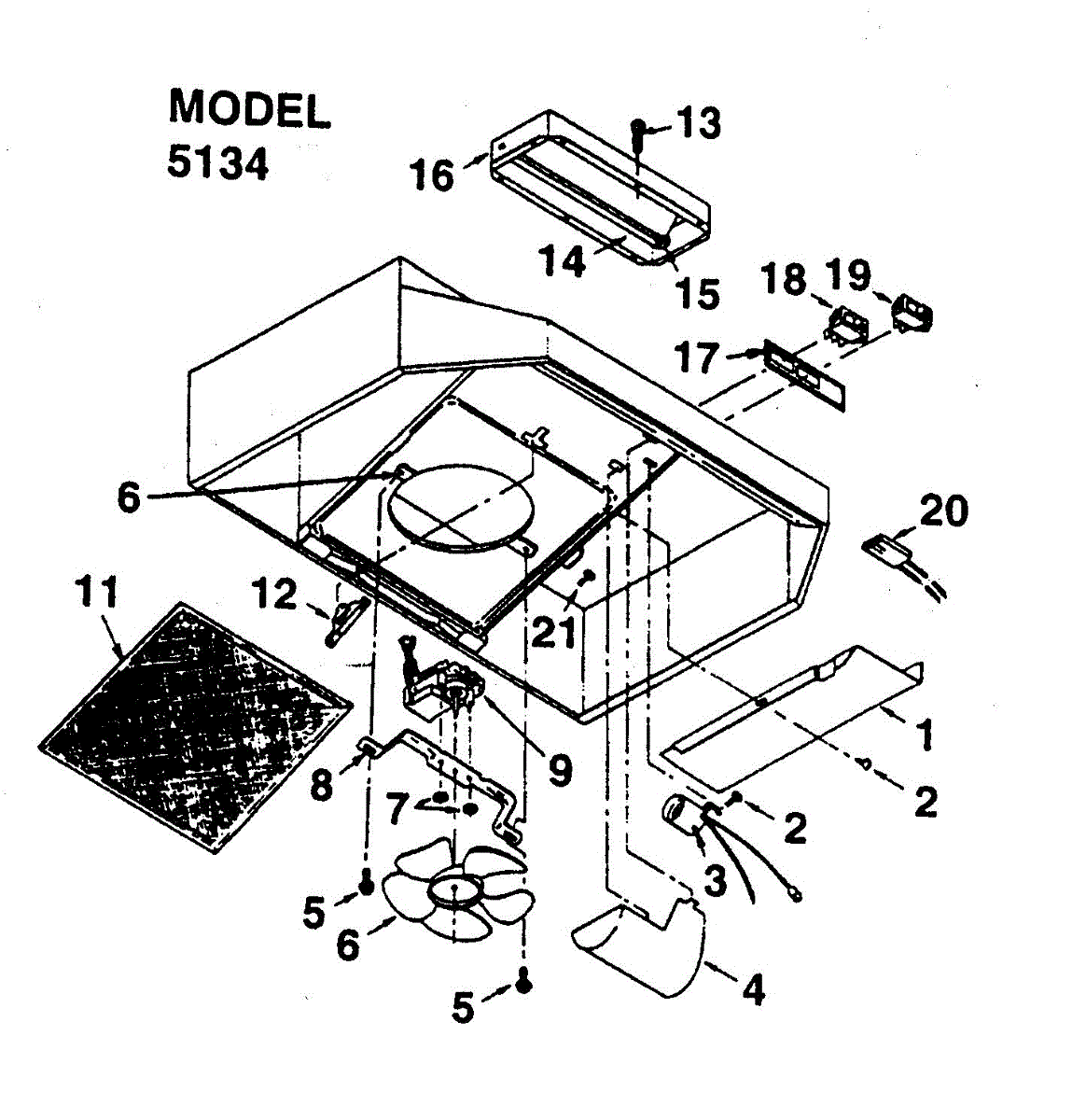

Parts for Kenmore 5134: Hood Assy Parts

Factory replacement cover for select range hood ventilation units. Replaces cracked, damaged, or missing cover to protect internal components and restore appearance.

Secures and connects light bulbs in appliances. Replace when lighting fails or socket is damaged. Verify fit by checking your model number compatibility.

Protects the range hood bulb from grease and heat. Replace when cracked, yellowed, or brittle from heat exposure. Snaps on easily. Confirm fit by model.

The ducted fan blade circulates air through the ventilation system in your range hood. Replace if the fan makes excessive noise, vibrates heavily, has visible damage, or doesn't move air effectively.

Range hood fan stopped working or runs weak? This motor assembly restores proper ventilation. Most DIYers complete installation in 5-20 minutes.

Basket shaped filter. 8 3/4" X 10 1/2" X 3/32". Basket depth is 3/8"

This is a plastic retainer clip that holds the grease or charcoal filter in place inside a range hood. It snaps into the hood housing and keeps the filter securely mounted during operation. Replace this part if your filter is loose, rattling, or falling out of position.

Range hood damper stuck open or closed? This ventilation damper prevents backdrafts and regulates airflow. Direct replacement, moderate DIY install.

This name plate is the small identification label that mounts to the appliance to display model and serial information. It restores a legible ID label so you can easily identify the unit for service or parts ordering. What it does:

• Replaces a missing, worn or damaged identification label
• Provides visible model/serial and manufacturing information for repairs
• Restores the appliance's factory identification for resale or inspection

• Clean and dry the mounting surface before installing for best adhesion
• Peel backing or attach with the existing fasteners, aligning carefully to avoid wrinkles
• If the old label is stuck, remove it gently with a plastic scraper and an appropriate adhesive remover
• Always disconnect power to the appliance before performing any service that requires access to internal panels

This switch assembly restores dependable control of your range hood or ventilation unit, helping resolve unresponsive or intermittent controls so the appliance turns on, off, and changes settings as expected.

• Provides the user interface to turn functions on/off and change settings
• Failure signs include no response on certain settings, intermittent operation, or a stuck/loose actuator
• Heat, moisture, and normal wear can degrade internal switch contacts over time
• Replacing the switch restores smooth, consistent operation

• Disconnect power at the breaker before servicing
• Access the control area and photograph wiring to document positions
• Move wires one at a time to the new switch; ensure tight, fully seated connections
• Reassemble and test all functions before finalizing

Fix a range hood light or fan that won't turn on or off with this rocker switch. Restores manual control when switches stick or fail to respond.

This switch assembly restores dependable control of your range hood or ventilation unit, helping resolve unresponsive or intermittent controls so the appliance turns on, off, and changes settings as expected.

• Provides the user interface to turn functions on/off and change settings
• Failure signs include no response on certain settings, intermittent operation, or a stuck/loose actuator
• Heat, moisture, and normal wear can degrade internal switch contacts over time
• Replacing the switch restores smooth, consistent operation

• Disconnect power at the breaker before servicing
• Access the control area and photograph wiring to document positions
• Move wires one at a time to the new switch; ensure tight, fully seated connections
• Reassemble and test all functions before finalizing

Fix a range hood light or fan that won't turn on or off with this rocker switch. Restores manual control when switches stick or fail to respond.

Transition duct connects your range hood to the venting system. Replace if cracked, damaged, or missing to ensure proper fit and airflow routing.
