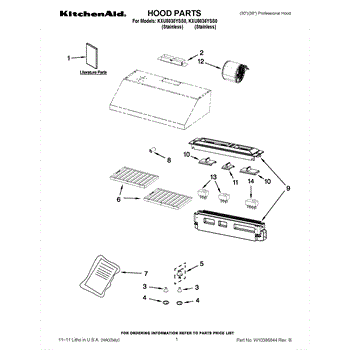

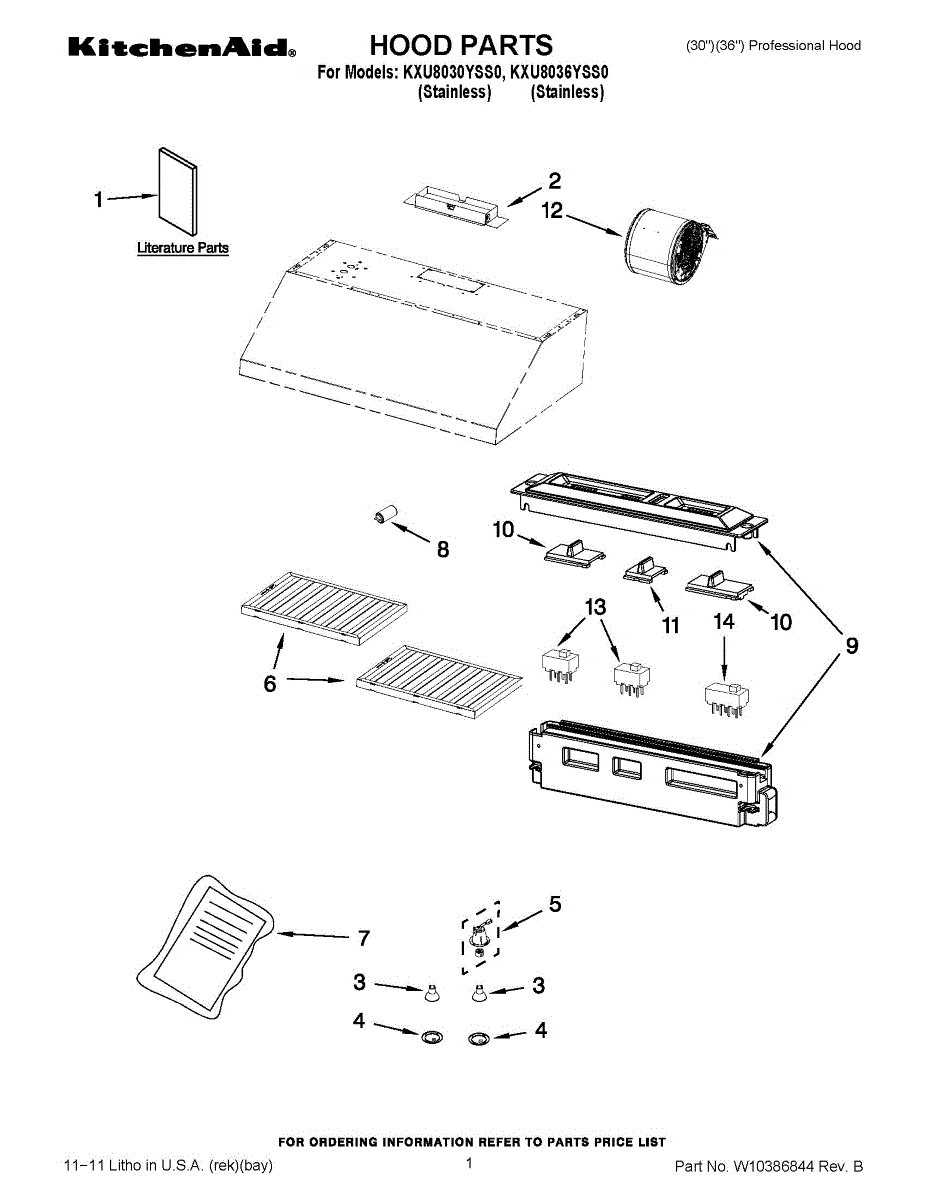

Parts for Kitchenaid KXU8036YSS0: 01 - Hood Parts

A replacement hood damper assembly that opens and closes the vent opening to help direct exhaust airflow and reduce backdrafts when the range hood or microwave fan is off. Restores proper vent operation and helps control odors and smoke. What it does:

• Opens to allow exhaust air to escape when the hood fan runs
• Closes to block outside air and reduce backdrafts when the fan is off
• Helps improve ventilation performance and reduces kitchen odors and smoke build-up
• Commonly replaced when the damper is stuck, bent, or noisy

• One hood damper assembly

• Disconnect power to the appliance before beginning any repair
• Access typically requires removing the hood or microwave bottom panel; support the unit if needed
• Verify damper orientation and secure mounting fasteners; test operation before reassembly

Bulb only - Socket must be ordered separately

This socket is an electrical wire terminal that provides a secure connection between wiring and a compatible appliance component, helping restore reliable power transfer and prevent loose or intermittent connections. What it does:

• Accepts and holds a mating terminal to complete an electrical circuit
• Restores a secure wire-to-component connection when the original socket is damaged or worn
• Helps stop intermittent power, sparking, or heating at a loose connection
• Used where a durable, removable terminal interface is required

• One socket terminal (single piece)

• Turn off and disconnect power to the appliance before servicing
• Inspect mating terminals and wiring; replace any damaged wires or connectors
• Push the mating terminal fully into the socket until it locks; ensure proper orientation

This replacement refrigerator water filter helps improve water and ice taste by trapping common impurities. It restores cleaner-tasting water for drinking and cooking when your existing filter is old or clogged. What it does:

• Filters water to help reduce common contaminants that affect taste and clarity
• Helps improve the taste and odor of dispensed water and ice
• Addresses symptoms like unusual water taste, cloudy ice, or reduced water flow from the dispenser
• Restores proper filtering performance when the old filter is past its service life

• Turn off water supply to the refrigerator before removing the old filter.
• Follow your refrigerator's filter removal/installation steps; typically push/rotate or pull to remove and insert until secure.
• Flush several quarts of water through the dispenser after installation to clear air and initial carbon fines.
• Dispose of the used filter according to local regulations.

This is a replacement refrigerator water filter cartridge that helps restore clearer, better-tasting water and ice. Use when your dispenser or ice maker produces cloudy water, unpleasant taste or odors, or reduced water quality. What it does:

• Traps common particles and sediment that cause cloudy water
• Reduces chlorine taste and odor to improve water and ice flavor
• Helps maintain normal dispenser and icemaker performance related to water quality
• Provides a direct-replacement fit when the OEM filter is removed and replaced

• Turn off the water supply and dispense water to relieve pressure before removing the old filter.
• Remove the old filter per your refrigerator's OEM instructions and install the new cartridge until it seats securely.
• Run several gallons of water through the dispenser after installing to flush the system and clear air.
• Follow the refrigerator OEM for recommended replacement interval and any filter reset procedures.

The Capacitor is an OEM part for Whirlpool range hoods. This capacitor functions to optimize blower motor performance. It works in tandem with the motor to efficiently expel cooking vapors and gases from the kitchen.

Causes relate to standard wear over extended use of the vent hood. Electrical issues can cause premature capacitor failure.

Symptoms of a bad capacitor include:

• Reduced air circulation and weaker ventilation
• Abnormal humming or grinding noises from the motor
• Failure of the blower to turn on as desired

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Note: This is the top switch panel only.

The Control Knob is an OEM component specifically designed for Whirlpool and KitchenAid ranges. Located on the range control panel, this knob securely attaches to the temperature dial and allows for easy adjustment of burner temperatures. A dependable control knob facilitates simple, intuitive stovetop operation.

Causes of a faulty knob can include wear from frequent use, damage or cracks to the knob base or connector, or premature degradation of plastic components.

Symptoms of a bad control knob include:

• Loose, wobbly, or detached knob that won’t stay securely in place
• Difficulty adjusting burner heat levels precisely
• Potential knob breakage or non-functional temperature dial
• Inability to maintain desired cooking temperatures

This OEM part is also compatible with Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This slide-style electrical switch selects or turns a function on and off inside the appliance. Replacing a worn switch restores reliable control when settings won't engage, respond intermittently, or the slider feels loose or broken. What it does

• Provides sliding on/off or multi-position selection for a specific feature
• Routes power to the associated component when a position is selected
• Helps restore proper response when a control becomes intermittent or unresponsive
• Common signs: slider sticks, feels loose, breaks, or shows heat discoloration on terminals

• 1 slide switch

• Disconnect power to the appliance before service
• Access the control panel; note wire locations and take a clear photo
• Move wires to the new switch one at a time; fully seat each connector
• Reassemble, restore power, and test each switch position

This blower-fan is the replacement fan assembly that moves air through the appliance to support proper airflow and cooling. Replacing a worn fan restores normal air circulation and can reduce noise and overheating. What it does:

• Circulates air through the appliance to support heating, cooling, or ventilation
• Helps maintain proper airflow for efficient operation
• Prevents overheating by moving heat away from critical components
• Can cause loud noise, reduced airflow, or heat-related issues when worn or damaged

• One blower-fan (fan assembly) as shown

• Disconnect power before attempting any repairs to avoid shock or injury
• Inspect mounting surfaces and fan housing for debris or damage before installation
• Handle the fan carefully to avoid bending blades or damaging mounting tabs

This rocker switch restores dependable on/off control for a selected function on your appliance. Replace a worn or intermittent switch to fix features that won't turn on or off and bring normal operation back. What it does:

• Controls power to a single function when pressed
• Common symptoms: feature won't turn on/off or only works intermittently
• Switch feels loose, sticks, or requires wiggling to engage
• Resolve issues caused by worn internal contacts or heat discoloration

• 1 rocker switch

• Disconnect power at the breaker before servicing
• Note wire positions or take a photo; move wires to the new switch one at a time
• Seat the switch securely in the panel or bracket to avoid pinched wires
• Restore power and test operation

A direct-replacement rocker switch for control panels that restores a positive on/off or function selection when the original switch has worn or failed. Fits common Whirlpool control-panel applications to help regain reliable button function. What it does

• Opens and closes the electrical circuit for a specific control function on the appliance control panel.
• Replaces a worn, cracked, or non-responsive rocker that fails to click or hold a selection.
• Can resolve intermittent operation, no power to a single function, or tactile button failure.
• Designed to match OEM terminal layout for a direct electrical swap when the correct part is used.

• One rocker switch.

• Always disconnect power (unplug or switch off breaker) before starting any repair.
• Remove the control panel or access panel to reach the switch; note wire positions or take a photo before disconnecting.
• Pull off quick-connect terminals with pliers or a terminal tool and transfer wires to the replacement in the same order.
• After installation, restore power and test the function before fully reassembling the appliance.
