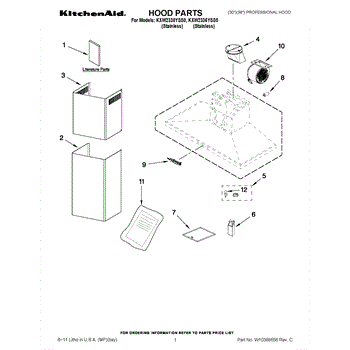

Parts for Kitchenaid KXW2336YSS0: 01 - Hood Parts

The Chimney Duct Assembly is an OEM part for Whirlpool range vent hoods. It is designed to provide a connection between the vent hood and the exterior ventilation system for airflow and removal of cooking odors and smoke.

A bad chimney duct assembly can occur due to regular use, wear and tear, or damage caused by external factors. If you notice poor ventilation, lingering odors, or smoke not being adequately expelled from your kitchen, it may indicate a problem with the chimney duct assembly.

Symptoms of a bad chimney duct assembly include:

• Insufficient airflow or poor ventilation
• Lingering cooking odors or smoke in the kitchen
• Excessive grease buildup in the vent hood or duct system

Replace your faulty chimney duct assembly with this genuine OEM part to restore your appliance.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Chimney Duct Assembly is an OEM part for Whirlpool range vent hoods. It is designed to provide a connection between the vent hood and the exterior ventilation system for airflow and removal of cooking odors and smoke.

A bad chimney duct assembly can occur due to regular use, wear and tear, or damage caused by external factors. If you notice poor ventilation, lingering odors, or smoke not being adequately expelled from your kitchen, it may indicate a problem with the chimney duct assembly.

Symptoms of a bad chimney duct assembly include:

• Insufficient airflow or poor ventilation
• Lingering cooking odors or smoke in the kitchen
• Excessive grease buildup in the vent hood or duct system

Replace your faulty chimney duct assembly with this genuine OEM part to restore your appliance.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This interior light bulb provides bright, direct lighting so you can clearly see food and settings inside your appliance. It replaces a burned-out or cracked interior lamp to restore visibility and safe use. What it does:

• Illuminates the appliance interior for cooking, loading, and inspection
• Replaces bulbs that are cracked, dark, flickering, or no longer working
• Helps you monitor food without opening the door frequently
• Fits the appliance's original lamp socket and housing when used as a direct replacement

• Disconnect power or unplug the appliance before replacing the bulb
• Allow the old bulb to cool completely before handling
• Use a clean cloth or gloves to handle the new bulb; avoid touching the glass with bare hands if the bulb type specifies
• Match this part number to your appliance label or parts diagram to ensure correct fit; dispose of old bulbs according to local regulations

The Grease Filter is an OEM part for Whirlpool range hoods. This part traps grease particles from the air as it circulates through the range hood, preventing grease buildup on the blower and other internal components, thus maintaining the efficiency and longevity of the range hood.

Causes of a bad grease filter can include clogging from excessive grease accumulation, physical damage from improper cleaning or handling, and general wear and tear over time.

Symptoms of a bad grease filter include:

• Reduced air flow from the range hood
• Visible grease buildup on or around the filter
• Unusual odors persisting in the kitchen
• Filter appearing worn or damaged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This motor run capacitor helps the appliance motor start and run more smoothly, restoring proper motor performance and reducing hum or startup problems. It's a direct-replacement electrical component used in compatible Whirlpool appliances. What it does:

• Provides the phase-shifted current the motor needs to start and maintain normal operation
• Helps reduce motor humming, slow starts, or intermittent motor stalls
• Restores proper motor torque and efficiency when the original capacitor has failed
• Works as the electrical timing/storing component for motor cycles

• One motor run capacitor

• Disconnect power to the appliance before attempting replacement to avoid electrical shock
• Discharge the capacitor before touching terminals; use insulated tools and follow safe procedures
• Match terminal configuration and mounting to the original part

This pushbutton switch replaces a worn or broken control button so your appliance's front-panel function responds reliably. It restores tactile push-button control for start, cycle selection or other front-panel operations. What it does:

• Sends the electrical signal when a front-panel button is pressed so the selected function starts
• Restores responsive push action when the original button is stuck, loose, or unresponsive
• Helps fix intermittent or no-response symptoms from a damaged or corroded control button
• Fits into the control panel and connects to existing wiring or harness terminals

• Disconnect power before beginning any repair
• Access the control panel per your model's service instructions; this part typically secures with snap clips or a retaining screw
• Transfer any button cap, bezel, or wiring harness carefully; confirm terminal alignment before reassembly
• Test the control function with power restored before fully reassembling the panel

This replacement hood light bulb restores bright illumination over your cooktop so you can see while cooking and cleaning. Install a new bulb when the hood light is out, dim, or damaged to keep your range hood working as intended.

• Provides task lighting for the cooking surface when the hood light is switched on
• Replace if the light won't turn on, flickers, or the bulb glass is darkened/cracked
• Restores visibility for safer meal prep and cleanup
• Installs in the lamp socket specified for your model; match the bulb type and rating in your owner's manual

• Disconnect power to the hood at the breaker and allow the bulb/area to cool fully
• Remove the lens or retainer per your model, then remove the old bulb
• Handle the new bulb with a clean cloth or gloves; avoid touching the glass
• Install without overtightening and do not exceed the bulb type/wattage specified for your hood

This duct cover extension kit raises a range hood's chimney to fit taller ceilings and gives a finished look where the standard chimney is too short. It provides an easy way to extend the visible duct cover for a cleaner installation. What it does:

• Extends the hood chimney/duct cover to reach higher ceilings
• Covers exposed ductwork for a finished appearance
• Helps align the duct cover with cabinetry and ceiling lines
• Useful when replacing or modifying hood installation height

• Turn off power to the hood before beginning any work
• Follow the manufacturer's instructions and use proper fasteners for your wall/ceiling type
• Do not alter structural supports or ventilation openings; consult local codes

This duct kit redirects an appliance's exhaust to the home vent, restoring proper airflow and reducing backdrafting. It's a direct-fit transition piece that helps the appliance vent safely and efficiently. What it does:

• Provides a finished transition between the appliance exhaust outlet and the home ducting
• Channels hot, moist air out of the appliance to prevent poor drying or cooking odors
• Helps reduce lint buildup and backpressure when installed correctly
• Restores proper venting when damaged, bent, or missing transition pieces are causing performance issues

• Disconnect power (and gas supply if present) before starting any work
• Seal all joints with UL-rated foil tape or approved clamps to prevent leaks

This filter traps cooking grease and airborne particles as air moves through your appliance's ventilation system. It helps protect the blower and internal surfaces and supports proper airflow for effective venting during everyday cooking.

• Captures grease and debris from cooking vapors to reduce buildup on internal components
• Helps maintain ventilation airflow and fan performance
• Replace if the mesh is torn, warped, heavily clogged, or no longer stays seated
• Common symptoms include reduced airflow, lingering smoke or odors, and visible grease accumulation

• Disconnect power and allow surfaces to cool before servicing
• Access the filter from the underside of the hood or over-the-range unit
• Release retaining tabs or screws, remove the old filter, and slide the new filter into place
• Ensure the filter is fully seated and secured before restoring power
