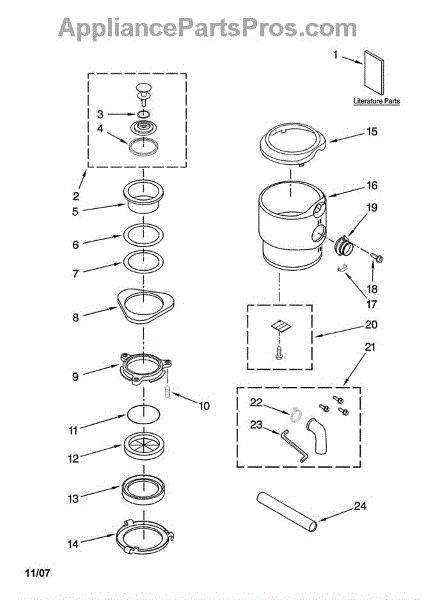

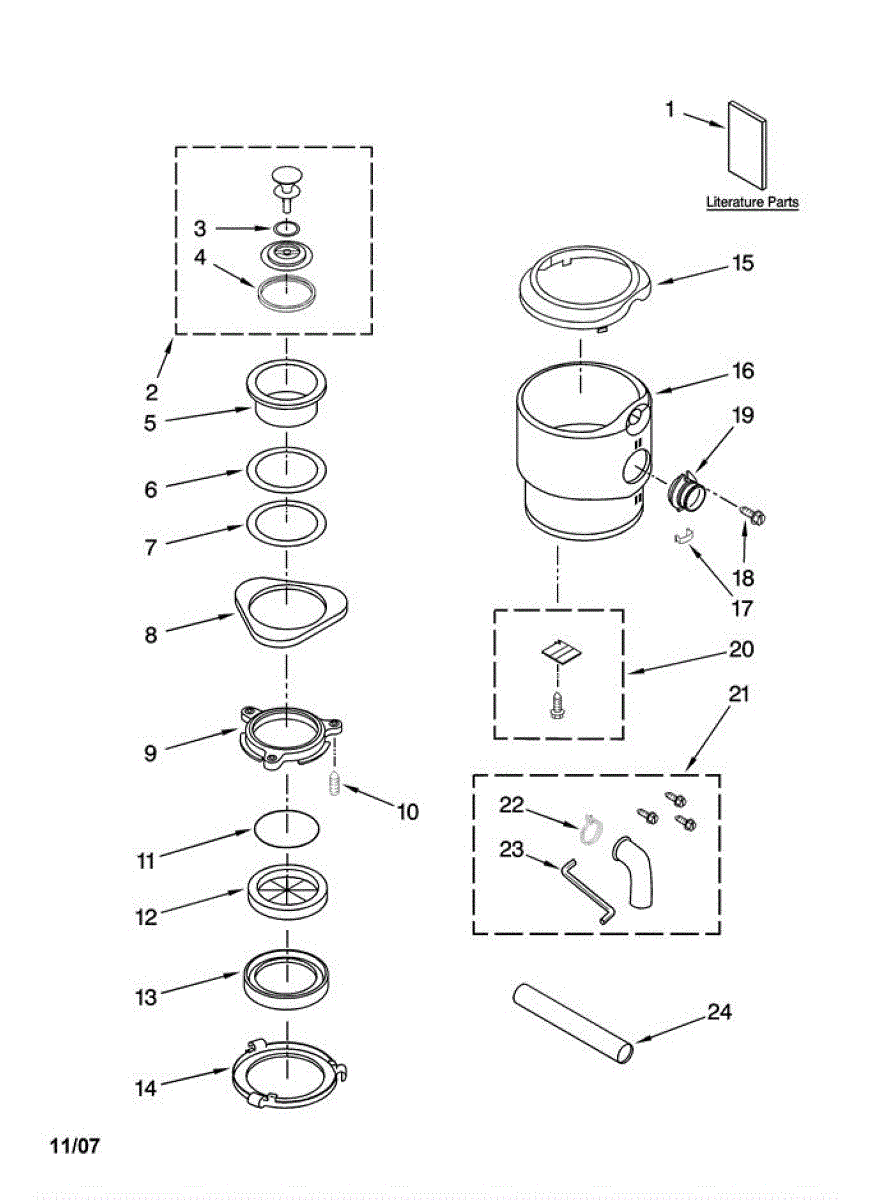

Parts for Kitchenaid KCDS100T: Housing And Flange Parts

This disposer stopper fits in the disposer throat to plug the sink drain when needed. Replace a worn or missing stopper to restore a dependable water seal and keep utensils and debris out of the disposer. What it does:

• Seals the disposer/sink opening to hold water in the sink basin
• Helps prevent utensils and debris from entering the disposer when not in use
• Restores proper sealing when the original stopper is cracked, warped, or missing
• Typical symptoms: water leaks past the stopper, poor fit in the opening, damaged or missing stopper

• One disposer stopper assembly

• Turn off the disposer at the wall switch and, if accessible, disconnect power for safety
• Clean the sink flange/disposer throat to remove buildup that can prevent sealing
• Insert the stopper and seat it evenly to create a seal; do not run the disposer with the stopper engaged
• Hand-wash and dry periodically to maintain the sealing surface; avoid harsh chemicals on the rubber

This is a replacement Seal - stopp that restores a secure seal to the original component, helping prevent leaks and keep the appliance operating normally. Use it when the original seal is worn or damaged. What it does

• Forms a tight seal at the mating surface to help stop water or air leaks
• Restores proper fit where a worn seal causes seepage or dripping
• Helps reduce related symptoms like water pooling beneath the appliance or visible leakage
• Simple, single-piece part designed to match the OEM sealing point

• Disconnect power to the appliance before starting work; turn off water supply if applicable
• Inspect mating surfaces and clean away debris or old sealant before installing the new seal
• Fit the seal fully into its groove or mounting location; do not stretch or twist the part during installation

This sink flange seal is a rubber gasket that creates a watertight seal between the sink and drain flange to help prevent leaks and water damage. Use it when the flange seal is cracked, flattened, or leaking. What it does:

• Seals the gap between the sink and drain flange to stop water from leaking under the sink.
• Helps prevent sink-edge water pooling and slow drainage caused by a failed seal.
• Reduces chance of odors from trapped water beneath the flange by restoring a tight seal.
• Restores proper fit when replacing a corroded or worn sink flange assembly.

• One sink flange seal (rubber)

• Turn off water supply and disconnect drain components before replacing the seal.
• Remove the drain flange assembly, clean mating surfaces, then seat the new seal evenly.
• Avoid stretching or cutting the seal; replace it if damaged or misshapen.

This gasket fits between the sink opening and the disposer's sink flange to create a watertight seal. Replacing a worn gasket helps stop drips at the top of the disposer and keeps the flange securely seated.

• Seals the joint between the sink flange and sink to prevent leaks
• Helps maintain a tight, stable flange connection
• Replace if the original gasket is cracked, flattened, or deteriorated
• Typical symptoms: water leaking at the sink drain/disposer rim or a loose flange

• Disconnect electrical power to the disposer at the breaker and unplug it
• Support the disposer, loosen the mounting assembly, and remove the sink flange
• Clean mating surfaces; place the new gasket between the flange and sink, then tighten evenly per the product manual
• Restore power, run water, and check for leaks

A replacement mounting flange that secures a rotating shaft or assembly to the appliance cabinet, restoring proper alignment and stable operation. Fits original mounting points to reduce vibration and noise from loose or worn hardware. What it does

• Secures a shaft, drum or assembly to the cabinet to maintain alignment and smooth rotation.
• Reduces vibration and rattling caused by a worn or broken flange.
• Helps prevent excess wear on bearings and seals by keeping parts properly positioned.
• Can stop intermittent contact or scraping noises that occur when mounting hardware is damaged.

• One mounting flange

• Disconnect power before servicing and follow the appliance manufacturer's service instructions.
• Remove access panels to reach the flange; save and reuse any original fasteners unless damaged.
• May require removing the drum or related assembly for access—refer to the service manual for procedure.
• If seals, bearings or fasteners are worn, replace those items as needed.

This snap ring (circlip) secures a shaft or component in a groove to prevent axial movement, helping keep assemblies aligned and running smoothly. It's a small but critical retention part for appliance mechanisms. What it does:

• Holds bearings, shafts, or retainers in place by locking into a groove
• Prevents axial movement that can cause wobble, noise, or misalignment
• Maintains proper spacing of moving parts for reliable operation
• Common symptom: loose or shifting component, increased play or noise near the affected area

• One snap ring (circlip)

• Install with proper snap-ring (circlip) pliers to avoid deformation or injury
• Ensure the groove and ring are clean and free of debris before seating
• Inspect the ring for damage or wear; replace if distorted or cracked

This is the front guard for a refrigerator door bin. It snaps into place to keep bottles, jars, and condiments from sliding out when the door is opened and closed.

• Forms the front barrier of a door shelf/bin to hold items securely
• Restores stability and organization if the original guard is cracked or missing
• Common symptoms: items fall off the door shelf, loose or broken front rail, difficulty keeping door-bin contents in place
• Helps maintain proper door-bin capacity when the original part is damaged

• Disconnect power and remove items from the affected door bin before starting
• Release the old guard by lifting/unsnapping it from the endcaps or tabs
• Align the new guard with the tabs/hooks and press firmly until it snaps in evenly
• Do not force; verify correct position and orientation if resistance is encountered

This small retainer clip secures trim, panels, or components to keep appliance parts aligned and stable during normal use. It helps prevent panels from coming loose and reduces vibration or rattling. What it does:

• Holds panels, trim pieces, or brackets in place to maintain proper fit and alignment
• Prevents parts from shifting or vibrating during operation
• Addresses symptoms like loose trim, rattling noises, or panels that won't stay seated
• Works as a replacement for worn, broken, or missing clips that no longer secure components

• One retainer/mounting clip

• Turn off power to the appliance before attempting repair to avoid injury
• Remove adjacent panels or trim as needed to access the clip location; use appropriate hand tools
• Replace the clip by aligning it with the mating groove or hole and snapping or sliding it into place until seated
• If multiple clips are damaged, replace all affected clips for a secure fit

This installation kit provides the mounting hardware needed to secure compatible appliance components during installation or replacement, helping ensure a stable, professional fit and reducing vibration or movement. What it does:

• Supplies the mounting pieces commonly required to attach or secure the appliance component
• Helps restore proper alignment and reduce rattling or shifting during operation
• Supports safe, secure fastening to the cabinet or appliance frame
• Useful when replacing a worn or missing mounting assembly that prevents proper installation

• Intended for use by a knowledgeable DIYer; follow the appliance manufacturer's installation instructions.
• Turn off power and disconnect the appliance before beginning work to avoid shock or injury.
• Use the correct tools and hardware torque where specified; replace any damaged or stripped fasteners.

This clamp secures flexible hoses and small-diameter tubing to fittings, helping prevent leaks and maintain proper fluid flow in appliance systems. It's a simple replacement that restores a tight, reliable connection. What it does

• Holds a hose or tube firmly on a barb or nipple to stop leaks and loss of pressure
• Keeps water, drain, or vent hoses seated during normal appliance operation
• Replaces worn, corroded, or loose clamps that cause dripping or poor connections
• Works where a small, durable clamp is required for routing or securing tubing

• One hose clamp

• Inspect hose and fitting for damage; replace hose if cracked or hardened before installing the clamp
• Tighten clamp until snug—do not overtighten; ensure even compression around the hose
• Disconnect power and water as appropriate and take safety precautions before working on the appliance
