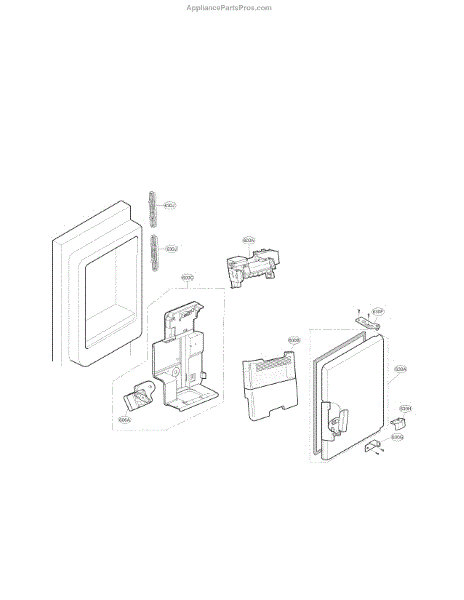

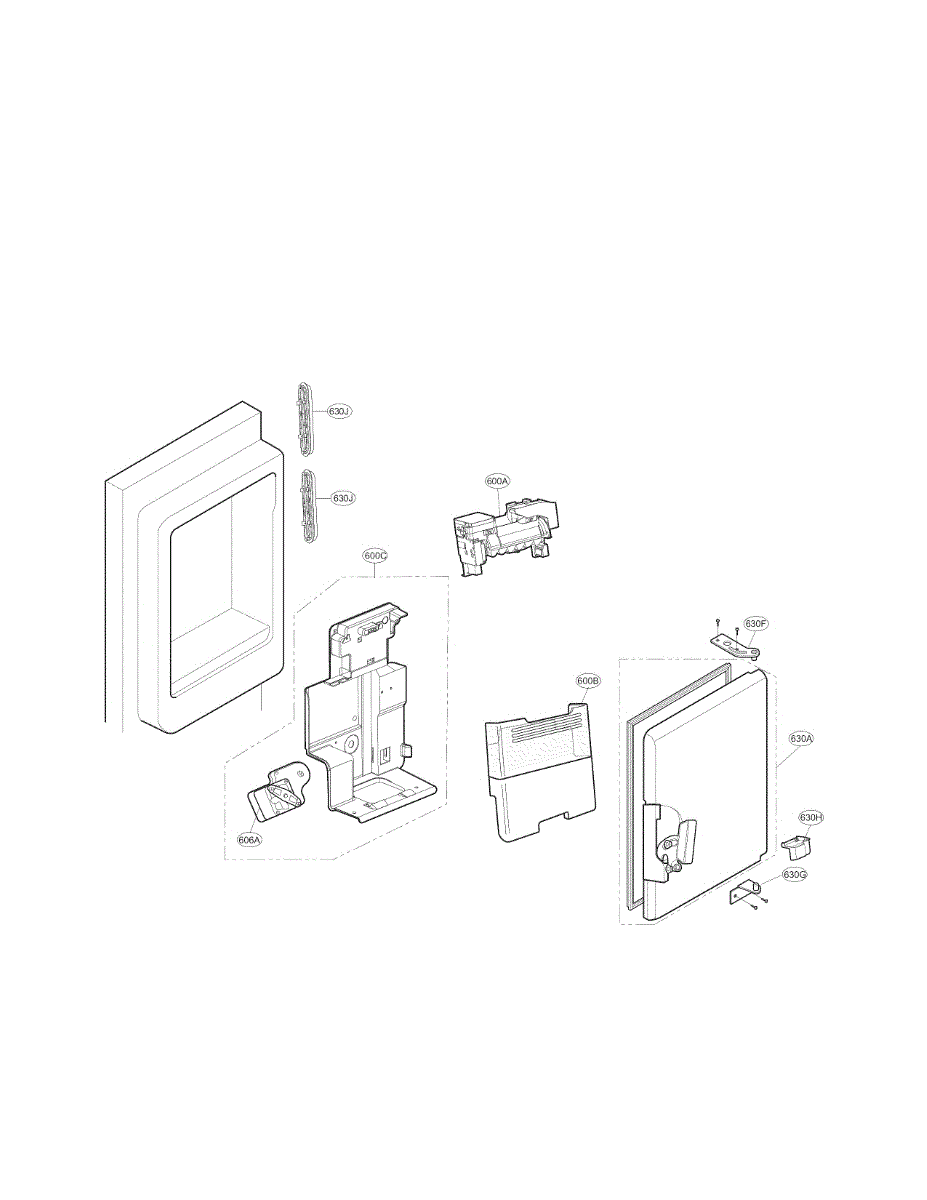

Parts for Kenmore 795.73132410 (79573132410, 795 73132410): Ice Maker And Ice Bank Parts

The Water Filter is an OEM replacement part for LG refrigerators. It is designed to remove impurities, contaminants, and unwanted particles from the water supply, ensuring that the water dispensed and used for ice making is clean and fresh.

Symptoms of a need to replace the water filter:

• Unpleasant taste or odor in the water or ice
• Decreased water flow from the dispenser
• Discoloration or sediment visible in the dispensed water

Causes of a faulty water filter can include general usage over time, exposure to high levels of contaminants in the water supply, or physical damage or clogging of the filter media.

This OEM LG part is also compatible with some Kenmore refrigerator models.

This is the condenser fan motor for select LG-built refrigerators. It drives the outside rear fan that pulls air across the condenser coils and over the compressor to remove heat so the refrigerator can cool efficiently.

• Circulates air through the condenser section to dissipate heat
• Helps prevent overheating of the compressor
• Common failure symptoms: fridge not cooling well, compressor running hot, loud or grinding noise from rear bottom, fan not spinning
• May run intermittently or seize when failing

• Disconnect power before servicing; use cut-resistant gloves
• Access from the rear lower service panel near the compressor
• Note wire orientation and fan blade position before removal
• After replacement, ensure the fan spins freely and no wiring contacts the blade

This is an ice bucket assembly that is used on refrigerator and freezer units. This part stores the ice that has been made so that it can be dispensed. The auger is attached to this, which is the piece that moves the ice into the dispenser chute. Additional parts may also be included with this component.Over time, the bucket assembly may begin to crack or break. This can happen due to exposure to extreme temperatures over time. If this is the case, it will need to be replaced. If the auger itself is no longer working, the whole ice bucket assembly will need to be replaced because it is attached. Wear work gloves when replacing this part.This ice bucket is compatible with refrigerator and freezer units that have been manufactured by Kenmore Elite and LG. It is sold individually. This part is sourced straight from the manufacturer.

The Ice Maker (12 cube) is an OEM part for LG refrigerators. It is responsible for producing ice cubes, typically in batches of 12, and dispensing them into the ice bin for easy access. This ice maker ensures a consistent supply of ice, ideal for everyday use and entertaining guests.

Over time, the ice maker can become faulty due to regular wear and tear, mineral buildup from water, or issues with the internal components such as the motor or the water inlet valve. A malfunctioning ice maker can lead to inefficient ice production or no ice at all.

Symptoms of a bad ice maker include:

• The ice maker not producing ice
• Smaller than usual or misshapen ice cubes
• Leaks or water overflow in the ice maker compartment
• Unusual noises during the ice-making process

This OEM LG part is also compatible with Sears/Kenmore models.
