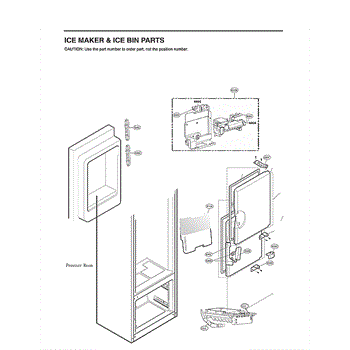

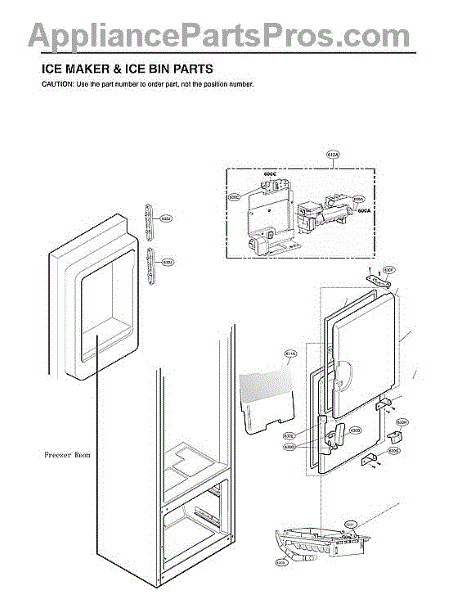

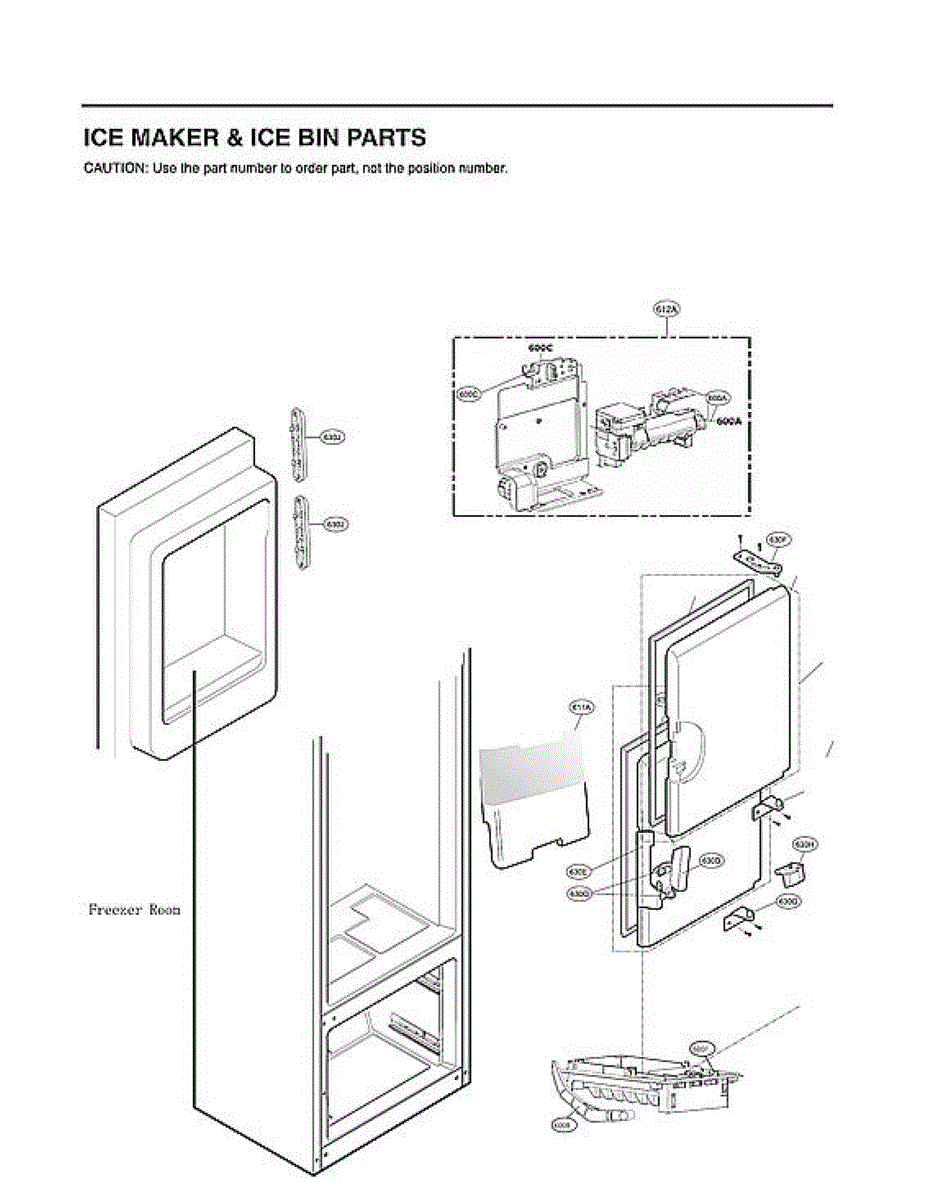

Parts for Lg LFXS28596D/00: Ice Maker / Ice Bin Parts

Replacement mounting screw for refrigerator assembly. Secures components and panels inside your fridge. Order a new screw if yours is stripped or missing.

Replacement mounting screw for refrigerator panels, brackets, and internal assemblies. Restores secure fastening when original screw is missing, stripped, or damaged.

Replacement screw for securing refrigerator panels and trim pieces. Restores proper fit when original fasteners are damaged, missing, or stripped.

Replacement mounting stud for refrigerator door handles. Installs inside the door to secure handle assembly. Needed when stud is damaged or missing.

Replacement mounting screw for refrigerator panels, brackets, and assemblies. Needed when original fastener is stripped, worn, or missing.

Taptite screw for securing components inside your refrigerator. Replaces lost, stripped, or corroded fasteners during repairs or reassembly.

Replacement holder bracket for refrigerators. Secures internal components in place. Order a new bracket if yours is cracked, broken, or missing.

This rear door handle replaces a worn or damaged handle on compatible LG appliances, restoring a secure grip and smooth opening. It's a direct-fit exterior handle that keeps the appliance door operating and looking right. What it does

• Provides a secure gripping point to open and close the appliance door
• Replaces cracked, loose, or broken rear handle hardware
• Restores correct alignment and feel when the door is operated
• Helps prevent further damage to the door edge from makeshift handles

• Power off and unplug the appliance before starting work; remove food or shelves as needed for access
• Keep fasteners and mounting clips; transfer original hardware unless new hardware is explicitly included
• Test door operation and alignment after installation; tighten fasteners evenly to avoid stress

Ice or water dispenser leaking or dripping inside your fridge? This dispenser funnel assembly channels water and ice properly, stopping leaks and drips.

Plastic drain tube that channels defrost water from evaporator coils to drain pan. Replace if cracked, melted, broken, or causing water leaks in freezer.

Adjustable leveling leg that threads into the refrigerator base frame to support and stabilize the unit. Replace worn, broken, or missing legs.

Insulation duct for bottom-mount refrigerators. Installs inside the unit to help maintain temperature efficiency. Replace if cracked, torn, or missing.

Freezer drawer roller assembly enables smooth gliding of your refrigerator's lower drawer. Replace if drawer sticks, wobbles, or is hard to open. Confirm fit with your model number before ordering.

Dual roller wheel assembly that mounts to the rear wall of the freezer drawer. Replace when wheels are missing, broken, or cracked for smooth sliding.

Replace a cracked, broken, or worn refrigerator drawer tray assembly. Restores stable storage in your drawer compartment and keeps food contained.

Replaces cracked, damaged, or missing glass shelf in the fresh food compartment. Restores stable storage space for food and containers inside your fridge.

Glass shelf assembly with frame for bottom-mount refrigerator fresh food compartment. Replace cracked, broken, or missing shelves to restore storage.

Replace a cracked, broken, or missing refrigerator shelf assembly. Restores storage space with a stable surface for food and containers.

This is the glass or clear panel that sits above the crisper drawers in the refrigerator compartment, acting as a shelf and helping regulate humidity for fruits and vegetables stored below. It also serves as a support surface for items placed on top of the drawers. Replace this cover if it is cracked, chipped, or broken, which can affect temperature and humidity control in the crisper area.

Replacement fresh room tray assembly for your refrigerator. Installs at the bottom of the fresh room drawer to contain spills and support produce storage.

Drawer slide rail guide assembly for refrigerator shelves and bins. Replaces worn, broken, or damaged rails that cause sticking or misalignment.

Air duct connector for refrigerators. Channels airflow between compartments. Replace if cracked, broken, or missing to restore proper air circulation.

Protective tray cover for refrigerator interior. Shields tray from spills and debris while maintaining clean appearance. Replace if cracked, broken, or missing.

This is a decorative front panel that attaches to the deli or fresh food drawer inside the refrigerator. It serves as the visible face of the drawer and provides a handle area for opening and closing it. Replace this cover if it is cracked, warped, discolored, or if the mounting tabs have broken, causing the panel to detach from the drawer.

This is a white decorative cover that conceals the fresh air filter compartment inside the refrigerator. It snaps into place over the air filter housing, providing a clean appearance while allowing airflow through the filter. Replace this cover if it is cracked, broken, or will no longer stay securely attached to the filter housing.

Refrigerator lamp cover protects the interior light bulb. Replace if cracked, discolored, or broken to restore proper lighting. Verify fit with model.

This is an LED circuit board assembly that provides interior lighting inside the refrigerator compartment. It mounts inside the unit and illuminates the interior when the door is opened. Replace this assembly if the refrigerator interior is dim or completely dark even though the door switch is functioning properly.

Keeps refrigerator drawers aligned and sliding smoothly. Replace if your drawer sticks, sags, or won't glide properly. Confirm fit with your model number.

Guide rail assembly for refrigerator drawers. Installs on drawer sides to keep drawers aligned and sliding smoothly. Replace if rails are cracked or worn.

Replace your worn freezer door gasket to restore an airtight seal. Keeps cold air in, reduces frost buildup, and maintains stable temperatures. Confirm fit with your model number before ordering.

Decorative handle trim cover for bottom-mount refrigerators. Installs over the door handle assembly. Replace if cracked, discolored, or missing.

Decorative handle trim cover for your refrigerator door. Replaces cracked, discolored, or missing handle trim pieces. Restores appearance and finish.

Covers and protects the refrigerator door hinge assembly. Replace this cap if cracked, missing, or worn to restore a finished appearance and keep hinges clean.

Plastic cover that conceals the top hinge mechanism on your refrigerator door. Replace if cracked, broken, discolored, or missing for a clean look.

Covers and protects the refrigerator door hinge area. Replace if your hinge cover is cracked, broken, or missing to restore a clean appearance.

This name plate displays model and serial numbers on your refrigerator exterior. Replace if cracked, faded, peeling, or missing for proper identification.

Replacement freezer door handle assembly for bottom-mount refrigerators. Restores secure grip and finished appearance when original handle is cracked, broken, or worn.

Home bar case assembly for bottom-mount refrigerators. Installs in the door to house the drink dispenser. Replace if cracked, damaged, or missing.

Seals the home bar compartment door on your bottom-mount refrigerator. Replace if torn, cracked, or allowing warm air in. Verify fit with model number.

Refrigerator door gasket seals the door to maintain temperature and prevent air leaks. Replace when worn, cracked, or not sealing properly. Confirm fit.

Door gasket creates an airtight seal to keep cold air in and warm air out. Replace if torn, cracked, or no longer sealing properly. Confirm fit by model.

The Refrigerator Flipper Assembly is an OEM part for LG refrigerators. This assists in the smooth opening and closing of the refrigerator door. It ensures an airtight seal when the door is closed, preventing cool air from escaping and maintaining the refrigerator's internal temperature.

Causes of a malfunctioning Refrigerator Flipper Assembly can range from physical damage, such as cracks or breakage, to wear and tear from regular use.

Symptoms of a bad Refrigerator Flipper Assembly include:

• Difficulty in opening or closing the refrigerator door
• A noticeable gap when the door is supposed to be sealed shut
• Increased energy consumption as the refrigerator works harder to maintain its temperature
• Spoilage of food items quicker than expected due to poor temperature regulation

This OEM LG part is also compatible with some Kenmore models.

This replacement cap cover provides the finished trim and a protective snap-on cover for the appliance component. It restores a clean appearance and helps protect the underlying hardware from dust and debris. What it does

• Covers and protects exposed hardware or openings to prevent dust, lint, and debris buildup
• Restores the appliance's finished appearance after a cracked or missing cover
• Helps keep adjacent parts secure and reduces rattling from loose trim
• Fits as a direct replacement designed to snap into the existing mounting points

• One cap cover

• Turn off power to the appliance before starting disassembly to avoid injury
• Usually installs by snapping into place; remove any trim or panels that obstruct access
• Use gentle, even pressure to avoid cracking the new cover; plastic pry tools can help
• If mounting clips are broken, they may need replacement for a secure fit

Replacement door basket assembly for refrigerators. Organizes items in the door compartment. Replace if cracked, broken, or missing to restore storage.

Replacement door-mounted storage basket that restores inside-door shelf space. Needed when original basket is cracked, broken, or missing. Mounts to door.

Molded plastic door basket that mounts on the refrigerator door to hold bottles, jars, and condiments. Replace a cracked, broken, or missing bin.

Door stopper assembly cushions and limits refrigerator door travel. Replaces cracked, broken, or worn stoppers causing misalignment or door slamming.

Stabilizes rotating assemblies in your refrigerator to reduce wobble, wear, and noise. Replace when you notice excessive movement or grinding sounds.

Lower hinge assembly supports and pivots your refrigerator door for smooth operation. Replace if door sags, misaligns, or doesn't seal properly. Confirm fit with your model number.

Hinge assembly for refrigerator doors. Installs at door pivot point to support door weight and enable smooth opening/closing. Replace if cracked or worn.

Replaces worn, cracked, or damaged refrigerator door handle assembly. Restores secure grip and smooth door operation when original handle is broken or loose.

Replacement handle for refrigerator doors. Installs on the exterior door panel. Replace if your handle is cracked, broken, loose, or missing.

Fix unresponsive or stuck control panel buttons on your bottom-mount refrigerator. This button assembly restores tactile control for temperature and settings.

Plastic rail holder that secures shelf rails inside your refrigerator. Replace this holder if it's cracked, broken, or missing to restore proper shelf support.

This slide rail is a replacement drawer guide that restores smooth, stable drawer movement and helps prevent binding or sagging. Designed to match the OEM fit so drawers open and close reliably. What it does:

• Guides and supports the appliance drawer for smooth sliding motion
• Replaces worn or damaged rails that cause sticking, sticking intermittently, or uneven travel
• Helps prevent drawer tilt or sag when loaded
• Restores proper alignment for secure closing

• Disconnect power to the appliance before beginning any work
• Remove the drawer per your model's service instructions to access the rail
• Use basic hand tools (screwdriver/driver) to remove and replace the rail; keep fasteners for reuse
• Align the rail carefully, slide the drawer to test operation, and verify smooth movement before returning the appliance to service

Supports and guides refrigerator drawers for smooth gliding. Replace when worn, broken, or causing binding. Confirm fit with your model number.

Fix refrigerator electrical issues with this wiring harness assembly. Restores power and signal connections to controls and motors when original harness fails.

Replace a worn or broken freezer drawer bar connector assembly to restore smooth gliding and proper alignment. Confirm fit with your model number.

Service spanner tool for refrigerator maintenance. Provides secure grip for loosening and tightening service fittings and retaining nuts. Replace if lost.

This center hinge assembly replaces the middle door hinge on compatible French-door refrigerators to restore proper door alignment and smooth opening. It helps prevent sagging, binding, and air leaks caused by a worn or damaged hinge. What it does:

• Supports and aligns the upper/lower refrigerator doors for correct sealing
• Enables smooth pivoting of the door to open and close without binding
• Corrects uneven gaps or door sag that can cause cooling loss or excessive wear
• Replaces a bent, cracked, or worn hinge that may cause noisy operation

• One center hinge assembly

• Remove power and empty the door(s) before beginning work; follow manufacturer service instructions
• Use proper tools and support the door while removing/installing the hinge to avoid injury or damage
• Inspect surrounding trim and fasteners; replace any worn screws or bushings as needed

Replacement ring for your refrigerator. Installs on internal components to secure or seal parts. Order a new ring if yours is cracked or missing.

Fix sagging or misaligned refrigerator doors with this center hinge assembly. Restores proper door pivot support and eliminates uneven gaps or binding.

Secures and aligns your refrigerator door at the top hinge point. Replace if door sags, binds, or seals unevenly. Confirm fit with your model number.

Upper hinge assembly supports your refrigerator door and ensures smooth opening. Replace when door sags or gaps appear. Verify fit with your model number.

Upper door hinge assembly for bottom-mount refrigerators. Mounts at the top of the cabinet to support the door. Replace if cracked, broken, or lost.

Replaces damaged duct vent cap assembly on your refrigerator. Install when cap is cracked, broken, or missing to restore proper airflow. Verify fit with your model number before ordering.

Lever spring for bottom-mount refrigerators. Provides tension for internal lever mechanisms. Replace if broken, stretched, or missing to restore proper fit.

If your refrigerator lever won't return to position or feels loose, this lever return spring restores proper tension for smooth operation. Direct-fit part.

Control board cover assembly for bottom-mount refrigerators. Protects the PCB housing. Replace if cracked, broken, or missing to secure electronics.

Clear plastic lens that covers the control panel display. Replace if cracked, scratched, or cloudy to restore visibility and protect electronics beneath.

Internal bracket assembly that mounts and secures the door handle to your refrigerator door. Replace if the bracket is cracked, broken, or stripped threads.

If your dispenser button is stuck, broken, or won't engage, this lever actuator restores positive click action. Direct-fit replacement, 15-minute repair.

Magnetic gasket strip that ensures your refrigerator door closes securely and maintains an airtight seal. Replace when door won't stay closed or seal feels weak. Confirm fit with your model number.

Rubber cap for bottom-mount refrigerators. Installs on various internal components. Replace if cracked, worn, missing, or damaged to restore appearance.

Refrigerator not cooling or running constantly? The compressor circulates refrigerant to maintain proper temperature. This repair requires expertise.

Fix a refrigerator not cooling or freezing over with a new evaporator coil assembly. This part circulates refrigerant to cool your fridge compartments.

Refrigerator not cooling or compressor won't start? This overload protector prevents compressor damage from overheating. Direct replacement safety device.

Protective cover for the PTC start relay on your refrigerator compressor. Replace if cracked, broken, or missing to shield relay components from damage.

Fix loud fan noises or uneven cooling caused by a cracked fan guide. This support bracket stabilizes your refrigerator's evaporator fan for proper airflow.

LED light assembly for refrigerator interior lighting. Installs in fresh food or freezer compartment. Replace if cracked, dim, or not illuminating properly.

Refrigerator not cooling or making unusual noises? This compressor sealing pipe restores proper refrigerant flow. Moderate difficulty repair part.

Drain tray assembly that collects condensation beneath your refrigerator. Replace if cracked, broken, or missing to prevent water leakage issues.

Front cover panel for your refrigerator door. Snaps into place to restore appearance and protect controls. Replace if cracked, broken, or missing clips.

This is a small retainer clip that secures the compressor in place at the base of the refrigerator. It helps prevent the compressor from shifting or vibrating excessively during operation. Replace this clip if your refrigerator produces unusual rattling or vibrating noises from the back, or if the compressor appears loose or has shifted from its mounting position.

Support roller that mounts to the refrigerator base, allowing the unit to roll for cleaning or service. Replace if worn, broken, or causing uneven positioning.

This noise damper reduces vibration and rattling sounds from refrigerant lines in your refrigerator. It cushions the copper tubing against the cabinet to prevent metal-on-metal contact that creates annoying noises. Install this damper if your refrigerator makes clicking, rattling, or vibrating sounds, especially when the compressor cycles on and off.

Drier assembly for refrigerators. Installs in the sealed refrigerant system to remove moisture and contaminants. Replace if damaged or worn during repair.

Water pooling under your refrigerator? This drip tray collects condensation and defrost water to prevent leaks and water damage beneath the appliance.

Refrigerator not cooling properly? A faulty condenser assembly may be blocking heat release. This wire condenser restores cooling efficiency. DIY-friendly.

Fix uneven cooling or frost buildup with a refrigerator fan assembly. Restores proper airflow across coils to maintain consistent cabinet temperatures.

Fix uneven cooling or warm spots in your refrigerator with a new evaporator fan blade. This part circulates cold air throughout the unit for consistent temps.

Fix ice buildup in your refrigerator with this defrost heater. Melts frost from the evaporator during defrost cycles to restore consistent cooling.

Refrigerator light stays on or door alarm won't work? This magnet switch senses door position to control interior lighting and alerts. Quick DIY fix.

Fix a stuck or non-working ice/water dispenser with this micro switch. Common cause of dispensers running continuously or not activating. Easy DIY repair.

This DC motor drives the evaporator fan that circulates cold air from the evaporator coils throughout the refrigerator and freezer compartments. It is essential for maintaining even, consistent temperatures inside the unit. Replace this motor if the refrigerator is not cooling properly, the freezer is cold but the fresh food section is warm, or you hear unusual buzzing or grinding noises coming from behind the interior back panel.

A replacement cover motor that powers the refrigerator's dispenser cover, allowing the door to open and close so you can access ice and water. Replaces a worn or failed motor to restore normal dispenser cover operation. What it does:

• Drives the dispenser cover mechanism so the cover opens when dispensing and closes when idle
• Helps keep the dispenser sealed to reduce drafts and prevent pests or debris from entering
• Stops or fails to move when worn, causing a stuck, slow, or noisy dispenser cover
• Works with the dispenser linkage and gears to coordinate cover motion with user controls

What's included:

• One cover motor

Install notes:

• Disconnect power to the appliance before beginning any repair
• Remove dispenser trim and access panel per your model's service instructions to reach the motor
• Handle gears and linkage carefully; ensure proper alignment during reassembly and test cover operation before finishing

Uneven cooling or noisy damper? This damper motor support bracket secures the air control assembly for proper airflow between compartments. DIY fix.

Refrigerator not cooling properly? This damper motor support secures the air damper assembly that controls airflow between compartments. Simple DIY fix.

Fix a sagging or misaligned refrigerator door with this replacement door support bracket. Restores proper alignment and prevents door rubbing issues.

The PCB Assembly is an OEM part for LG refrigerators. It stands for Printed Circuit Board, which is the main control board that manages and regulates various functions and components within the refrigerator.

Symptoms of a bad PCB Assembly include:

• The refrigerator not powering on or displaying any lights/indicators
• Specific components or features not functioning correctly (ice maker, dispenser, cooling, etc.)
• Error codes or warning lights illuminated on the control panel
• Strange noises or abnormal behavior from the refrigerator

Causes of a bad PCB Assembly can be related to electrical faults, such as short circuits, power surges, or component failures. Physical damage from impact, moisture exposure, or overheating can also contribute to the malfunction of the PCB.

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

Supports and stabilizes your refrigerator door for proper alignment. Replace if bracket is cracked, broken, or causing door misalignment issues.

This LED assembly restores screen illumination by replacing a failed backlight strip. It helps return even, bright lighting to the LCD panel so pictures and menus are visible again without the dim or dark display caused by burned-out LEDs. What it does:

• Replaces the display backlight to restore screen brightness and uniform lighting
• Can resolve symptoms like dim display, dark bands, flickering backlight, or no visible picture with audio
• Works as the LED lighting component mounted behind the LCD panel to illuminate the image
• Designed to match the original LED layout and connector for a direct replacement

• One LED assembly (backlight strip) as shown

• Disconnect power and remove the display panel and bezel before replacing the assembly
• Handle the LCD and LEDs carefully to avoid damage; avoid touching LED surfaces and circuit traces
• Observe ESD precautions and use appropriate tools;

Fixes refrigerator power loss, sparking, or intermittent operation. This power cord assembly restores safe electrical connection from wall outlet to appliance.

Refrigerator not cooling evenly or running constantly? This DC motor assembly drives the fan to restore proper airflow and temperature control in your fridge.

Protective cover assembly that shields the printed circuit board (PCB) in your refrigerator. Replace if cracked, broken, or missing to protect electronics.

Ice maker overflowing or not stopping? This shut-off arm lever controls ice production by sensing bin levels. Simple plug-and-play repair.

Fix no ice production, small/misshapen cubes, or overflowing ice with this complete ice maker assembly. Simple DIY install—just 2 screws. 15-30 min.

Ice maker stopped dropping ice or has a cracked tray causing leaks? This complete ice maker assembly restores ice production in your refrigerator.

Secures water tubing to prevent leaks and disconnections in your refrigerator's water line system. Replace if clip is broken, missing, or tubing moves freely. Confirm fit with your model number.

Fix inaccurate temperature readings or sensor errors with this refrigerator sensor control board. Restores proper sensor communication and feedback.

If your refrigerator display is dead, shows error codes, or behaves unpredictably, this sub PCB assembly processes inputs and controls specific functions.

The Temperature Sensor is an OEM part for LG refrigerators. Also known as a thermistor, is responsible for sensing the temperature changes and providing the necessary feedback to the refrigerator's control board. It helps maintain accurate and consistent temperature levels, ensuring optimal food preservation and efficient cooling.

Causes of a faulty temperature sensor can include wear and tear over time, damage due to electrical issues or exposure to extreme temperatures, or sensor calibration issues. These factors can result in temperature inconsistencies, inaccurate readings, or improper cooling performance of the refrigerator.

Symptoms of a bad temperature sensor may include:

• Incorrect temperature readings on the control panel
• Temperature fluctuations inside the refrigerator
• Overcooling or inadequate cooling of food items

This OEM LG part can also be used on Kenmore/Sears appliances.

Rubber cap for bottom-mount refrigerators. Covers and protects screws, bolts, or openings. Replace if cracked, missing, or worn to restore appearance.

Fix a dispenser that won't activate or feels stuck with this refrigerator dispenser lever. Direct replacement part for bottom-mount models. Easy repair.

Stores and supplies water to your refrigerator's dispenser and ice maker. Replace if cracked, leaking, or damaged from mineral buildup or freezing.

Pipe holder clip secures refrigerant or water lines inside your bottom-mount refrigerator. Replace if cracked, broken, or missing to keep pipes stable.

Fix water leaks from your refrigerator with this water line tube assembly. Stops leaks caused by brittle or kinked tubing and restores normal flow.

Fix water leaks from your refrigerator with this water line tube assembly. Stops leaks caused by brittle or kinked tubing and restores normal flow.

If your refrigerator's water dispenser or ice maker stopped working, the water tank assembly may need replacement. Restores proper water flow and ice production.

Fix no ice or water dispensing issues with this refrigerator water inlet valve assembly. Controls water flow to ice maker and dispenser. DIY repair.

Secures bracket assemblies inside your refrigerator to keep components aligned and reduce vibration. Replace if cracked, bent, or missing.

Plastic cover cap for refrigerators. Snaps onto hinges, handles, or shelving brackets to conceal mounting hardware. Replace when cracked or missing.

Replace your refrigerator's water filter cover to protect the filtration system and maintain proper seal. Check your model number for exact fit compatibility.

Replace a broken or leaking water filter housing that prevents water flow to your dispenser and ice maker. Direct fit for bottom-mount refrigerators.

Removes impurities and contaminants for clean, fresh-tasting water and ice. Replace every 6 months or when water flow decreases. Verify fit with your model.

Covers and protects refrigerator tubing inside the cabinet. Replace this tube cover if the original is cracked, broken, or missing to restore proper appearance.

Replace your refrigerator's water filter cover to protect the filtration system and maintain proper seal. Essential when cover is cracked or missing. Confirm fit with your model number.

This replacement pipe holder secures a small appliance pipe or tube in place, reducing movement and vibration to help prevent noise, wear, or accidental disconnection. It restores proper routing and support for the pipe. What it does:

• Secures a pipe or tubing to the appliance frame or chassis to keep it from shifting
• Reduces rattling or vibration caused by loose plumbing or tubing
• Helps maintain proper alignment to avoid chafing or contact with other components
• Useful when a cracked, broken, or missing clip allows pipe movement

• Turn off and unplug the appliance before accessing internal components
• Remove any panels or covers to reach the pipe clip location
• Snap the clip over the pipe into the existing mounting tab; replace any damaged mounting hardware

Refrigerator pipe holder bracket secures water lines and tubing in place. Replace if cracked, broken, or missing to properly support pipes inside your fridge.

Home bar cover panel for bottom-mount refrigerators. Replaces cracked, broken, or missing exterior home bar covers. Restores appearance and finish.

Secures and pivots the ice bank door for smooth opening and proper sealing. Replace if door sags, won't close, or ice dispenser misaligns. Confirm fit.

Seals your refrigerator door to keep cold air in and warm air out. Replace if torn, cracked, or not sealing properly. Confirm fit with your model number.

Seals the ice bin compartment to prevent warm air and moisture intrusion. Replace when worn or torn to reduce frost buildup and ice clumping.

This lever cover is a molded trim/protective piece that fits over a user-operated lever on the appliance. Replacing a damaged or missing cover helps protect the mechanism and restores a clean, finished appearance. What it does:

• Shields and guides the lever mechanism to help ensure smooth operation
• Helps keep internal components covered and aligned
• Restores the finished look when the original cover is cracked or missing
• Common symptoms: cracked or broken cover, loose/wobbly lever feel, sticking or misaligned lever action

• Includes 1 lever cover

• Disconnect power before servicing; if working near a dispenser, shut off water supply as applicable
• Remove any screws or clips and release locking tabs carefully to avoid breaking adjacent plastics
• Transfer any reusable hardware from the original part
• Check lever movement and engagement before final reassembly
