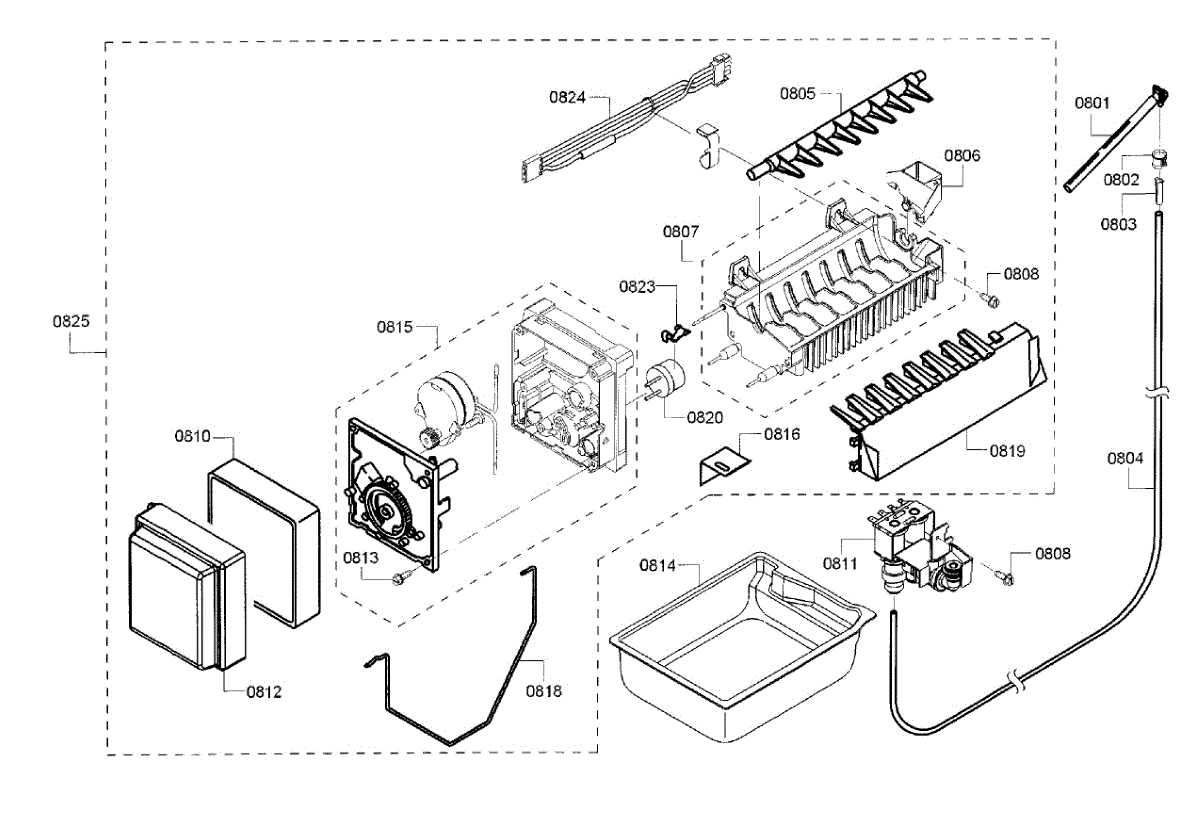

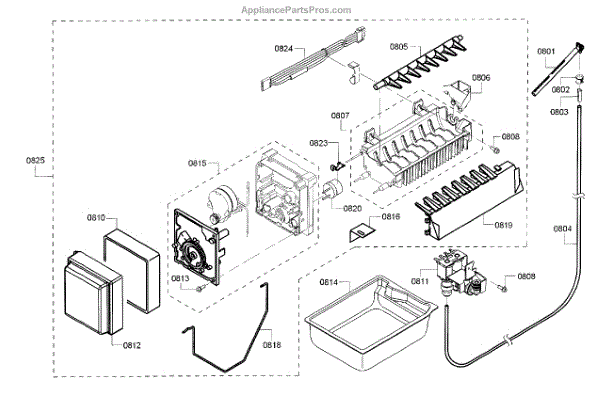

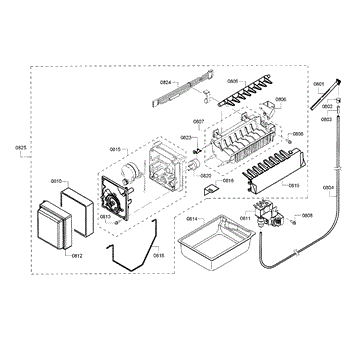

Parts for Bosch B22CT80SNS/01: Ice Maker Parts

This ice mold is the formed tray that holds and shapes ice inside the refrigerator's automatic ice maker. It restores proper ice formation so trays fill and release solid, usable cubes. What it does:

• Holds water while the ice maker freezes it into cubes
• Supports even freezing to help full molds form
• Allows the ice maker to eject cubes cleanly when harvested
• Addresses symptoms like small, misshapen, or absent ice production

• One replacement ice mold

• Disconnect power to the appliance before attempting service
• Remove any ice and thaw the area if frozen before swapping the mold
• Handle carefully to avoid damaging mounting tabs or sensors

Replacement water inlet valve that controls water entering the dishwasher so cycles fill correctly. Restores reliable fills and helps address no-fill, overfill or intermittent-fill issues when the original valve fails. What it does:

• Directs and meters incoming water into the wash chamber to achieve proper fill levels.
• Opens and closes to allow water during fill cycles; a failed valve can cause no water, intermittent filling, or extended cycles.
• Prevents uncontrolled water flow at the inlet when seals and valve components are intact.

• Disconnect electrical power and shut off the water supply before beginning any work.
• Access typically requires removing the lower access panel or toe kick; basic hand tools are usually sufficient.
• Inspect inlet hoses and seals during replacement and replace any damaged components to avoid leaks.
• After installation, restore water and power, run a short cycle, and check for proper filling and any leaks.

This drain pan is a molded cabinet drip tray that collects and directs water away from the appliance to help prevent leaks and floor damage. Use as a direct replacement to restore proper water containment. What it does:

• Collects condensation and minor leaks from the appliance base to help protect flooring
• Directs water toward the drain area or evaporator to reduce pooling under the unit
• Helps contain overflow caused by failed hoses, seals, or loose fittings
• Serves as the appliance's lower containment tray and supports internal components where applicable

• One drain pan / cabinet drip tray (single piece)

• Handle carefully to avoid bending or cracking the pan; use proper tools for fasteners
• Inspect hoses, seals, pumps, and valve connections for failure

This replacement spray arm restores proper water distribution inside compatible dishwashers for better cleaning coverage and rinse performance. It replaces a worn, cracked, or clogged spray arm to help ensure dishes come out cleaner. What it does:

• Directs pressurized water to clean dishes and cookware during wash cycles
• Helps maintain even spray coverage across racks for improved wash results
• Replaces damaged, broken, or clogged spray arms that cause poor cleaning
• Can reduce unusual noises or wobbling if the original arm is loose or cracked

• Disconnect power and shut off water supply before servicing the dishwasher
• Remove racks and existing spray arm per manufacturer instructions to access mounting point
• Inspect spray arm bearing or support and clean any debris before installing the new arm
• Hand-tighten and test run a short cycle to ensure secure fit and proper operation

Restore dependable ice production with this replacement ice maker assembly. It automatically fills, freezes, and ejects cubes into the bin, resolving common ice maker failures so your refrigerator consistently makes ice again without using manual trays.

• Produces ice by controlling the fill, freeze, and ejection cycle
• Coordinates with the water inlet valve for proper fill levels
• Stops making ice when the bin is full to prevent overfilling
• Common symptoms: no ice production, cubes not ejecting, leaking/overfilling at the ice maker, or clicking/grinding from the unit

• Disconnect power and turn off the household water supply before servicing
• Remove the ice bin/cover, release mounting hardware, and unplug the wire connector; transfer brackets/screws as needed
• Ensure the fill tube is correctly aligned with the ice maker's fill cup
• After installation, restore power/water and discard the first batches of ice as the system clears
