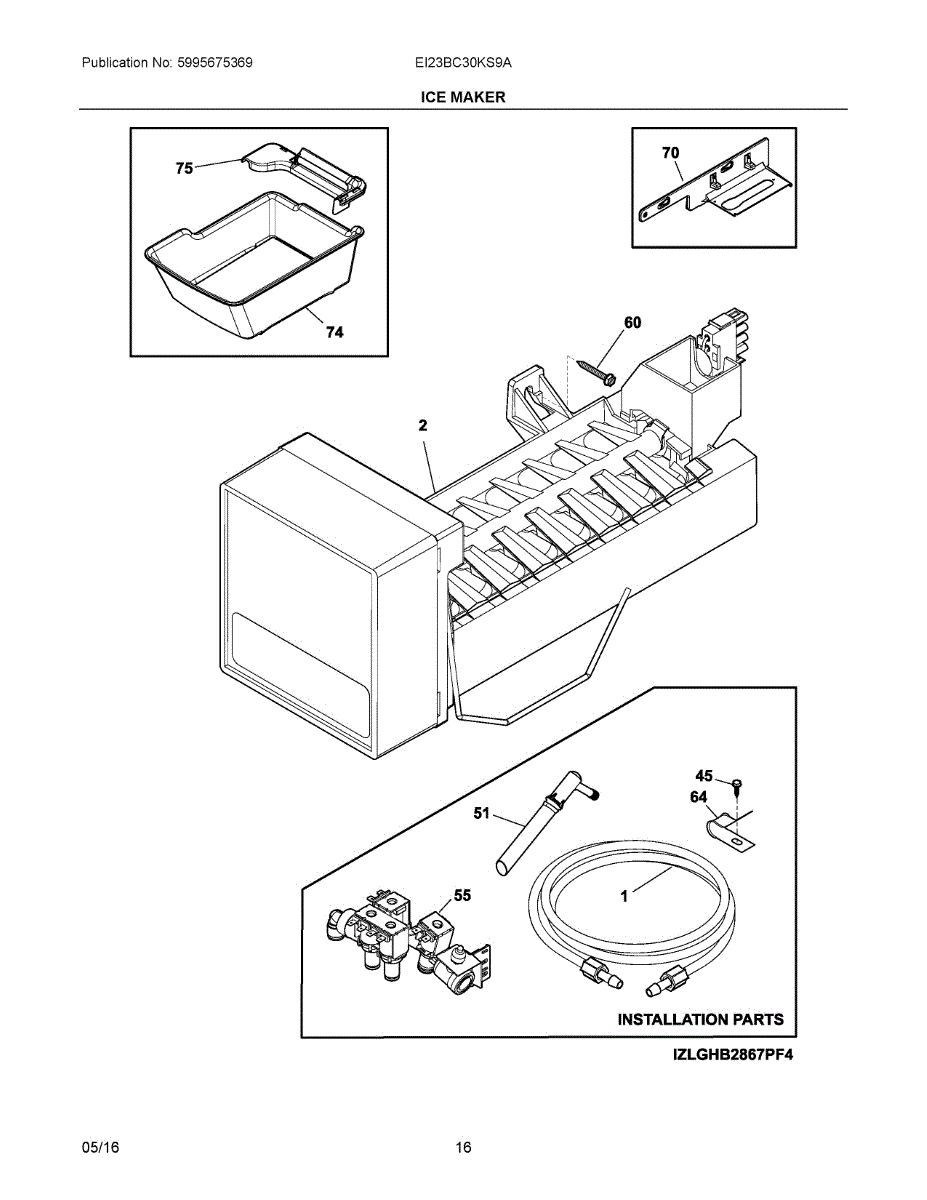

Parts for Electrolux EI23BC30KS9A: 08 - Ice Maker Parts

This refrigerator water inlet tube routes water from the supply/valve into the appliance's water system. Replacing a cracked or kinked tube restores proper flow to the dispenser and ice maker while helping prevent leaks.

• Directs water from the inlet valve to internal components for dispensing and ice production
• Maintains a sealed, food-grade water path
• Replace if you notice leaks under/behind the unit, visible cracks/kinks, reduced or intermittent dispenser flow, or ice maker not filling
• Normal wear, brittleness, or damage during moves can lead to failures

• Disconnect power and shut off the water supply before servicing
• Place a towel or tray to catch residual water when disconnecting lines
• Note the original routing; release any retaining clips and disconnect the tube from fittings
• Route the new tube exactly like the original and fully seat tube ends in connectors; restore water and check for leaks

The Ice Maker is an OEM replacement part for Frigidaire French doors and side-by-side refrigerators. It automatically produces batches of fresh ice for daily use.

Symptoms of an issue include:

• Reduced or discontinued ice production
• Ice cubes fused or stuck together
• Water or moisture inside the refrigerator

Causes can be mineral or scale buildup inhibiting parts, or damage from opening the refrigerator door before harvest is complete. Other causes involve mold growth or freezing of internal components over time.

Compatible with Gibson and Electrolux refrigerator models as well, it maintains a constant ice supply.

This water tube kit restores the refrigerator's water path. Replacing damaged or brittle tubing helps stop leaks and brings back reliable water flow to the dispenser and/or ice maker.

• Provides a secure route for water from the inlet valve through the refrigerator
• Replaces kinked, cracked, or leaking tubing that can restrict flow
• Helps resolve little/no water dispensing, slow/no ice production, or water drips/leaks
• Matches original routing and connection style on applicable units

• Unplug the refrigerator and shut off the water supply before servicing
• Place a towel to catch residual water and depressurize the line
• Note tube routing; cut ends square and fully seat tubing into fittings; avoid kinks
• Restore water and power, then check all connections for leaks and purge air by dispensing water

This Refrigerator Water Valve is a genuine OEM replacement part for Frigidaire refrigerators. It is responsible for controlling the flow of water into the refrigerator's ice maker and water dispenser. This part ensures a steady and reliable water supply for ice production and water dispensing.

Causes of a bad water valve can include a faulty solenoid, clogged or blocked water lines, or a malfunctioning water pressure regulator. These issues can result in a variety of problems, such as slow or no ice production, weak water flow from the dispenser, or leaks around the valve.

Symptoms of a bad water valve include:

• No ice cubes being produced
• Low water pressure or weak water flow from the dispenser
• Leaks around the water valve or water lines
• Inconsistent ice production or dispensing

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Replace a damaged refrigerator bracket to restore secure mounting of the associated component. This part holds the component firmly in place to maintain proper alignment and reliable performance inside the appliance.

• Provides a solid mounting point for the related interior part or assembly
• Helps maintain correct alignment and spacing of the component
• Reduces movement and vibration that can lead to noise or wear
• Common signs it may be bad: cracked or broken bracket, stripped holes, loose or misaligned component, rattling

• Disconnect power and shut off water supply before service; wear cut-resistant gloves
• Clear shelves/panels to access the bracket area and note part orientation
• Remove fasteners, swap the bracket, and reuse existing hardware if applicable
• Do not overtighten screws; confirm proper fit and alignment before reassembly

This ice container collects and stores ice produced by the freezer icemaker so you can access and organize frozen cubes. Replace a cracked, missing, or warped bin to restore normal ice storage and reduce spills in the freezer compartment. What it does:

• Collects and holds ice dispensed from the icemaker so cubes stay contained and accessible.
• Aligns under the icemaker chute to catch ice as it cycles.
• Helps prevent ice from spilling onto freezer shelves when the original bin is damaged or missing.
• Common symptom: ice falls onto the shelf, the icemaker backs up, or the bin is cracked or broken.

• Disconnect power to the refrigerator before service to avoid injury.
• Remove food and any loose ice from the freezer area before removing the old bin.
• Slide the replacement bin into the same location and ensure it seats securely under the icemaker chute; do not force.
• If ice is stuck, allow the area to thaw or carefully remove ice by hand; avoid sharp tools that can damage components.

This snap bucket is the removable ice collection bin that holds and delivers cubed ice from the ice maker. It restores a secure, easy-to-remove ice storage that keeps ice contained and ready for dispensing. What it does:

• Collects and stores ice produced by the refrigerator ice maker
• Snaps into the ice maker housing for a secure fit and easy removal
• Helps prevent ice from spilling inside the freezer compartment
• Can be replaced if cracked, warped, or if ice does not properly collect

• Disconnect power to the appliance before servicing to avoid injury
• Remove any remaining ice and slide the old bucket out, then snap the new bucket into the ice maker housing
• Handle carefully to avoid damaging the ice maker components or surrounding trim
• No special tools are typically required;

Color: Black/natural. Nylon

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

This refrigerator water inlet tube routes water from the supply/valve into the appliance's water system. Replacing a cracked or kinked tube restores proper flow to the dispenser and ice maker while helping prevent leaks.

• Directs water from the inlet valve to internal components for dispensing and ice production
• Maintains a sealed, food-grade water path
• Replace if you notice leaks under/behind the unit, visible cracks/kinks, reduced or intermittent dispenser flow, or ice maker not filling
• Normal wear, brittleness, or damage during moves can lead to failures

• Disconnect power and shut off the water supply before servicing
• Place a towel or tray to catch residual water when disconnecting lines
• Note the original routing; release any retaining clips and disconnect the tube from fittings
• Route the new tube exactly like the original and fully seat tube ends in connectors; restore water and check for leaks

The Screw Kit is an OEM part for Frigidaire appliances. It contains various screws specifically designed to fit and secure different components of Frigidaire appliances, ensuring a tight and secure assembly. This kit is essential for both initial installations and for making repairs or replacements to existing appliances, providing the necessary hardware to maintain or restore the structural integrity of your appliance.  These screws are #10-16 x .500 inches long and can be loosened or tightened using either a Phillips-head or square-head screwdriver.

Symptoms of needing a new Screw Kit include:

• Loose components or panels on your appliance due to missing or damaged screws.
• Inability to securely fasten parts during assembly or repairs, which can lead to operational issues or safety hazards.
• Screws stripping or corroding over time, which can compromise the stability and durability of the appliance.

Causes for replacing screws can include mechanical stress that causes screws to loosen or fall out, environmental factors like moisture leading to corrosion, or accidental damage during cleaning or maintenance.

This screw kit is designed to be universally compatible with various Frigidaire models, ensuring that you have the right screws for a range of repair needs.
