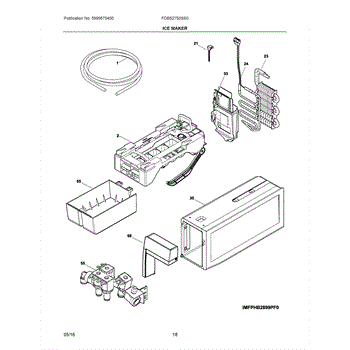

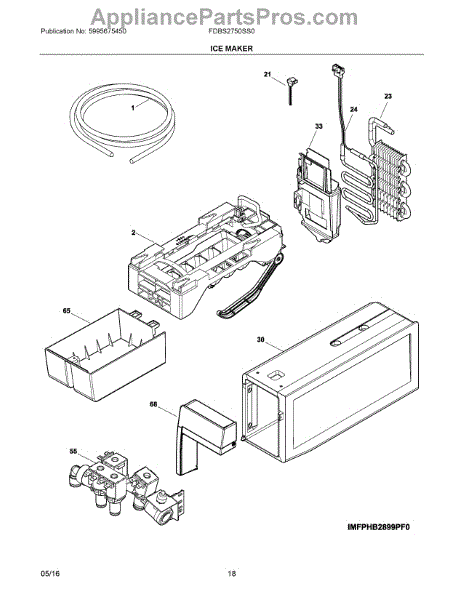

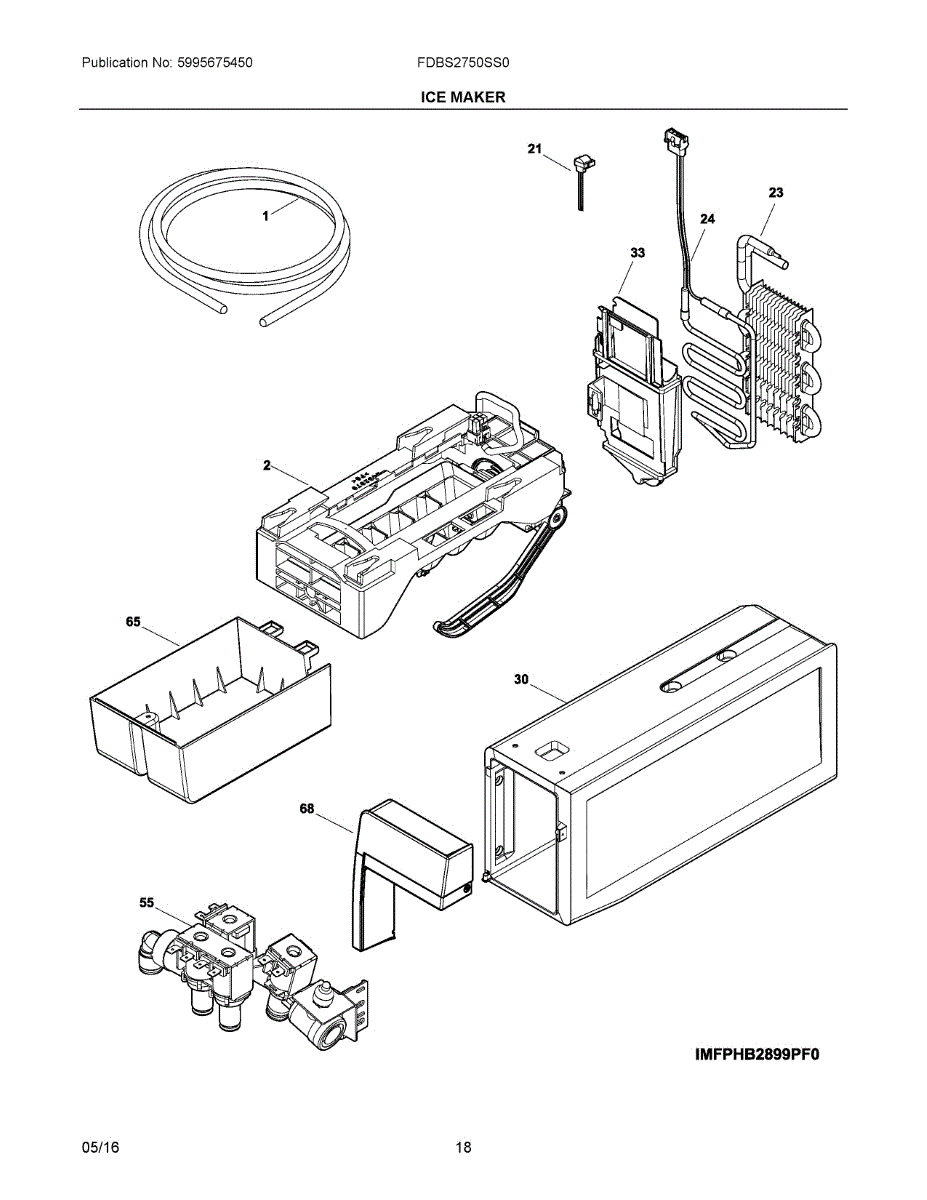

Parts for Frigidaire FDBS2750SS0: 09 - Ice Maker Parts

This water inlet tube routes water from the inlet valve to the ice maker and dispenser, restoring proper water flow and helping prevent leaks. Use when the original tube is cracked, split, or blocking water delivery. What it does:

• Directs water from the refrigerator inlet valve to the ice maker and dispenser assembly.
• Restores normal water flow if the original tube is crushed, cracked, or blocked.
• Helps stop leaks associated with damaged or deteriorated inlet tubing.
• Common symptoms: no water to ice maker or dispenser, slow dispenser flow, or visible leaking beneath the fridge.

• Disconnect electrical power and shut off the household water supply before starting.
• Handle tubing carefully and avoid sharp bends or kinks when routing.
• Check and reuse or replace any associated fittings, clips, or seals as needed for a secure, leak-free connection.

The Ice Maker Assembly is an OEM part for Frigidaire refrigerators. It is responsible for automatically producing batches of ice through a process of freezing water into cube form. The ice maker works in conjunction with the refrigerator's freezer compartment and water supply line to perform its ice production function.

Symptoms of a faulty ice maker include:

• Failure to produce ice cubes
• Oddly shaped, sparse, or chunky ice output
• Leaks or water pools in the freezer
• Strange noises coming from the ice maker area
• Error codes shown regarding ice maker performance

Causes of a bad ice maker assembly can include issues with components like the mold heater, water valve, or agitator that are vital to the freezing process. Improper refrigeration temperatures or clogs preventing water flow can also negatively impact ice production.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


The Defrost Thermostat is an OEM replacement part for Frigidaire upright freezers. It is a temperature-sensing device that monitors coil temperatures, triggering the automatic defrost cycle to safely melt frost buildup obstructing airflow. Located near refrigerator coils, the defrost thermostat optimizes energy-efficient defrosting.

Causes often relate to regular exposure to fluctuating interior freezer temperatures over extended periods. Impacts compromising calibration can also force early replacement.

Symptoms involve:

• Excessive ice accumulation hinders air circulation and cooling power
• The inability of the unit to maintain a frost-free interior environment
• Higher utility costs from the refrigerator constantly fight accumulation

This Frigidaire OEM replacement part fits upright models by Electrolux, Gibson, and some Kenmore models.

The Screw Kit is an OEM part for Frigidaire appliances. It contains various screws specifically designed to fit and secure different components of Frigidaire appliances, ensuring a tight and secure assembly. This kit is essential for both initial installations and for making repairs or replacements to existing appliances, providing the necessary hardware to maintain or restore the structural integrity of your appliance.  These screws are #10-16 x .500 inches long and can be loosened or tightened using either a Phillips-head or square-head screwdriver.

Symptoms of needing a new Screw Kit include:

• Loose components or panels on your appliance due to missing or damaged screws.
• Inability to securely fasten parts during assembly or repairs, which can lead to operational issues or safety hazards.
• Screws stripping or corroding over time, which can compromise the stability and durability of the appliance.

Causes for replacing screws can include mechanical stress that causes screws to loosen or fall out, environmental factors like moisture leading to corrosion, or accidental damage during cleaning or maintenance.

This screw kit is designed to be universally compatible with various Frigidaire models, ensuring that you have the right screws for a range of repair needs.

This refrigerator housing is the molded support used to mount and protect its associated components inside the appliance. Replacing a damaged housing restores a secure fit and proper alignment so parts stay in place and function correctly.

• Provides structural support and mounting points for the related controls/components
• Helps route air and/or wiring as designed by the manufacturer
• Restores proper alignment to reduce rattles, rubbing, or interference
• Symptoms can include cracked plastic, broken tabs, loose or sagging assemblies, or components that won't stay secured

• Disconnect power before servicing; shut off water as needed if working near dispenser/ice components
• Transfer sensors, wiring, controls, and hardware from the original housing unless new parts are supplied
• Reuse original screws/clips; avoid overtightening to prevent cracking
• Verify harness connections and clearances before restoring power and water

The Water Inlet Valve is an OEM part for Frigidaire refrigerators. It is designed to manage the flow of water to the ice maker and water dispenser. This solenoid-operated valve responds to commands from the refrigerator's electronic control, opening to allow water in and closing to stop the flow, ensuring proper operation of both ice production and water dispensing functions.

Symptoms of a bad Water Inlet Valve include:

• No water being dispensed or ice being made
• Leaking water at the back or bottom of the refrigerator
• An unusually noisy operation when the valve is activated

Causes of a bad water inlet valve can include mineral buildup, which may obstruct the flow of water, mechanical failure of the solenoids, or wear and tear that leads to leaks or failure to open/close properly.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This cover shields the control knob housing, protecting internal switch components and giving the control panel a finished look. Replacing a damaged cover helps keep debris out and maintains proper knob alignment and appearance.

• Protects the control area from dust, moisture, and accidental contact
• Helps maintain smooth knob operation and alignment
• Common failure signs: cracked or missing cover, loose knob feel, exposed control components
• Restores a clean, finished look to the control panel

• Disconnect power before servicing
• Pull off the knob, then release any tabs or screws retaining the cover
• Note orientation before removal; seat the new cover fully
• Reinstall knob and test for proper fit and operation

Replacement cover that restores appliance appearance and protects internal components from dirt and damage. Installs in place of a worn, cracked or missing cover to keep controls and wiring safely concealed and the unit looking finished. What it does:

• Protects the control area and internal components from spills, dust, and accidental contact.
• Hides and secures wiring and mounting points to prevent snagging or tampering.
• Restores the appliance's finished look when the original cover is scratched, cracked, broken, loose, or missing.
• Helps reduce the chance of debris entering sensitive areas that can affect performance.

• One replacement cover.

• Disconnect power (unplug or shut off circuit breaker) before attempting any service.
• Basic hand tools are typically required; support the cover while removing fasteners to avoid dropped parts.
• Handle edges carefully to avoid cuts and to prevent scratching adjacent surfaces.
• Refer to the appliance's service manual or model-specific instructions for exact removal and reinstallation steps.

Color: Black/natural. Nylon

This tube adapter connects and seals a refrigerator water line to the inlet or valve, restoring a secure water pathway for the ice maker or dispenser. Use it to stop leaks and re-establish reliable water flow. What it does

• Adapts and secures the appliance water tube to the inlet or valve, forming a leak-proof connection
• Restores proper water feed to the ice maker and/or water dispenser when the original adapter is damaged
• Helps prevent drips or steady leaks at the tube connection
• Works with standard refrigerator water tubing and compression fittings where specified

• One tube adapter

• Turn off the refrigerator power and shut off the household water supply before starting
• Remove the damaged adapter and clean tube ends; replace with this adapter using appropriate compression or push-fit method
• Tighten fittings to a snug, leak-free fit; avoid over-tightening plastic parts
• After installation, restore water and power, and check thoroughly for leaks

The Water Tube Kit is an OEM part for Frigidaire refrigerators. As an integral part of the ice maker system, the flexible tubing transports water from the external water supply to the internal ice maker assembly.

Symptoms of a bad water tube kit include:

• Slow or incomplete ice production when the ice maker is engaged
• Water leaks detected inside the refrigerator compartment
• Disconnection between the external water source and ice maker assembly

Causes may involve cracked or split tubing from repeated flexing during years of use, degraded connectors coming loose from vibrations, or punctures from impact or rodent damage.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Replacement water tube that carries water from the inlet valve to the dispenser and ice system, restoring water delivery and preventing leaks when the original tube is cracked, clogged, or disconnected. What it does:

• Routes water from the refrigerator inlet valve to the ice maker and/or water dispenser.
• Restores normal water flow when the existing tube is blocked, kinked, or leaking.
• Helps stop leaks and puddling caused by cracked or damaged tubing.
• Matches original routing and connections to maintain proper water delivery.

• Disconnect power and shut off the refrigerator water supply before starting work.
• Drain remaining water from the line and place a towel or tray to catch drips.
• Inspect connection fittings and any O-rings; replace seals if damaged to prevent leaks.
• After installation, restore water and power, then check all connections carefully for leaks.

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

This refrigerator clip is a small retainer that secures a component in place so it stays properly seated during use. Replacing a worn or missing clip restores a snug fit and helps eliminate looseness, rattling, or misalignment.

• Holds a part, panel, tube, or wire securely in its mounting point
• Maintains alignment to prevent shifting or vibration
• Helps preserve proper fit and airflow when components are correctly seated
• Symptoms can include loose or sagging pieces, rattling noises, or parts that won't stay attached

• Unplug the refrigerator; if working near water lines, shut off the water supply
• Note the clip's orientation before removal; take a photo for reference
• Use needle-nose pliers to release/install; avoid over-flexing the clip
• After installation, tug-test gently to confirm a secure fit before reassembling

This water fill chute kit channels incoming water from the fill tube into the ice maker mold. Replacing a cracked or deformed chute helps stop leaks and ice buildup at the fill area and supports consistent, properly directed fills for reliable ice production.

• Directs water from the inlet/fill tube into the ice maker mold during the fill cycle
• Helps prevent splashing, leaks, and ice accumulation at the fill point
• Replaces damaged, warped, or missing chute/funnel components
• Typical symptoms: water dripping near the ice maker, frost/ice around the fill area, cubes clumping together, intermittent ice production

• Disconnect power and shut off the household water supply before servicing
• Remove the ice bin and access the fill area at the rear/top of the ice maker
• Clear any ice blockage; remove fasteners/clips to take out the old chute; transfer any seals or grommets if present
• Align the new chute with the fill tube and mold, seat fully, secure, then restore water/power and run a test fill to check for leaks

The Fill Tube Kit is an OEM part for Frigidaire refrigerators. It contains the tubes used to direct water from the water supply line into the refrigerator's water dispenser and ice maker. As these tubes can degrade over time due to mineral buildup or cracking, this kit provides a like-new replacement to ensure optimal water flow.

Causes of a bad fill tube include mineral or limescale deposits restricting water flow, cracks or leaks developing from general wear and tear, or accidental damage from installation or maintenance issues.

Symptoms of a bad fill tube are:

• Slow or inconsistent water flow from the dispenser
• Dripping or leaks from the fill tube connection points
• Ice maker not working or producing small or misshapen ice cubes
• Water backing up or overflowing in the refrigerator

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle

This refrigerator water inlet tube routes water from the supply/valve into the appliance's water system. Replacing a cracked or kinked tube restores proper flow to the dispenser and ice maker while helping prevent leaks.

• Directs water from the inlet valve to internal components for dispensing and ice production
• Maintains a sealed, food-grade water path
• Replace if you notice leaks under/behind the unit, visible cracks/kinks, reduced or intermittent dispenser flow, or ice maker not filling
• Normal wear, brittleness, or damage during moves can lead to failures

• Disconnect power and shut off the water supply before servicing
• Place a towel or tray to catch residual water when disconnecting lines
• Note the original routing; release any retaining clips and disconnect the tube from fittings
• Route the new tube exactly like the original and fully seat tube ends in connectors; restore water and check for leaks

This refrigerator water inlet tube routes water from the supply/valve into the appliance's water system. Replacing a cracked or kinked tube restores proper flow to the dispenser and ice maker while helping prevent leaks.

• Directs water from the inlet valve to internal components for dispensing and ice production
• Maintains a sealed, food-grade water path
• Replace if you notice leaks under/behind the unit, visible cracks/kinks, reduced or intermittent dispenser flow, or ice maker not filling
• Normal wear, brittleness, or damage during moves can lead to failures

• Disconnect power and shut off the water supply before servicing
• Place a towel or tray to catch residual water when disconnecting lines
• Note the original routing; release any retaining clips and disconnect the tube from fittings
• Route the new tube exactly like the original and fully seat tube ends in connectors; restore water and check for leaks

This air handler housing and seal kit restores a tight, factory fit around the refrigerator's air plenum. Replacing a warped housing or flattened seals helps direct airflow correctly and prevent warm-air leaks that lead to frost, moisture, and temperature swings.

• Seals and supports the air-handler ducting to maintain designed airflow between compartments
• Helps keep temperatures stable and reduce moisture or frost caused by air leaks
• Replace if the housing is cracked/warped or the seals are torn, missing, or permanently compressed
• Symptoms may include weak airflow from vents, condensation/frost around the plenum, temperature fluctuations, or rattling from a loose housing

• Unplug the refrigerator and shut off water if working near ice/water components
• Remove shelves, drawers, and panels as needed to access the air handler area
• Carefully extract the old housing; clean mating surfaces and transfer any reusable parts from the original assembly as required
• Seat new seals evenly and fasten the housing without overtightening; reassemble and verify airflow

This air handler housing and seal kit restores a tight, factory fit around the refrigerator's air plenum. Replacing a warped housing or flattened seals helps direct airflow correctly and prevent warm-air leaks that lead to frost, moisture, and temperature swings.

• Seals and supports the air-handler ducting to maintain designed airflow between compartments
• Helps keep temperatures stable and reduce moisture or frost caused by air leaks
• Replace if the housing is cracked/warped or the seals are torn, missing, or permanently compressed
• Symptoms may include weak airflow from vents, condensation/frost around the plenum, temperature fluctuations, or rattling from a loose housing

• Unplug the refrigerator and shut off water if working near ice/water components
• Remove shelves, drawers, and panels as needed to access the air handler area
• Carefully extract the old housing; clean mating surfaces and transfer any reusable parts from the original assembly as required
• Seat new seals evenly and fasten the housing without overtightening; reassemble and verify airflow

This air handler housing and seal kit restores a tight, factory fit around the refrigerator's air plenum. Replacing a warped housing or flattened seals helps direct airflow correctly and prevent warm-air leaks that lead to frost, moisture, and temperature swings.

• Seals and supports the air-handler ducting to maintain designed airflow between compartments
• Helps keep temperatures stable and reduce moisture or frost caused by air leaks
• Replace if the housing is cracked/warped or the seals are torn, missing, or permanently compressed
• Symptoms may include weak airflow from vents, condensation/frost around the plenum, temperature fluctuations, or rattling from a loose housing

• Unplug the refrigerator and shut off water if working near ice/water components
• Remove shelves, drawers, and panels as needed to access the air handler area
• Carefully extract the old housing; clean mating surfaces and transfer any reusable parts from the original assembly as required
• Seat new seals evenly and fasten the housing without overtightening; reassemble and verify airflow

This air handler housing and seal kit restores a tight, factory fit around the refrigerator's air plenum. Replacing a warped housing or flattened seals helps direct airflow correctly and prevent warm-air leaks that lead to frost, moisture, and temperature swings.

• Seals and supports the air-handler ducting to maintain designed airflow between compartments
• Helps keep temperatures stable and reduce moisture or frost caused by air leaks
• Replace if the housing is cracked/warped or the seals are torn, missing, or permanently compressed
• Symptoms may include weak airflow from vents, condensation/frost around the plenum, temperature fluctuations, or rattling from a loose housing

• Unplug the refrigerator and shut off water if working near ice/water components
• Remove shelves, drawers, and panels as needed to access the air handler area
• Carefully extract the old housing; clean mating surfaces and transfer any reusable parts from the original assembly as required
• Seat new seals evenly and fasten the housing without overtightening; reassemble and verify airflow

This air handler housing and seal kit restores a tight, factory fit around the refrigerator's air plenum. Replacing a warped housing or flattened seals helps direct airflow correctly and prevent warm-air leaks that lead to frost, moisture, and temperature swings.

• Seals and supports the air-handler ducting to maintain designed airflow between compartments
• Helps keep temperatures stable and reduce moisture or frost caused by air leaks
• Replace if the housing is cracked/warped or the seals are torn, missing, or permanently compressed
• Symptoms may include weak airflow from vents, condensation/frost around the plenum, temperature fluctuations, or rattling from a loose housing

• Unplug the refrigerator and shut off water if working near ice/water components
• Remove shelves, drawers, and panels as needed to access the air handler area
• Carefully extract the old housing; clean mating surfaces and transfer any reusable parts from the original assembly as required
• Seat new seals evenly and fasten the housing without overtightening; reassemble and verify airflow

This air handler housing and seal kit restores a tight, factory fit around the refrigerator's air plenum. Replacing a warped housing or flattened seals helps direct airflow correctly and prevent warm-air leaks that lead to frost, moisture, and temperature swings.

• Seals and supports the air-handler ducting to maintain designed airflow between compartments
• Helps keep temperatures stable and reduce moisture or frost caused by air leaks
• Replace if the housing is cracked/warped or the seals are torn, missing, or permanently compressed
• Symptoms may include weak airflow from vents, condensation/frost around the plenum, temperature fluctuations, or rattling from a loose housing

• Unplug the refrigerator and shut off water if working near ice/water components
• Remove shelves, drawers, and panels as needed to access the air handler area
• Carefully extract the old housing; clean mating surfaces and transfer any reusable parts from the original assembly as required
• Seat new seals evenly and fasten the housing without overtightening; reassemble and verify airflow

This air handler housing and seal kit restores a tight, factory fit around the refrigerator's air plenum. Replacing a warped housing or flattened seals helps direct airflow correctly and prevent warm-air leaks that lead to frost, moisture, and temperature swings.

• Seals and supports the air-handler ducting to maintain designed airflow between compartments
• Helps keep temperatures stable and reduce moisture or frost caused by air leaks
• Replace if the housing is cracked/warped or the seals are torn, missing, or permanently compressed
• Symptoms may include weak airflow from vents, condensation/frost around the plenum, temperature fluctuations, or rattling from a loose housing

• Unplug the refrigerator and shut off water if working near ice/water components
• Remove shelves, drawers, and panels as needed to access the air handler area
• Carefully extract the old housing; clean mating surfaces and transfer any reusable parts from the original assembly as required
• Seat new seals evenly and fasten the housing without overtightening; reassemble and verify airflow
