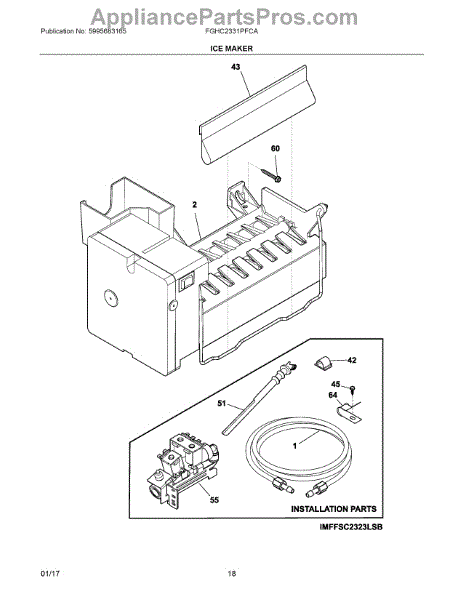

Parts for Frigidaire FGHC2331PFCA: 10 - Ice Maker Parts

This refrigerator water tube carries water between internal components such as the inlet valve, filter/reservoir, dispenser, or ice maker. Replacing a brittle, kinked, or leaking tube helps restore proper water flow and prevents messy leaks. What it does:

• Routes water within the refrigerator's water and ice system
• Helps deliver water to the dispenser and/or ice maker
• Common symptoms of a bad tube: leaks, poor dispenser flow, no ice production, visible cracks/kinks, or dripping at connections
• Restores dependable water delivery when tubing is damaged

• 1 water tube

• Unplug the refrigerator and shut off the water supply before servicing
• Note the tube's routing and connection points; take photos for reference
• Cut tubing ends squarely if trimming and fully seat into existing fittings
• Turn water back on and check all connections for leaks; flush the system to clear air

The Ice Maker is an OEM replacement part for Frigidaire refrigerators. Located inside the freezer compartment, it produces batches of cube-shaped ice automatically on demand. The ice maker features a freshwater inlet, ice-forming tray, and harvest mechanism to eject fully formed ice cubes downward into the storage bin below.

Causes of a bad icemaker can include mineral or scale buildup that interferes with the freezing and ejection mechanisms over time, worn components like the harvest arm or water valve, or problems with the water supply line.

Symptoms of a bad icemaker include:

• Inadequate ice production or none at all
• Partially formed or misshapen ice cubes
• Frequent jams or failures during the harvest cycle
• Leaking water from the production area.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

This replacement screw fastens appliance components such as panels, brackets, and covers. Installing a new fastener restores a snug, rattle-free fit when the original screw is missing, stripped, or corroded.

• Secures covers, brackets, or trim to the cabinet or liner
• Replaces missing, stripped, or rusted hardware
• Helps reduce vibration and rattling from loose parts
• Supports proper alignment and stability of assemblies

• Disconnect power before servicing the appliance
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Do not overtighten, especially into plastic or thin sheet metal
• Retain and reinstall any original washers or spacers, if present

This replacement tube carries water from the inlet valve into the refrigerator's icemaker. An intact fill tube helps route water cleanly to the mold, reducing leaks, drips, and ice build-up around the fill area.

• Directs water into the icemaker fill cup/mold during the fill cycle
• Helps seal the cabinet pass-through to prevent leaks and frost intrusion
• Replaces tubes that are cracked, kinked, or blocked by ice/mineral deposits
• Symptoms may include no ice or small cubes, water dripping/ice sheet in the freezer, or frost near the fill tube

• Unplug the refrigerator and shut off the water supply before servicing
• Remove the icemaker as needed, clear any ice from the fill opening, and pull the old tube from the cabinet port
• Insert the new tube fully, align it with the icemaker fill cup, and reconnect the water line
• Restore water and power, then check for proper fill and leaks

This Refrigerator Water Valve is a genuine OEM replacement part for Frigidaire refrigerators. It is responsible for controlling the flow of water into the refrigerator's ice maker and water dispenser. This part ensures a steady and reliable water supply for ice production and water dispensing.

Causes of a bad water valve can include a faulty solenoid, clogged or blocked water lines, or a malfunctioning water pressure regulator. These issues can result in a variety of problems, such as slow or no ice production, weak water flow from the dispenser, or leaks around the valve.

Symptoms of a bad water valve include:

• No ice cubes being produced
• Low water pressure or weak water flow from the dispenser
• Leaks around the water valve or water lines
• Inconsistent ice production or dispensing

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This spring-style hose clamp secures flexible appliance hoses and helps prevent leaks by holding hose ends tightly to fittings. Reliable, low-profile design for use on drain, water, or vent hoses where a strong, consistent grip is needed. What it does:

• Provides a spring-tensioned grip to keep hoses seated on fittings and reduce leaks
• Commonly used on flexible drain or water hoses and small vent lines
• Helps maintain proper connection under normal vibration and thermal cycling
• Replaces worn, stretched, or corroded clamps that no longer hold tension

• One spring hose clamp (exact quantity as sold)

• Use pliers to expand the clamp, slide into position, then release to seat on the fitting
• Inspect hose ends and fittings for wear; replace hose if damaged before installing clamp
• Wear eye protection when compressing the clamp; keep fingers clear of the clamp's edges
• Tighten only as needed—over-compressing can damage the hose

The Ice Maker Fill Tube Assembly is an OEM replacement part for Frigidaire refrigerators. As a component of the automatic icemaker, this fill tube assembly transports water from the water supply line into the ice molding chamber.

Causes of a bad fill tube assembly can include cracks, leaks, or blockages developing over time due to mineral buildup or mold growth inside the plastic tubing. Constant bending during ice production also leads to tubing fatigue.

Symptoms of a bad fill tube assembly include:

• Icemaker not filling with water or producing ice
• Water leaks in the freezer compartment
• Mineral residue or mold observed inside the tubing

This OEM Frigidaire part is compatible with models including Electrolux, Gibson, Kelvinator, and some Kenmore units.
