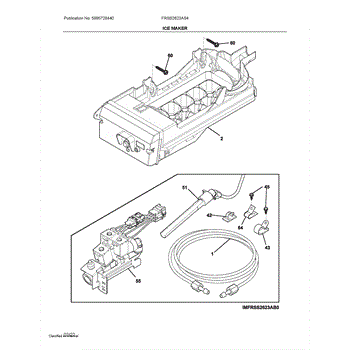

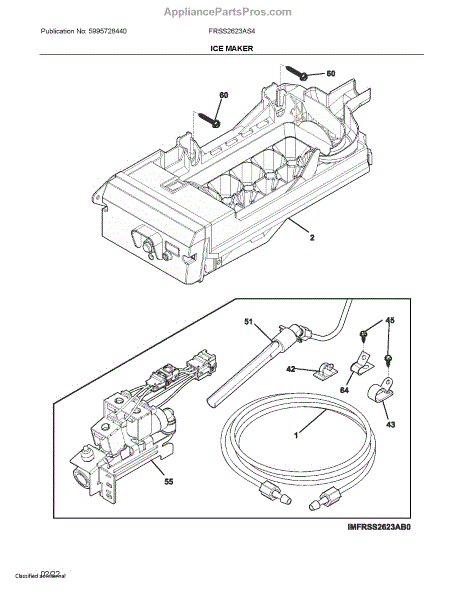

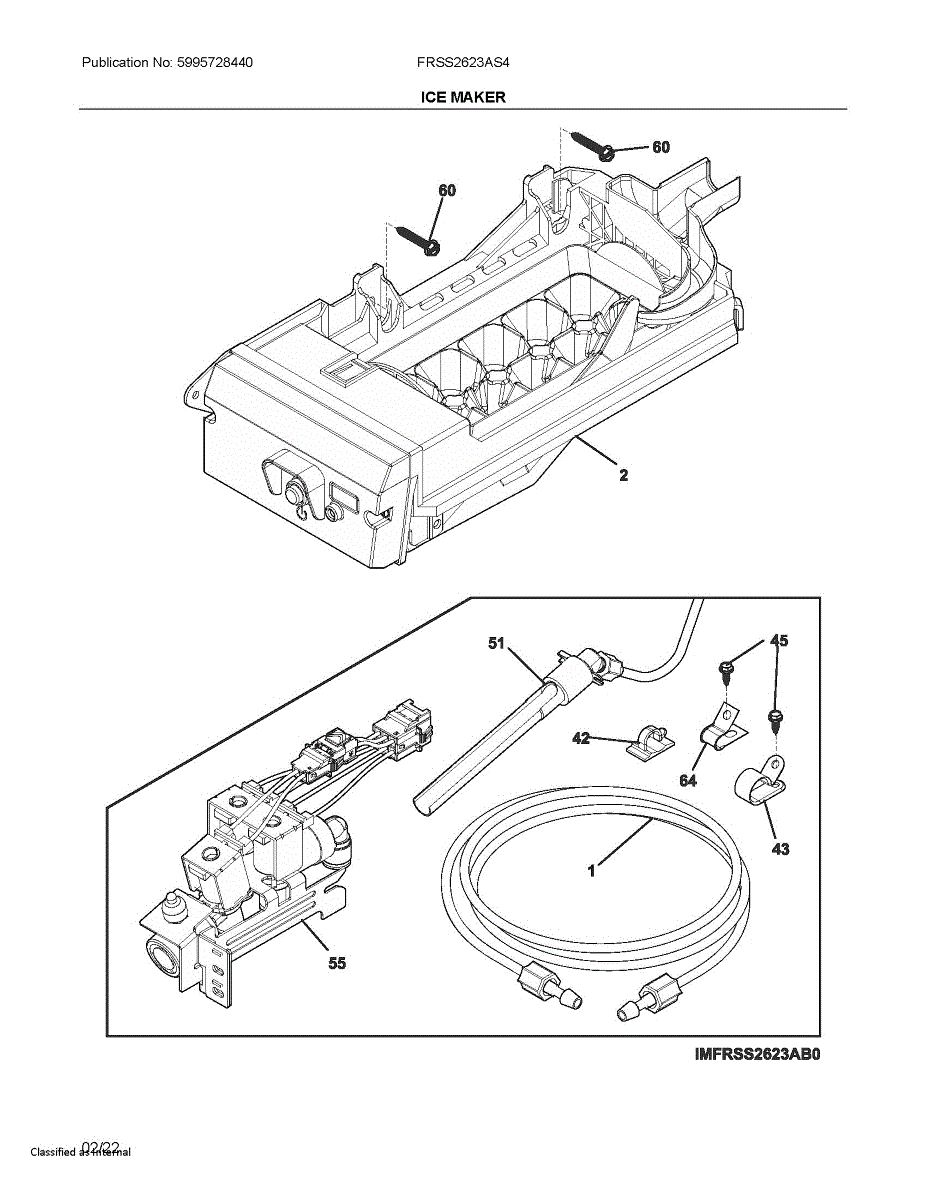

Parts for Frigidaire FRSS2623AS4: Ice Maker Parts

This refrigerator water tube carries water between internal components such as the inlet valve, filter/reservoir, dispenser, or ice maker. Replacing a brittle, kinked, or leaking tube helps restore proper water flow and prevents messy leaks. What it does:

• Routes water within the refrigerator's water and ice system
• Helps deliver water to the dispenser and/or ice maker
• Common symptoms of a bad tube: leaks, poor dispenser flow, no ice production, visible cracks/kinks, or dripping at connections
• Restores dependable water delivery when tubing is damaged

• 1 water tube

• Unplug the refrigerator and shut off the water supply before servicing
• Note the tube's routing and connection points; take photos for reference
• Cut tubing ends squarely if trimming and fully seat into existing fittings
• Turn water back on and check all connections for leaks; flush the system to clear air

The Ice Maker is an OEM part for Frigidaire refrigerators. Located inside the freezer compartment, it produces batches of bullet-shaped ice to be accessed through the door dispenser. As the component tasked with creating on-demand ice, the ice maker plays an important role in offering refreshed beverages.

Causes of a bad ice maker include normal wear of internal parts like the water fill tube, freezer coil, or gear motor over extended use. Mineral sediment within hard water areas could also impact performance by restricting water flow or freezing mechanisms over time.

Symptoms of a faulty ice maker involve:

• Insufficient ice production
• Odd sized cubes
• Loud freezing noises
• Ice with inconsistent texture or cloudiness

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This grille clip is a small plastic retainer that secures a refrigerator grille or trim piece to the cabinet, keeping the front panels aligned and preventing rattles or gaps for a tidy appearance. What it does:

• Secures the lower/front grille or trim to the appliance cabinet to hold it in place
• Prevents grille movement, rattling, or sagging that can occur with worn clips
• Helps maintain a tight fit between trim and cabinet for a finished look
• Simple replacement part when existing clip is cracked, broken, or missing

• One grille clip

• Typically snaps into place; inspect mating slot and clip orientation before installing
• Replace any damaged adjacent clips for even support and fit
• Work carefully to avoid damaging the grille or surrounding trim

This replacement screw fastens appliance components such as panels, brackets, and covers. Installing a new fastener restores a snug, rattle-free fit when the original screw is missing, stripped, or corroded.

• Secures covers, brackets, or trim to the cabinet or liner
• Replaces missing, stripped, or rusted hardware
• Helps reduce vibration and rattling from loose parts
• Supports proper alignment and stability of assemblies

• Disconnect power before servicing the appliance
• Use the correct driver/bit and start threads by hand to avoid cross-threading
• Do not overtighten, especially into plastic or thin sheet metal
• Retain and reinstall any original washers or spacers, if present

The Icemaker Fill Tube is an OEM part for Frigidaire refrigerators. This tube is responsible for directing water from the water supply line to the icemaker, allowing for the production of ice. It ensures that water is efficiently delivered to the icemaker without leaks or blockages.

You should replace the icemaker fill tube if it becomes damaged or blocked. Causes of a bad fill tube can include mineral deposits or debris clogging the tube, cracks or leaks from wear and tear, or damage from mishandling during maintenance.

Symptoms of a bad icemaker fill tube include:

• No ice production
• Leaks around the icemaker area
• Ice cubes being smaller than usual
• Water overflowing or not reaching the icemaker

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This Refrigerator Water Valve is a genuine OEM replacement part for Frigidaire refrigerators. It is responsible for controlling the flow of water into the refrigerator's ice maker and water dispenser. This part ensures a steady and reliable water supply for ice production and water dispensing.

Causes of a bad water valve can include a faulty solenoid, clogged or blocked water lines, or a malfunctioning water pressure regulator. These issues can result in a variety of problems, such as slow or no ice production, weak water flow from the dispenser, or leaks around the valve.

Symptoms of a bad water valve include:

• No ice cubes being produced
• Low water pressure or weak water flow from the dispenser
• Leaks around the water valve or water lines
• Inconsistent ice production or dispensing

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components

This spring-style hose clamp secures flexible appliance hoses and helps prevent leaks by holding hose ends tightly to fittings. Reliable, low-profile design for use on drain, water, or vent hoses where a strong, consistent grip is needed. What it does:

• Provides a spring-tensioned grip to keep hoses seated on fittings and reduce leaks
• Commonly used on flexible drain or water hoses and small vent lines
• Helps maintain proper connection under normal vibration and thermal cycling
• Replaces worn, stretched, or corroded clamps that no longer hold tension

• One spring hose clamp (exact quantity as sold)

• Use pliers to expand the clamp, slide into position, then release to seat on the fitting
• Inspect hose ends and fittings for wear; replace hose if damaged before installing clamp
• Wear eye protection when compressing the clamp; keep fingers clear of the clamp's edges
• Tighten only as needed—over-compressing can damage the hose

This water inlet tube routes potable water from the refrigerator's inlet/valve to the dispenser and ice-making components, helping restore normal water delivery and prevent leaks when damaged. What it does

• Channels water from the inlet valve to the dispenser/ice maker assembly.
• Replaces cracked, kinked, or clogged tubing that can cause leaks or reduced flow.
• Helps stop visible dripping, puddling, or intermittent water flow at the dispenser.
• Works as a direct-fit plumbing replacement when the original tube is damaged.

• One water inlet tube

• Turn off refrigerator power and shut off the water supply before starting.
• Inspect fittings and seals; replace any damaged ferrules or gaskets for a watertight connection.
• Use basic hand tools; avoid sharp bends or kinks when routing the tube.
• After installation, restore water and power, then check all connections for leaks.
