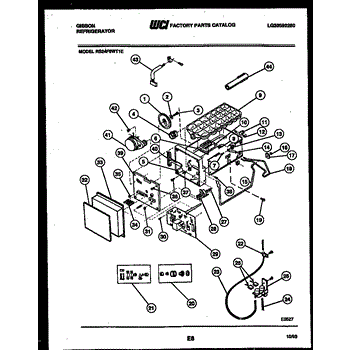

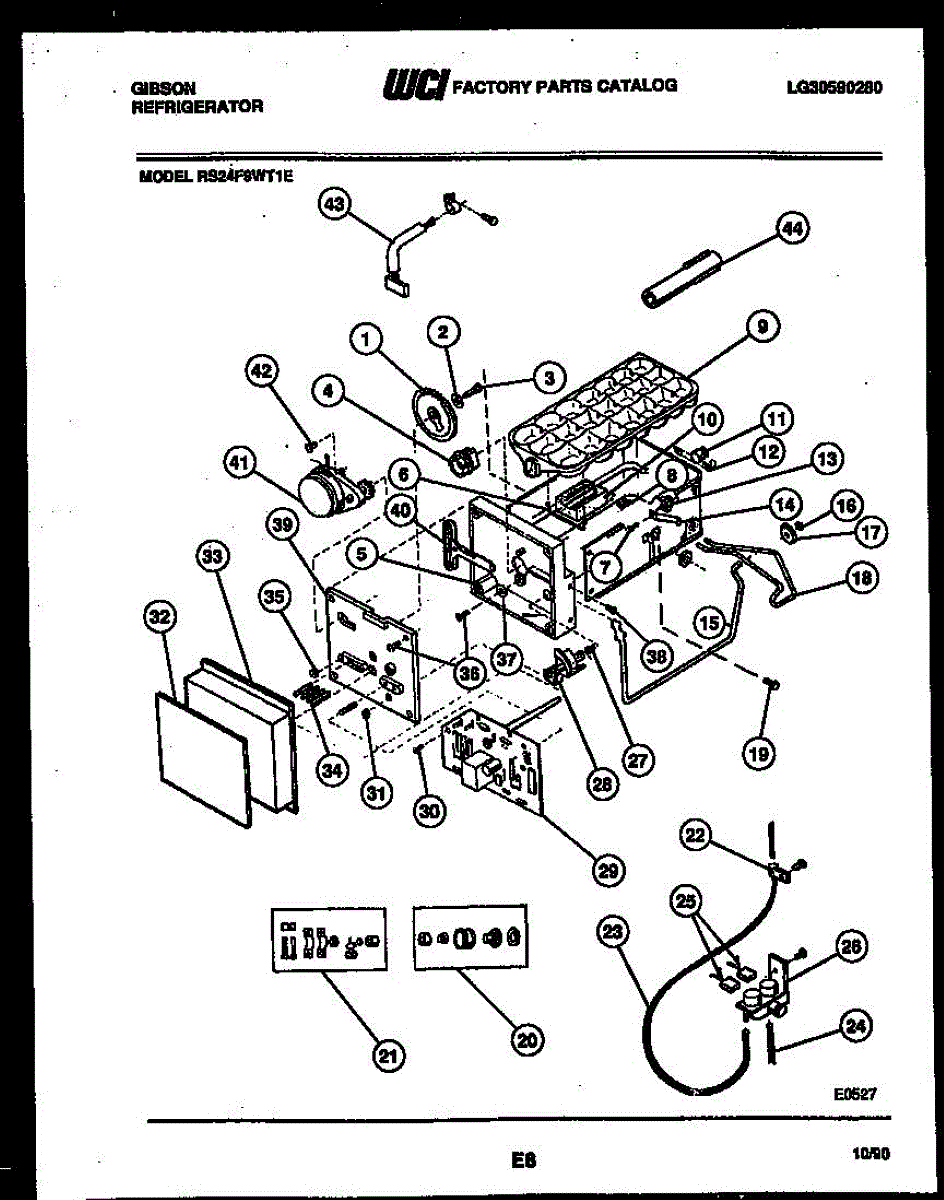

Parts for Frigidaire RS24F9WT1E: 09 - Ice Maker Parts

Drive gear for refrigerator ice maker or auger assembly. Replace if teeth are stripped, worn, cracked, or broken to restore mechanical operation.

This part has been discontinued by the manufacturer and is no longer available.

Ice bin tray for refrigerator freezer compartments. Replaces cracked, broken, or missing trays that hold ice cubes in the ice maker assembly.

This replacement insulator cushions and secures appliance components to reduce vibration and noise for smoother operation. A simple, durable part that restores proper spacing and helps prevent rubbing or wear from vibration. What it does

• Cushions components to reduce vibration, rattling and noise during operation
• Helps maintain correct spacing and alignment of mounted parts
• Protects parts from wear by preventing metal-to-metal contact
• Commonly replaced when vibration or unusual noise is present

• One insulator

• Disconnect power (unplug or shut off breaker) before starting any repair
• Remove access panels or panels required to reach the original insulator
• Press or seat the insulator into the original mounting location; may require light hand force or basic tools
• Inspect surrounding mounting hardware and replace any worn clips or fasteners for a secure fit

This part has been discontinued by the manufacturer and is no longer available.

This replacement hinge spring helps the oven door open and close smoothly by restoring proper tension to the door hinge assembly. Replaces worn or broken hinge springs so the door stays balanced and moves without slipping. What it does

• Provides tension for the oven door hinge so the door opens and closes evenly
• Helps keep the door from falling open or slamming shut due to worn spring tension
• Restores correct alignment that can reduce rubbing or uneven movement
• Commonly replaced when door feels loose, drops, or doesn't stay in the desired position

• One hinge tension spring

• Disconnect power to the appliance and allow oven to cool before servicing
• Removing the oven door or loosening hinge brackets may be required for access
• Handle springs carefully; they are under tension — wear eye protection and follow factory service instructions

1/4"diameter - 93" long, plastic, cut-to fit

Water tube insert sleeve for refrigerators. Fits inside water line connections to prevent leaks. Replace if cracked, damaged, or missing.

Water fill tube that directs water from the supply line into the ice maker. Replace if cracked, frozen, or the connection point is damaged or broken.

1/4"diameter - 93" long, plastic, cut-to fit

No water from dispenser or ice maker not filling? This dual-solenoid water inlet valve controls flow to both systems. Direct replacement restores operation.

This part has been discontinued and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.
