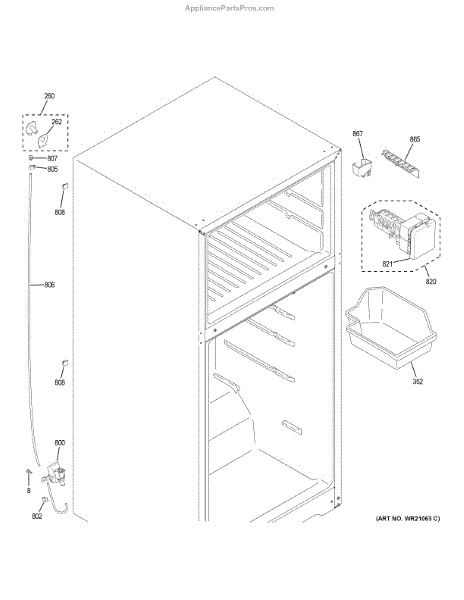

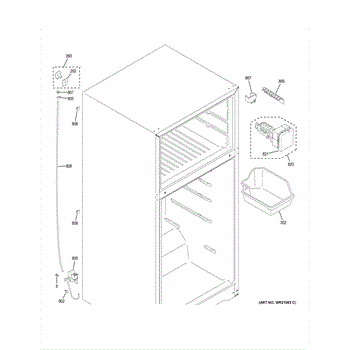

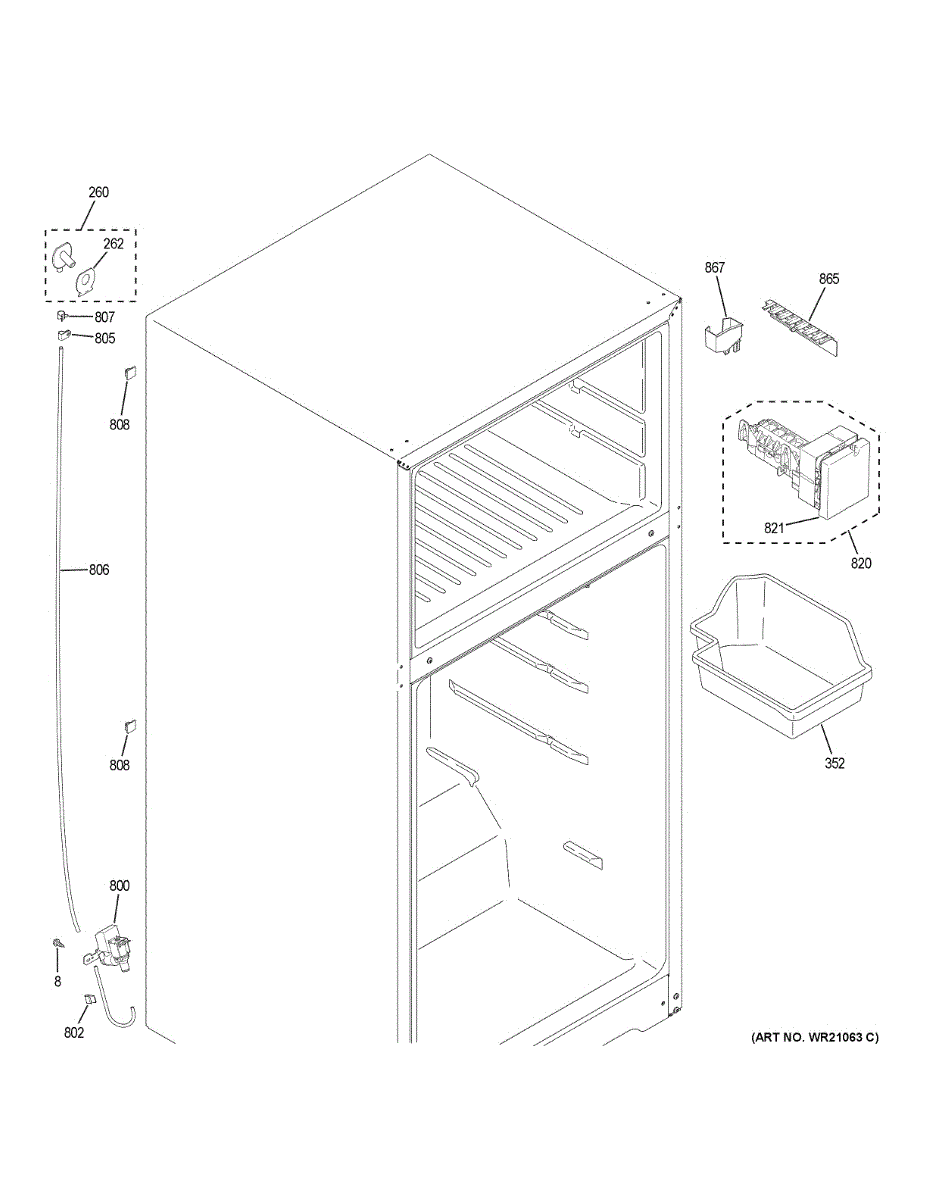

Parts for Ge GTS18FGLBBB: Ice Maker Parts

This replacement screw secures appliance components and panels where an 8-36 threaded fastener is required. Durable and ready for repair, it restores proper fit and reduces rattles or loose parts. What it does:

• Fastens panels, brackets, or components that use an 8-36 threaded screw
• Replaces stripped, lost, or damaged screws that cause vibration or loose parts
• Restores secure mechanical connections to help maintain normal operation

• One screw

• Disconnect power and follow appliance safety procedures before starting repairs
• Use the correct driver and match thread engagement; do not force or cross-thread
• Tighten to snug; avoid overtightening which can strip threads or damage parts

The Grommet and Gasket Assembly is an OEM part for GE refrigerators. It is designed to create a secure seal around various refrigerator components, preventing air leaks and ensuring efficient operation. This assembly typically includes both the grommet and gasket, which work together to maintain the refrigerator's internal temperature and prevent moisture and contaminants from entering.

You should replace the grommet and gasket assembly if it becomes worn out or damaged. Causes of a bad grommet and gasket assembly can include regular wear and tear, exposure to temperature fluctuations, or physical damage that leads to cracks or deformities. A compromised seal can result in inefficient cooling and increased energy consumption.

Symptoms of a bad grommet and gasket assembly include:

• Air leaks around the refrigerator door or components
• Increased energy bills due to inefficient cooling
• Frost or condensation buildup inside the refrigerator
• Difficulty in maintaining the desired temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Water Valve and Tube Assembly is an OEM replacement part for GE side-by-side refrigerators. It serves as the inlet valve installed inside the fresh food compartment.

Causes of a faulty assembly can include mineral buildup inhibiting proper valve opening or cracking/splitting of aging plastic tubes. Electrical issues affecting the valve solenoid may also develop over time.

Symptoms of a problematic assembly include:

• Ice maker or water dispenser unable to consistently produce ice/water
• Leaks present around the rear inlet area
• Valve components failed to activate

Compatible models also include Profile and Monogram side-by-side refrigerators.

This small donut-shaped gasket fits where specified in your refrigerator's parts diagram to create a tight seal between mating components. Replacing a worn gasket helps stop minor leaks and restore a secure fit.

• Forms a tight seal at the designated joint or fitting
• Helps prevent seepage or drips from a compromised connection
• Replaces a brittle, cracked, flattened, or missing original gasket
• Supports proper assembly alignment and a snug fit

• Unplug the refrigerator and, if servicing the water system, shut off the water supply
• Note the gasket's original placement and orientation before removal
• Clean mating surfaces; lightly moisten the new gasket to ease seating
• Reassemble without overtightening; restore power/water and check for leaks

The Ice Bucket is an OEM part for GE refrigerators. It is a component that stores ice from the icemaker in the freezer compartment. The ice bucket allows for convenient access to ice on demand, fitting seamlessly within the refrigerator design.

Symptoms of a bad ice bucket include:

• Cracks or damage to the plastic material
• Inability to easily remove or insert the bucket
• Ice falling out of the bucket improperly
• Missing parts like the handle

Note: This is just the ice bucket. It does not include other ice maker components.

Replace your worn ice bucket before further issues arise like ice spilling in the freezer. This OEM GE part restores your refrigerator’s storage and access to ice. It is also compatible with Hotpoint, RCA, and Kenmore refrigerators.


This U-shaped clip secures trim and components in place on compatible GE appliances, helping keep panels and assemblies aligned for reliable operation. Simple replacement when a broken or missing clip causes loose trim or rattling. What it does:

• Holds trim, panels or small assemblies in position to prevent movement
• Restores secure fit where a worn or broken clip allows gaps or vibration
• Helps eliminate rattling, misaligned doors, or loose internal components
• Works as a direct-fit replacement for the same OEM clip design

• One U-shaped retaining clip

• Turn power off and unplug the appliance before accessing panels or parts
• Remove any trim or screws carefully to reach the clip location; retain fasteners
• Clip typically snaps into place; replace any damaged surrounding hardware

This cable clamp secures refrigerator wiring to the cabinet, keeping harnesses organized and protected. Replacing a missing or damaged clamp helps prevent chafing and vibration noise while maintaining proper clearance from fans and other moving components.

• Anchors wire harnesses in their designed routing
• Helps prevent insulation wear from rubbing or vibration
• Keeps wires clear of sharp edges and moving parts
• Common signs it's needed: missing/broken clamp, loose or dangling wires, or new rattling/buzzing noises

• Disconnect power before servicing
• Access the clamp location and note original wire routing
• Position the clamp and secure with the existing fastener; do not overtighten
• Ensure wires aren't pinched and have clearance from the fan/compressor before restoring power

The Ice Maker Water Line is an OEM replacement part for GE refrigerators. It is an important supply line that delivers water from the main water source to the icemaker component. The water line allows water to flow smoothly, facilitating the icemaking process.

Causes of a bad water line can include cracks or punctures from impact or bending, mineral deposits and corrosion building up inside the line restricting flow, or improper connection fittings causing leakage.

Symptoms of a bad ice maker water line include:

• Irregular or insufficient ice production
• No water delivery to the icemaker despite activation
• Noticeable leaks or drips near the water line attachment points
• Strange knocking or hammering sounds are heard when the icemaker is running

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement clamp secures lines or components inside the refrigerator, keeping them properly routed and stable. Replacing a broken or missing clamp helps reduce vibration and prevents rubbing damage or leaks from loose tubing. What it does:

• Holds tubing or wiring harnesses securely in place inside the refrigerator
• Maintains correct routing and clearance to prevent chafing and wear
• Helps reduce vibration and rattling noises from unsecured lines
• Can help prevent drips or leaks when used to retain water tubing

• 1 clamp

• Unplug the refrigerator and, if working with water lines, shut off the water supply
• Note the original clamp orientation and routing; take a photo before removal
• Install the new clamp in the same location, securing lines without pinching or over-stressing them
• Restore power (and water if applicable) and check that lines are secure; inspect for leaks if used on water tubing

This small hardware clamp is used on select refrigerators to secure tubing or wiring to the cabinet or frame. Replaces a missing or damaged clamp to keep lines stable, reduce vibration, and help prevent rubbing or leaks.

• Secures small water tubing or electrical harnesses along the cabinet/frame
• Helps prevent vibration, rattling, and abrasion of lines
• Maintains correct routing to keep lines clear of moving or hot components
• Common clues: loose or noisy lines, chafing marks, or moisture near tubing connections

• Unplug the appliance and shut off the water supply before servicing
• Note the original location and routing; take a photo for reference
• Reuse the existing mounting screw/fastener if required; tighten only enough to hold without crushing tubing
• Restore power and water, then run and inspect for vibration and leaks

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.

This ice maker stripper is the front comb that helps release cubes from the ejector during harvest. It guides ice cleanly into the bin to reduce jams and keep ice production running smoothly. What it does

• Strips ice cubes off the ejector fingers as the ice maker cycles
• Directs cubes into the bucket, helping prevent jams and cube bridging
• Wear, cracks, or warping can cause cubes to stick, spill, or clump
• Symptoms include cubes piling at the front, clicking during harvest, or reduced/no ice

• 1 ice maker stripper

• Disconnect power and shut off water before servicing
• Remove the ice bin and access the ice maker front (remove cover if present)
• Release the old stripper (tabs/screws), align the new stripper with the ejector fingers, and seat it fully
• Reinstall cover and bin; restore power and allow a full cycle to verify operation

This ice maker fill cup directs water from the refrigerator fill tube into the ice maker mold so each cycle fills correctly. Replacing a damaged cup restores consistent ice production and helps prevent water spills. What it does:

• Channels water from the fill tube into the ice maker mold for proper tray filling.
• Prevents water from dripping into the freezer compartment when intact.
• A cracked, warped, or missing fill cup can cause underfilled ice cubes, overflowing molds, or water pooling in the freezer.
• Compatible with common top/front-mounted household ice makers that use a separate plastic fill cup.

• Disconnect power and shut off the water supply before starting work.
• Remove the ice bin or ice maker assembly as needed to access the fill cup.
• The cup typically snaps or slides into place; use gentle pressure and avoid forcing plastic tabs.
